Model Details

1014-4.5F

Printer Friendly
1014-4.5F

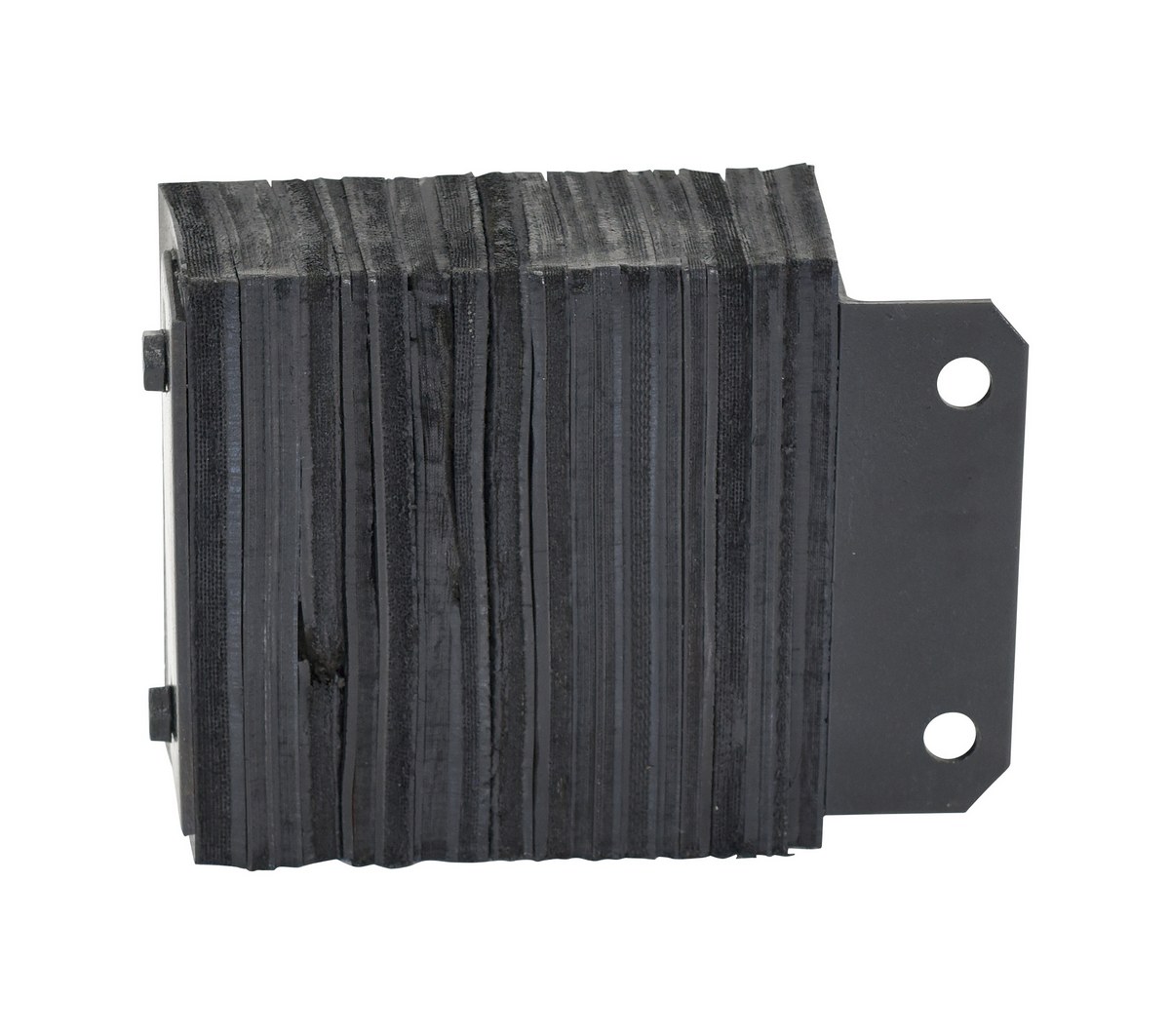

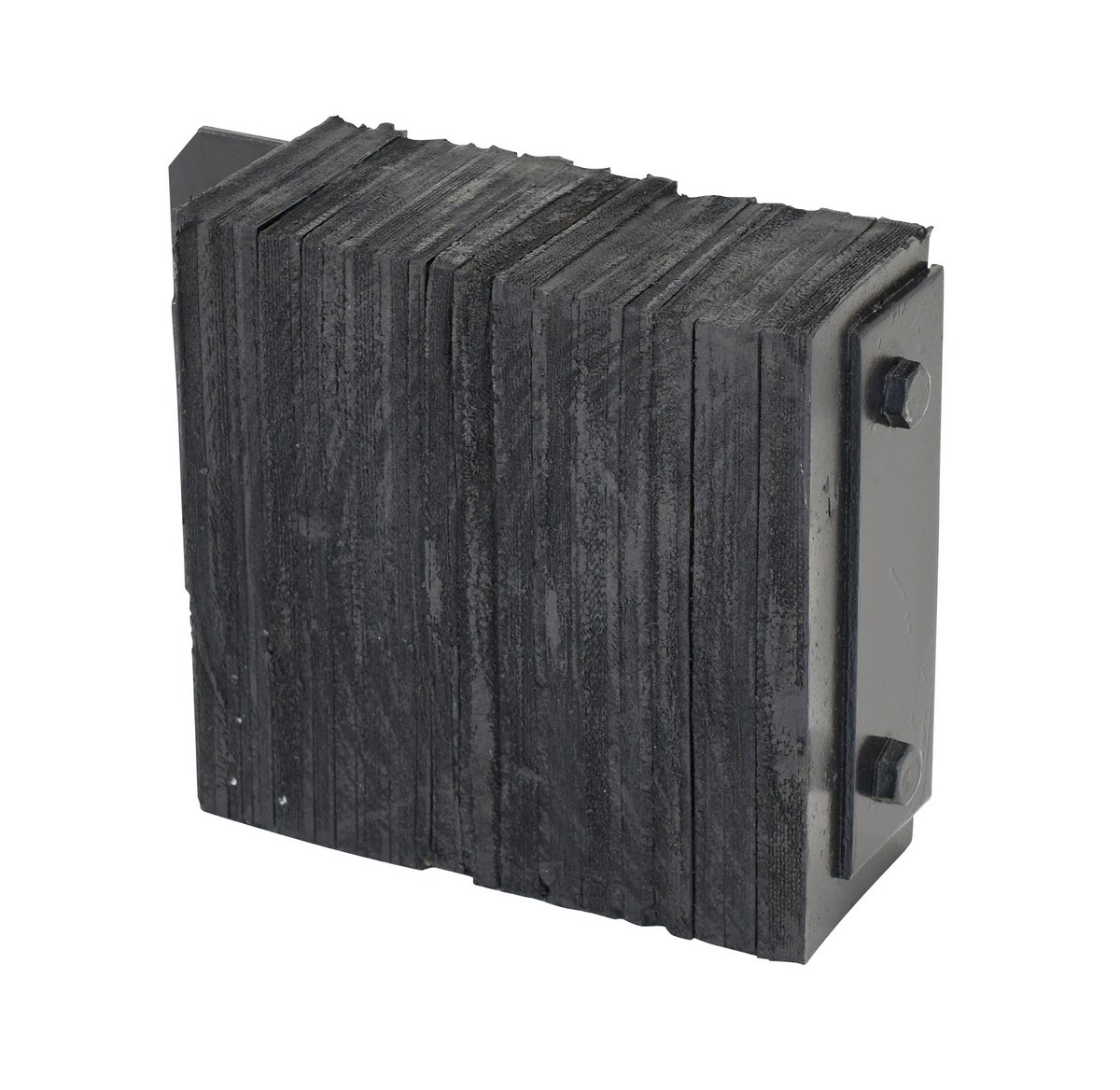

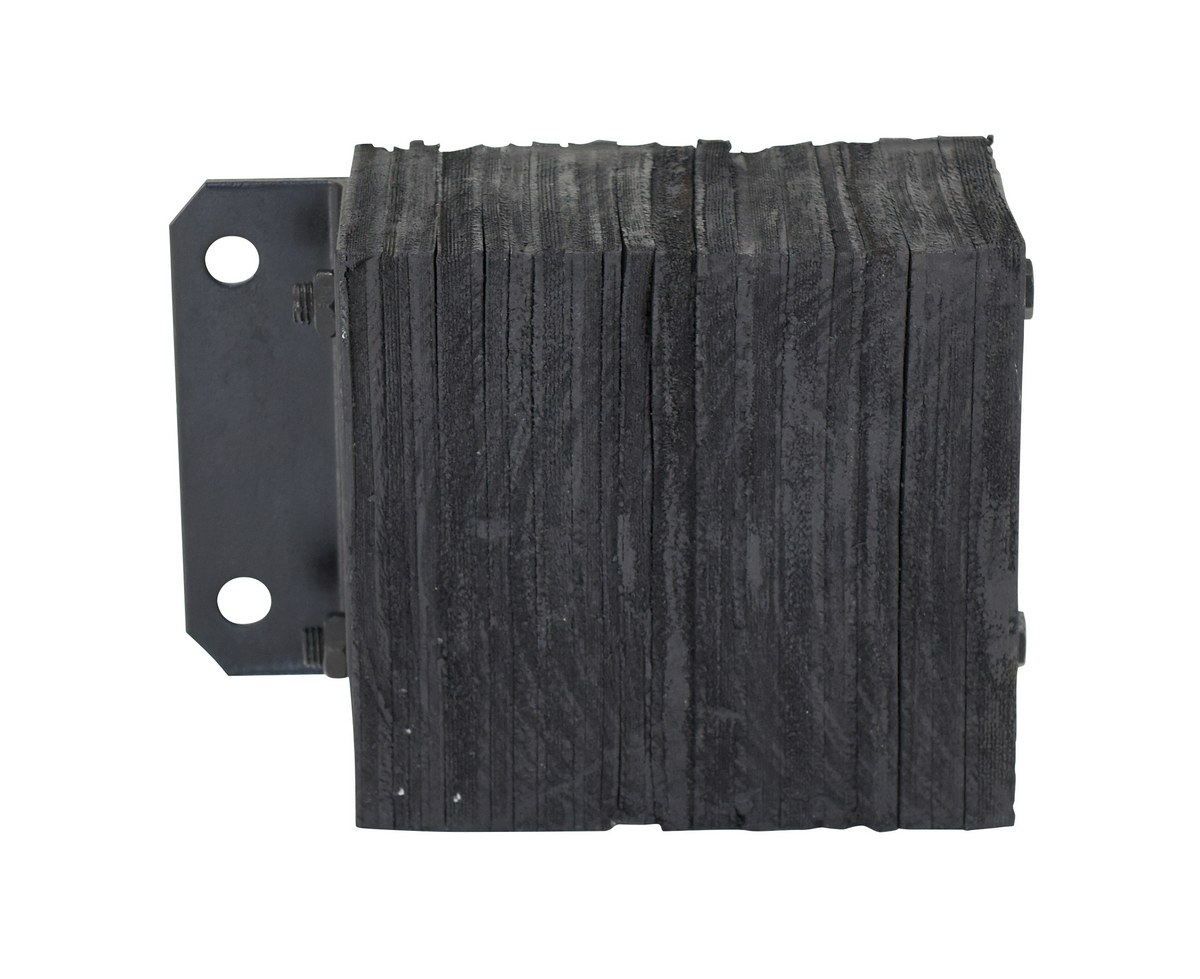

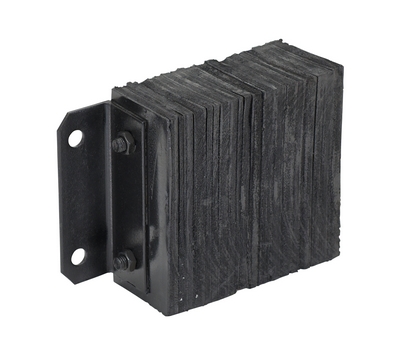

Laminated Rubber Dock Bumper 10 In. x 14 In. x 4-1/2 In. Black

The laminated Dock Bumper provides durable, economical protection for loading docks and trailers. This unit is constructed of fabric reinforced rubber from recycled truck tires. The pads are laminated between painted structural angles and held together with steel tie rods. The width is bolt hole center to bolt hole center. Installation hardware sold separately.

  • Manufactured with laminated sheets of rubber compressed between steel angles for strength and durability
  • Designed for use on loading docks to protect trailers and dock area
  • Bolt or weld bumper to the dock for quick and easy installation
  • Made from recycled truck tires for long lasting use
Total Ship Wt.(lbs.): 32 (only 1 package) Size: 14.125"W x 4.5"L x 10"H Color: Black

Rubber Height (in.): 10 Rubber Width (in.): 10 Bolt Hole Center to Bolt Hole Center Width (in.): 6
Rubber Projection (in.): 4-1/2 Steel Tie Rod Diameter (in.): 3/4 Bolt Hole Diameter (in.): 13/16
Holes (qty.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: 1014-4.5F
1014-4.5F

Laminated Rubber Dock Bumper 10 In. x 14 In. x 4-1/2 In. Black

The laminated Dock Bumper provides durable, economical protection for loading docks and trailers. This unit is constructed of fabric reinforced rubber from recycled truck tires. The pads are laminated between painted structural angles and held together with steel tie rods. The width is bolt hole center to bolt hole center. Installation hardware sold separately.

  • Manufactured with laminated sheets of rubber compressed between steel angles for strength and durability
  • Designed for use on loading docks to protect trailers and dock area
  • Bolt or weld bumper to the dock for quick and easy installation
  • Made from recycled truck tires for long lasting use
Dimensions: 14.125"W x 4.5"L x 10"H Sell UOM: EA-Each Color: Black
Material: Fabric Reinforced Rubber UPC: 691215000154 GTIN: 00691215000154
Warranty: -- Shipping Weight: 32 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Rubber Height (in.): 10 Rubber Width (in.): 10 Bolt Hole Center to Bolt Hole Center Width (in.): 6
Rubber Projection (in.): 4-1/2 Steel Tie Rod Diameter (in.): 3/4 Bolt Hole Diameter (in.): 13/16
Holes (qty.): 2
