Steel Wheel Chocks

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
FAB-10_E.jpg FAB-10_A.jpg FAB-10_B.jpg FAB-10_C.jpg
Steel Wheel Chocks

model: FAB-10



Featured Loading Dock Equipment


Rubber Wheel Chocks
Dock Traffic Systems
Cargo Bars
Pallet Busters
Trailer Jacks
Wheel Chair Ramps
Aluminum Mini Dockplates
Docklevelers
Pallet Cargo Decker
model chart

Product Family Overview

Print Friendly
Steel Wheel Chocks
SERIES: FAB,MS,SSC,SWC

FAB - The Formed Steel Wheel Chock is perfect for on the go or at the shop. The unique design provides control for the user to securely stabilize the object at hand. The minimal weight of the chock lends itself to simple transference and maneuverability. The compact nature of the unit is great for storage when not in use. Powder coated fluorescent yellow for clear visibility and baked in added toughnes

SWC - The Steel Wheel Chock is ideal for a variety of settings where wheels need chocked. The unit works in mud, sand or concrete. To use, simply, brace chock against wheel for utmost holding ability. Powder coated fluorescent yellow for clear visibility and baked in added toughness.

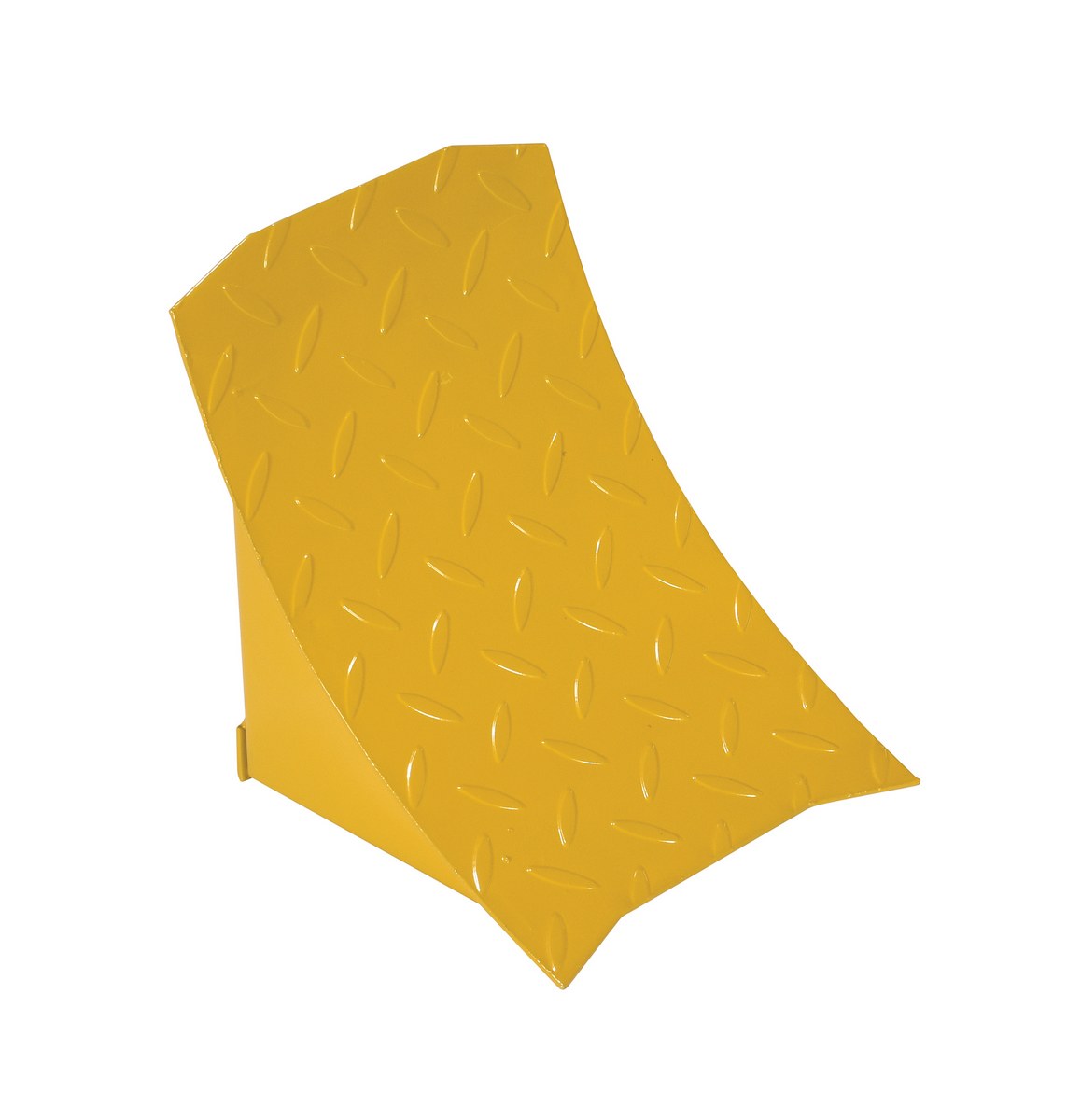

  • FAB-8: The Steel Wheel Chock features a grip slot for easy pick up and positioning. Textured tread plate to provide maximum traction. Bright color for clear visibility.

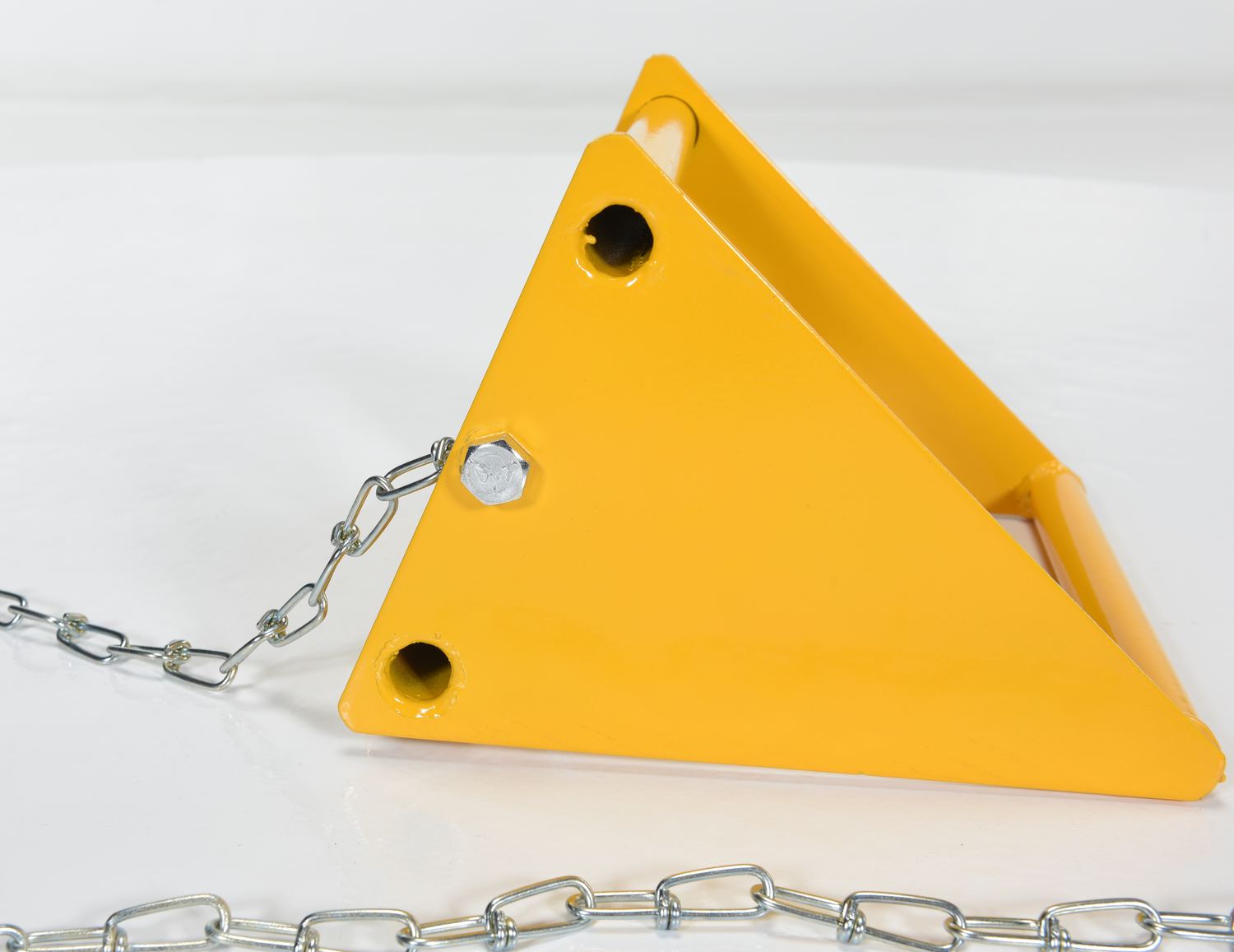

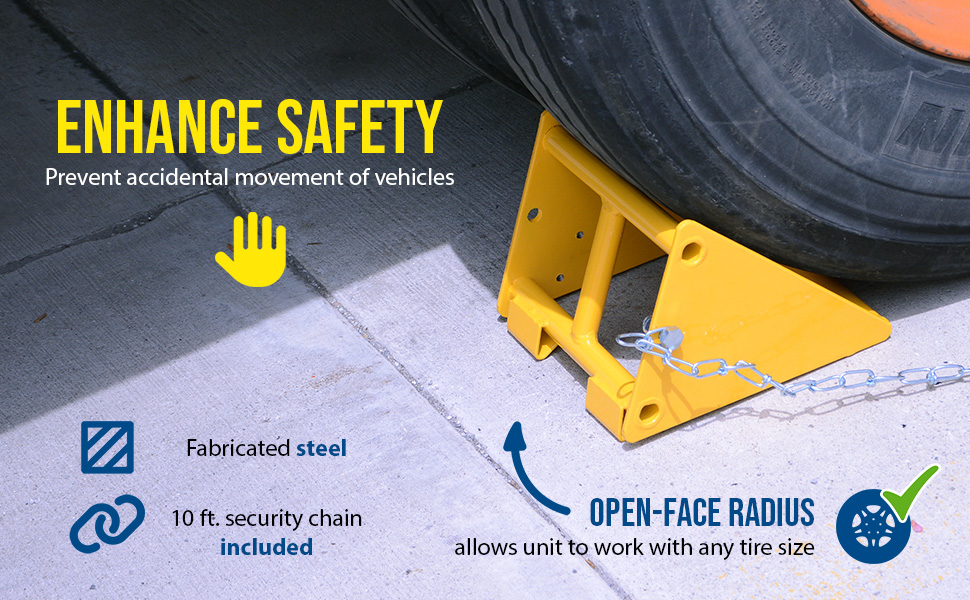

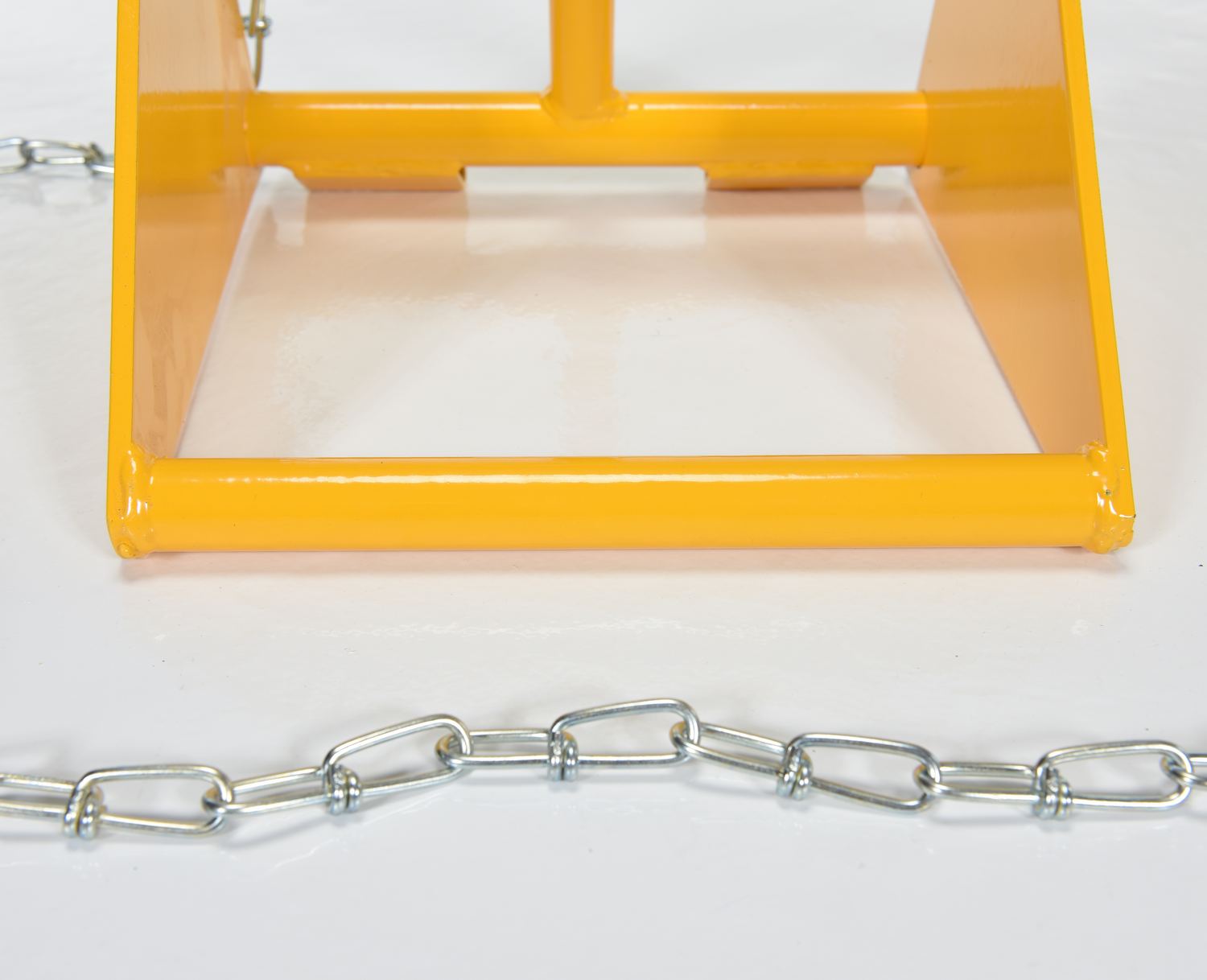

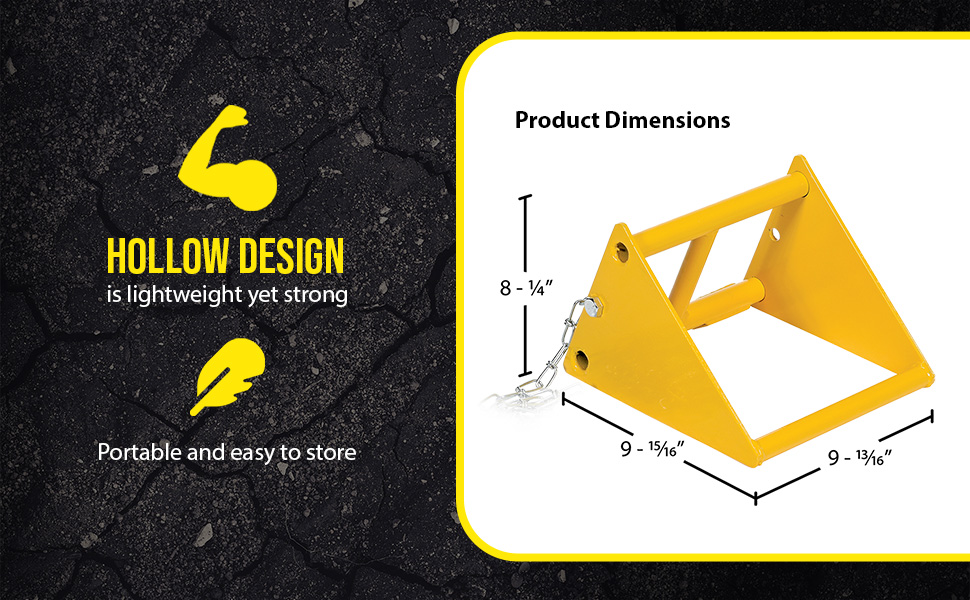

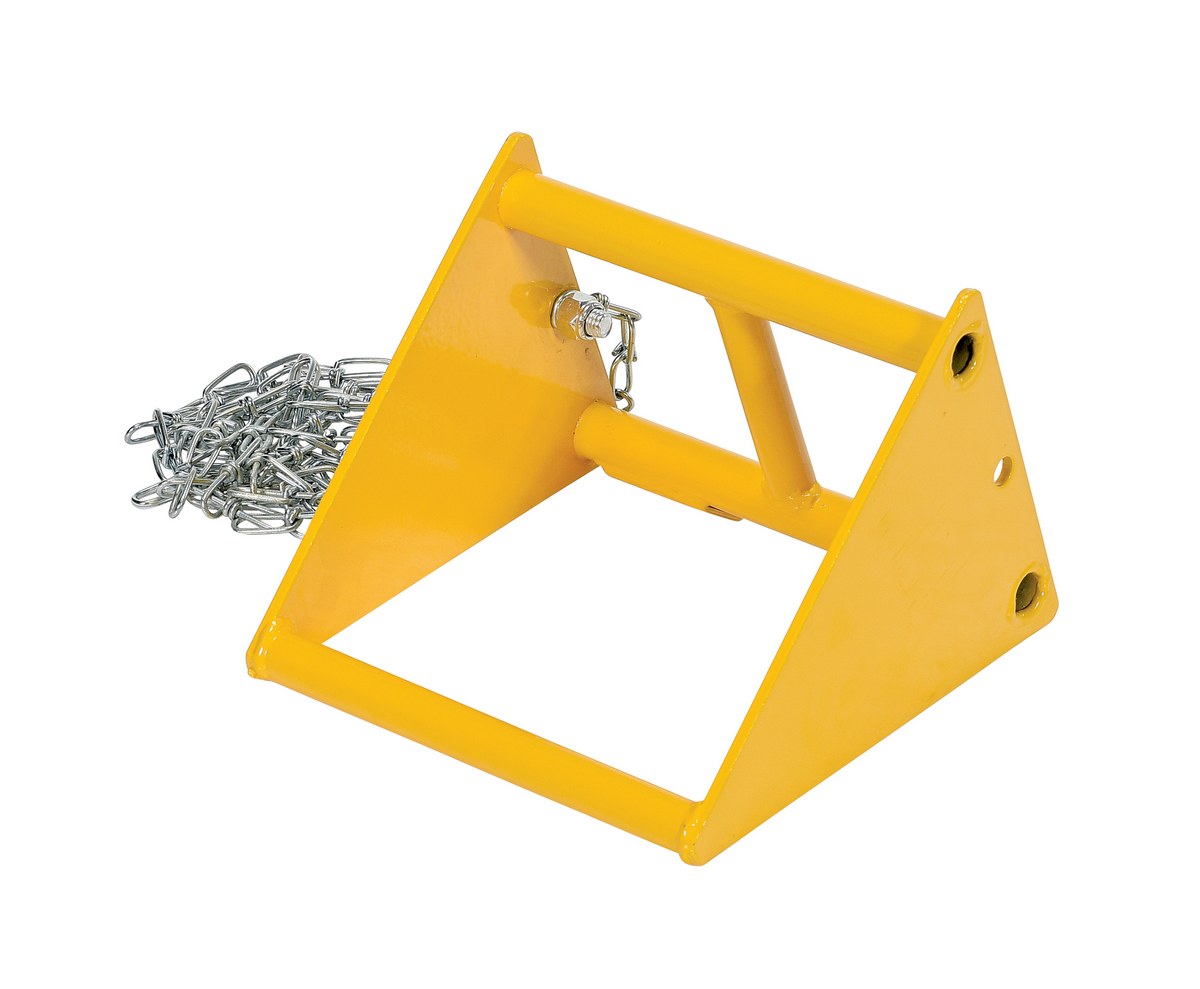

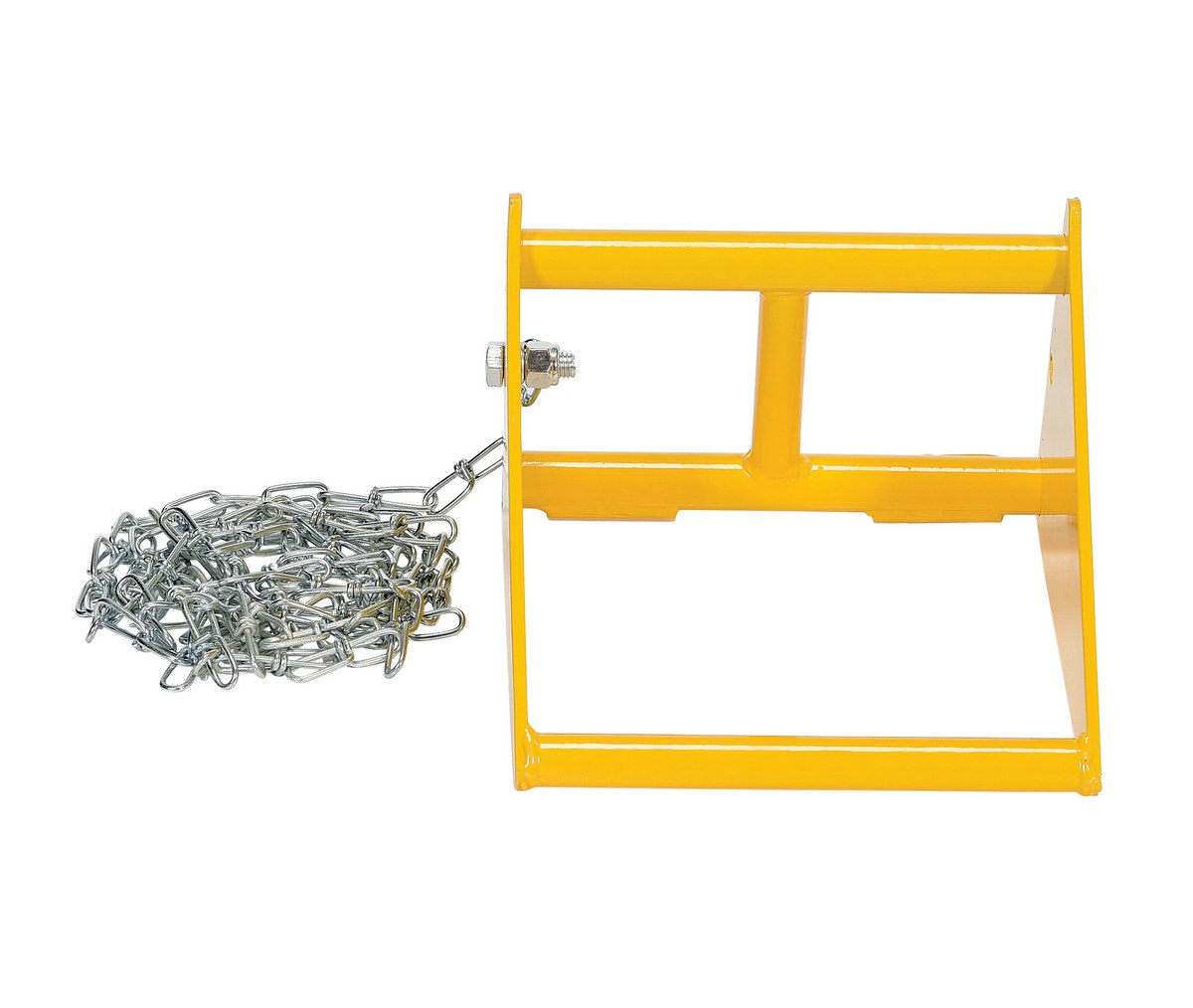

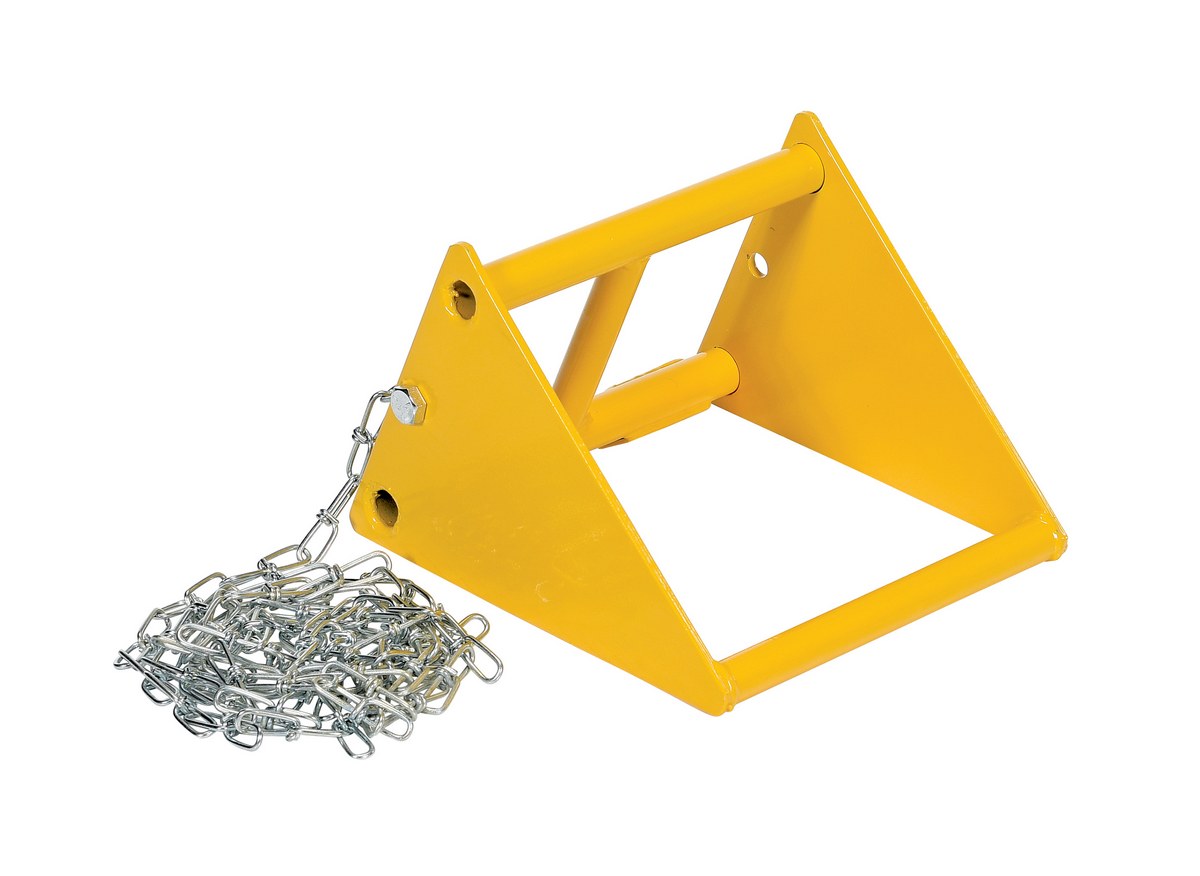

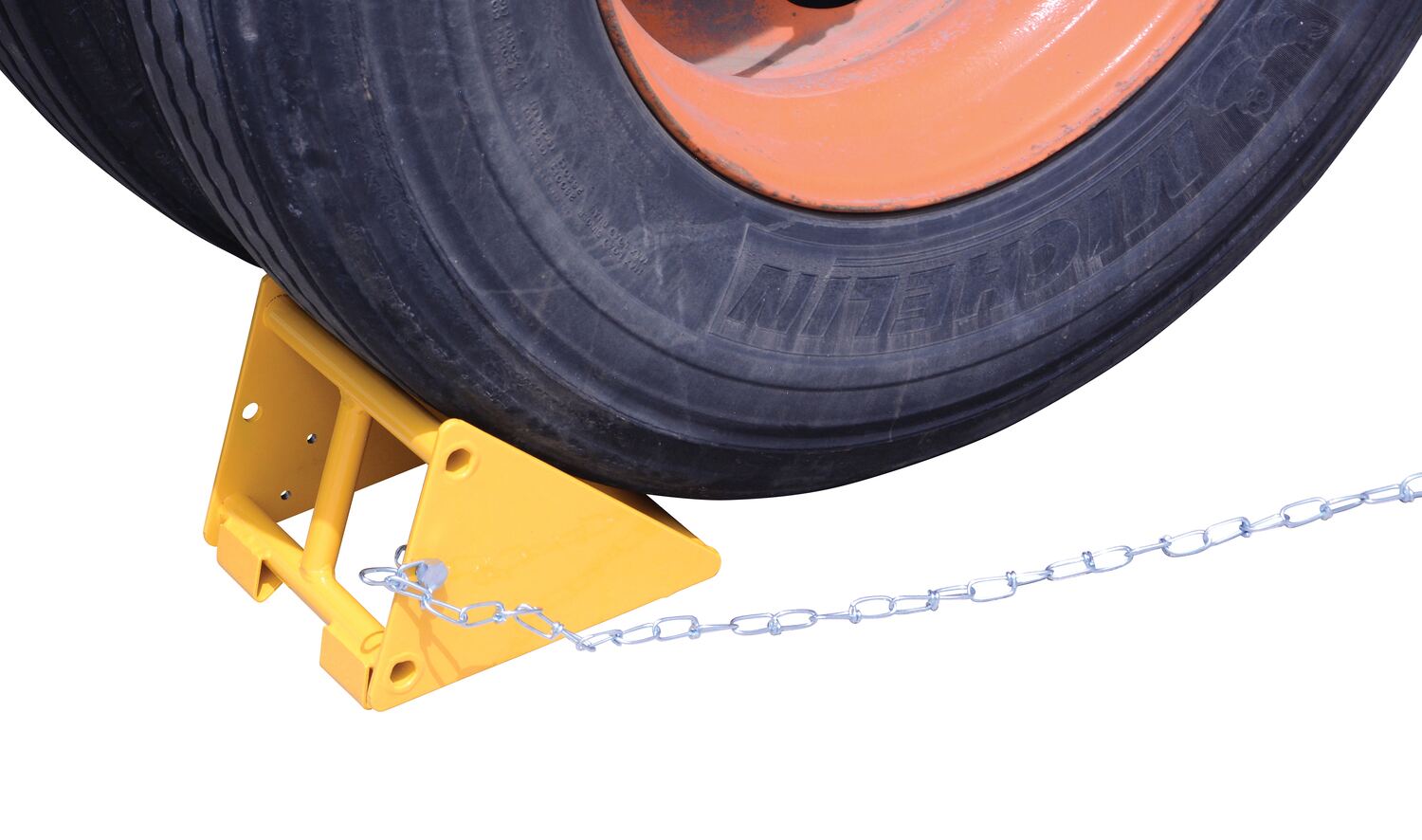

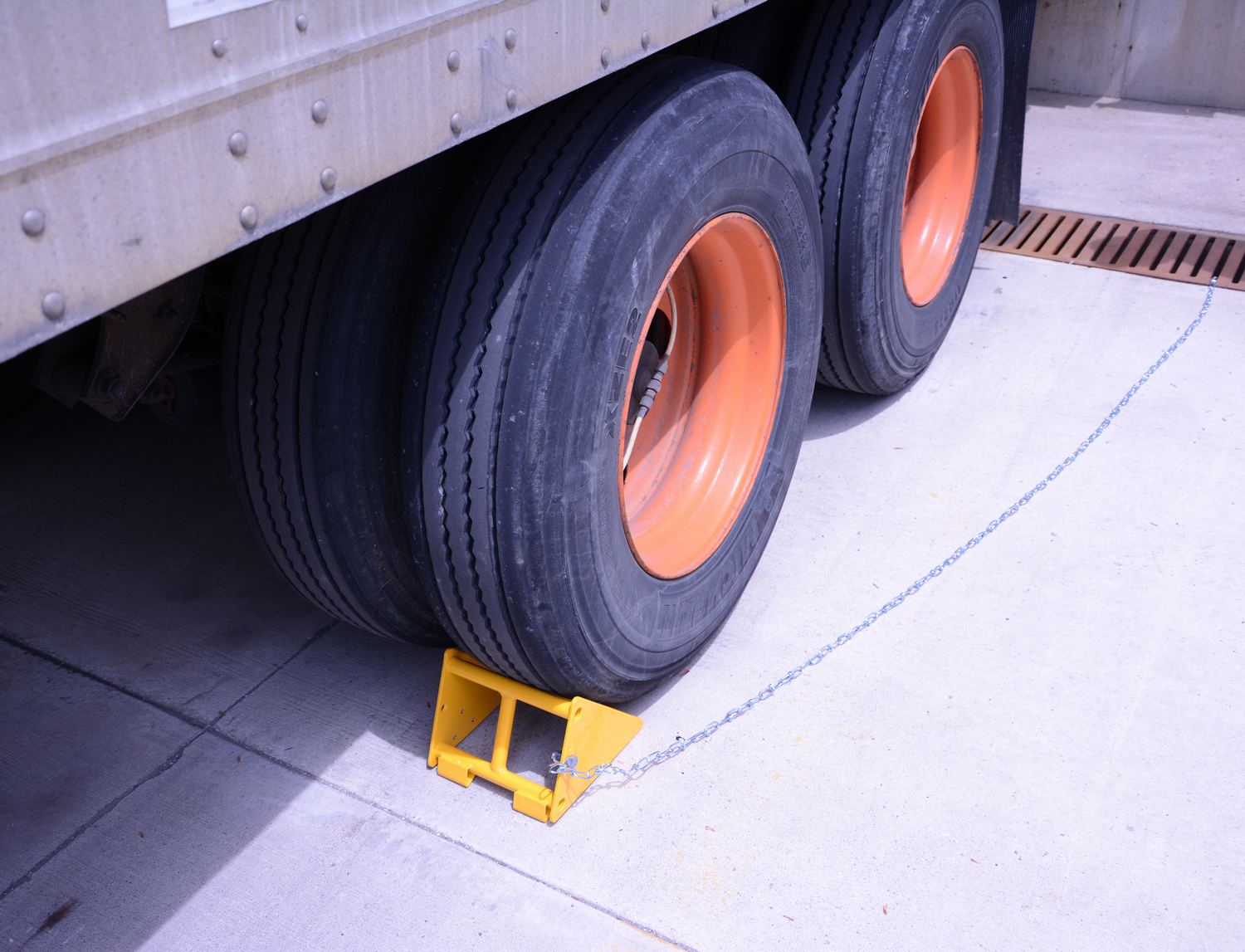

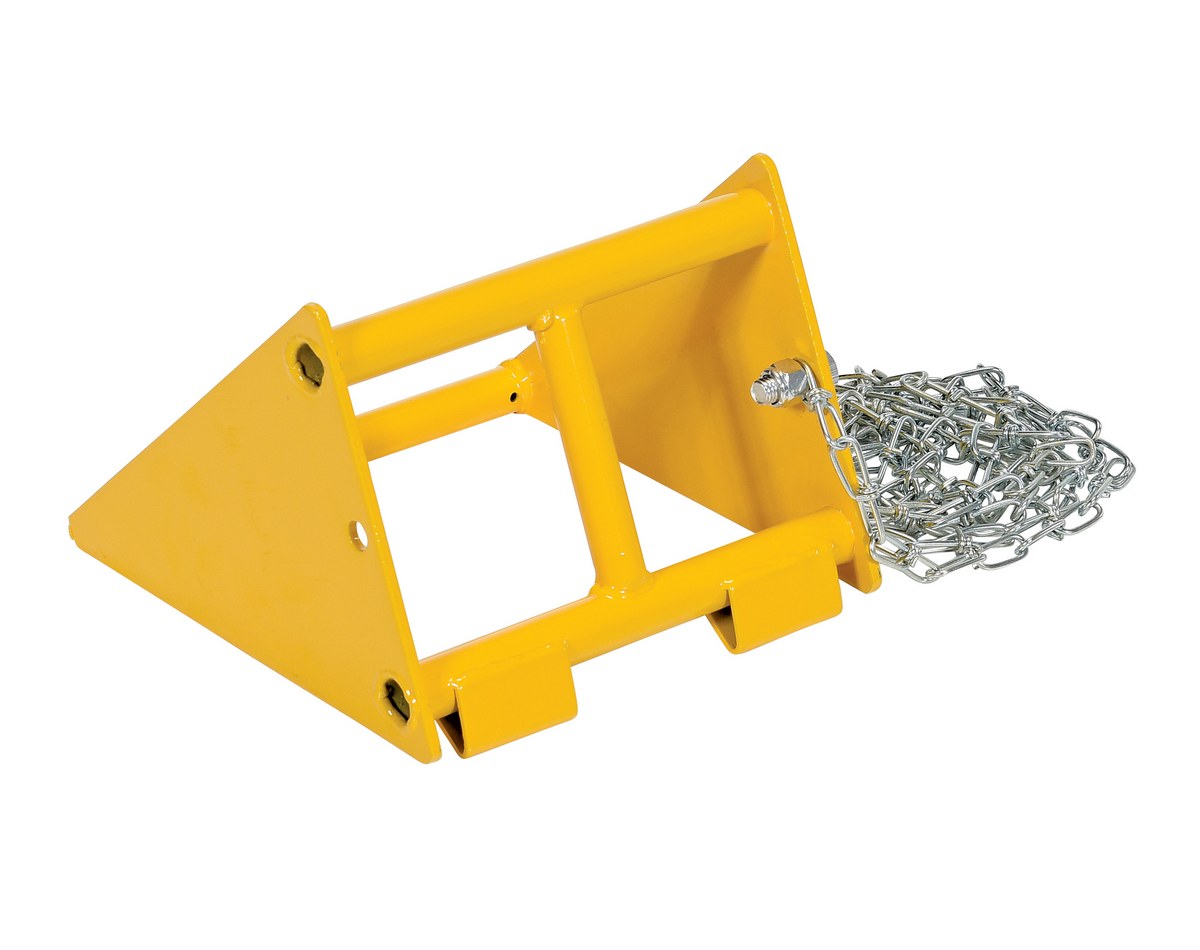

  • FAB-10: The formed steel wheel chock is perfect for on the go or at the shop. The minimal weight of the chock lends itself to simple transference and maneuverability. Open face radius allows chock to be used with any size tire. Includes 10 ft. chain.

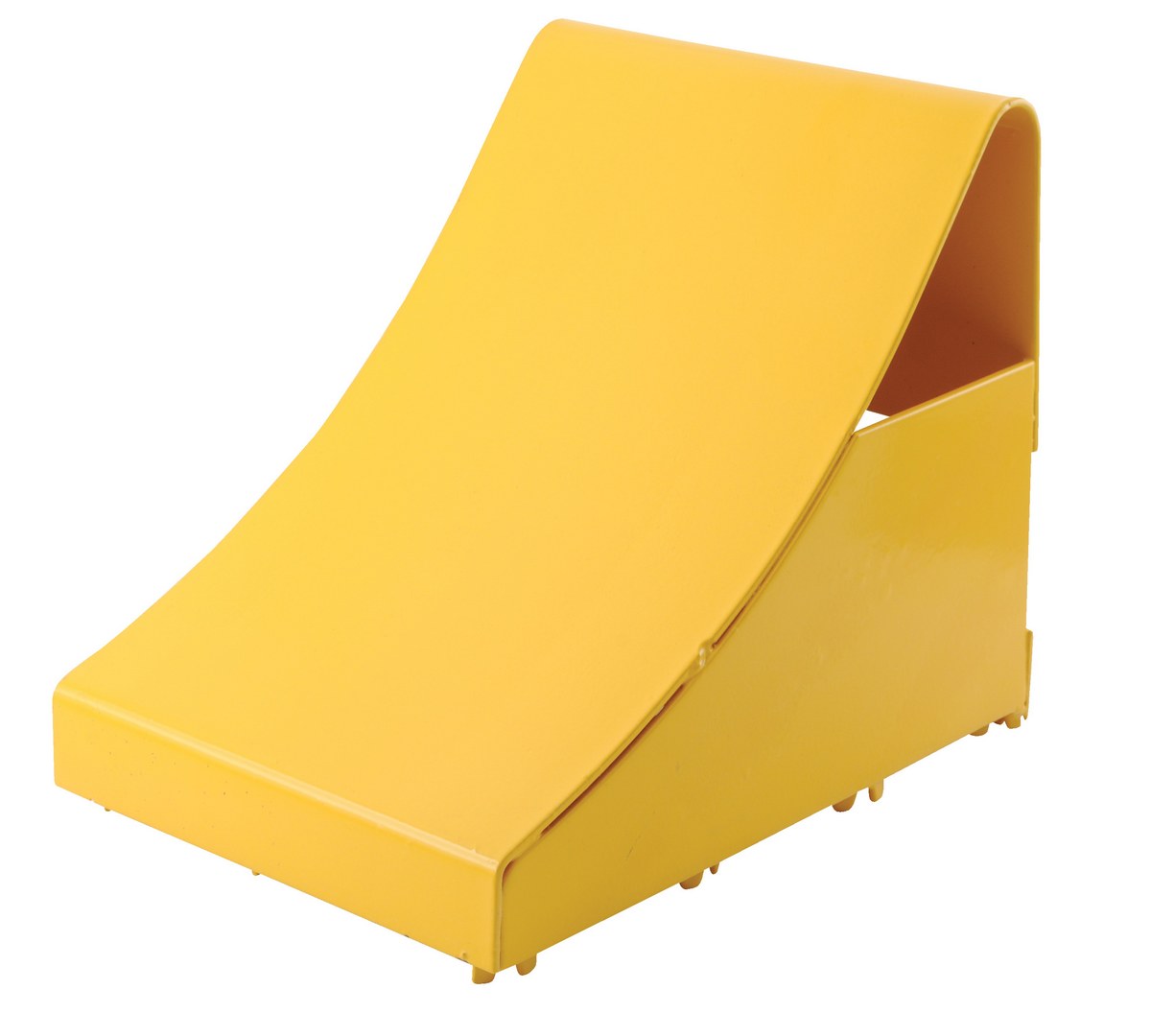

  • FAB-11: Formed chock utilizes a saw tooth bottom for traction.

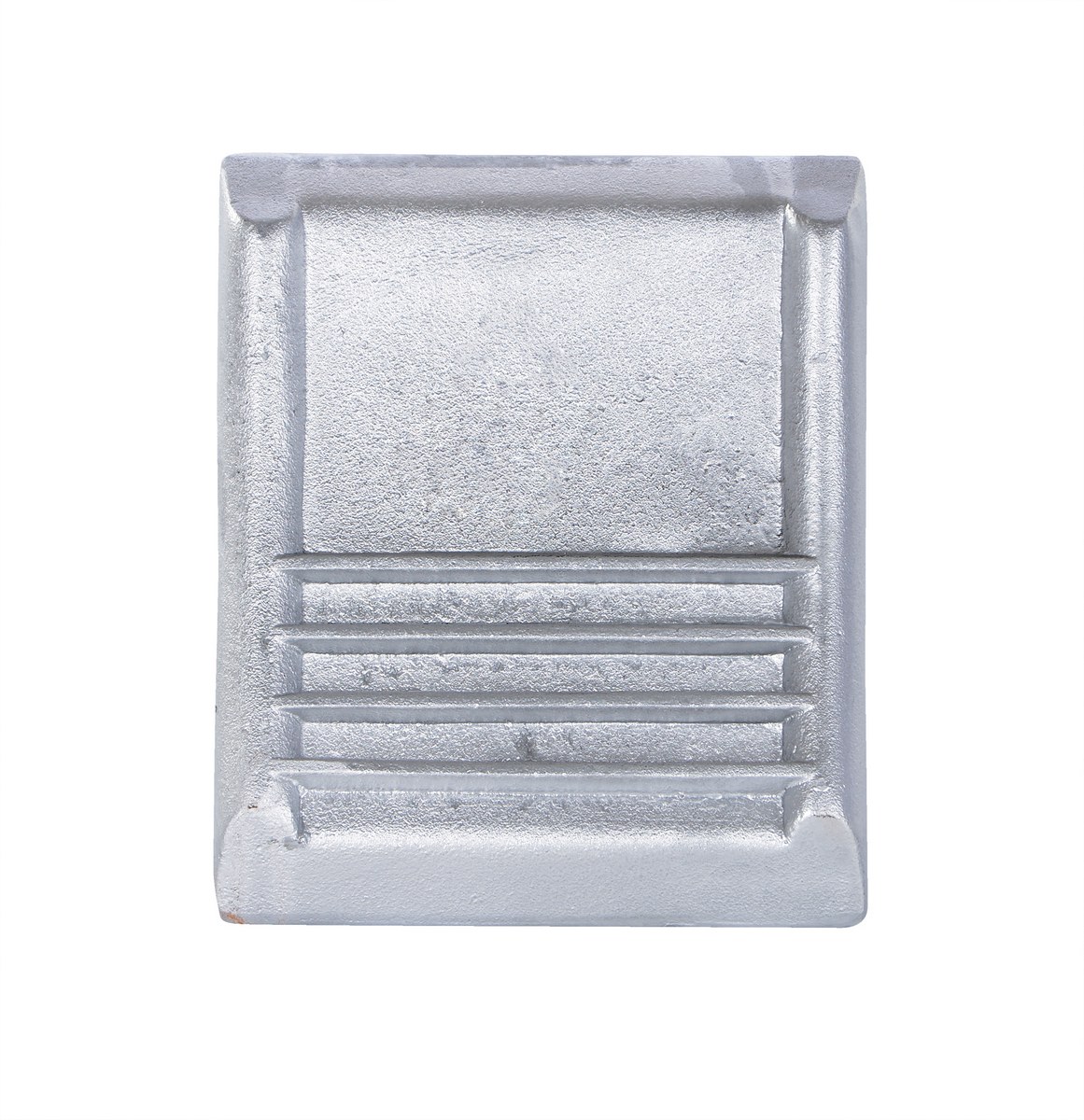

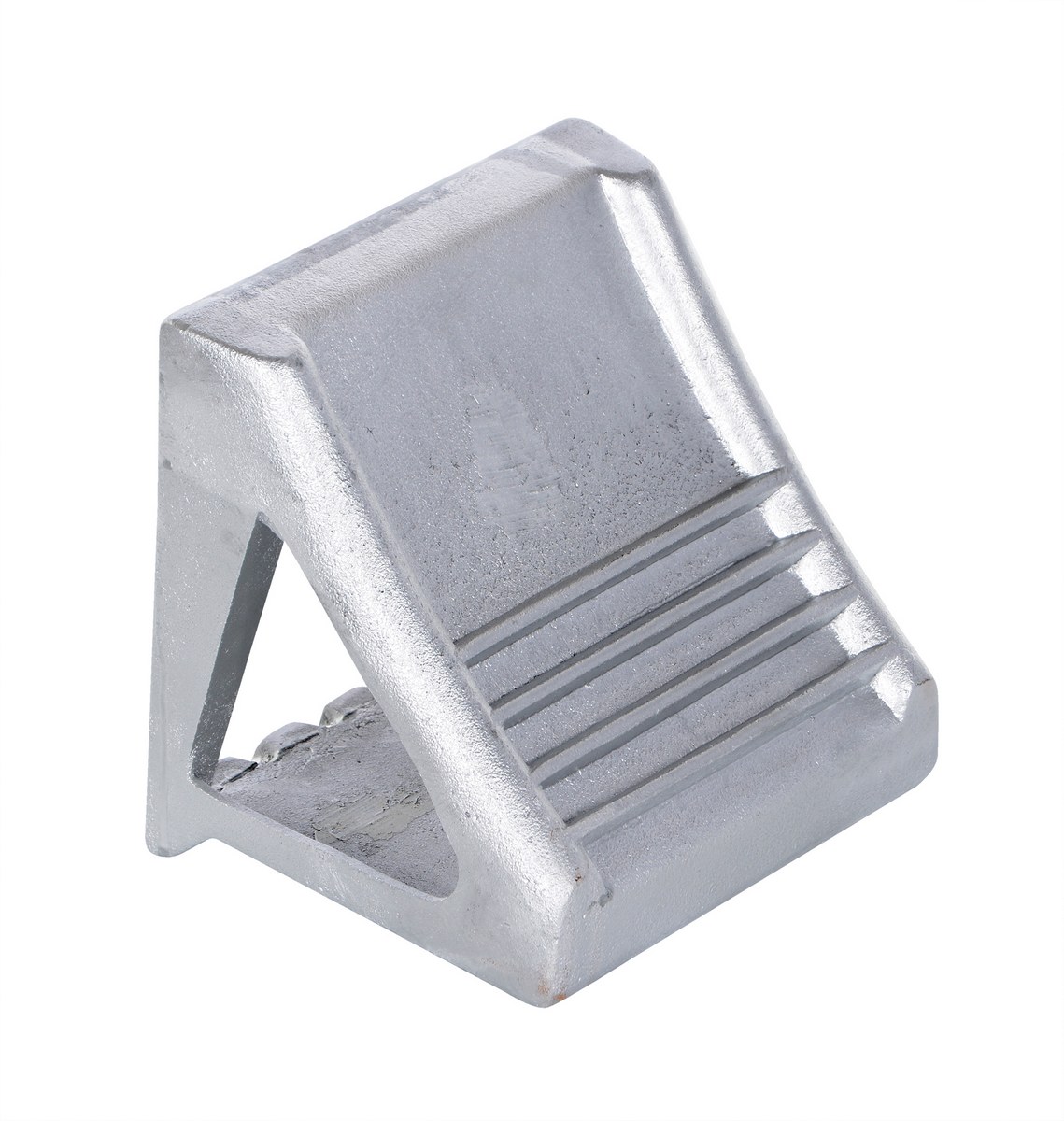

  • MS-15: This cast steel chock features grip slot for easy pick up and positioning. Silver finish.

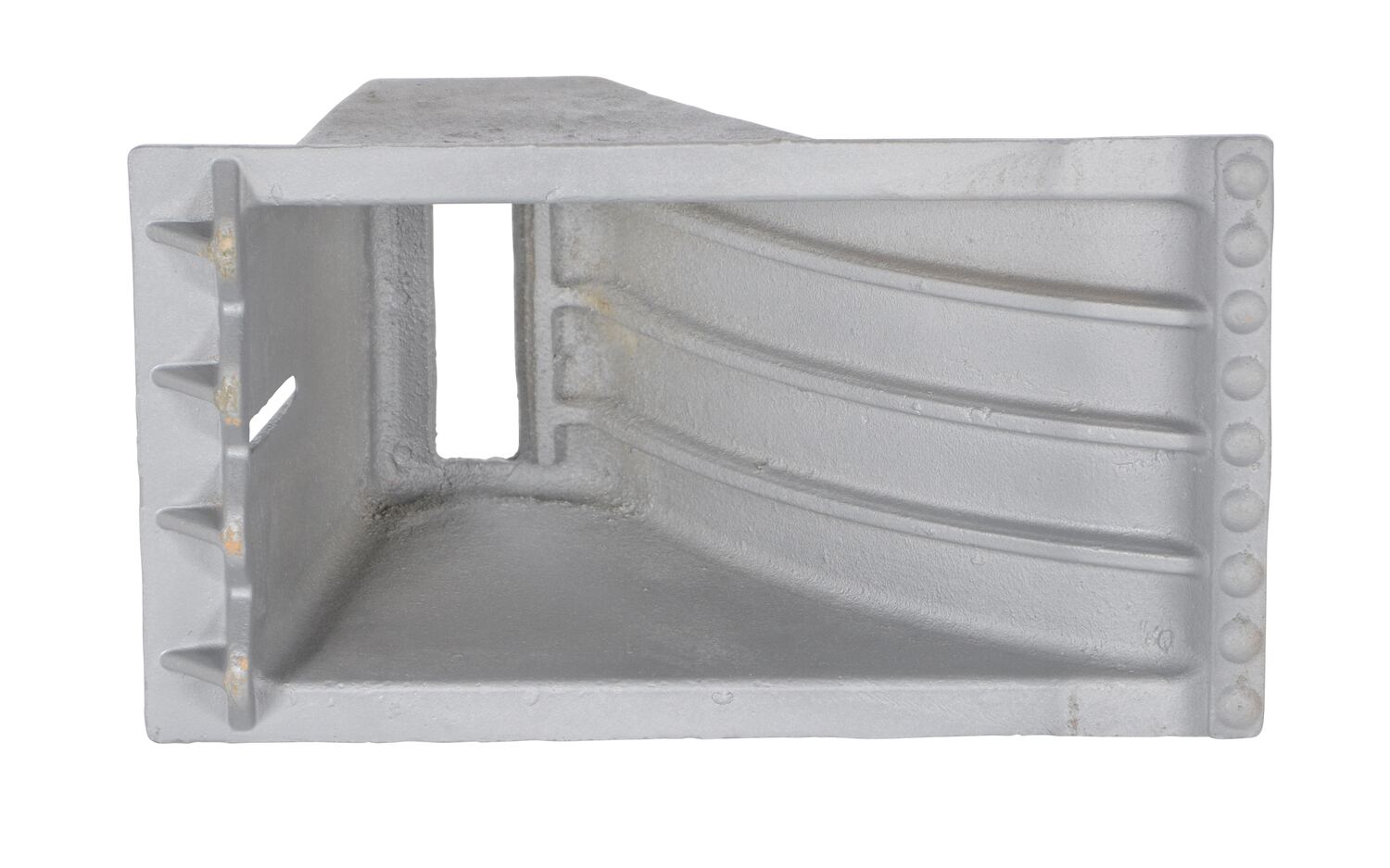

  • SSC-17: Slope design contours to truck wheel. Silver.

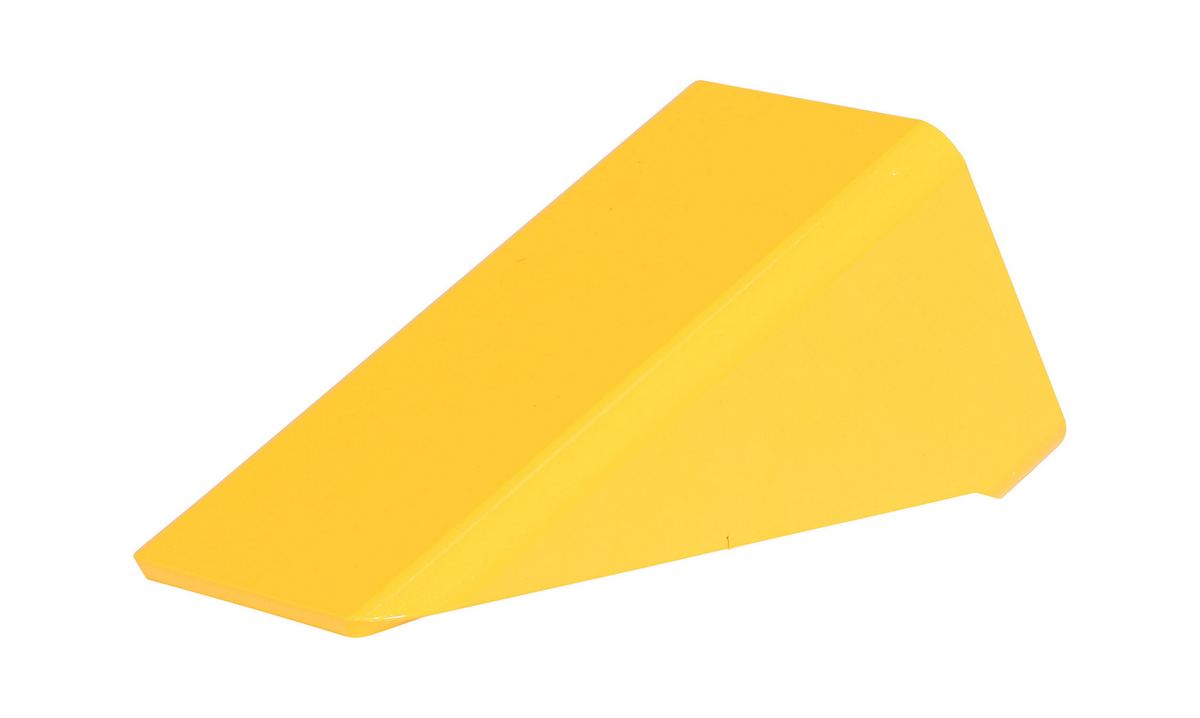

  • SWC-9: The open bottom design also acts as a built in carrying handle for user convenience.

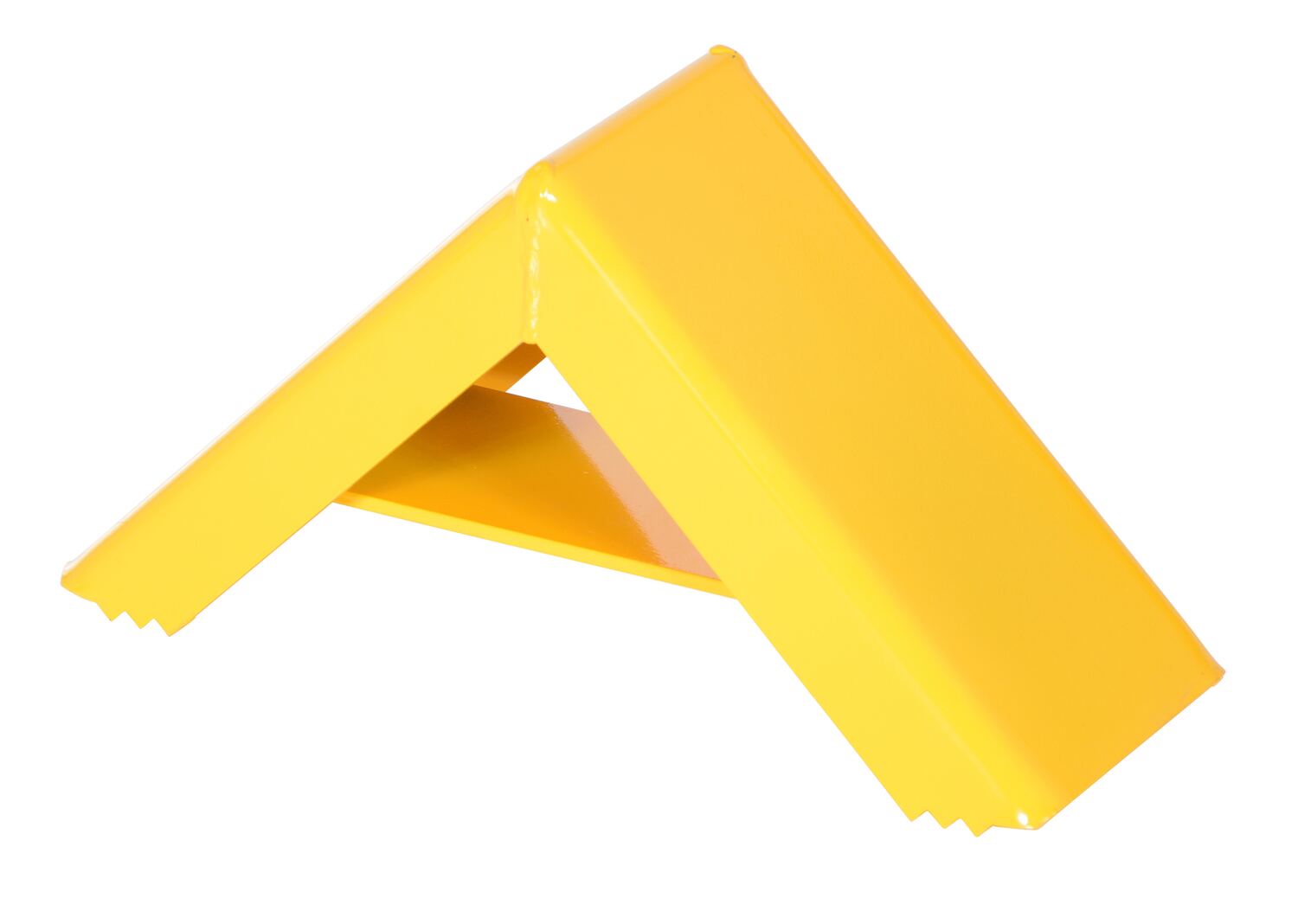

  • SWC-22: Rugged all welded construction. Works in mud, sand, or concrete. Painted yellow finish makes unit easily visible

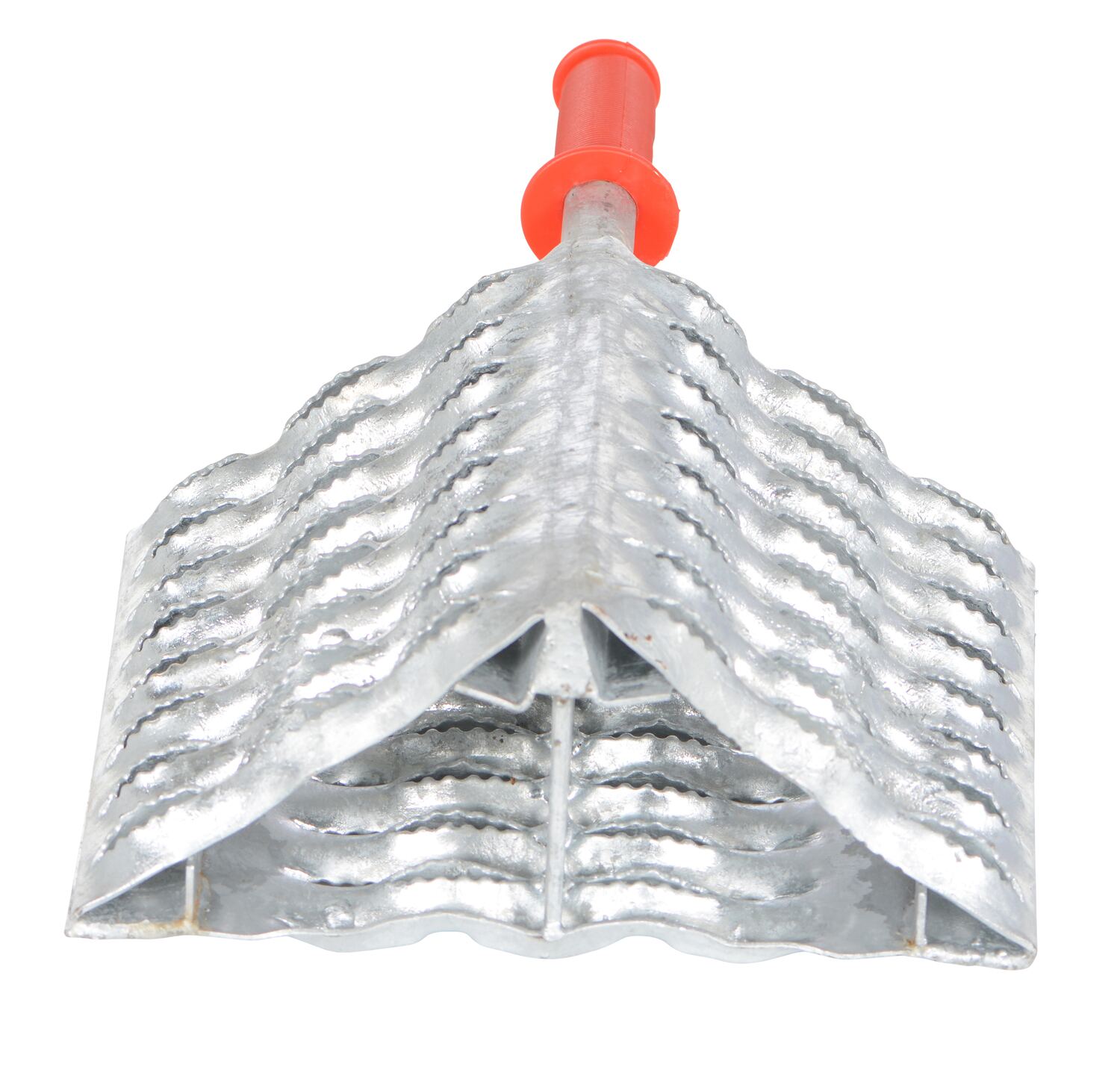

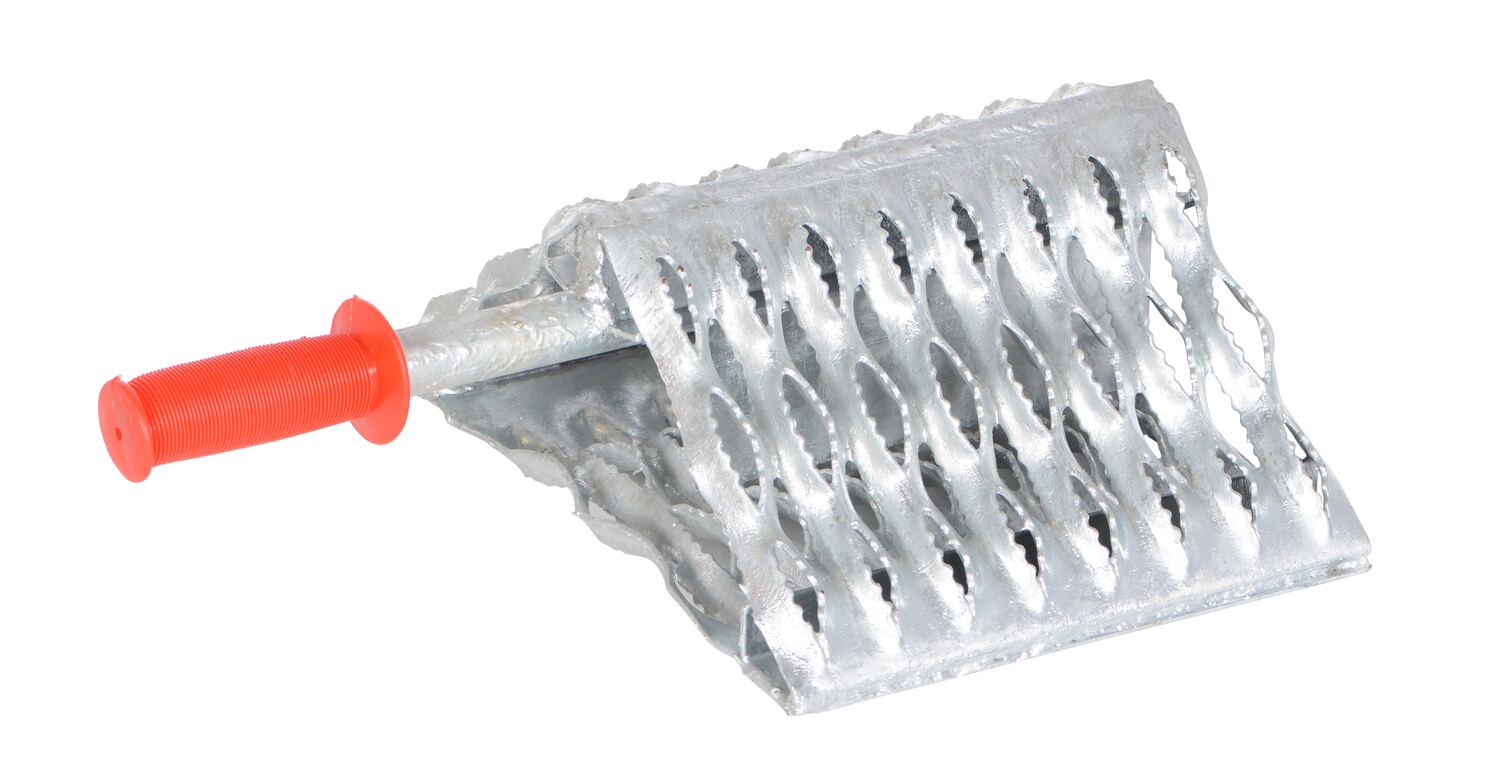

  • GWC-10: Serrated steel wheel chock, grate style, 14"D including handle, galvanized finish, includes positioning handle with grip.

FAB - The Formed Steel Wheel Chock is perfect for on the go or at the shop. The unique design provides control for the user to securely stabilize the object at hand. The minimal weight of the chock lends itself to simple transference and maneuverability. The compact nature of the unit is great for storage when not in use. Powder coated fluorescent yellow for clear visibility and baked in added toughnes

SWC - The Steel Wheel Chock is ideal for a variety of settings where wheels need chocked. The unit works in mud, sand or concrete. To use, simply, brace chock against wheel for utmost holding ability. Powder coated fluorescent yellow for clear visibility and baked in added toughness.

  • FAB-8: The Steel Wheel Chock features a grip slot for easy pick up and positioning. Textured tread plate to provide maximum traction. Bright color for clear visibility.
  • FAB-10: The formed steel wheel chock is perfect for on the go or at the shop. The minimal weight of the chock lends itself to simple transference and maneuverability. Open face radius allows chock to be used with any size tire. Includes 10 ft. chain.
  • FAB-11: Formed chock utilizes a saw tooth bottom for traction.
  • MS-15: This cast steel chock features grip slot for easy pick up and positioning. Silver finish.
  • SSC-17: Slope design contours to truck wheel. Silver.
  • SWC-9: The open bottom design also acts as a built in carrying handle for user convenience.
  • SWC-22: Rugged all welded construction. Works in mud, sand, or concrete. Painted yellow finish makes unit easily visible
  • GWC-10: Serrated steel wheel chock, grate style, 14"D including handle, galvanized finish, includes positioning handle with grip.

Other Wheel Chocks & Accessories

 Wheel Chock Accessories Magnetic Rail Car Wheel Chock Universal Steel Rail Chocks Urethane Wheel Chocks

Additional Models In This Family
view entire Image Gallery

FAB-11

FAB-11

FAB-10

FAB-10

MS-15

MS-15

FAB-8

FAB-8

SSC-17

SSC-17

FAB-10

FAB-10

SWC-22

SWC-22

GWC-10

GWC-10

MS-15

MS-15

MS-15

MS-15

SWC-9

SWC-9

FAB-10

FAB-10

SWC-9

SWC-9

FAB-8

FAB-8

GWC-10

GWC-10

Applications



Trucking Companies

Moving Companies

Cold Environments

Farming and Agriculture

Municipalities
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

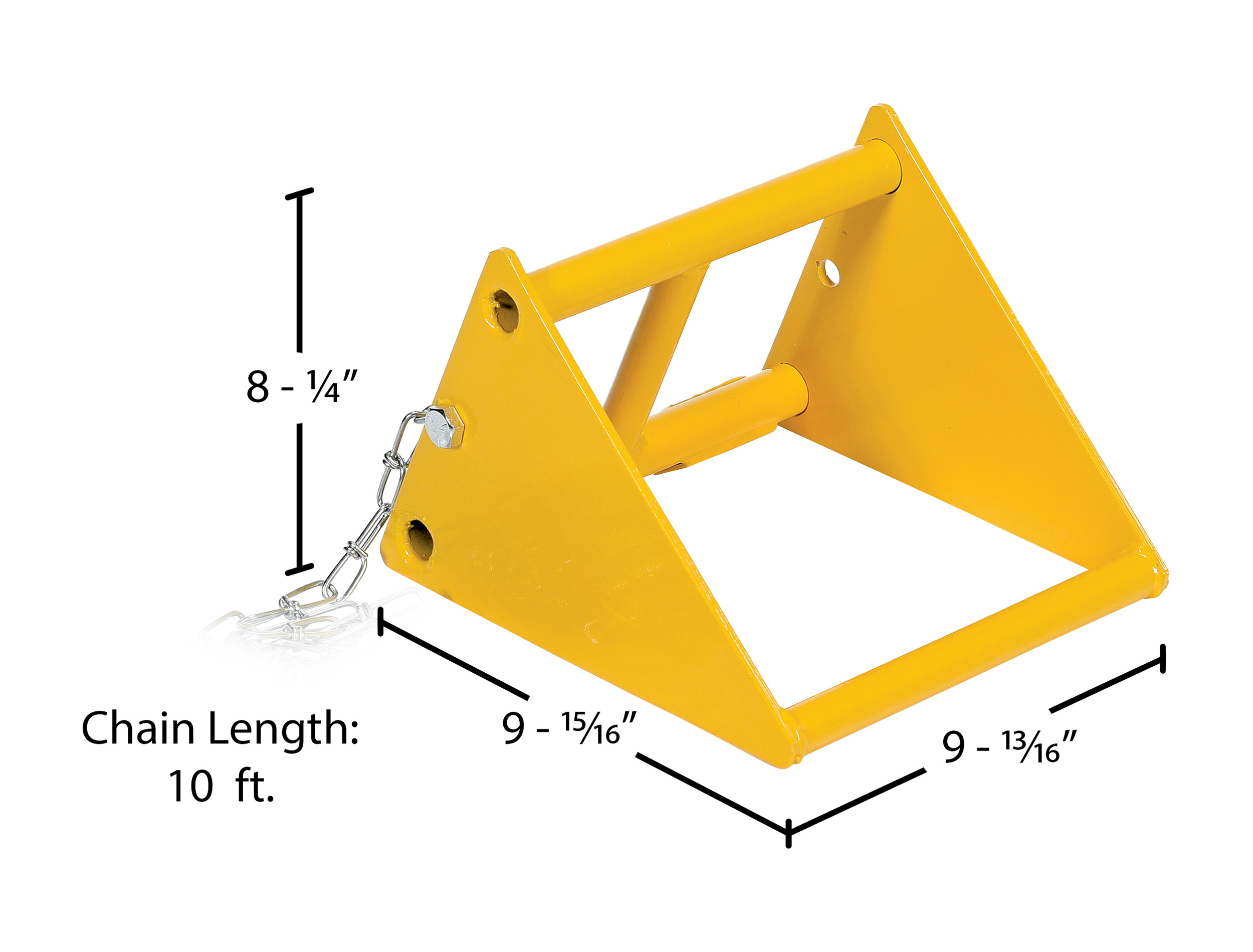

FAB-10 FAB-1030 Days Limited WarrantyFabricated Steel Wheel Chock With 10 Ft. Security Chain YellowSecurity Chain Length (ft.): 10
11
FAB-11 FAB-1130 Days Limited WarrantyFabricated Steel Wheel Chock 10-3/4 In. Length YellowBuilt-In Handles / Poles: No
Wheel Chock Connection: None		11
FAB-8 FAB-830 Days Limited WarrantyFabricated Steel Wheel Chock 9-1/2 In. Length YellowBuilt-In Handles / Poles: Yes
Wheel Chock Connection: None		7
GWC-10 GWC-1030 Days Limited WarrantySerrated Steel Wheel Chock 11-1/4 In. x 14 In. x 4-7/8 In. SilverUsable Chock Width (in.): 9
Handle Diameter (in.): 1		11
MS-15 MS-1530 Days Limited WarrantyCast Steel Wheel Chock 8-1/4 In. x 8-9/16 In. x 7-1/8 In. SilverBuilt-In Handles / Poles: No
Wheel Chock Connection: None		16
SSC-17 SSC-1730 Days Limited WarrantyCast Steel Slope Wheel Chock 15-1/4 In. x 8-1/2 In. x 8-1/2 In. GrayBuilt-In Handles / Poles: No
Wheel Chock Connection: None		25
SWC-22 SWC-2230 Days Limited WarrantySteel Wheel Chock 17 In. x 6 In. x 9-1/16 In. YellowUse: Mud, Sand, or Concrete
19
SWC-9 SWC-930 Days Limited WarrantySteel Wheel Chock 9 In. x 4 In. x 3-3/4 In. YellowBuilt-In Handles / Poles: No
Wheel Chock Connection: None		6

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FAB-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Security Chain Length (ft.): 10

Security Chain Length (ft.): 10

FAB-11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Built-In Handles / Poles: No
Wheel Chock Connection: None
Built-In Handles / Poles: No
Wheel Chock Connection: None

FAB-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Built-In Handles / Poles: Yes
Wheel Chock Connection: None
Built-In Handles / Poles: Yes
Wheel Chock Connection: None

GWC-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Chock Width (in.): 9
Handle Diameter (in.): 1
Usable Chock Width (in.): 9
Handle Diameter (in.): 1

MS-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Built-In Handles / Poles: No
Wheel Chock Connection: None
Built-In Handles / Poles: No
Wheel Chock Connection: None

SSC-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Built-In Handles / Poles: No
Wheel Chock Connection: None
Built-In Handles / Poles: No
Wheel Chock Connection: None

SWC-22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Use: Mud, Sand, or Concrete

Use: Mud, Sand, or Concrete

SWC-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Built-In Handles / Poles: No
Wheel Chock Connection: None
Built-In Handles / Poles: No
Wheel Chock Connection: None
For More Details of the Option Click the Red Model Button

Check Out All Wheel Chock Accessories

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Steel Wheel Chocks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FAB-10

FAB-11

FAB-8

GWC-10

MS-15

SSC-17

SWC-22

SWC-9

Testing Certificates


FAB-10

FAB-11

FAB-8

GWC-10

MS-15

SSC-17

SWC-22

SWC-9

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Fluorescent Yellow Wheel Chock Mailing Brochure

Winter Spotlight - Interactive -  Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the load rating for the GWC-10?

A: The load rating is 10,000 lbs.
