Product Family Overview


Automatic Eagle Beak Drum Lifters
SERIES: FMDL

* Simple & Easy Operation

* Low Maintenance Design

* Completely Automatic Operation

* Belt and Roller units provide a softer lifting surface, minimizing scratches

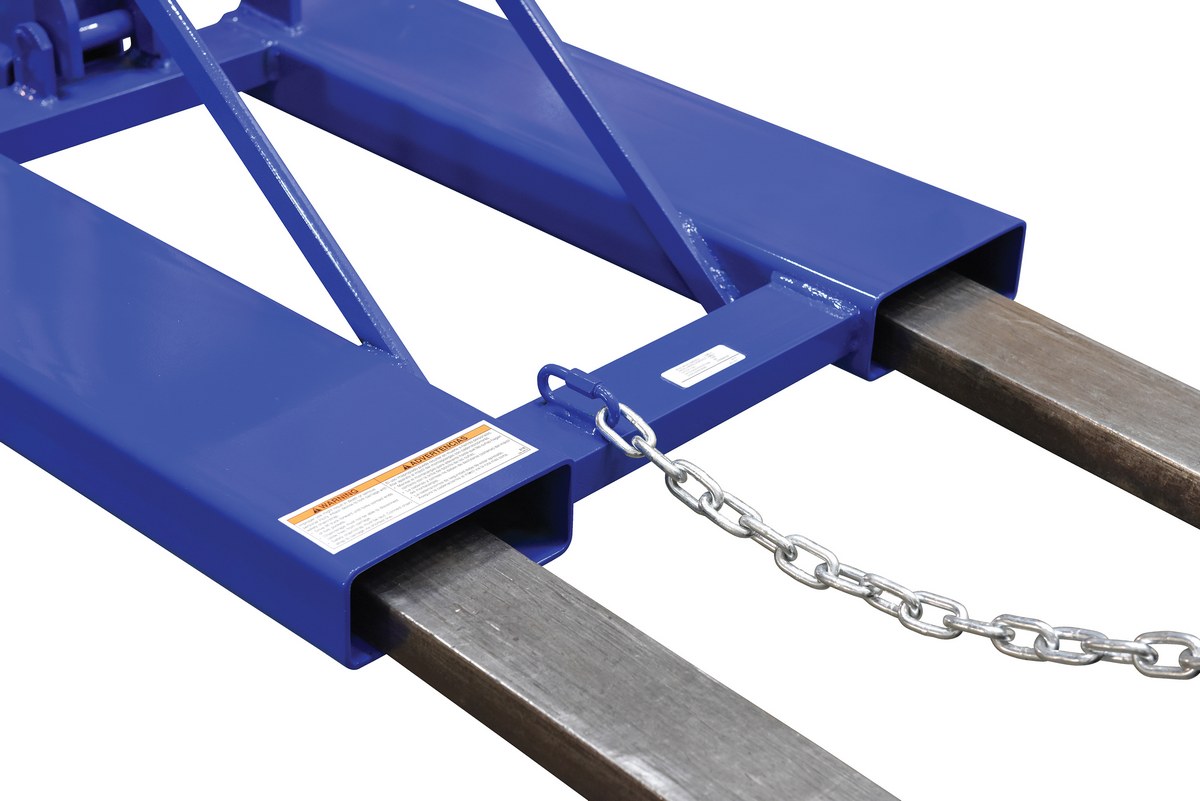

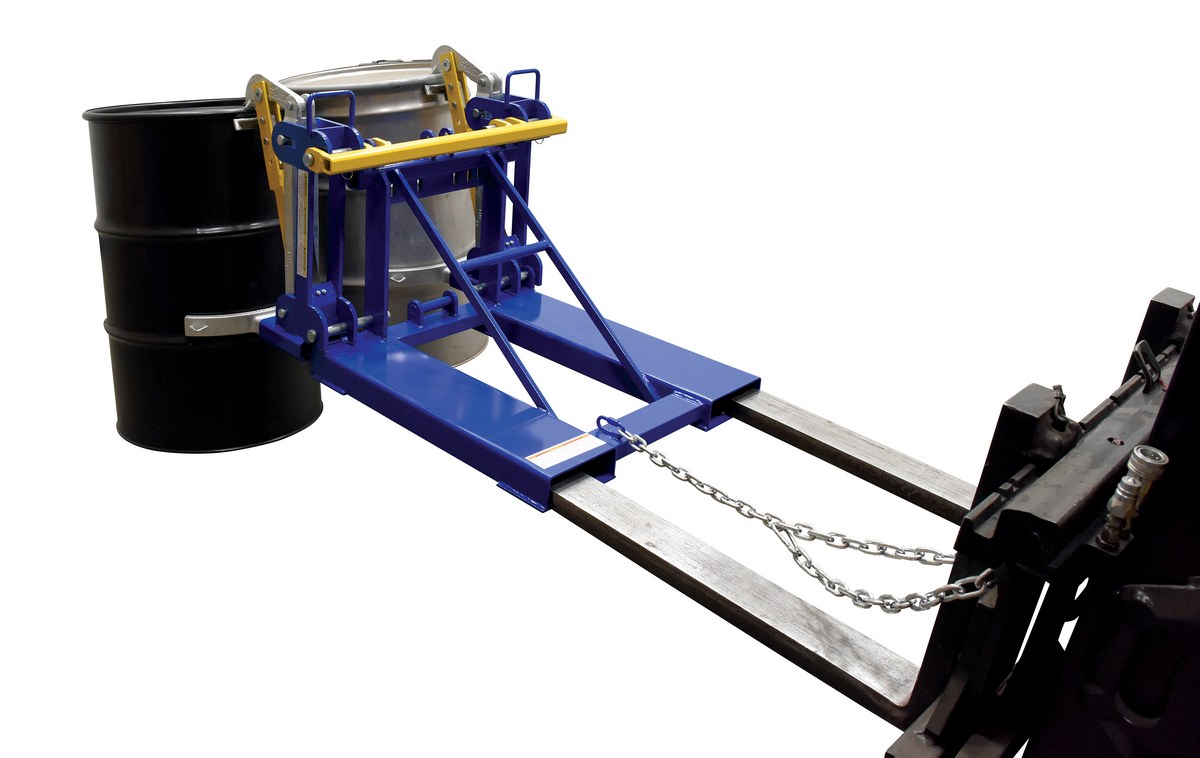

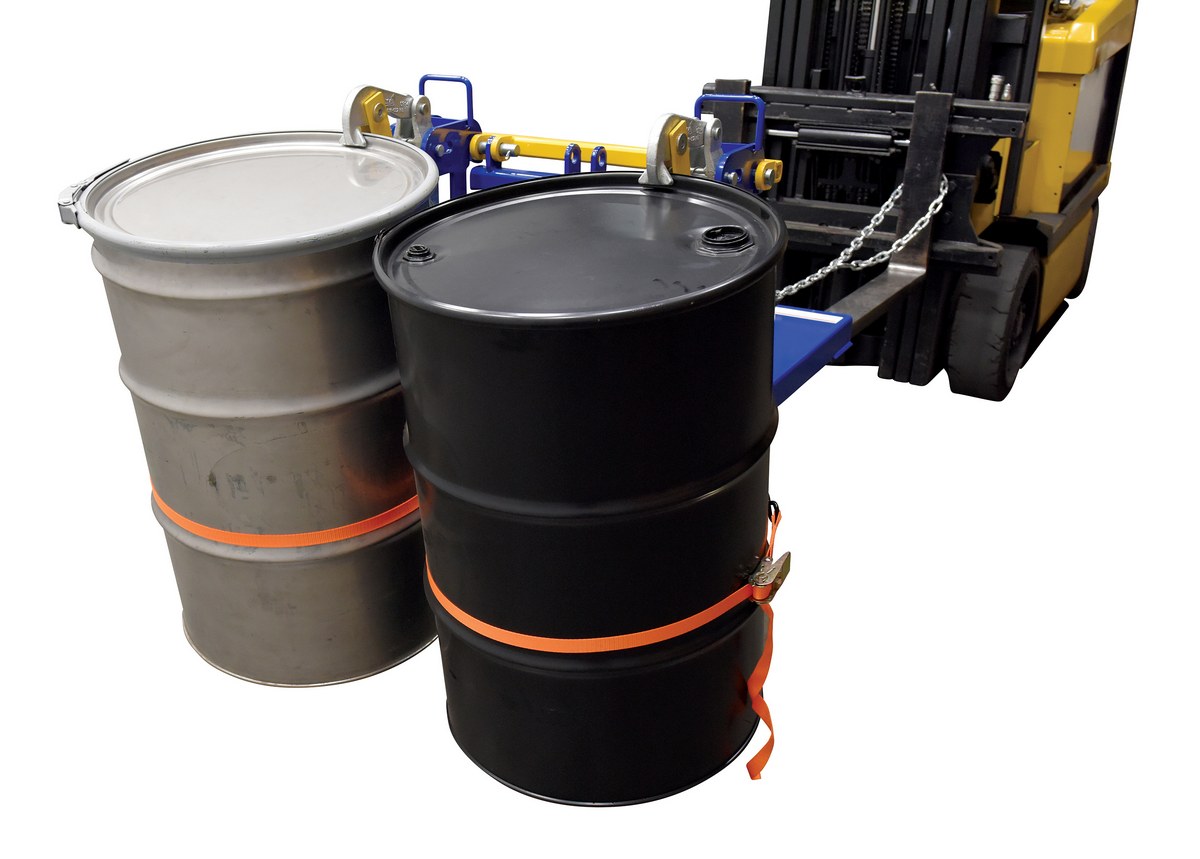

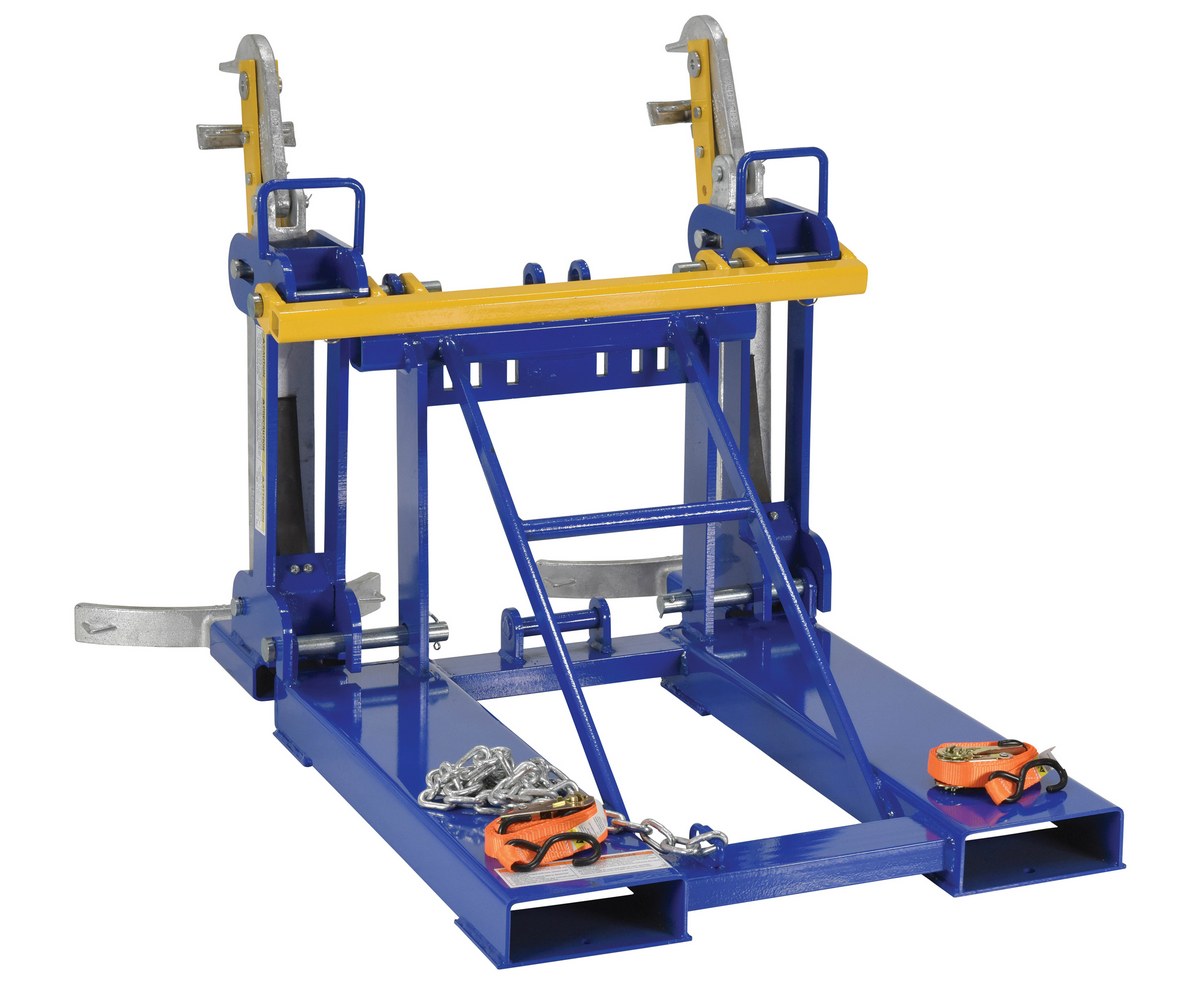

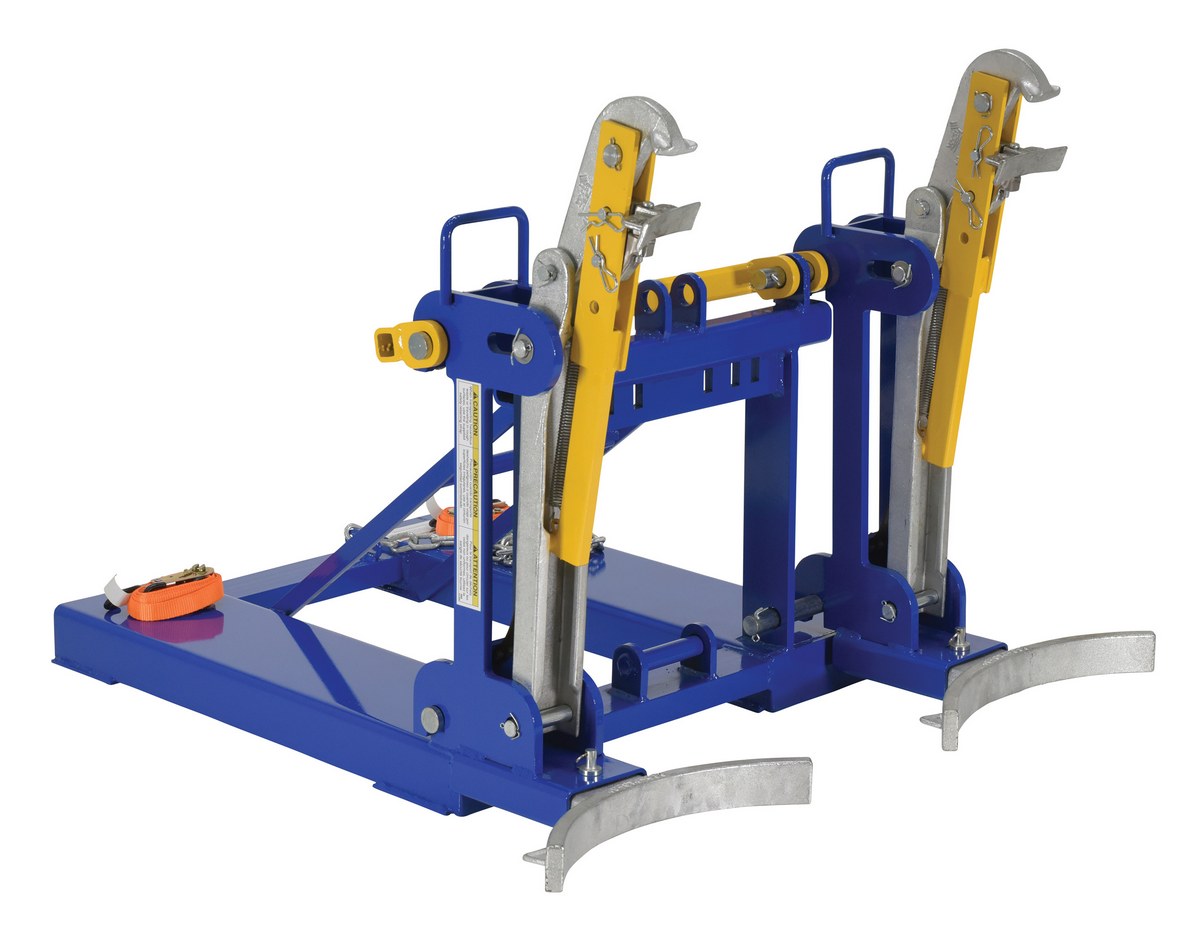

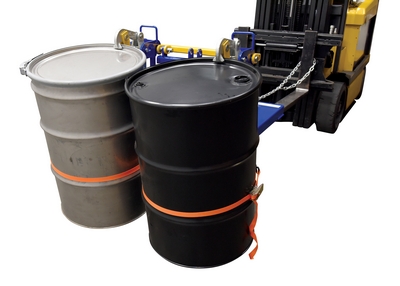

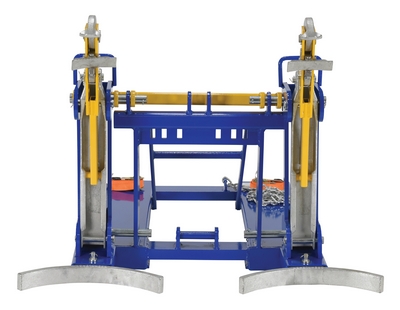

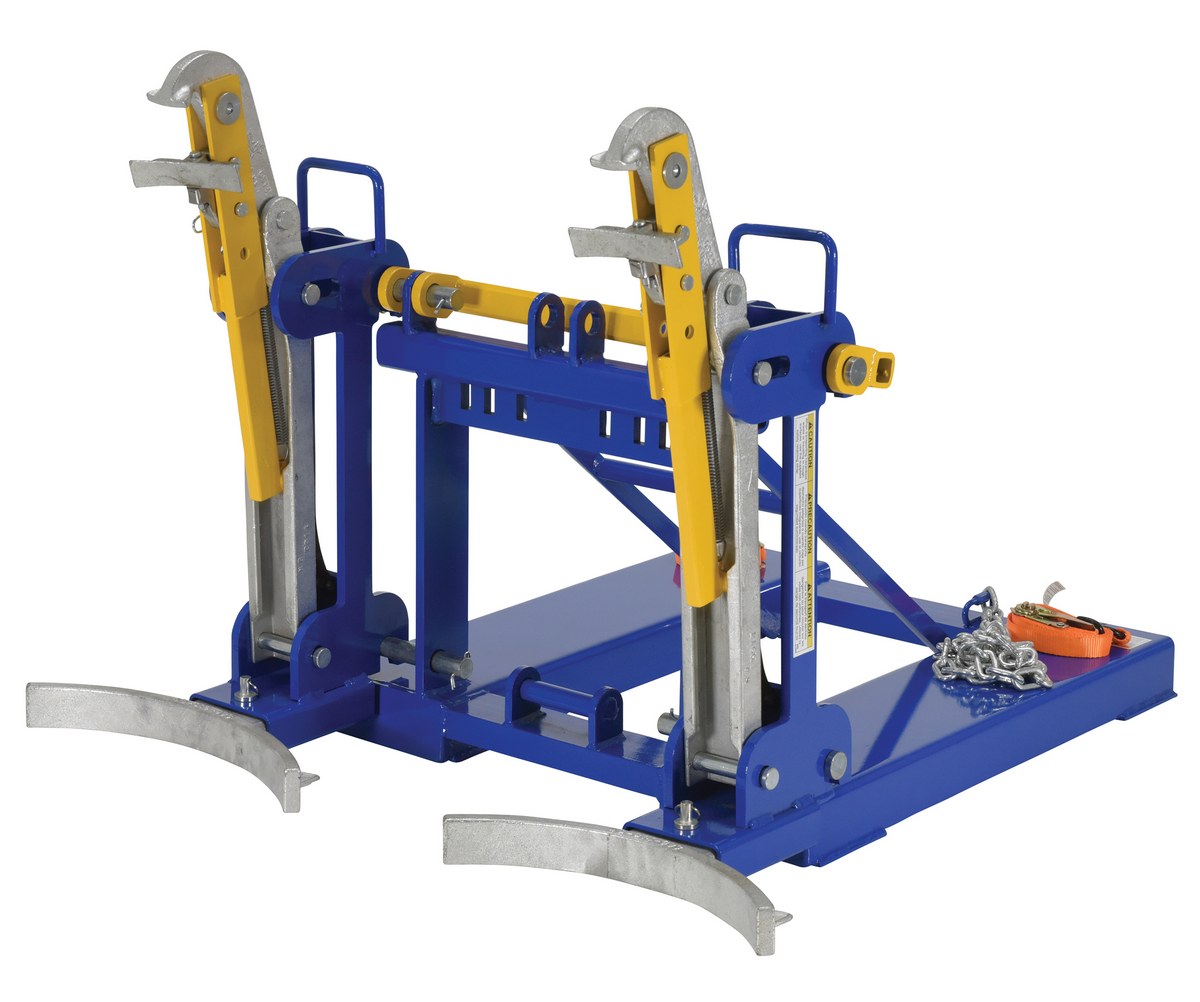

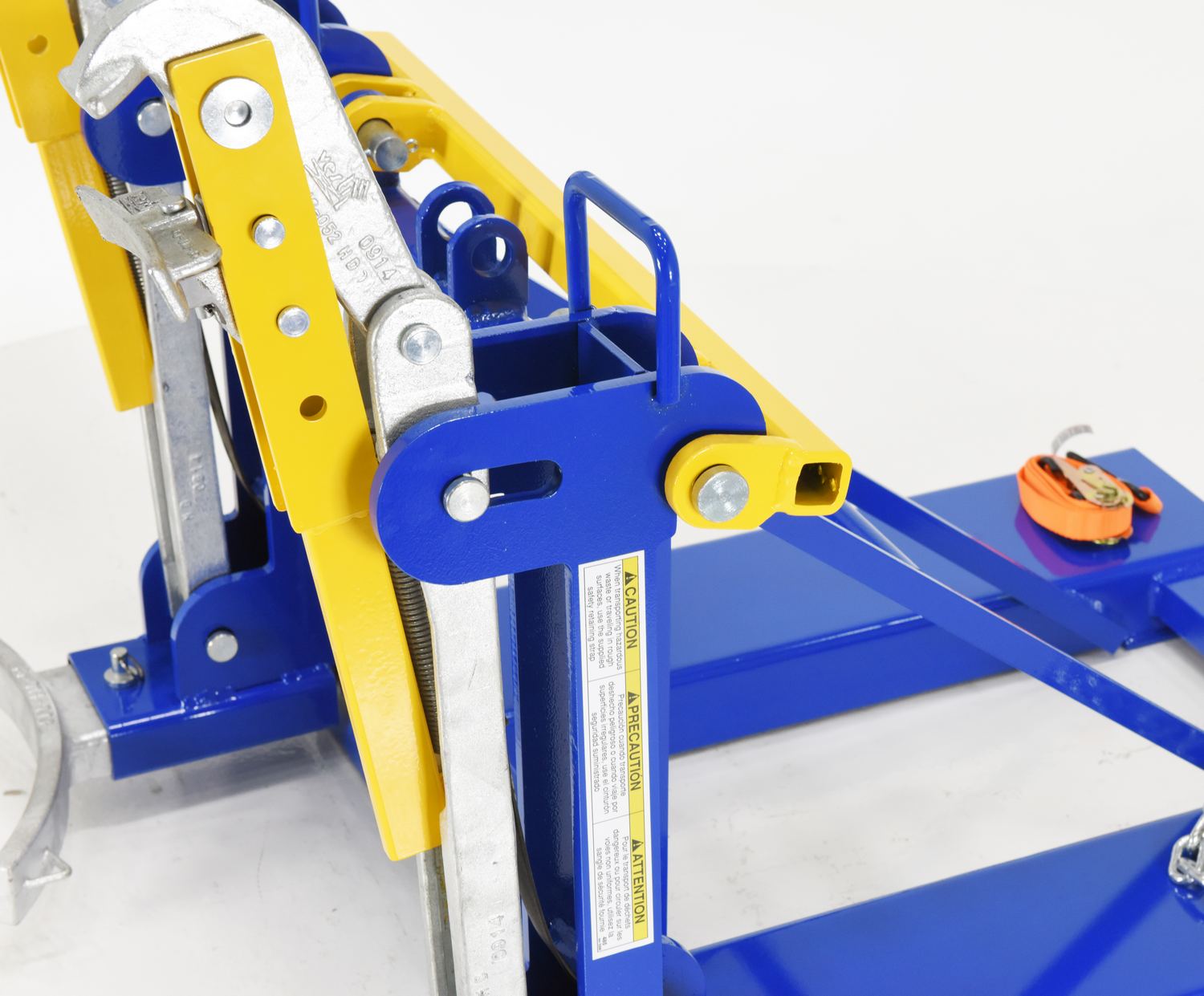

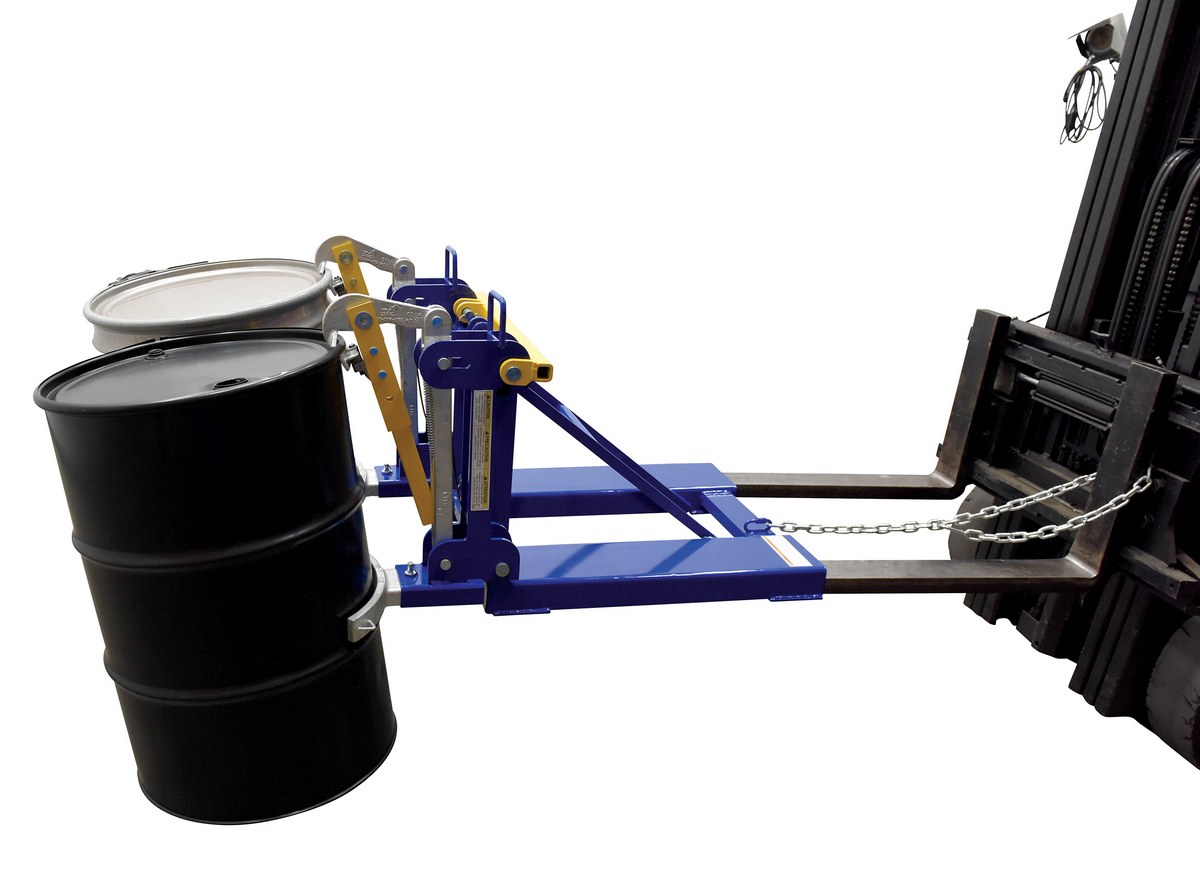

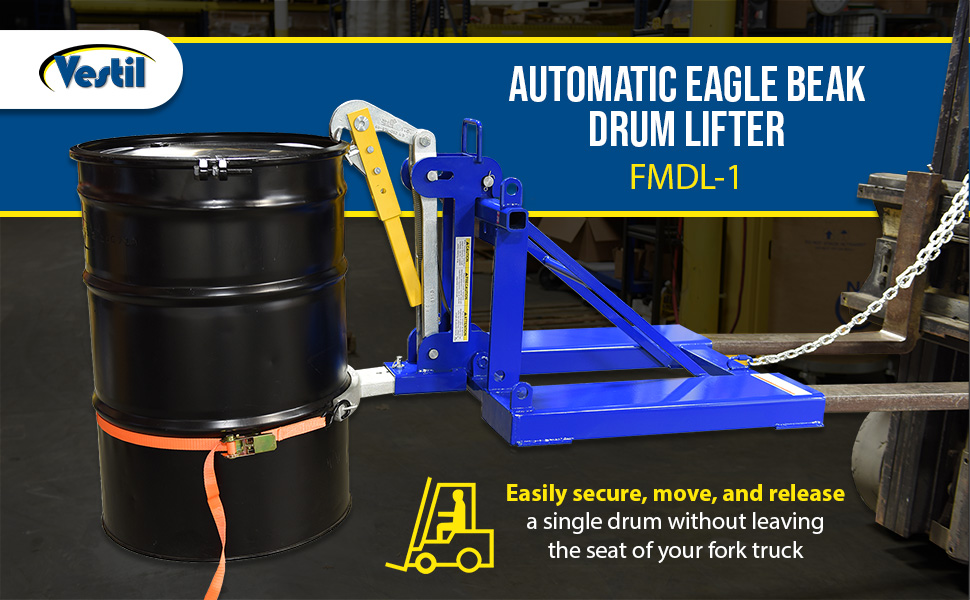

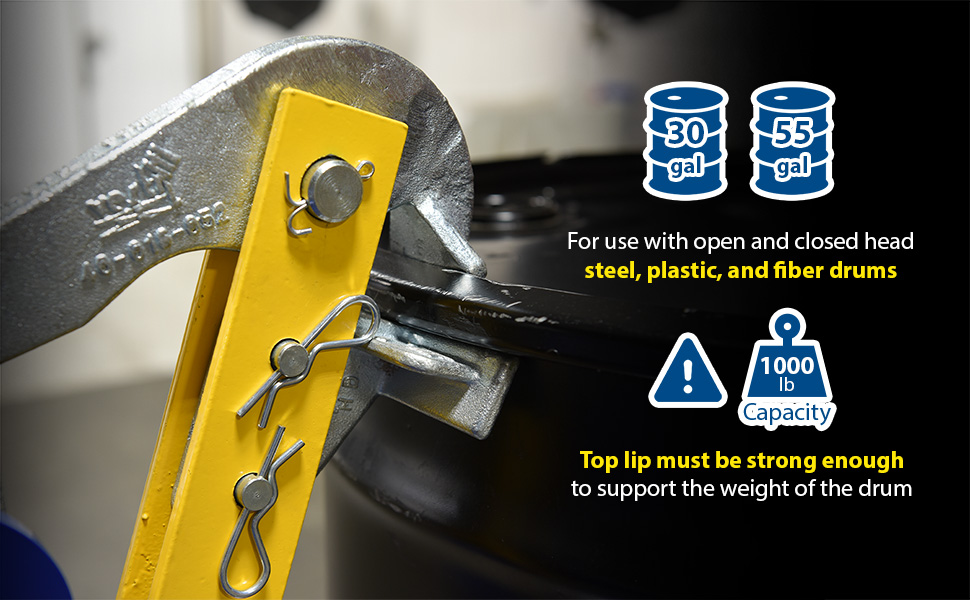

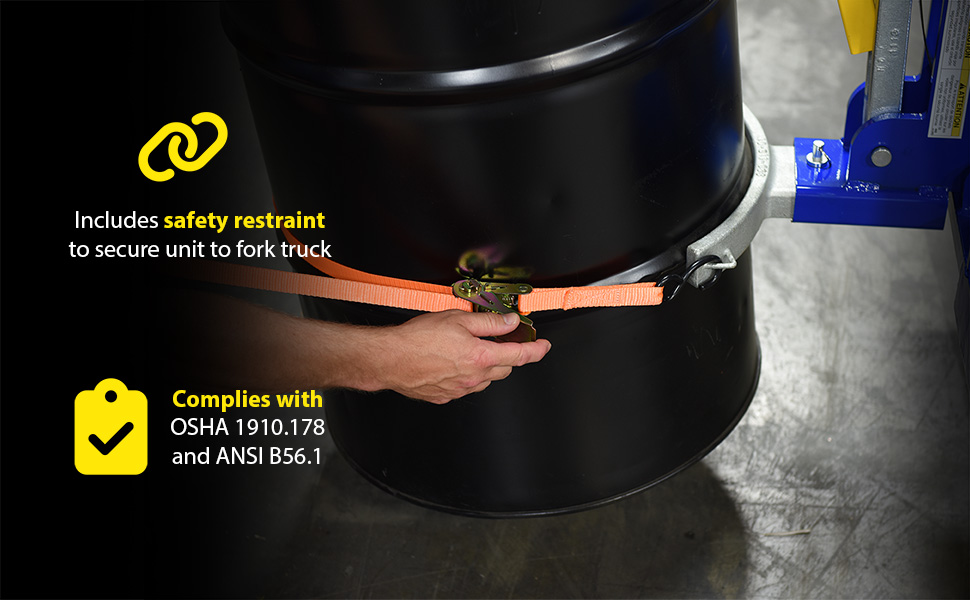

FMDLThis time tested and proven design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck. For use with open (lid installed and secured) and closed head 30 and 55-gallon plastic, steel and fiber drums with a top lip strong enough to support the weight of the drum. Choose single-drum or double-drum configuration. Includes safety restraint to secure unit to the fork truck. Welded steel construction. Powder coat finish for baked in powder-coated toughness. Fork pockets measure 7-1/2" wide x 2-1/2" high usable on 20-1/2" centers. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Additonal or replacement ratchet straps available, contact factory. Meets OSHA 1910-178 requirements.

* Simple & Easy Operation

* Low Maintenance Design

* Completely Automatic Operation

* Belt and Roller units provide a softer lifting surface, minimizing scratches

FMDLThis time tested and proven design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck. For use with open (lid installed and secured) and closed head 30 and 55-gallon plastic, steel and fiber drums with a top lip strong enough to support the weight of the drum. Choose single-drum or double-drum configuration. Includes safety restraint to secure unit to the fork truck. Welded steel construction. Powder coat finish for baked in powder-coated toughness. Fork pockets measure 7-1/2" wide x 2-1/2" high usable on 20-1/2" centers. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Additonal or replacement ratchet straps available, contact factory. Meets OSHA 1910-178 requirements.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

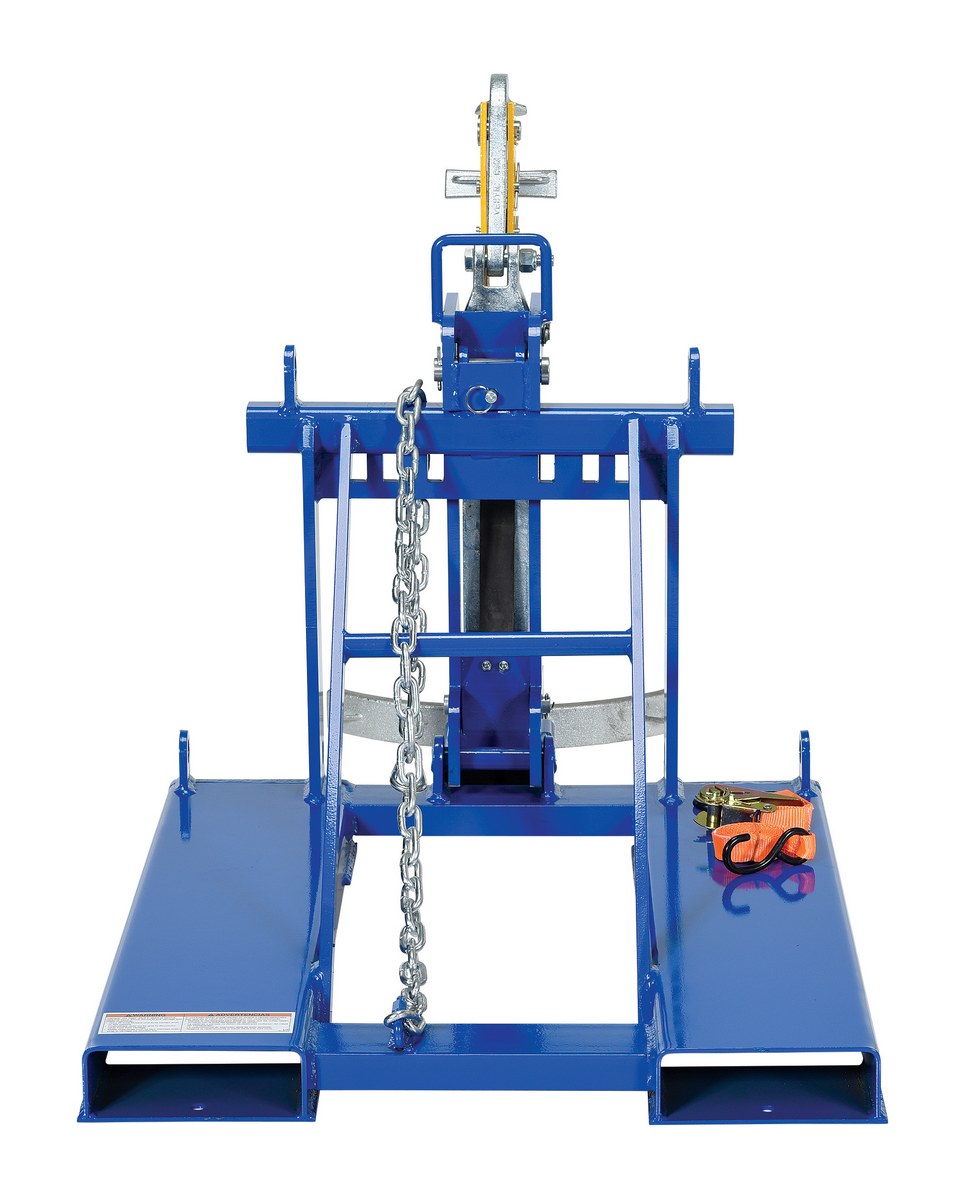

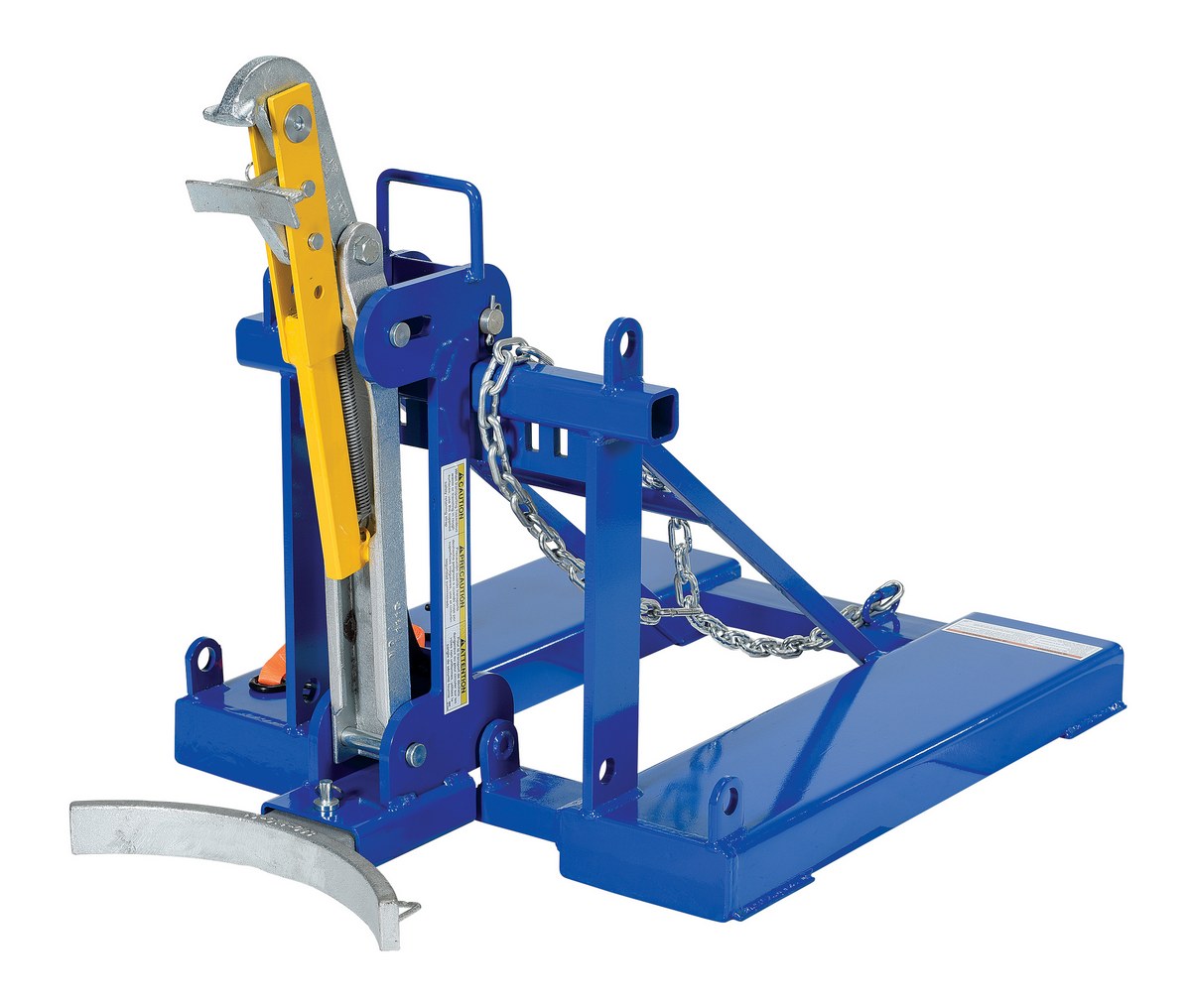

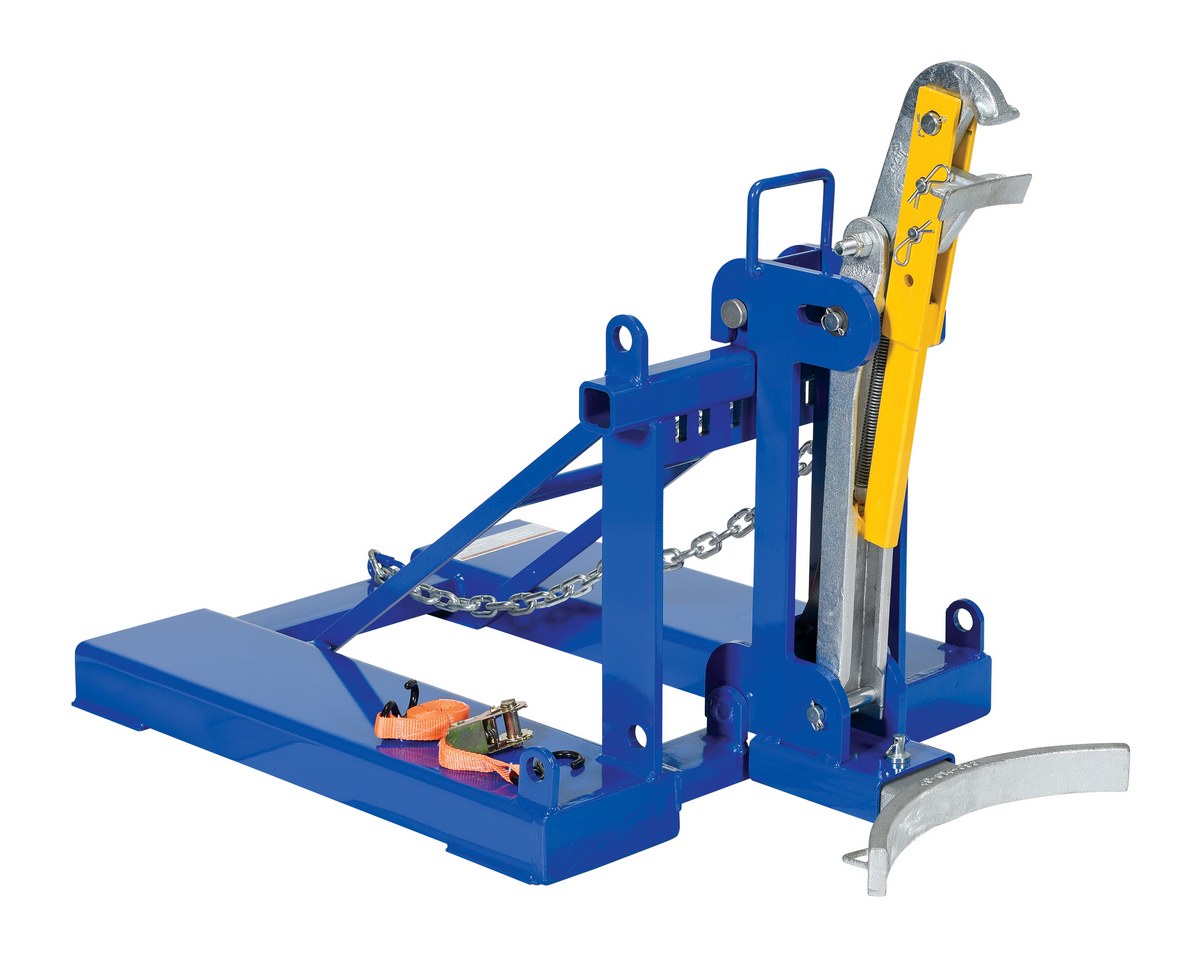

FMDL-1 FMDL-190 Days Limited WarrantySteel Automatic Eagle Beak 1 Drum 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
227

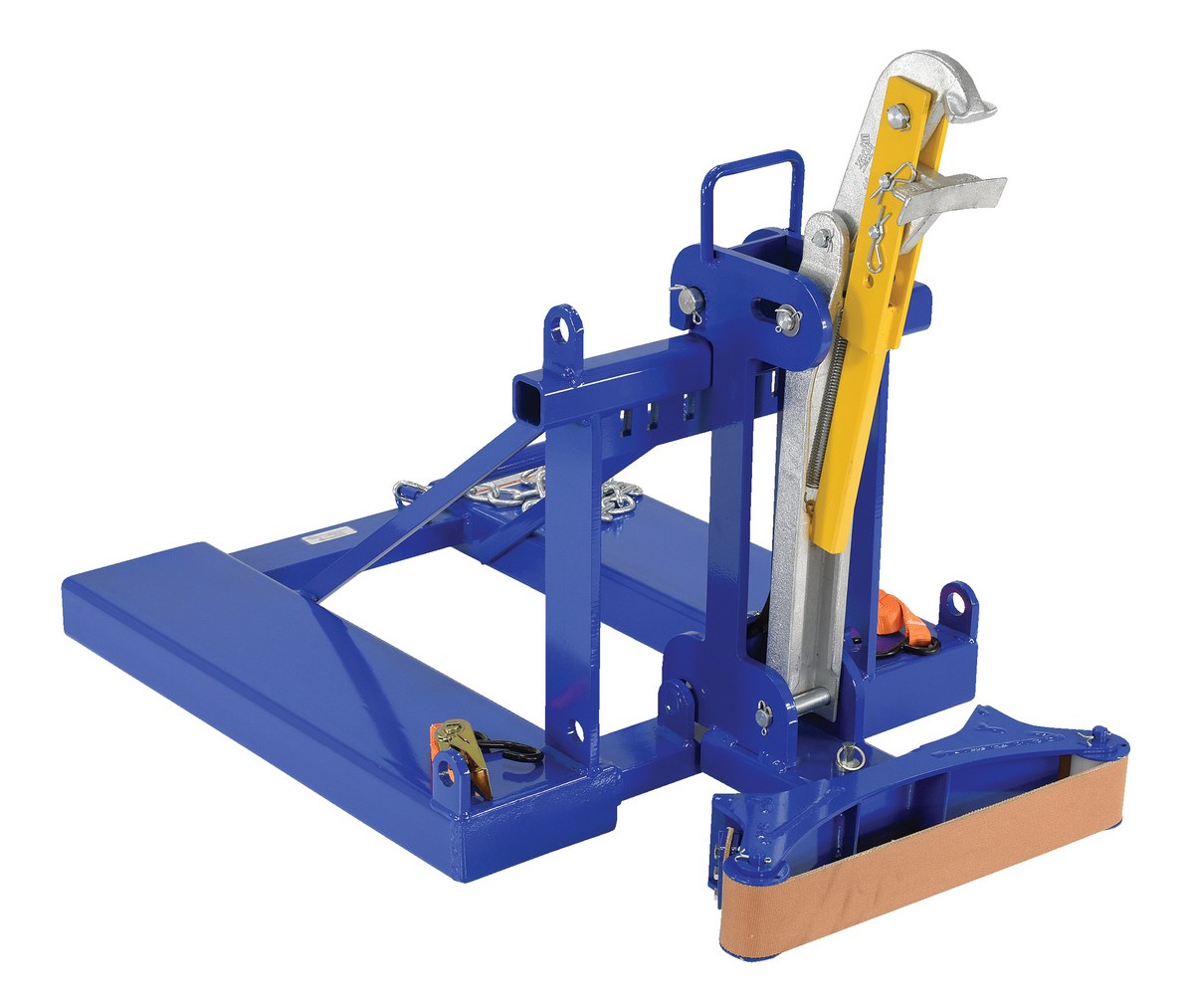

FMDL-1-LDS-B1 FMDL-1-LDS-B190 Days Limited WarrantySteel Automatic Eagle Beak 1 Drum with Belt Saddle 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
227

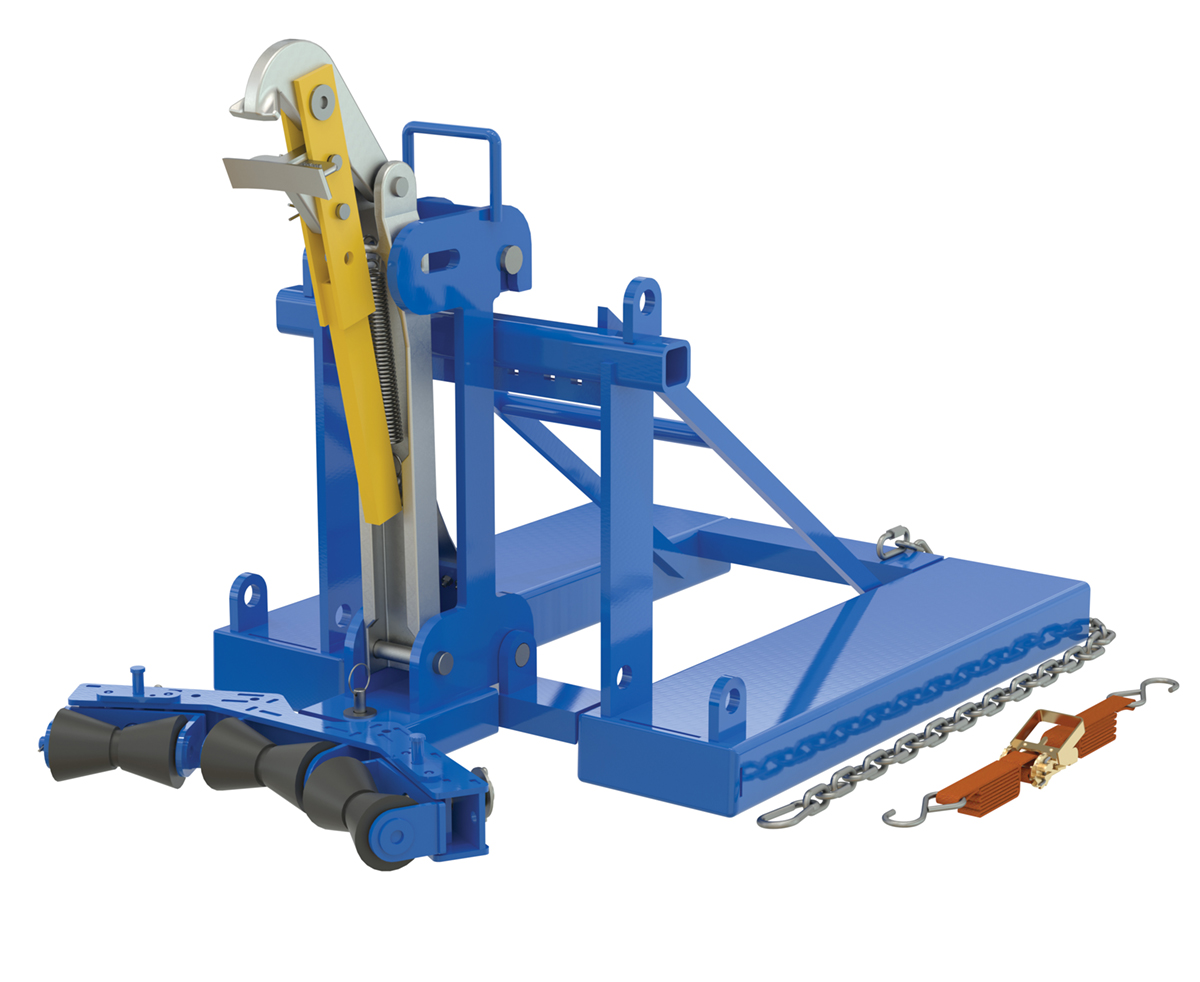

FMDL-1-LDS-R3 FMDL-1-LDS-R390 Days Limited WarrantySteel Automatic Eagle Beak 1 Drum with Rollers 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
227

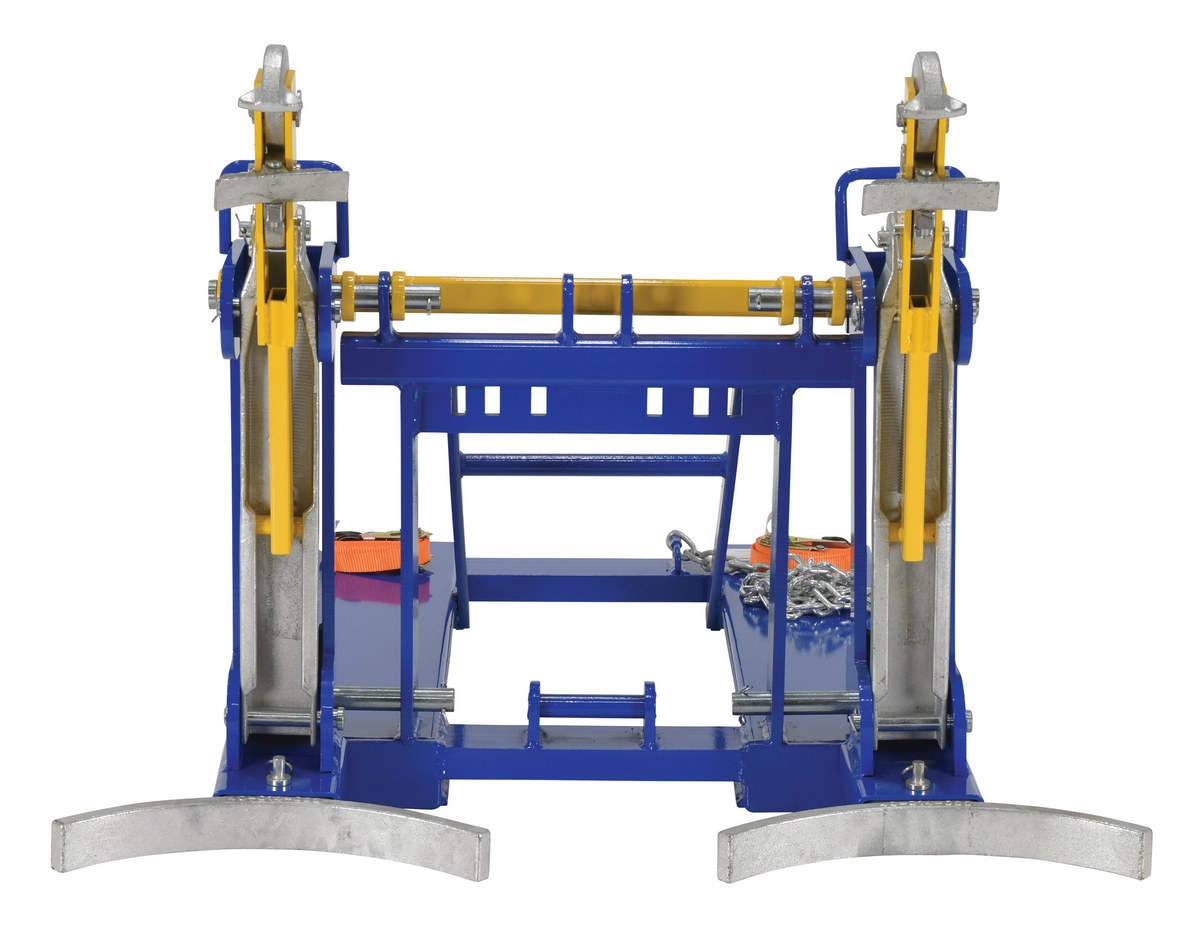

FMDL-2 FMDL-290 Days Limited WarrantySteel Automatic Eagle Beak 2 Drum 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
311

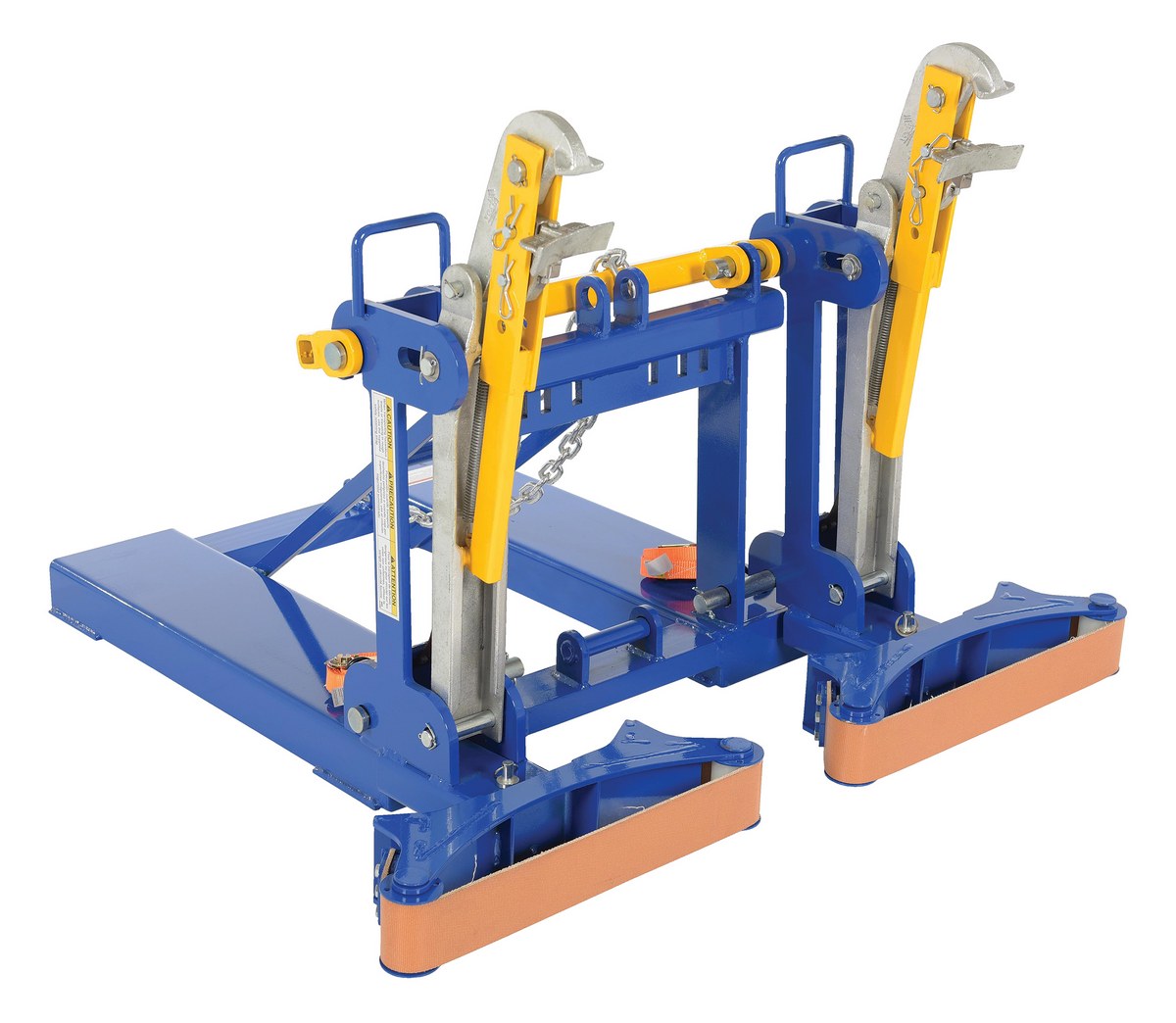

FMDL-2-LDS-B1 FMDL-2-LDS-B190 Days Limited WarrantySteel Automatic Eagle Beak 2 Drum with Belt Saddle 1,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
311

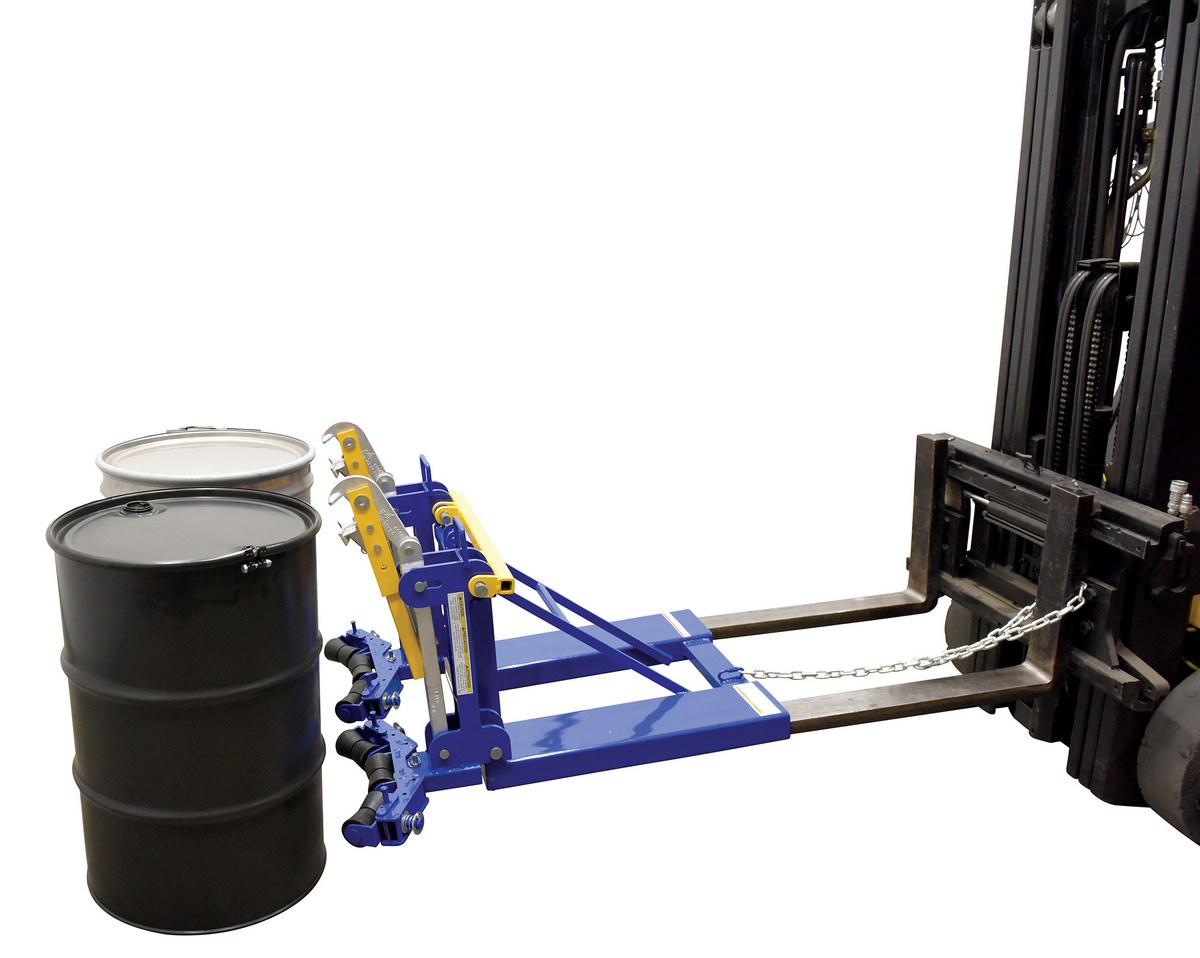

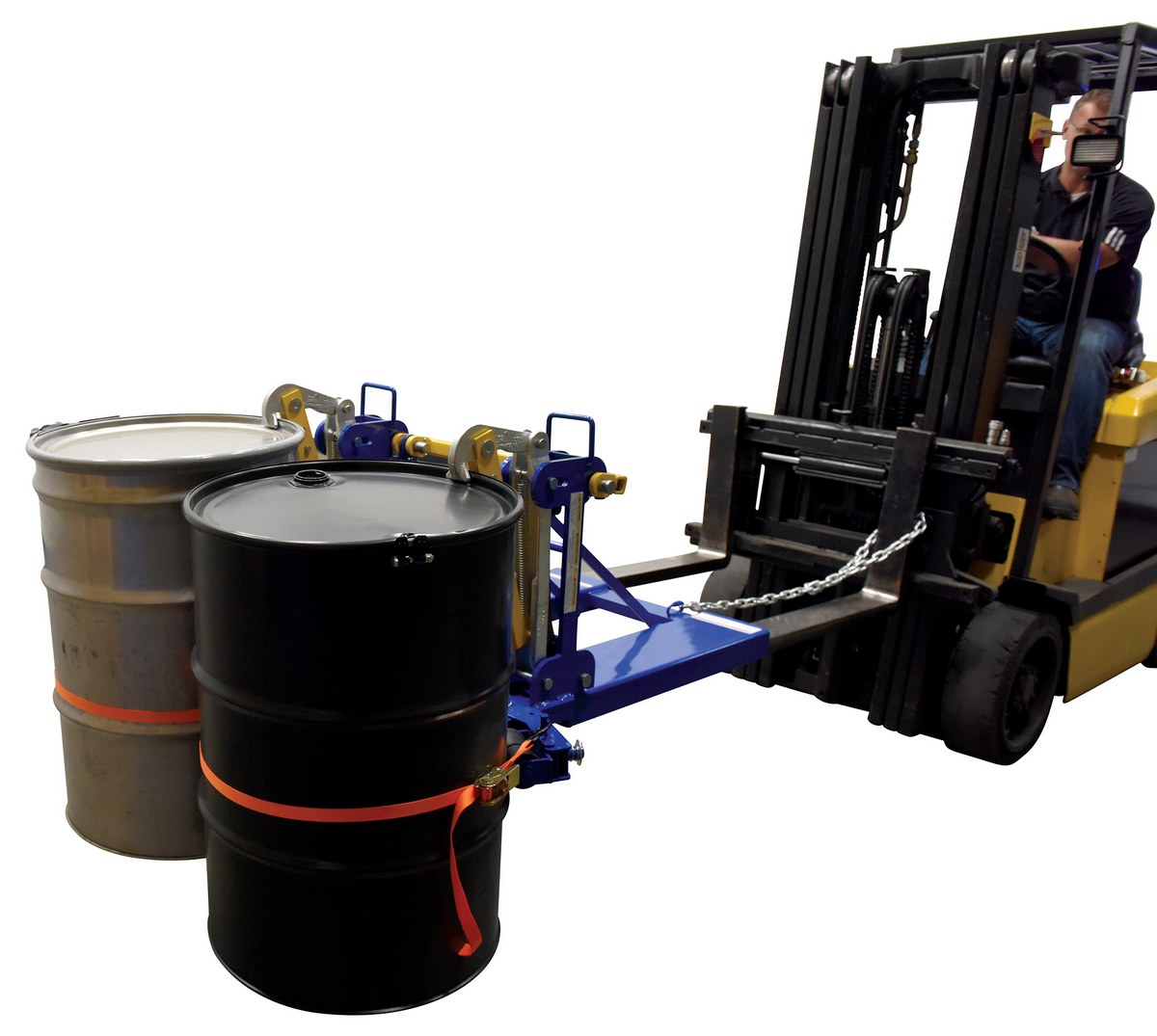

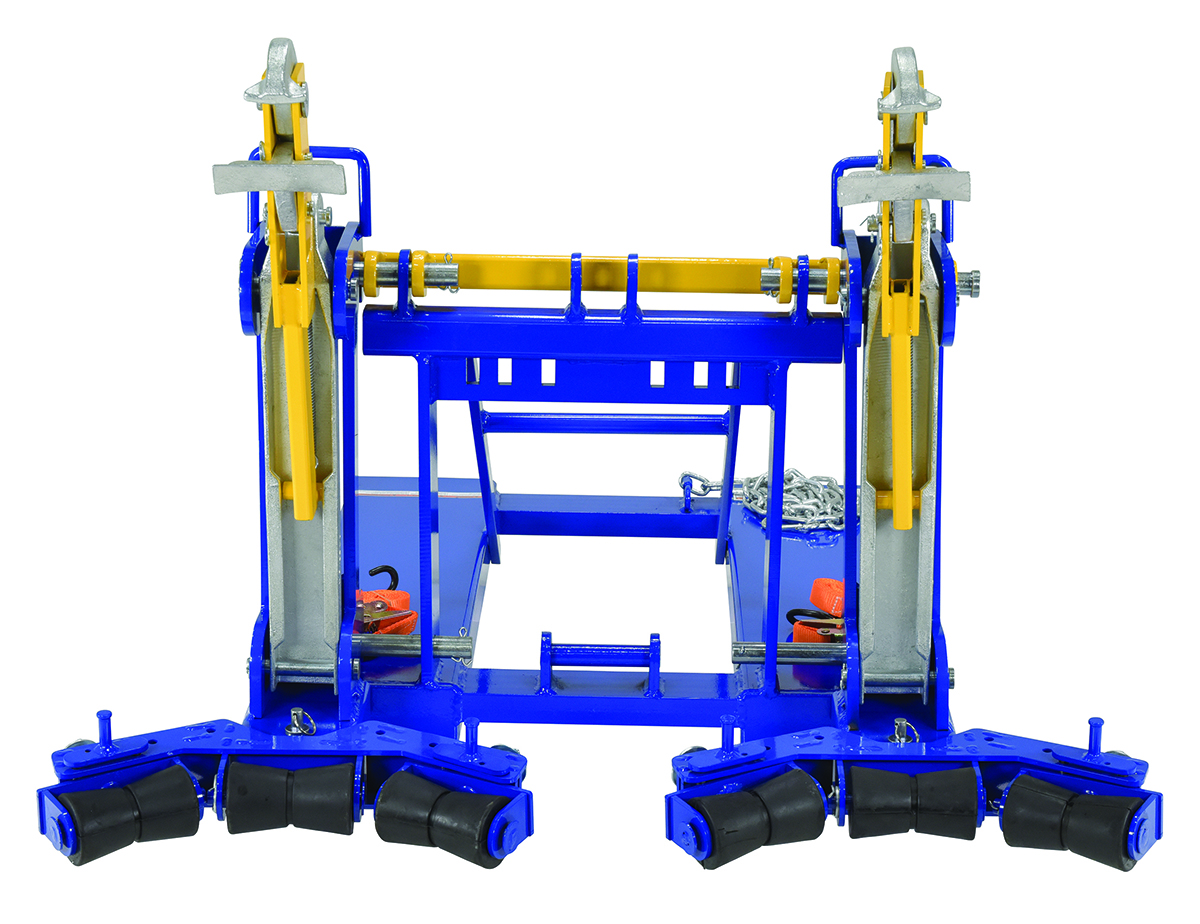

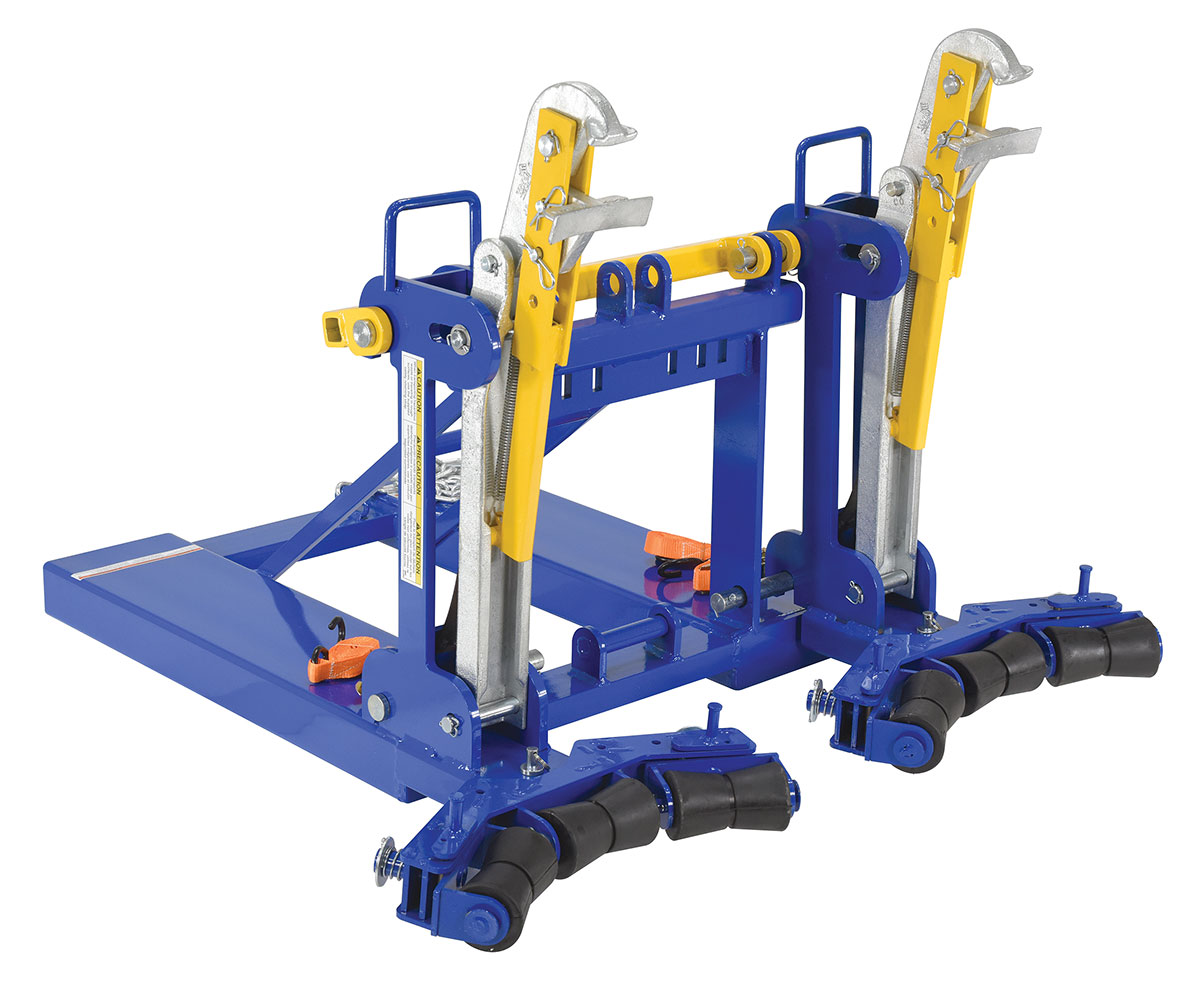

FMDL-2-LDS-R3 FMDL-2-LDS-R390 Days Limited WarrantySteel Automatic Eagle Beak 2 Drum with Rollers 1,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
311

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FMDL-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums

FMDL-1-LDS-B1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums

FMDL-1-LDS-R3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums

FMDL-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums

FMDL-2-LDS-B1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums

FMDL-2-LDS-R3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
For More Details of the Option Click the Red Model Button

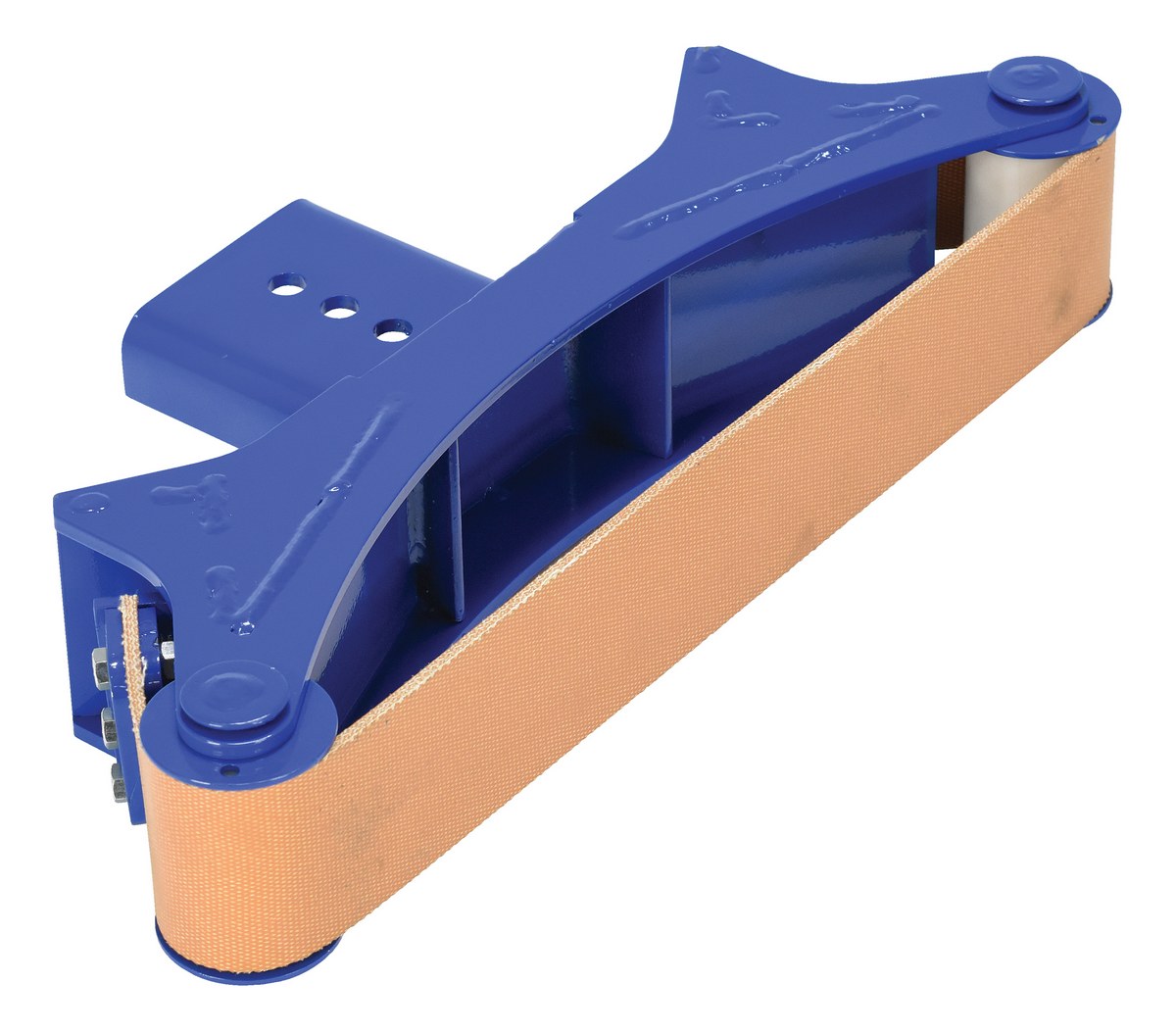

LDS-B1 LDS-B190 Days Limited WarrantySteel Saddle Belt Attachment 2,000 Lb. Capacity For Drum Lifters BlueUniform Capacity (lb.): 2,000
Usable Width (in.): 16-1/4
28

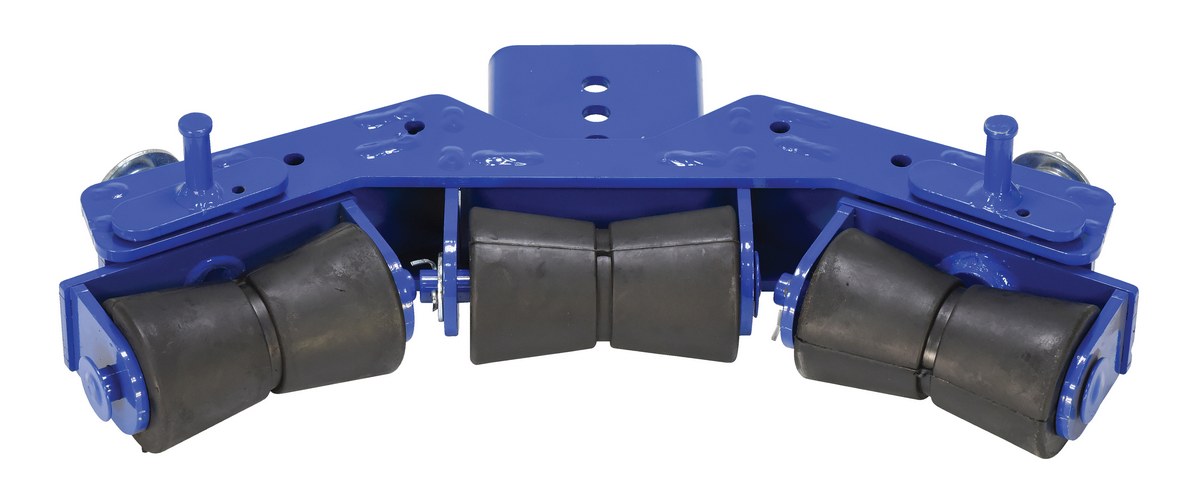

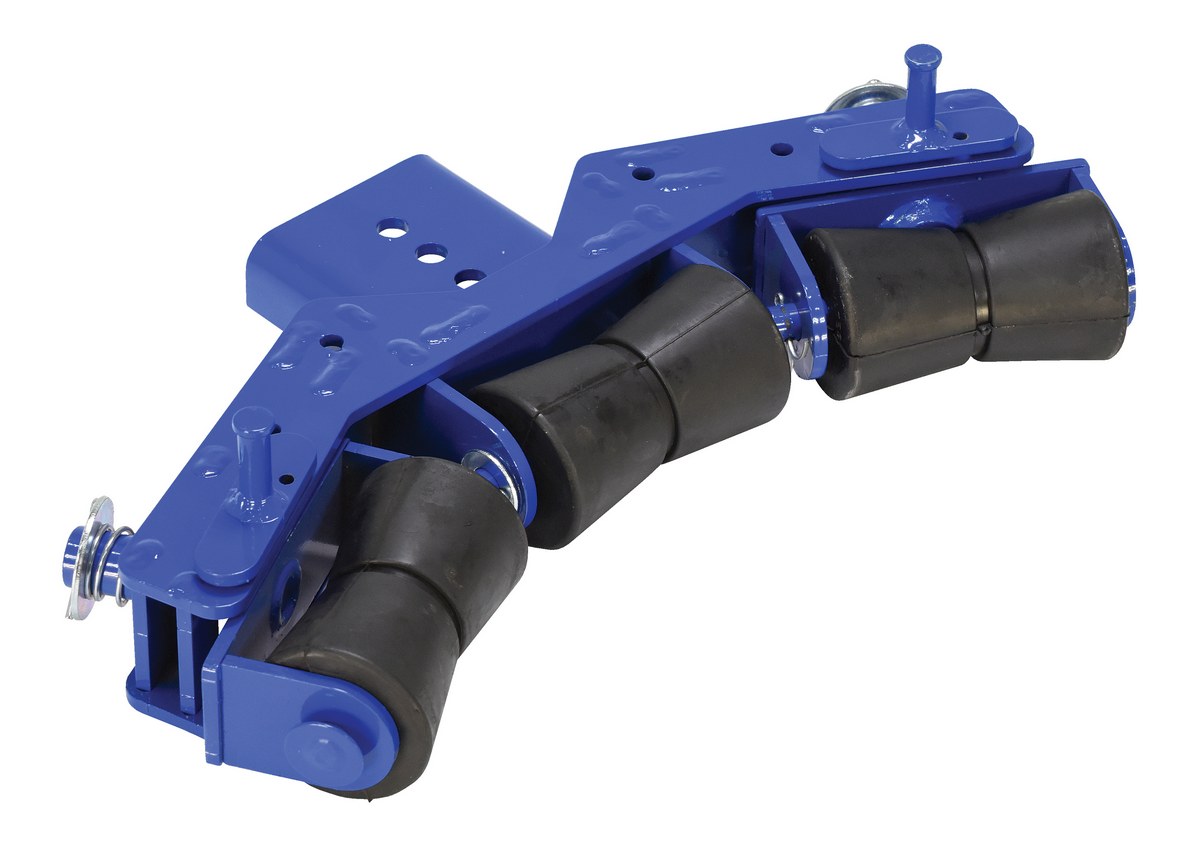

LDS-R3 LDS-R390 Days Limited WarrantySteel Saddle Roller Attachment 1,000 Lb. Capacity For Drum Lifters BlueUniform Capacity (lb.): 1,000
Usable Width (in.): 16-1/16
28

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Automatic Eagle Beak Drum Lifters PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FMDL-1

FMDL-1-LDS-B1

FMDL-1-LDS-R3

FMDL-2

FMDL-2-LDS-B1

FMDL-2-LDS-R3

LDS-B1

LDS-R3

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the purpose of the FMDL roller and belt units?

A: The roller and belt units create a softer surface when picking up drums. These units are ideal for drums that could potentially become scratched while moving the drum.
