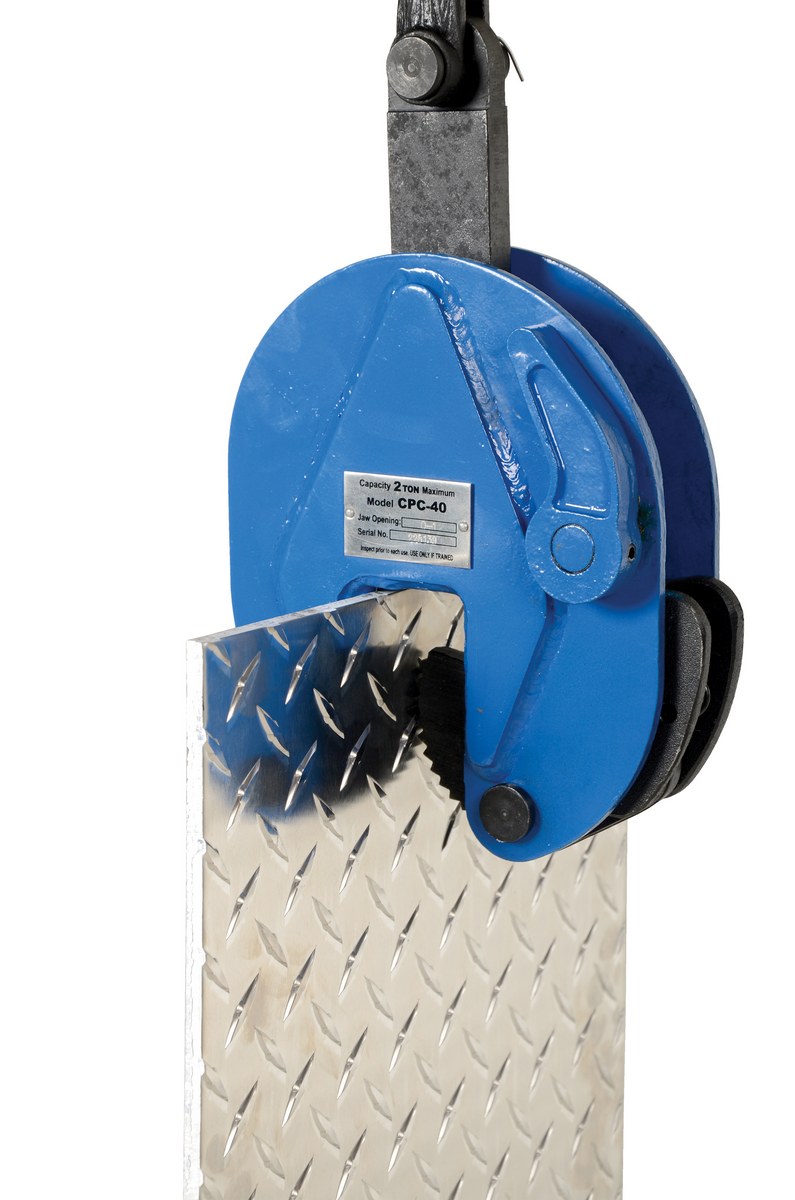

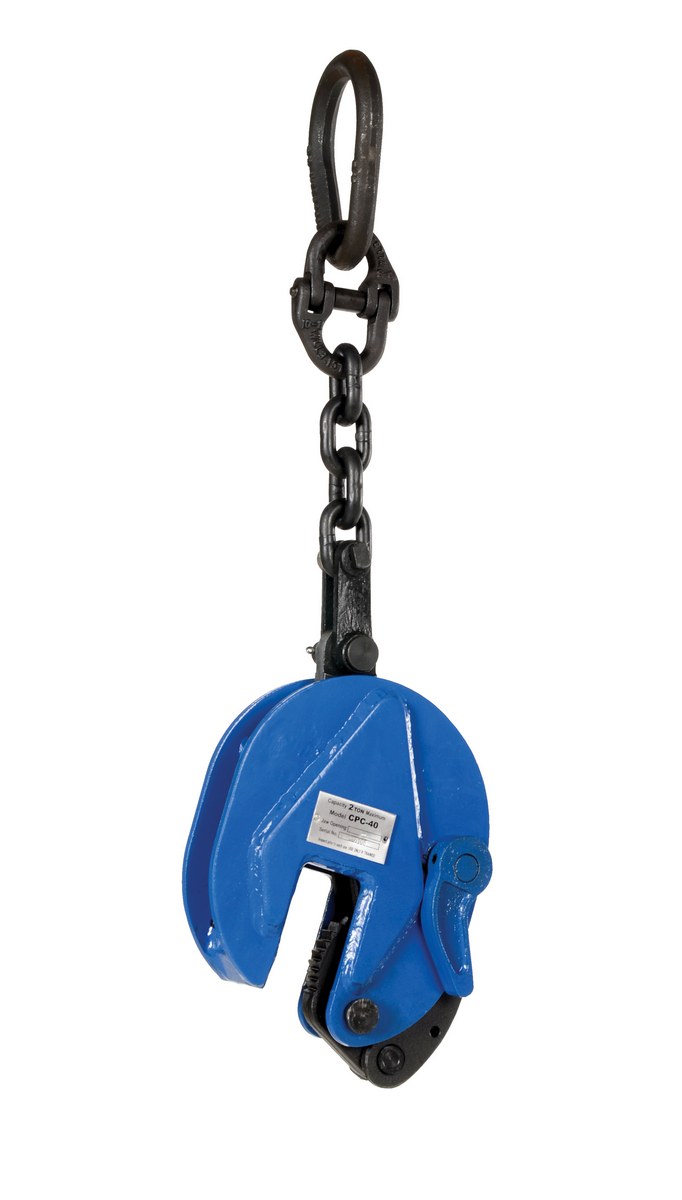

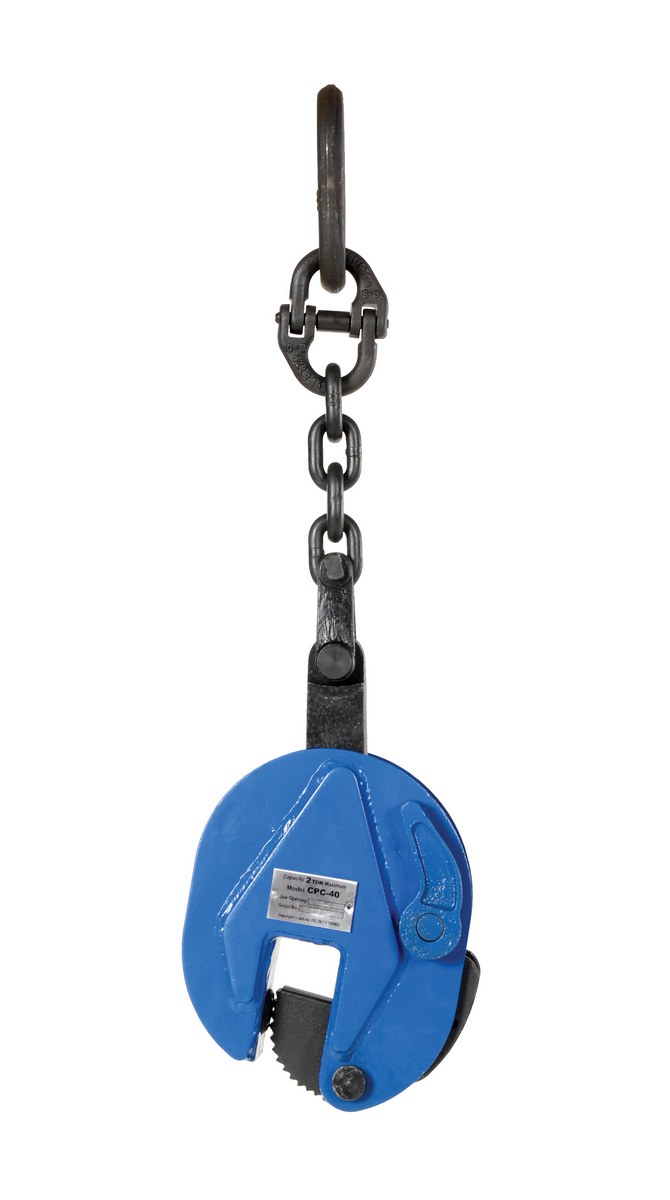

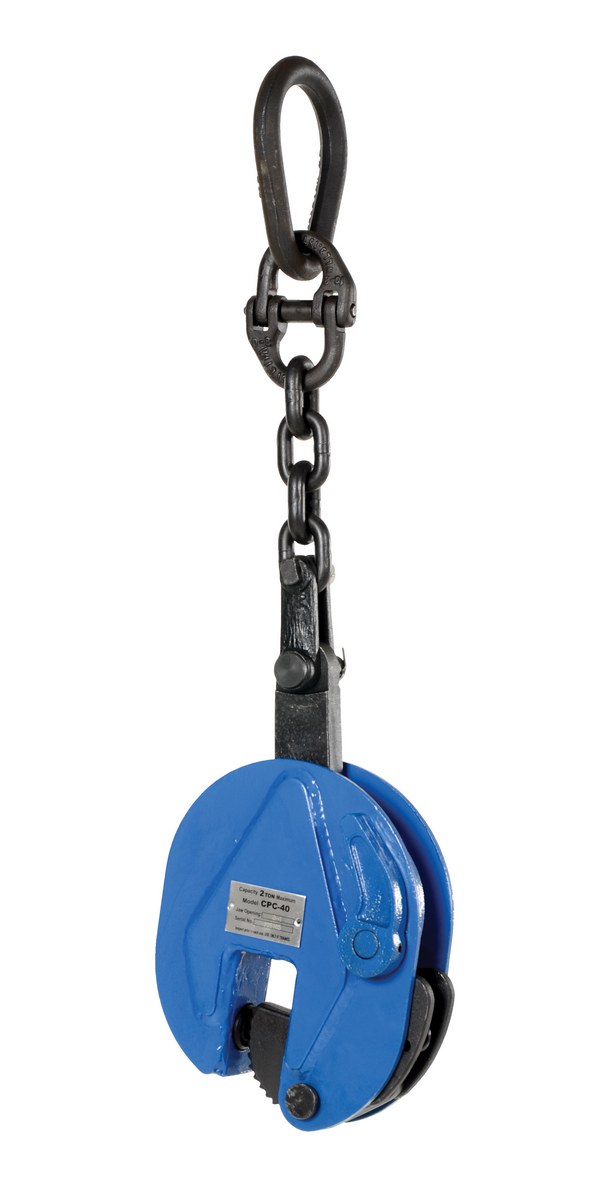

CPC-40_E.jpg CPC-40_A.jpg CPC-40_B.jpg CPC-40_C.jpg
Vertical Plate Clamps with Chain

model: CPC-40



Featured Overhead Lifting


Electric Powered Floor Cranes
Chain Hoists - Electric
Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown
Economy Spreader Beams
Galvanized Two-Speed Cable Puller
Lifter Jibs
Hand Winches
Adjustable Steel Gantry Cranes - Knockdown
Basket Lifting Beam
model chart

Product Family Overview

Print Friendly
Vertical Plate Clamps with Chain
SERIES: CPC

Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • Heavy-duty steel construction for years of reliable use

Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Ideal for pulling over long distances
  • Designed for in a vertical position
  • Lifting eye includes chain for greater versatility
  • Heavy-duty steel construction for years of reliable use

Other Clamps & Tongs

 Heavy-Duty Beam Tongs Positive Locking Plate Clamps Non-Marring Plate Clamps Vertical Plate Clamps with Chain

Additional Models In This Family
view entire Image Gallery

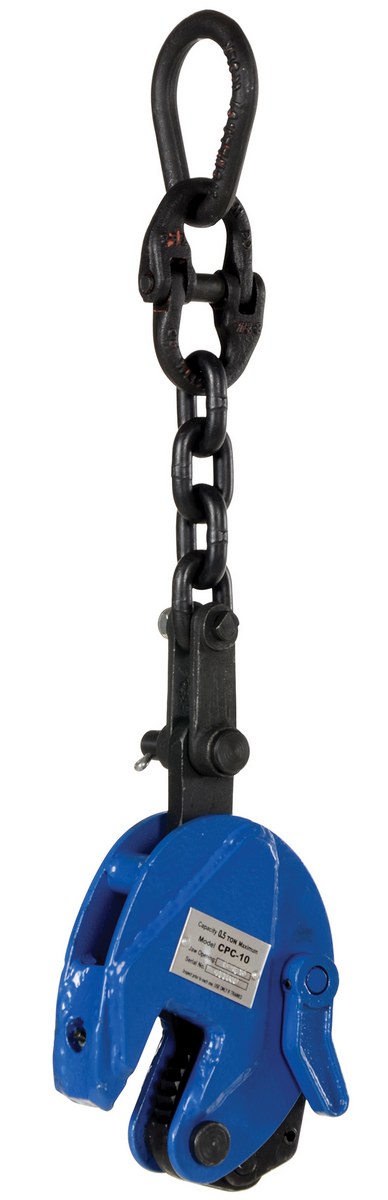

CPC-10

model CPC-10

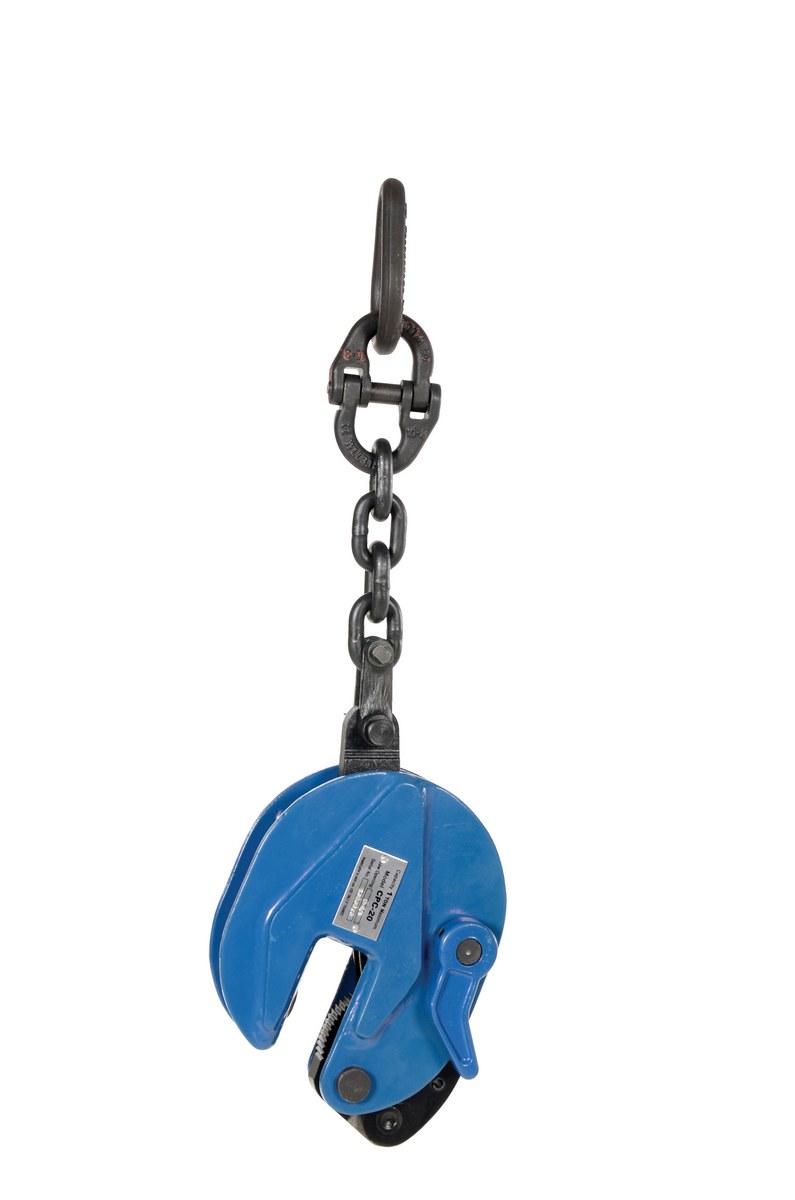

CPC-20

model CPC-20

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CPC-10 CPC-1090 Days Limited WarrantySteel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000		6
CPC-20 CPC-2090 Days Limited WarrantySteel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000		14
CPC-40 CPC-4090 Days Limited WarrantySteel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000		17

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CPC-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000

CPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000

CPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
