Low Headroom Combination Chain Hoist/Trolley
SERIES: LOW

Use this Low Headroom Chain Hoist Geared Trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam. Load chain is alloy steel. Hand chain is carbon steel galvanized. Assembly required.

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility

Use this Low Headroom Chain Hoist Geared Trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam. Load chain is alloy steel. Hand chain is carbon steel galvanized. Assembly required.

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

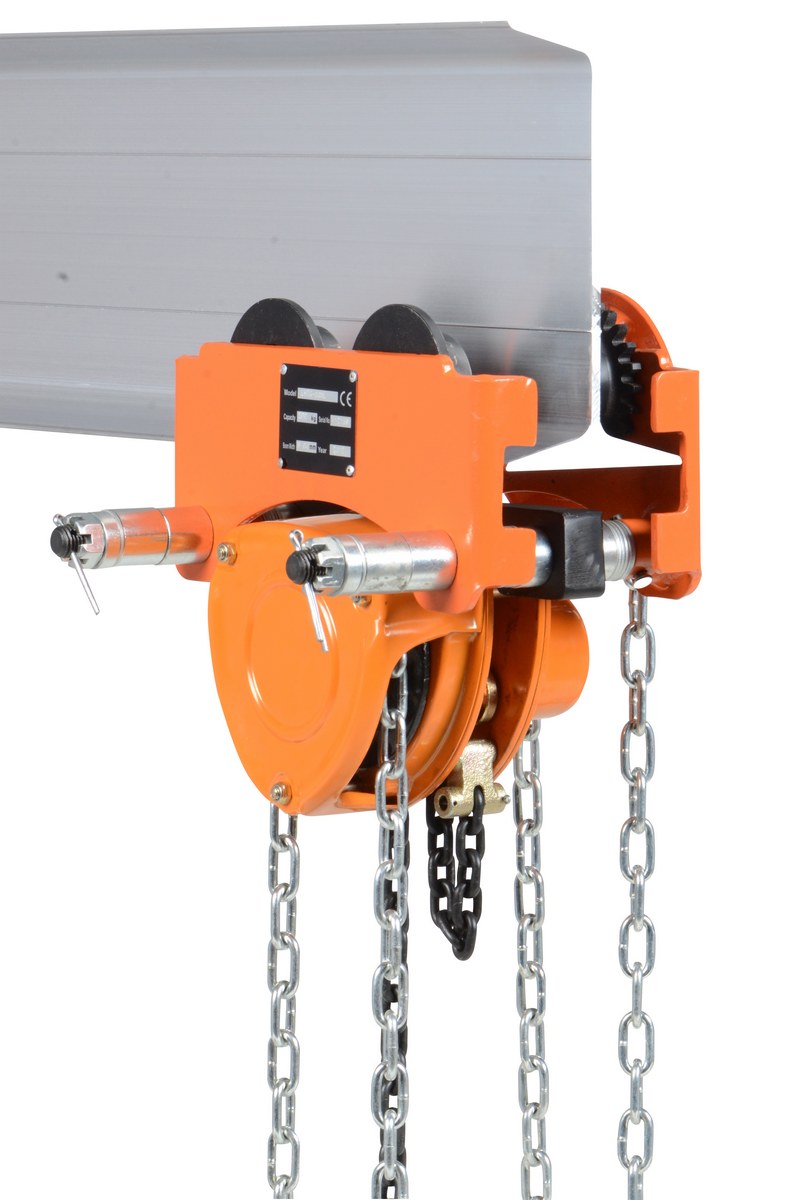

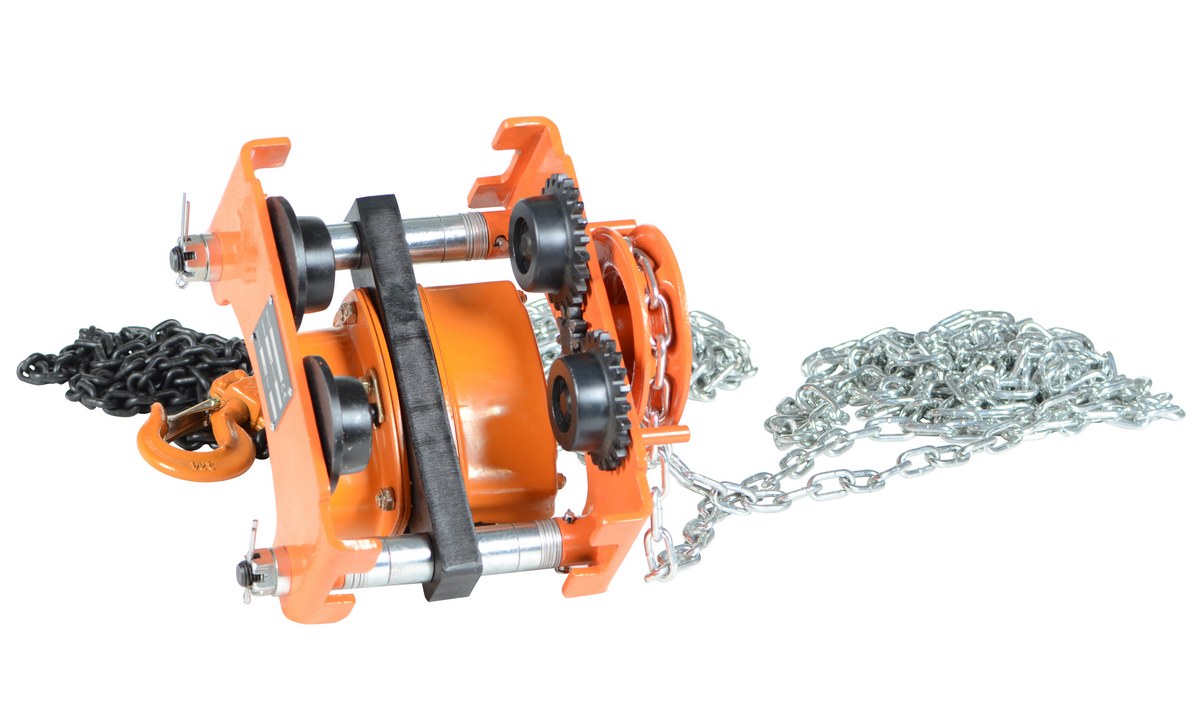

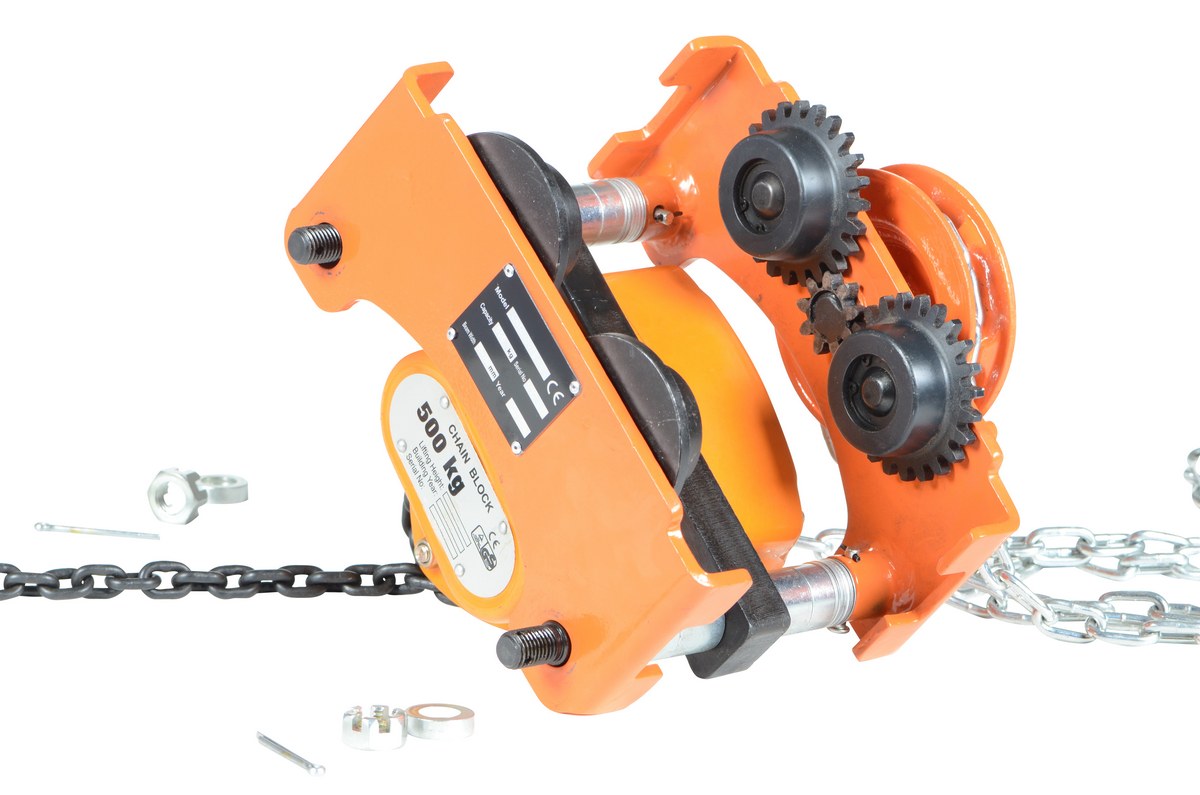

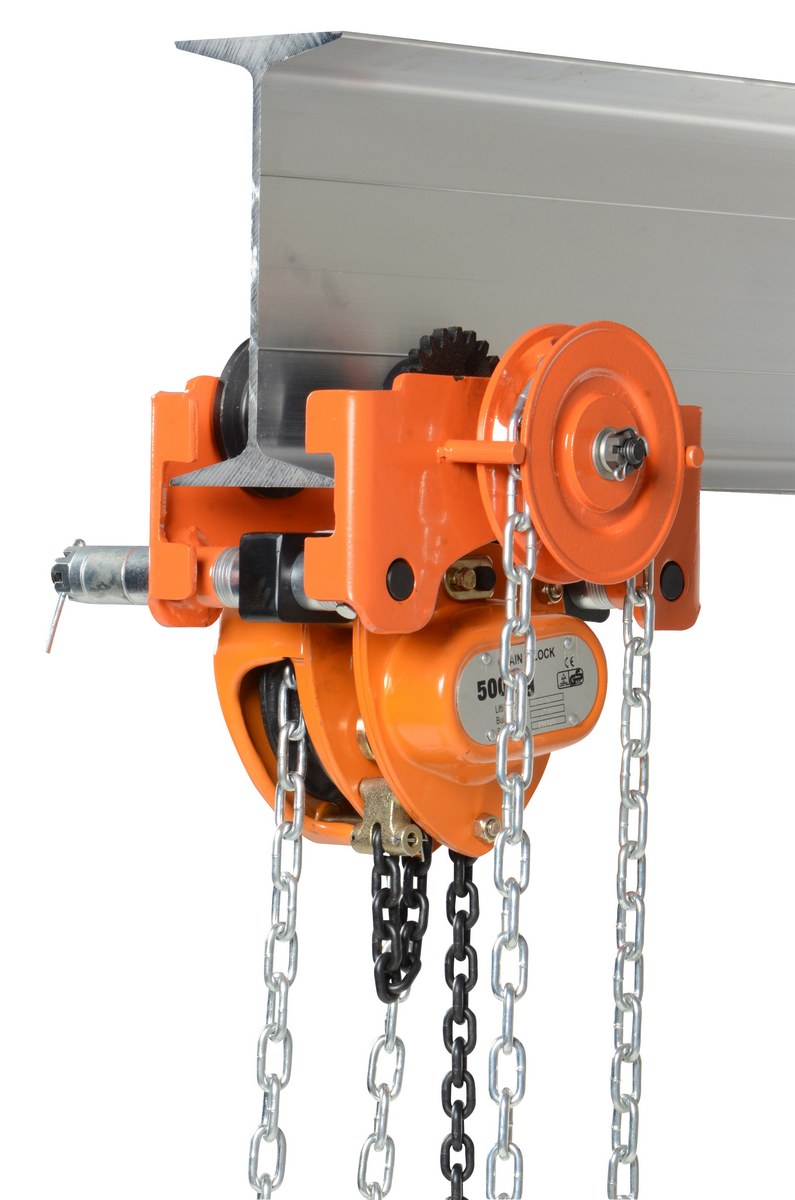

LOW-1G LOW-1G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 9 In. x 10 In. x 10 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
49

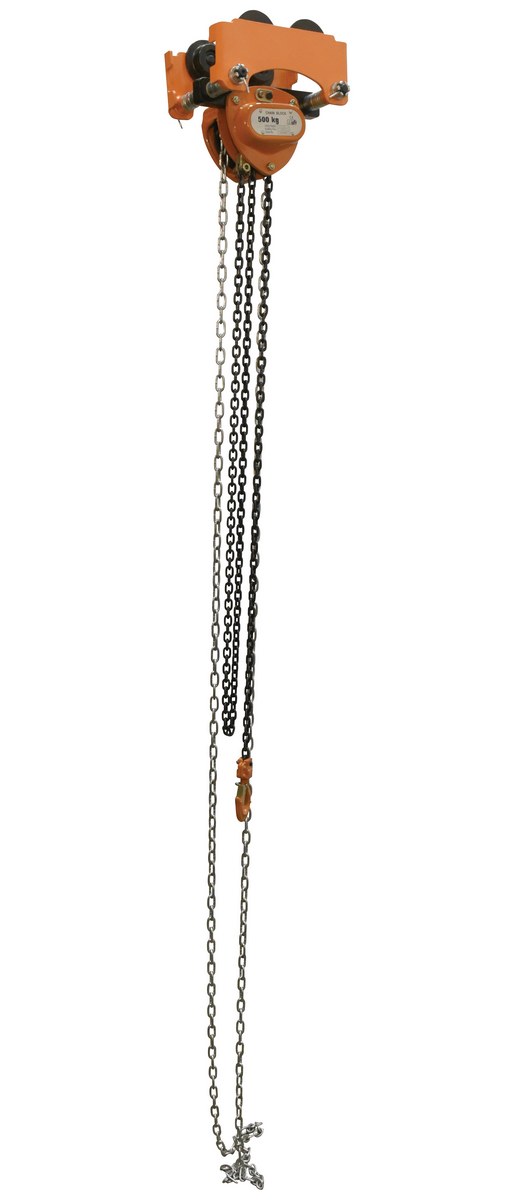

LOW-1P LOW-1P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 10-1/4 In. x 9-1/2 In. x 10 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
45

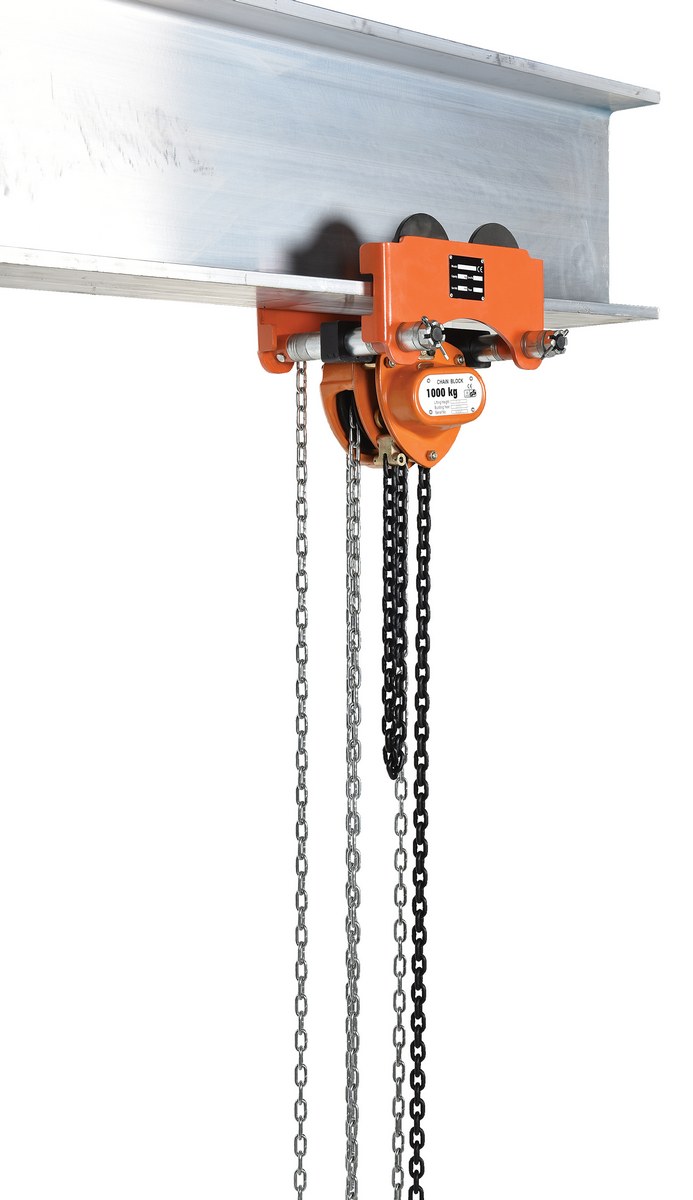

LOW-2G LOW-2G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 11-1/2 In. x 11-1/2 In. x 10 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
73

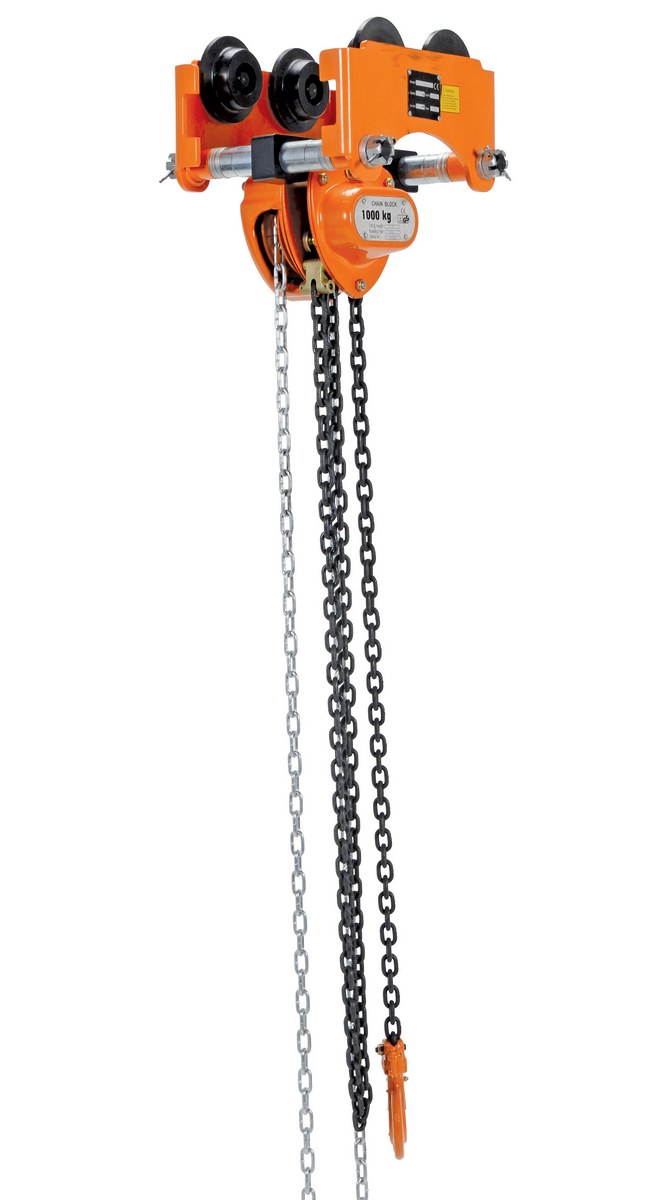

LOW-2P LOW-2P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 12 In. x 10-1/2 In. x 10 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
63

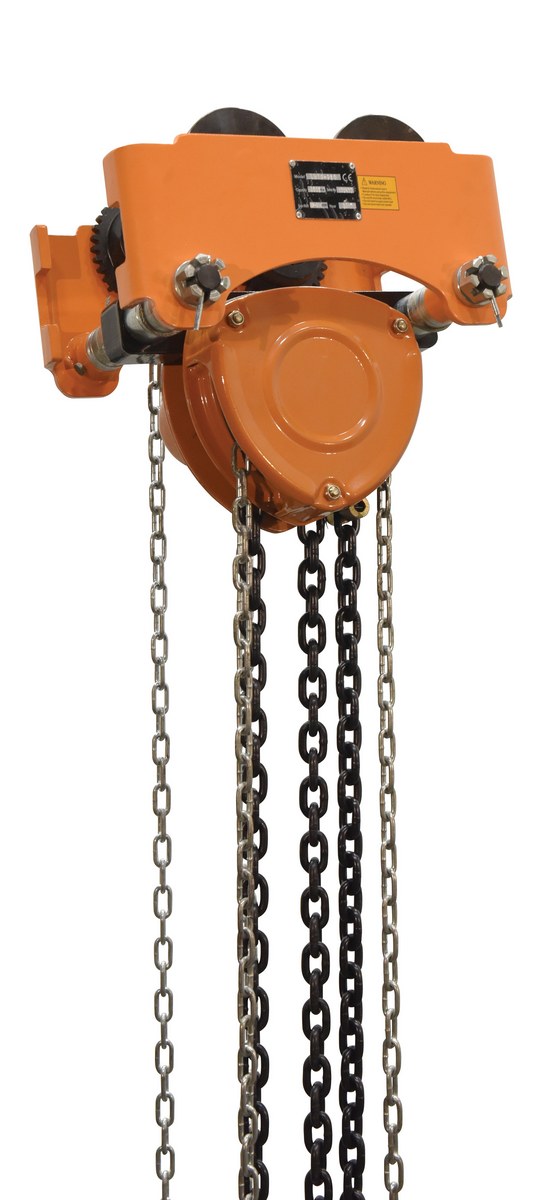

LOW-4G LOW-4G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 14 In. x 12-1/2 In. x 14 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
110

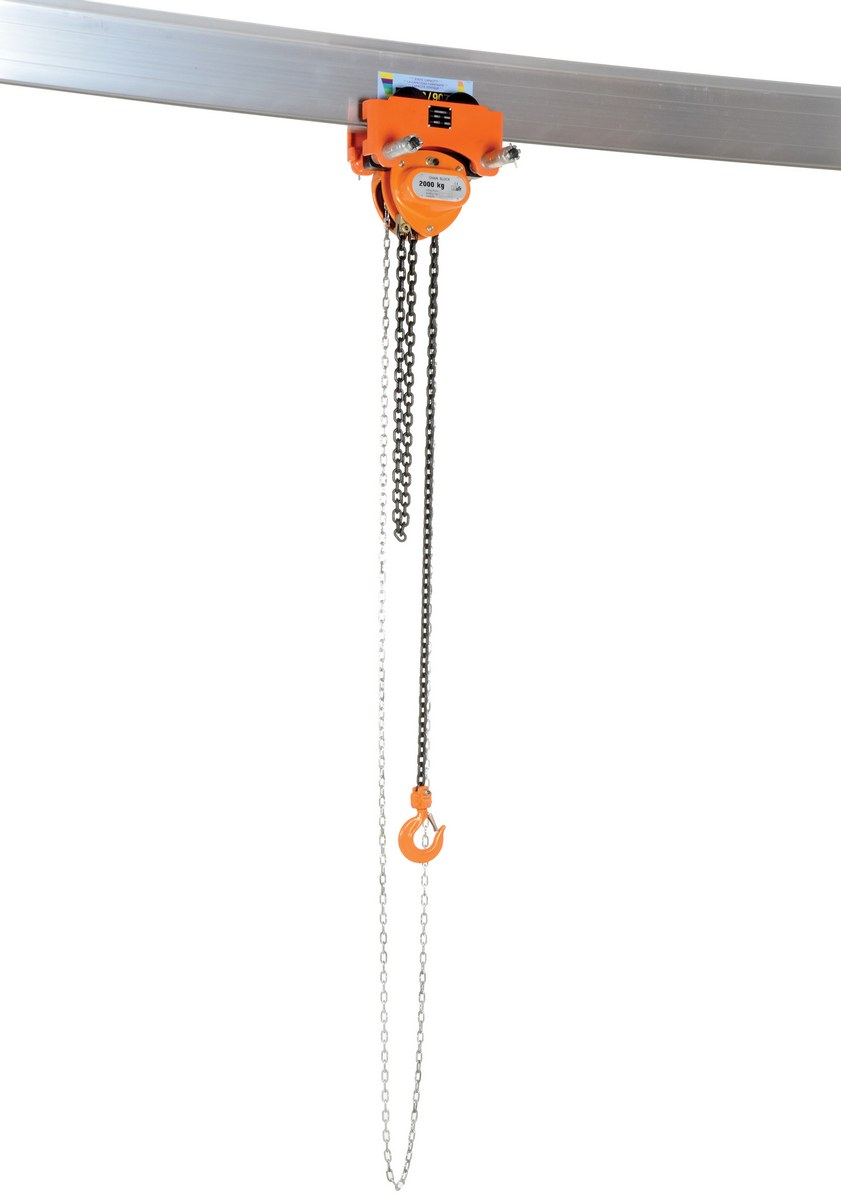

LOW-4P LOW-4P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 14 In. x 11-1/2 In. x 14 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
101

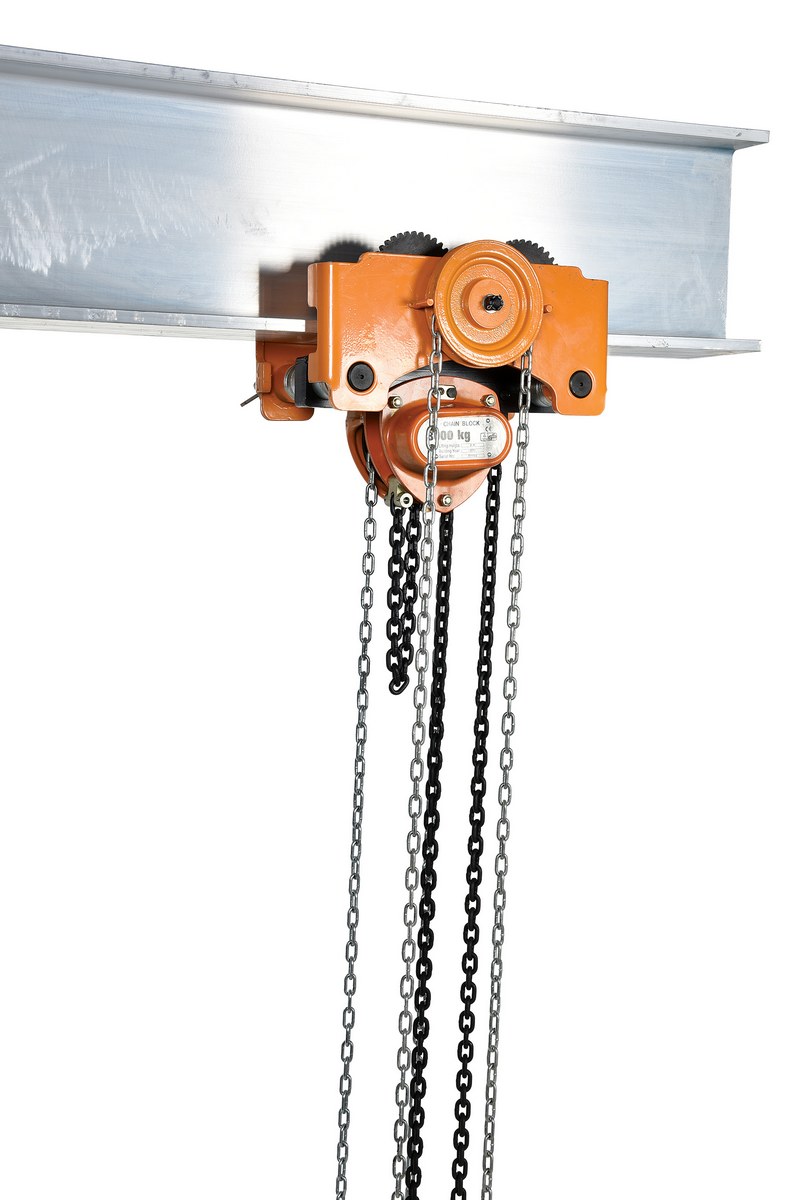

LOW-6G LOW-6G90 Days Limited WarrantySteel Low Headroom Chain Hoist Gear Trolley 17 In. x 13-1/2 In. x 15 In. 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
158

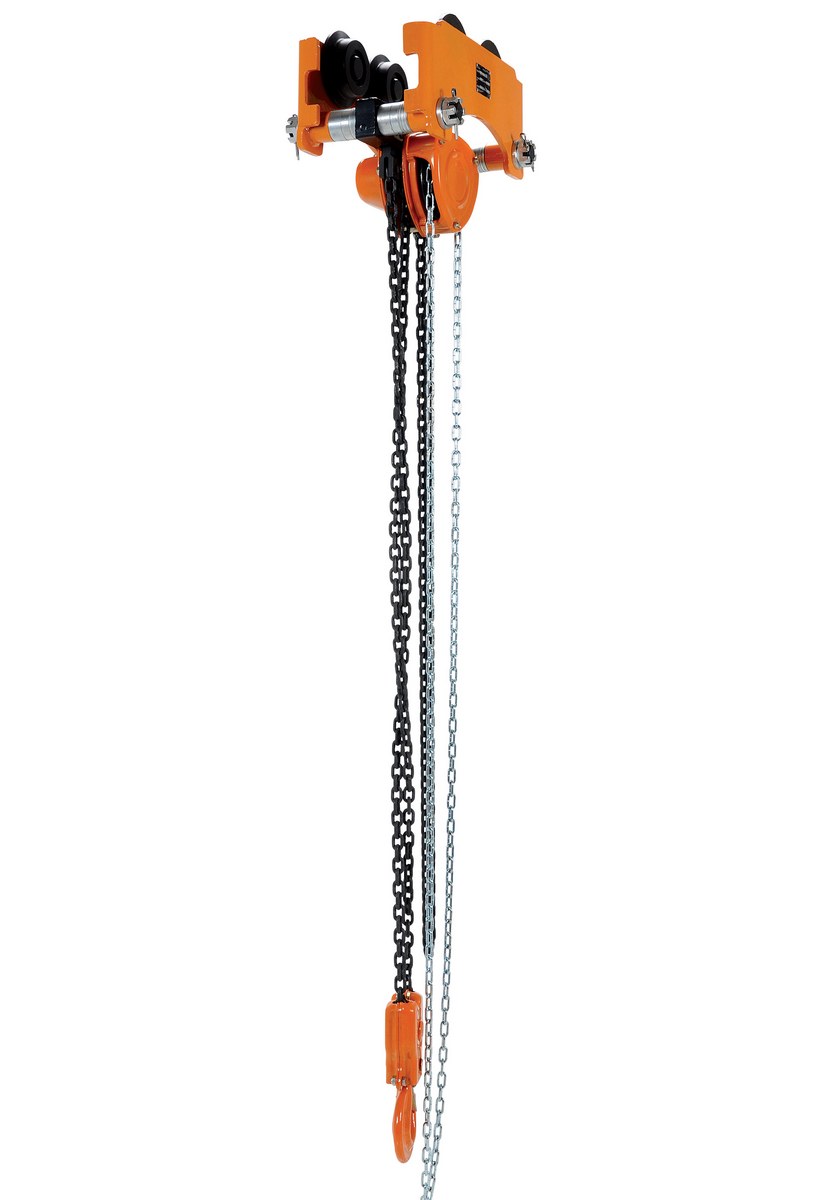

LOW-6P LOW-6P90 Days Limited WarrantySteel Low Headroom Chain Hoist Push Trolley 17 In. x 12-1/2 In. x 15 In. 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
144

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LOW-1G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6

LOW-1P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6

LOW-2G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8

LOW-2P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8

LOW-4G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8

LOW-4P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8

LOW-6G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8

LOW-6P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8

Low Headroom Combination Chain Hoist/Trolley PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


LOW-1G

LOW-1P

LOW-2G

LOW-2P

LOW-4G

LOW-4P

LOW-6G

LOW-6P

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the difference between the LOW-1P and the LOW-1G trolley?

A: The LOW-x-P (push trolley) is moved by pushing it along the I-beam. The LOW-x-G (geared trolley) is moved by pulling a chain which rotates gears and moves the trolley along the I-beam.


Q: What is the width of just the hoist? I can only find the width of the entire unit.

A: The width of the hoist is 5-3/8".


Q: What are the hand chain and load chain made of?

A: The load chain is alloy steel. The hand chain is carbon steel galvanized.


Q: What size I beam does this fit?

A: Fits on wide flange or S-type I-beam.
