Product Family Overview

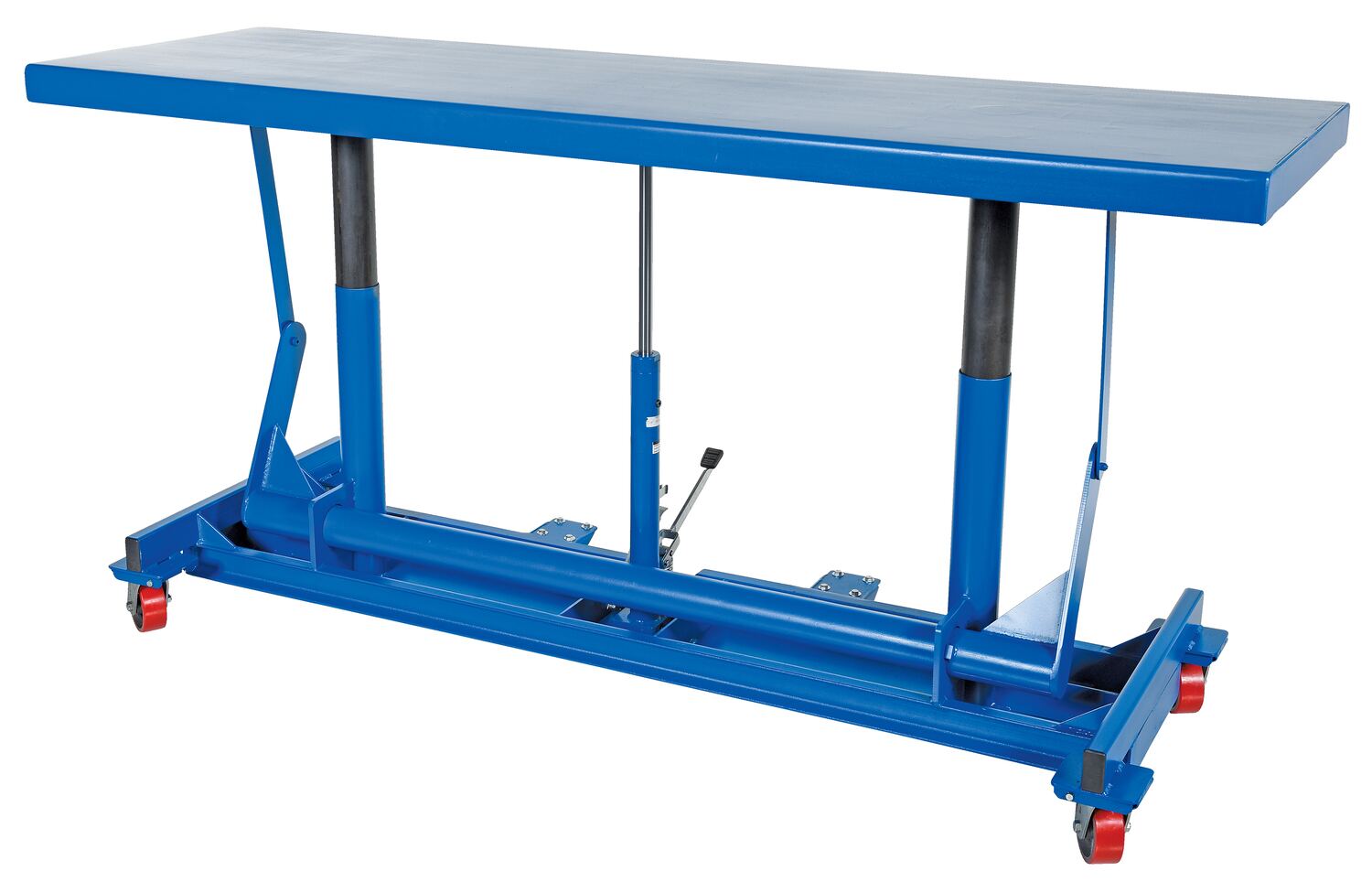

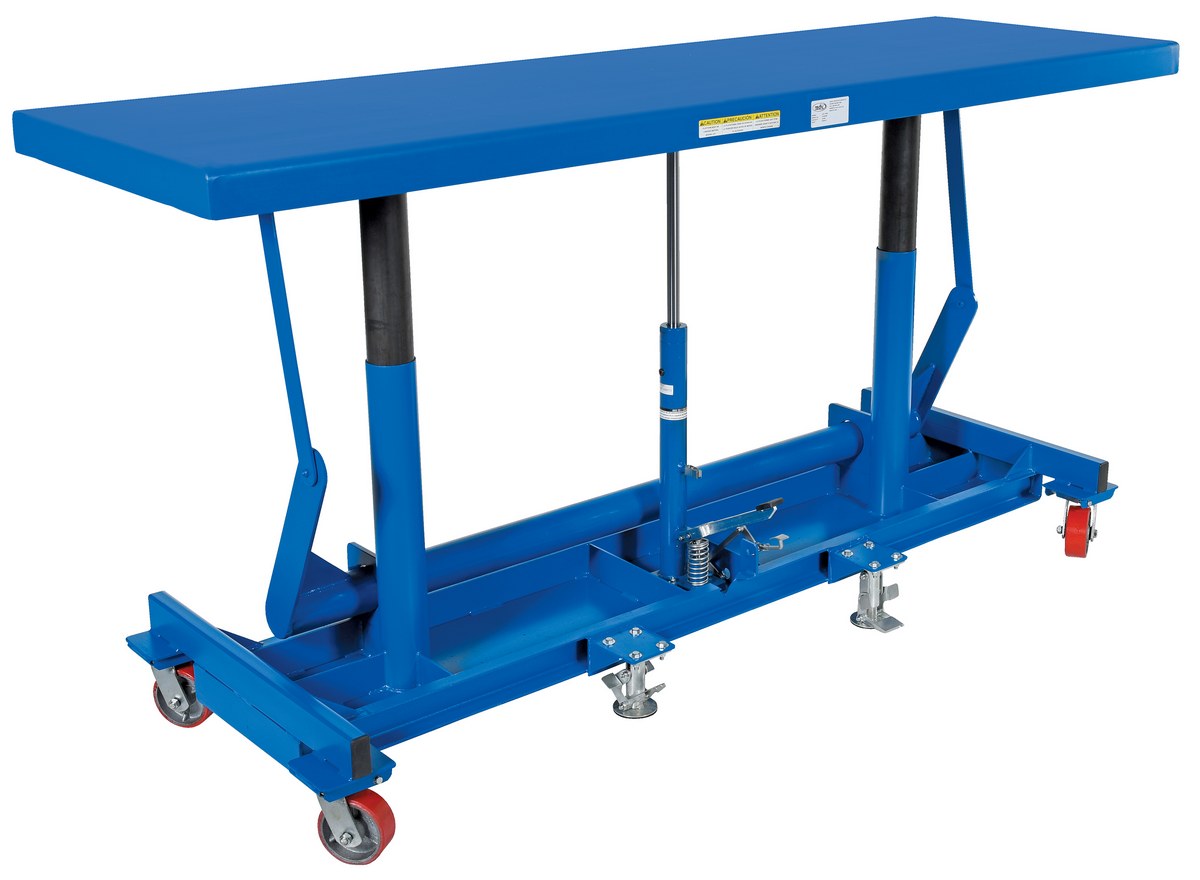

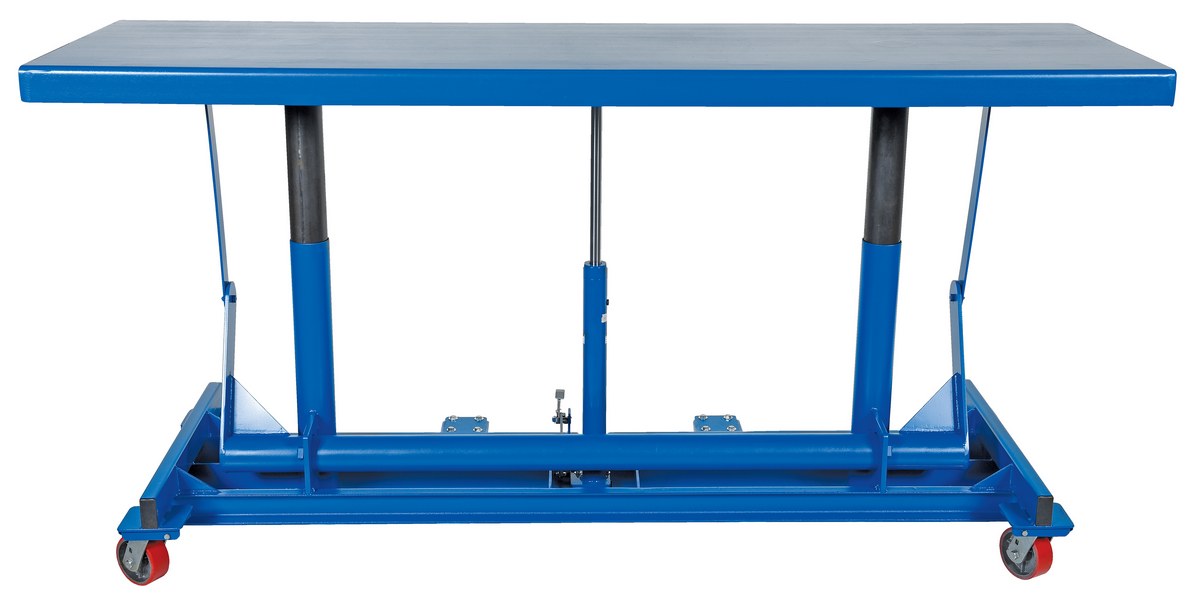

Long Deck Carts
SERIES: LDLT

The Long Deck Cart is perfect for sheet and strip handling, ergonomic load positioning, and handling long awkward material loads. Platform height is adjusted with manual hydraulic foot pump. Structural steel base helps to distribute the load evenly. Unit comes standard with (4) swivel 5" x 2" poly-on-steel casters and dual floor locks. (1/4" thick deck)

All Models are available with Power Options:

  • AC Power:115, 208-230, 460V -- 1 or 3 phase, MODEL LDLT-AC
  • DC Power: one (1) 12V battery, a battery charger and indicator, Model LDLT-DC
  • Reciprocating Air/Oil Power with Foot Treadle Control, Model LDLT-RECIPR
  • Rotary Air/Oil Power with Muffler and Hand Control, Model LDLT-AIR

The Long Deck Cart is perfect for sheet and strip handling, ergonomic load positioning, and handling long awkward material loads. Platform height is adjusted with manual hydraulic foot pump. Structural steel base helps to distribute the load evenly. Unit comes standard with (4) swivel 5" x 2" poly-on-steel casters and dual floor locks. (1/4" thick deck)

All Models are available with Power Options:

  • AC Power:115, 208-230, 460V -- 1 or 3 phase, MODEL LDLT-AC
  • DC Power: one (1) 12V battery, a battery charger and indicator, Model LDLT-DC
  • Reciprocating Air/Oil Power with Foot Treadle Control, Model LDLT-RECIPR
  • Rotary Air/Oil Power with Muffler and Hand Control, Model LDLT-AIR

Additional Models In This Family

LDLT-3072

model LDLT-3072

LDLT-3096-4

model LDLT-3096-4

LDLT-30120

model LDLT-30120

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

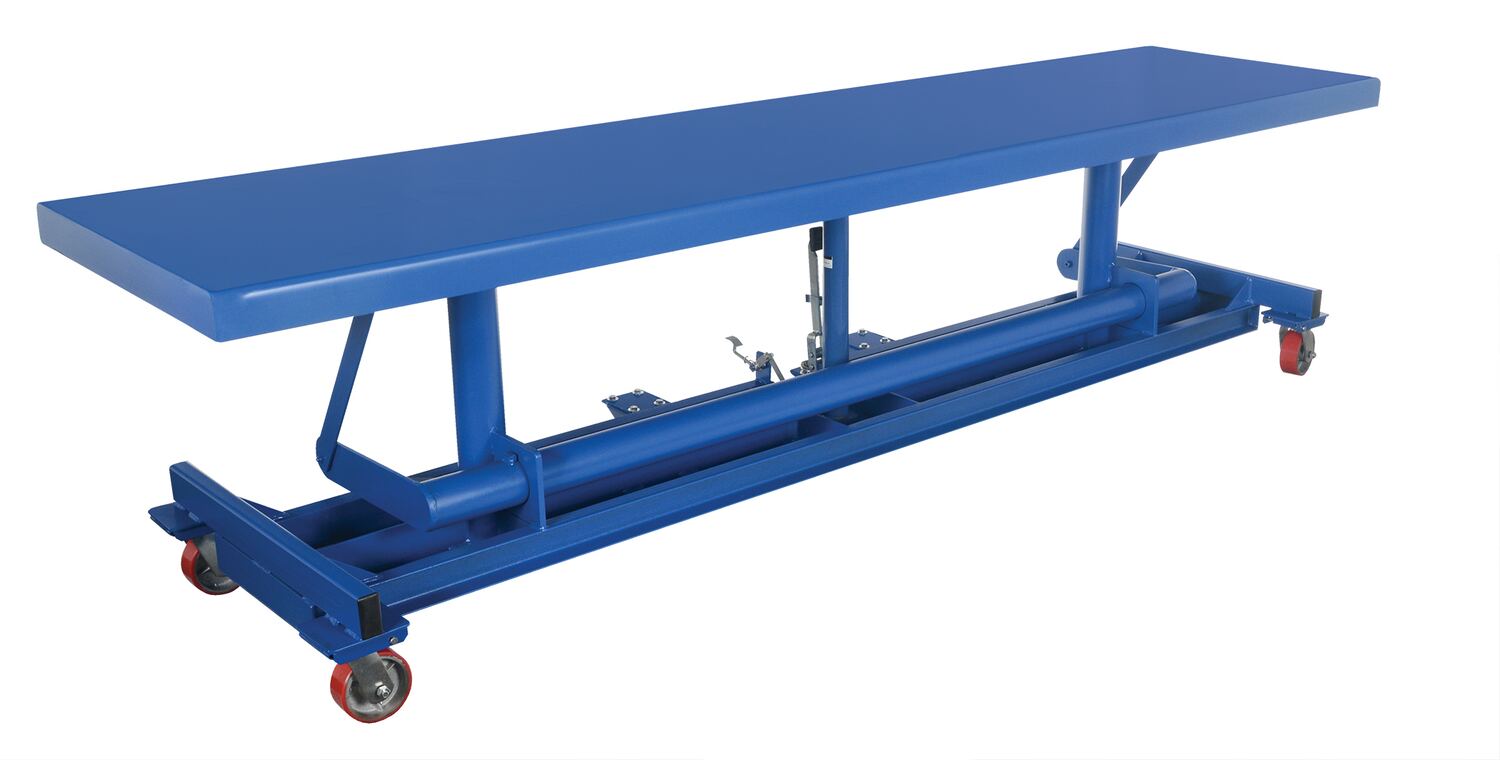

LDLT-20120 LDLT-201201 Year Limited WarrantySteel Ergonomic Long Deck Cart 120 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20
846
LDLT-2060 LDLT-20601 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20
435
LDLT-2060-4 LDLT-2060-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20
459

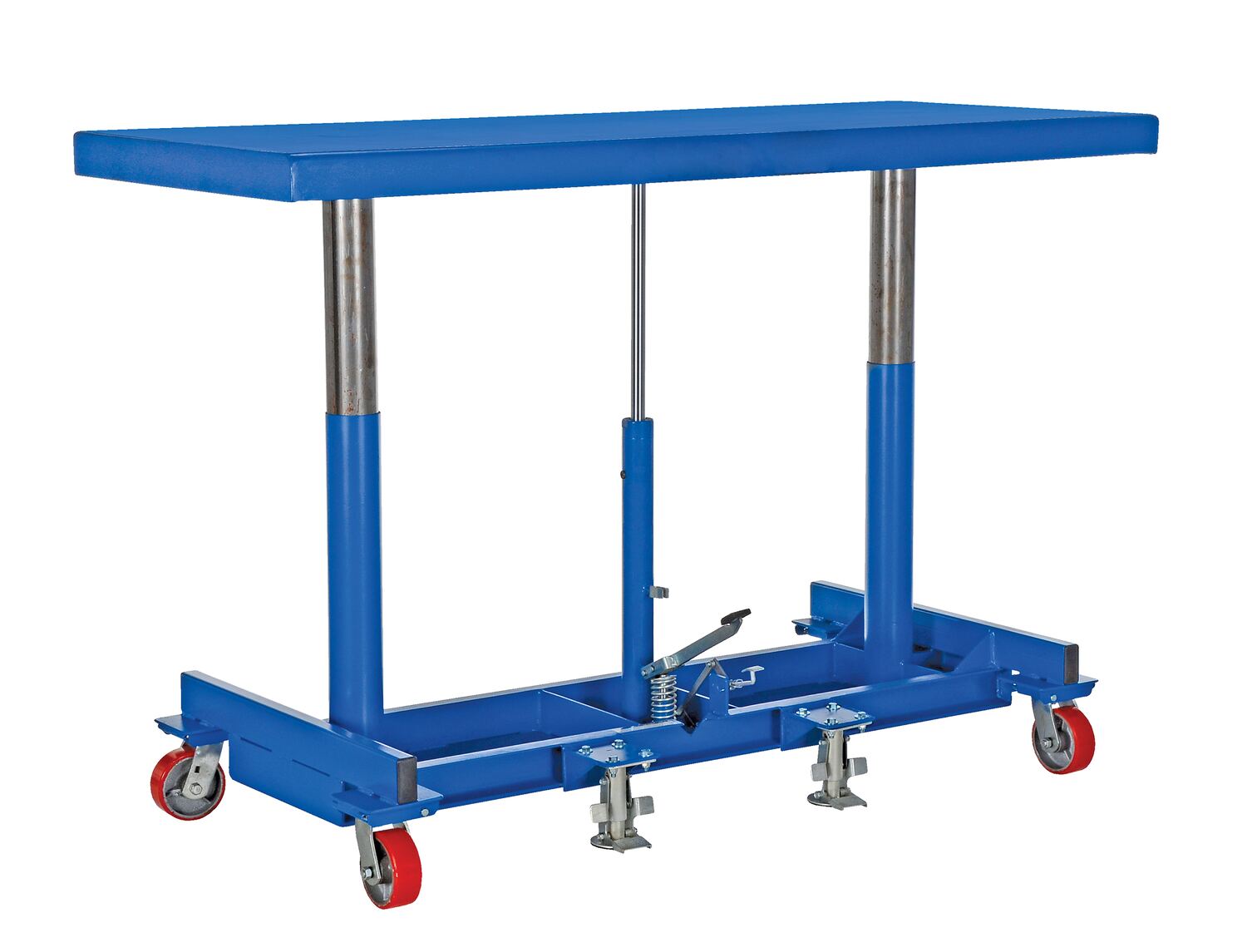

LDLT-2072 LDLT-20721 Year Limited WarrantySteel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20
489
LDLT-2072-4 LDLT-2072-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20
511
LDLT-2096 LDLT-20961 Year Limited WarrantySteel Ergonomic Long Deck Cart 20 In. x 96-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20
698
LDLT-2096-4 LDLT-2096-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 96 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20
720

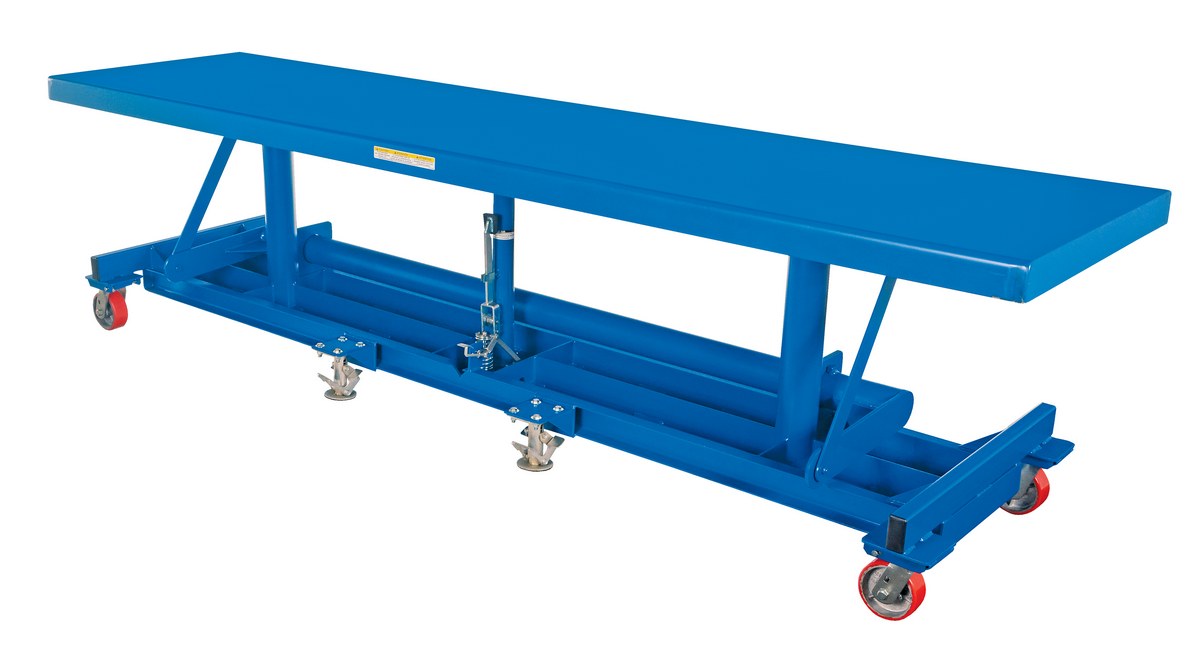

LDLT-30120 LDLT-301201 Year Limited WarrantySteel Ergonomic Long Deck Cart 120 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30
961

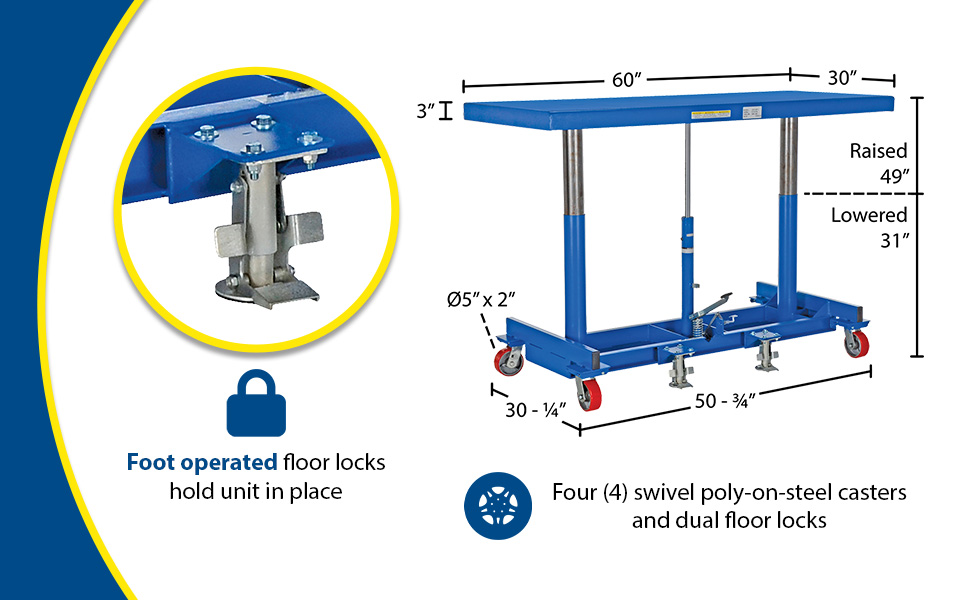

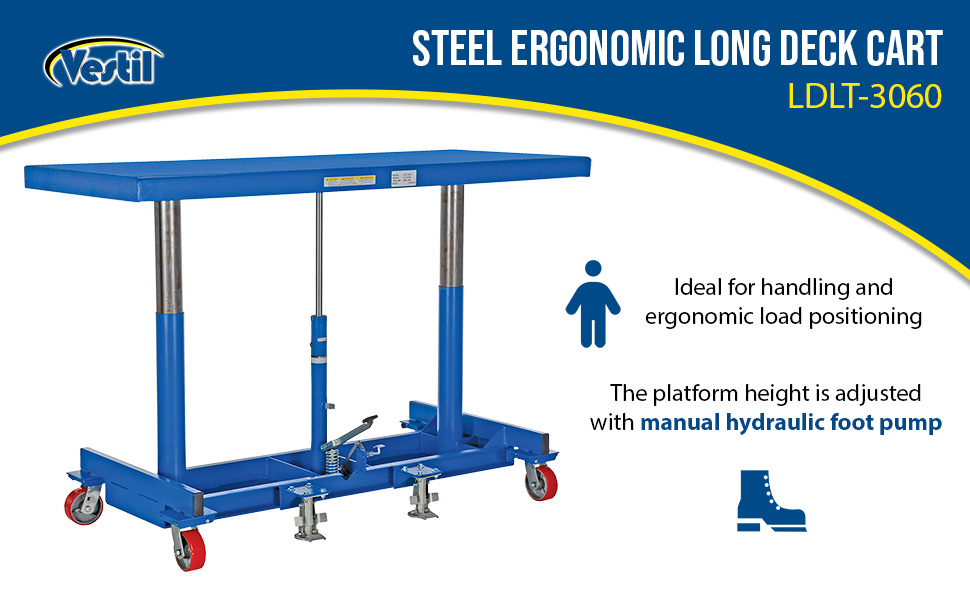

LDLT-3060 LDLT-30601 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30
568
LDLT-3060-4 LDLT-3060-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30
613
LDLT-3072 LDLT-30721 Year Limited WarrantySteel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30
588
LDLT-3072-4 LDLT-3072-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30
633

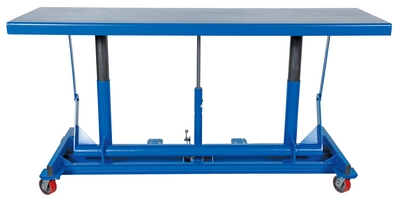

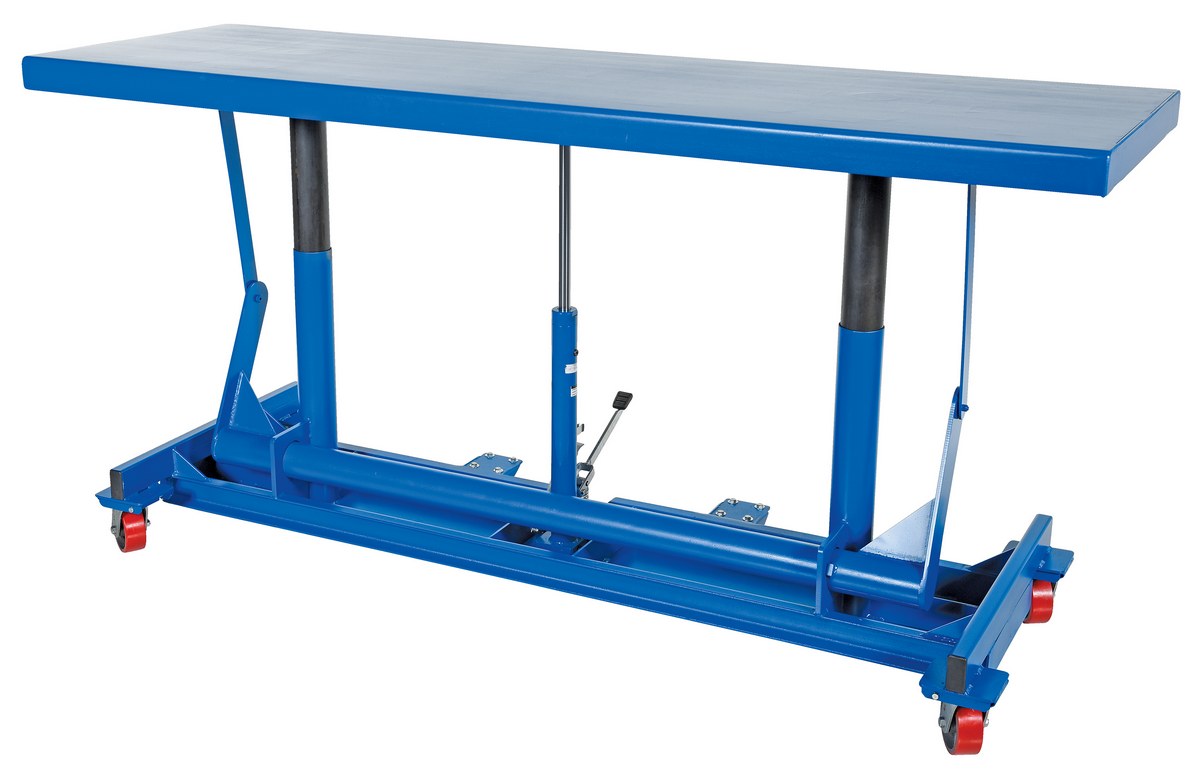

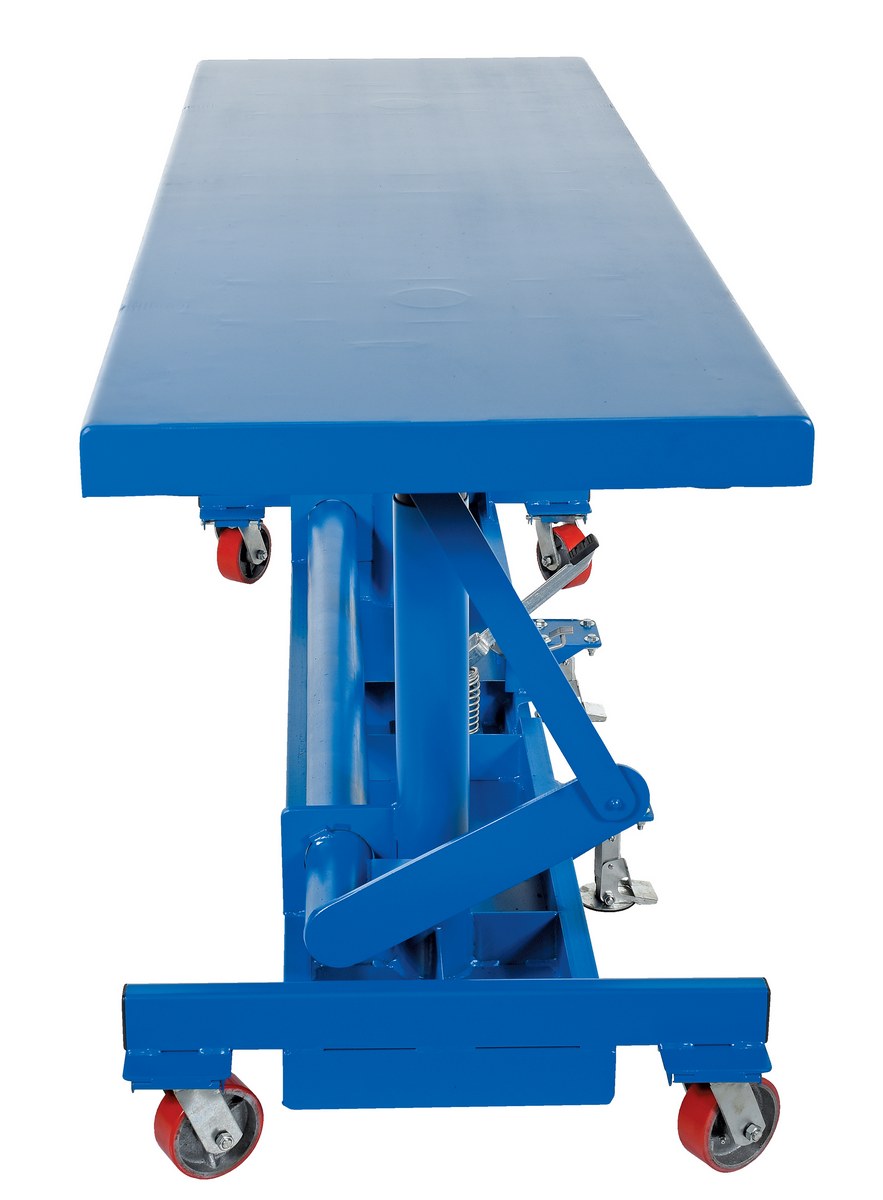

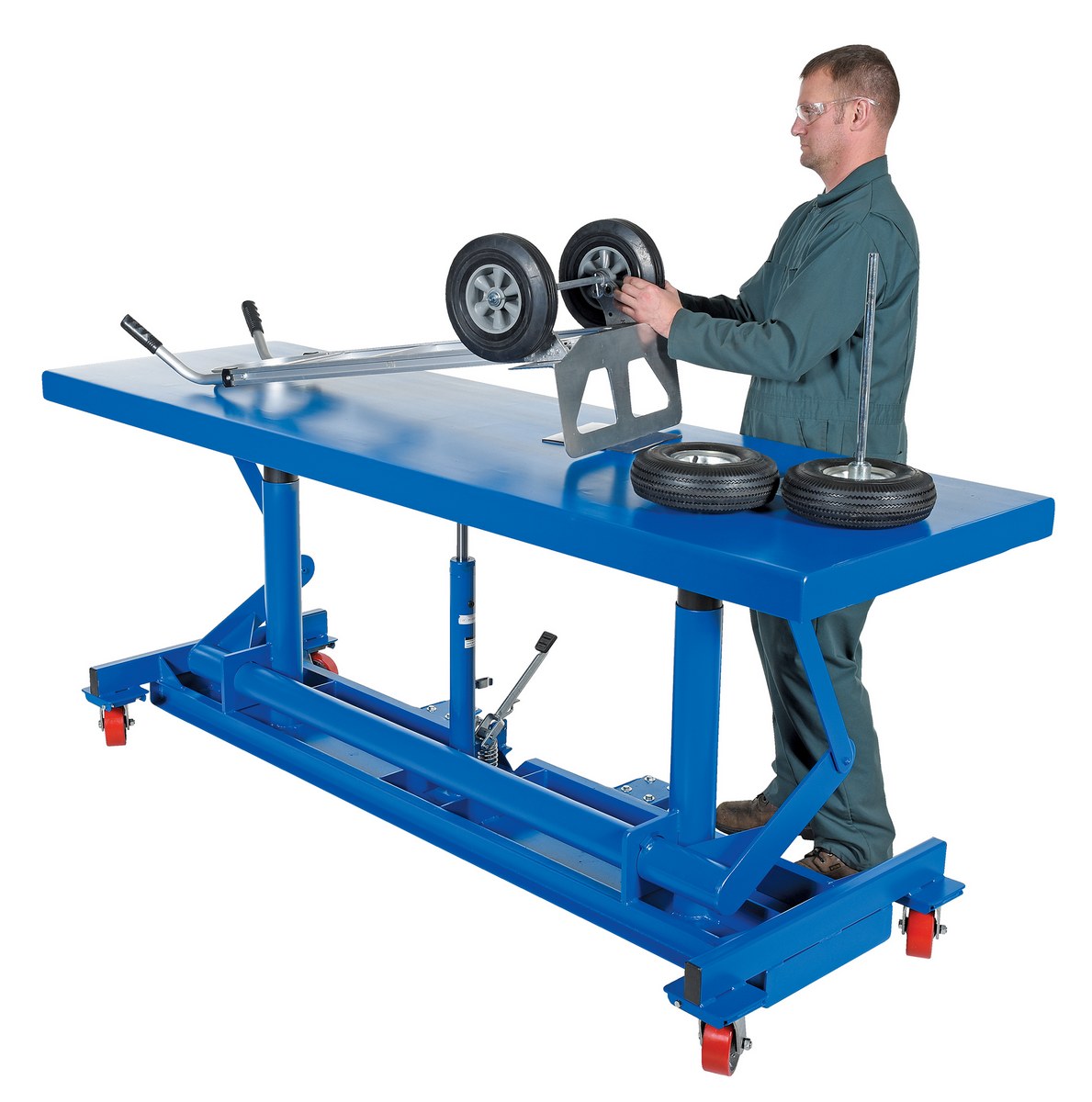

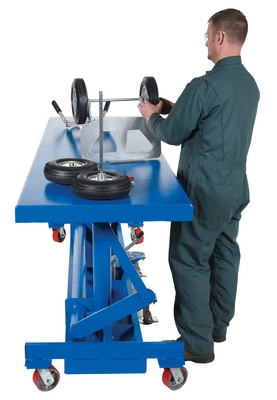

LDLT-3096 LDLT-30961 Year Limited WarrantySteel Ergonomic Long Deck Cart 30 In. x 96-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30
783

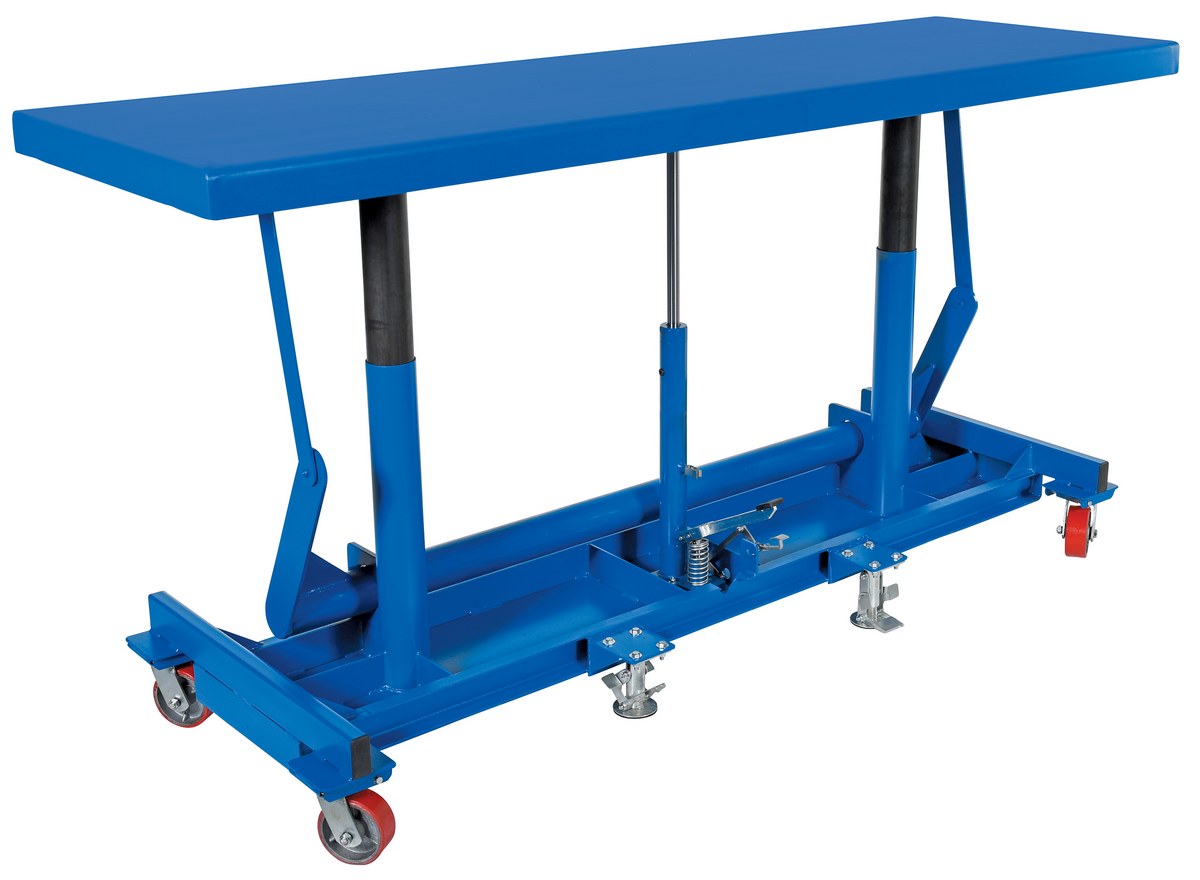

LDLT-3096-4 LDLT-3096-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 96 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30
829

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LDLT-20120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2060-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 20
Uniform Capacity (lb.): 4000
Platform Width (in.): 20

LDLT-2072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2072-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 20
Uniform Capacity (lb.): 4000
Platform Width (in.): 20

LDLT-2096
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2096-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 20
Uniform Capacity (lb.): 4000
Platform Width (in.): 20

LDLT-30120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3060-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30

LDLT-3072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3072-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30

LDLT-3096
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3096-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
For More Details of the Option Click the Red Model Button
LDLT-AC LDLT-AC1 Year Limited WarrantyFactory Installed AC 115, 208-230, 460 Volt And A 1 or 3 Phase Power Unit For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit
40

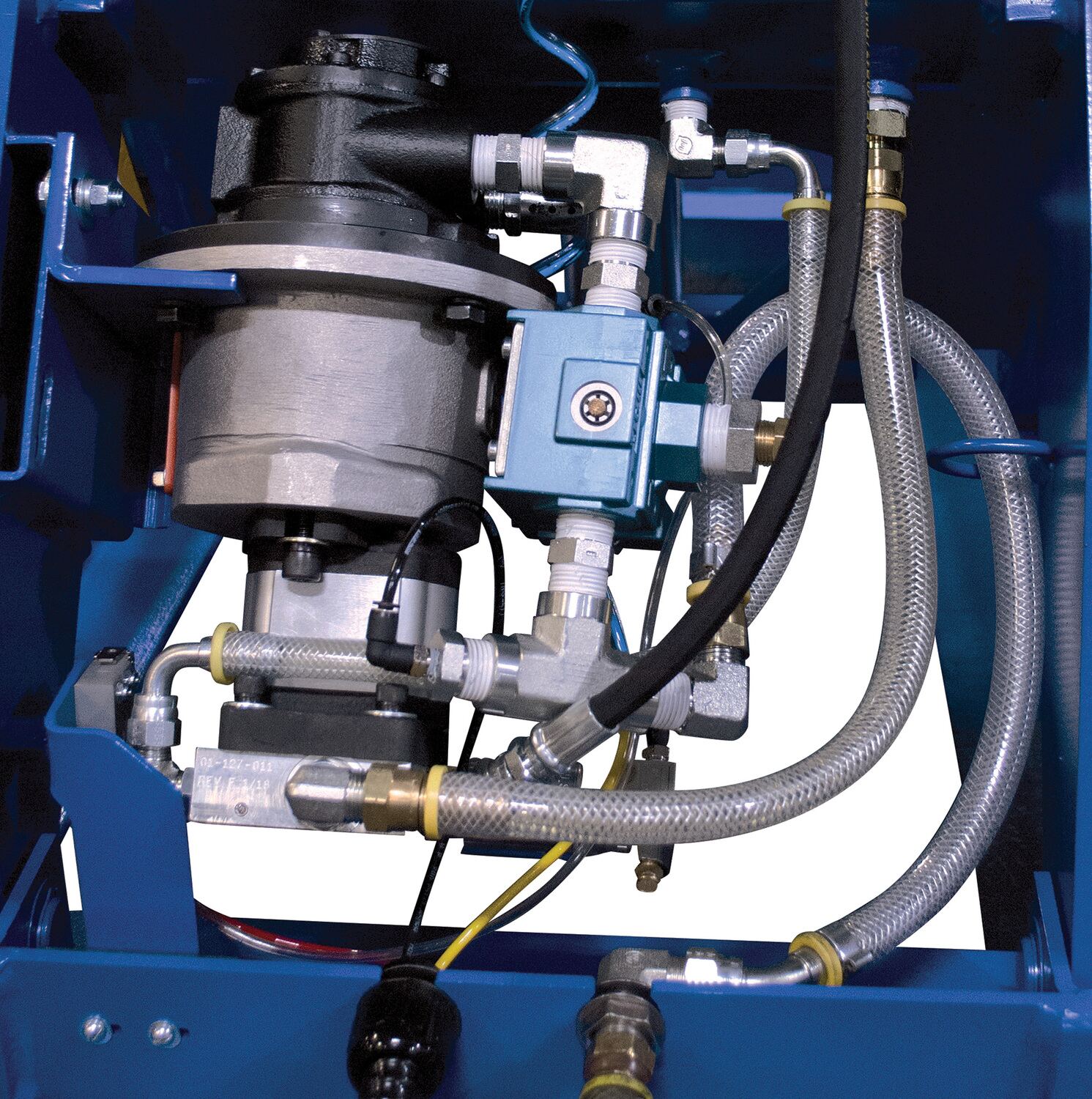

LDLT-AIR LDLT-AIR1 Year Limited WarrantyFactory Installed Rotary Air/Oil Power Unit With Muffler & Hand Control For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit
10

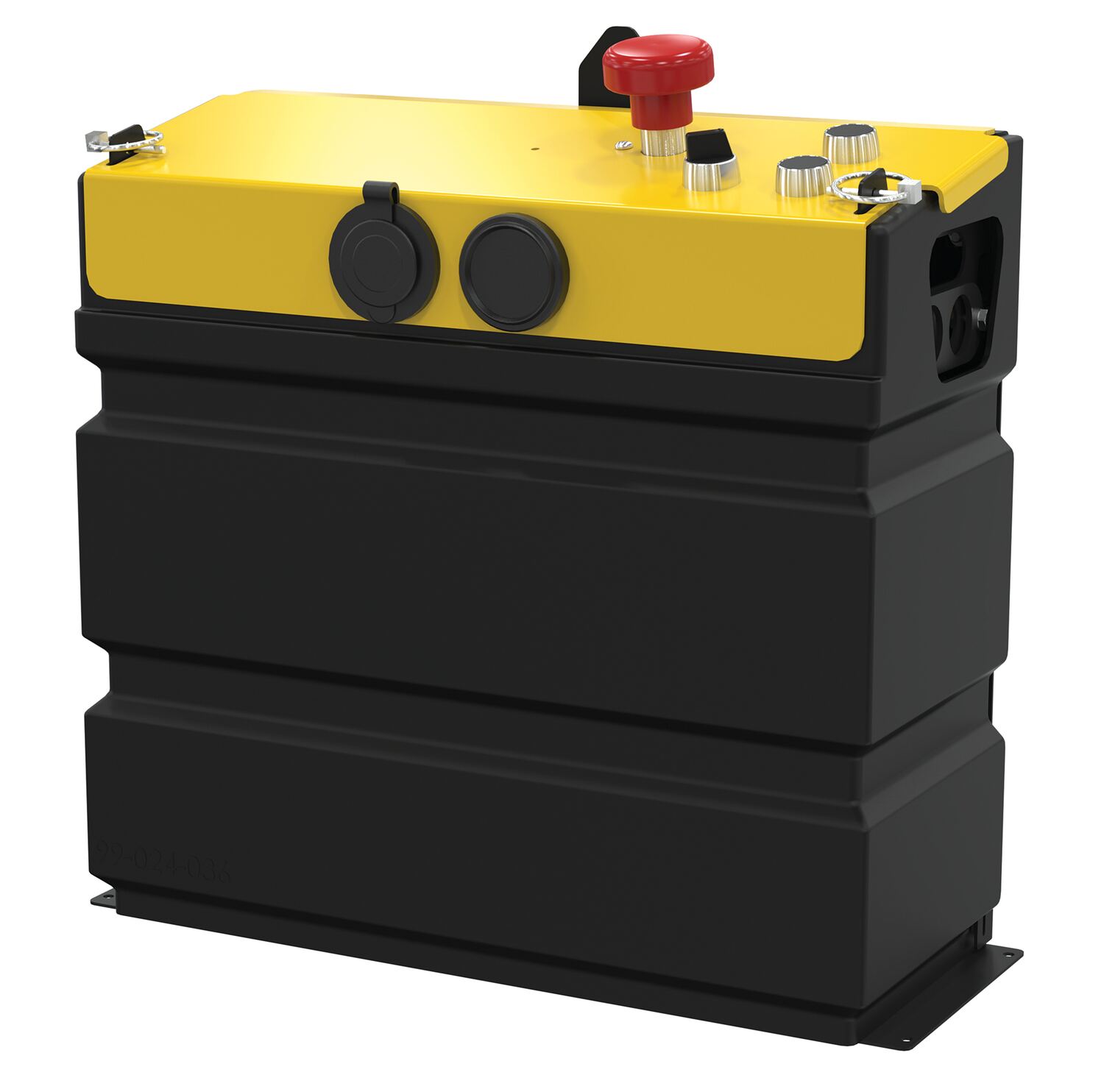

LDLT-DC LDLT-DC1 Year Limited WarrantyFactory Installed 12 Volt DC Power Unit With Charger For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit
68
LDLT-RECIPR 1 Year Limited WarrantyFactory Installed Reciprocating Air/Oil Power Unit With Foot Control For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit
5

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Long Deck Carts PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LDLT-20120

LDLT-2060

LDLT-2060-4

LDLT-2072

LDLT-2072-4

LDLT-2096

LDLT-2096-4

LDLT-30120

LDLT-3060

LDLT-3060-4

LDLT-3072

LDLT-3072-4

LDLT-3096

LDLT-3096-4

LDLT-AC

LDLT-AIR

LDLT-DC

LDLT-RECIPR

SDS Sheets

Hydraulic Oil SDS Sheet for: LDLT-30120
Hydraulic Oil SDS Sheet for: LDLT-3060
Hydraulic Oil SDS Sheet for: LDLT-3060-4
Hydraulic Oil SDS Sheet for: LDLT-3072
Hydraulic Oil SDS Sheet for: LDLT-3072-4
Hydraulic Oil SDS Sheet for: LDLT-3096
Hydraulic Oil SDS Sheet for: LDLT-3096-4
Hydraulic Oil SDS Sheet for: LDLT-AC
Hydraulic Oil SDS Sheet for: LDLT-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: LDLT-DC
Hydraulic Oil SDS Sheet for: LDLT-DC
Hydraulic Oil SDS Sheet for: LDLT-RECIPR
Hydraulic Oil SDS Sheet for: LDLT-20120
Hydraulic Oil SDS Sheet for: LDLT-2060
Hydraulic Oil SDS Sheet for: LDLT-2060-4
Hydraulic Oil SDS Sheet for: LDLT-2072
Hydraulic Oil SDS Sheet for: LDLT-2072-4
Hydraulic Oil SDS Sheet for: LDLT-2096
Hydraulic Oil SDS Sheet for: LDLT-2096-4

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How many strokes of the foot pump must be done to have maximum lifted height ?

A: The table will raise approximately 0.43" per (foot) pump.


Q: What the thickness of the top deck is on LDLT-3096?

A: The top deck of the LDLT-3096 is 1/4".
