Manual & DC Work Positioners

model: MWP-220-M

Manual & DC Work Positioners

SERIES: MWP

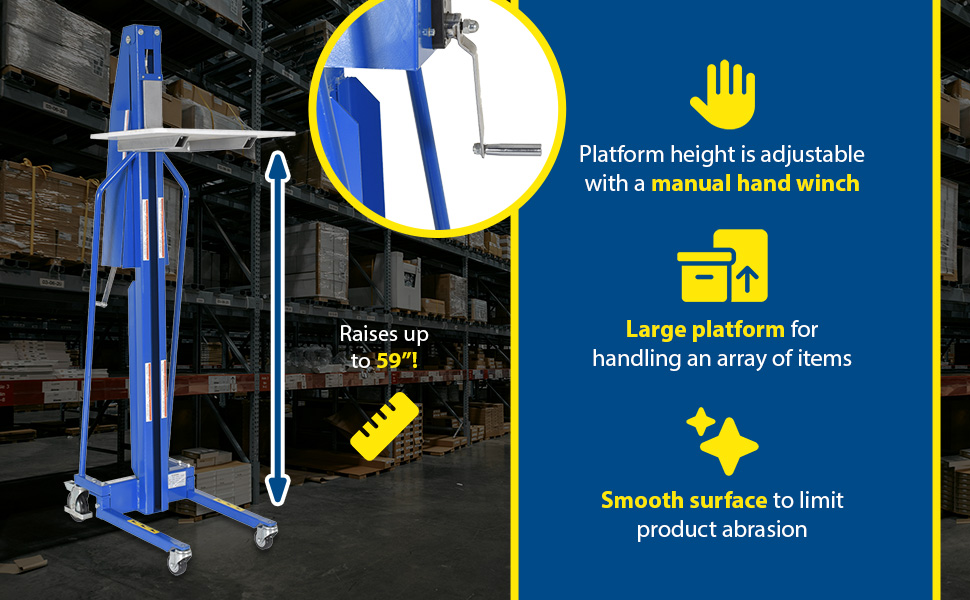

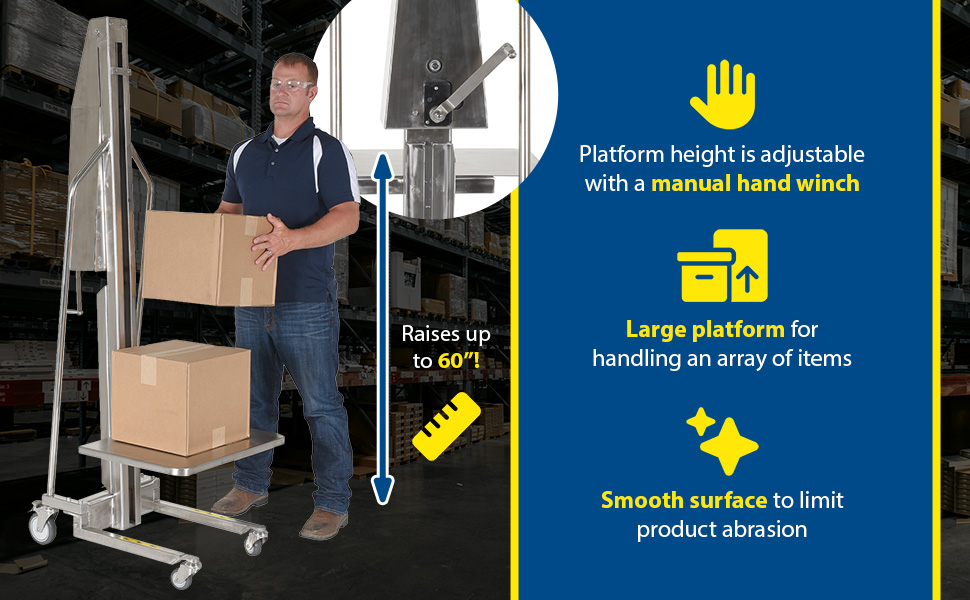

The Vestil work positioner takes the strain out of any lightweight lifting job! While many competitor models are big and bulky, the Vestil positioner is specifically built to go down narrow aisles and around confined spaces. DC powered lift and hand winch models are both available, making it simple to get to that perfect height. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Quick change attachments available

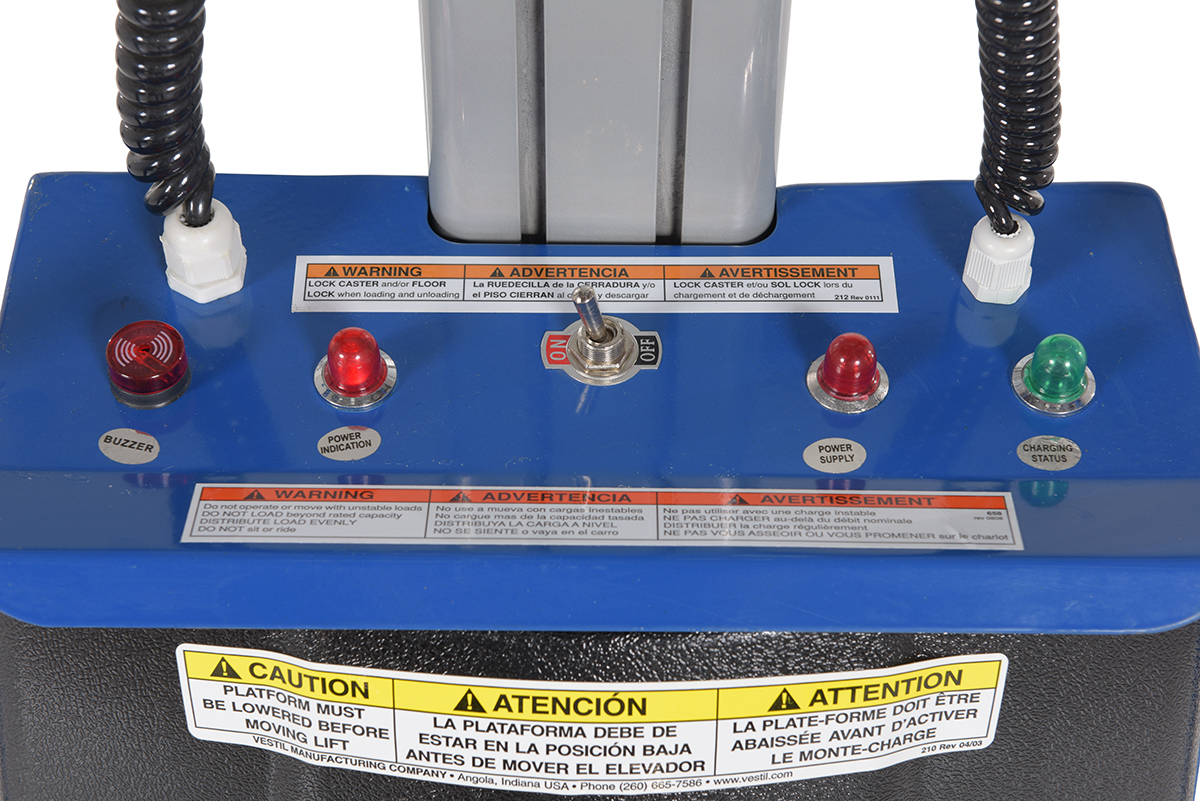

The DC powered models include two (2) 12V AGM batteries with an integral battery charger. Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel.

Large open sided platform for handling an array of items

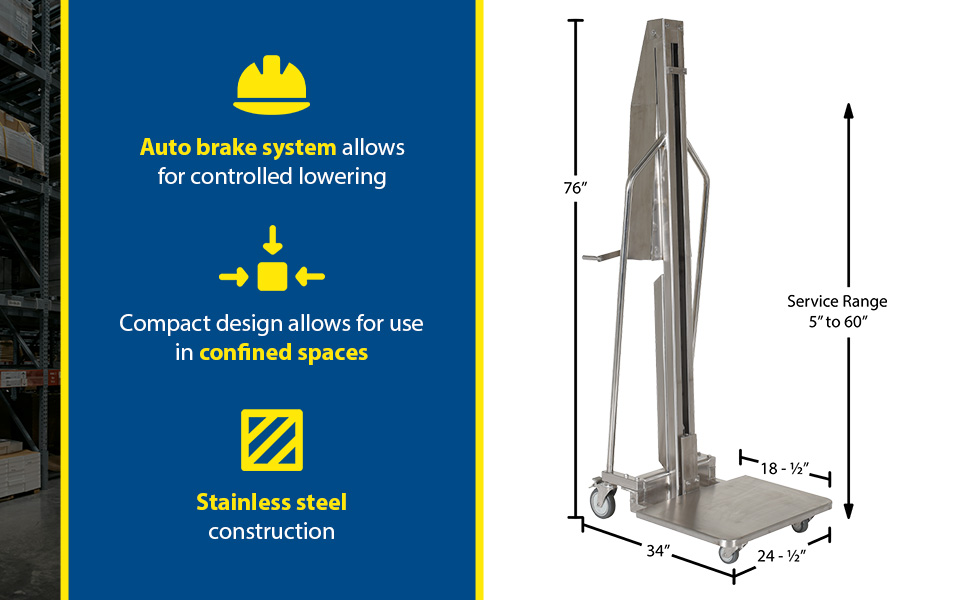

Auto brake system for controlled lowering
Manually maneuvered for precise positioning
Smooth surface to limit product abrasion

Manual & DC Work Positioners

model: MWP-220-M

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

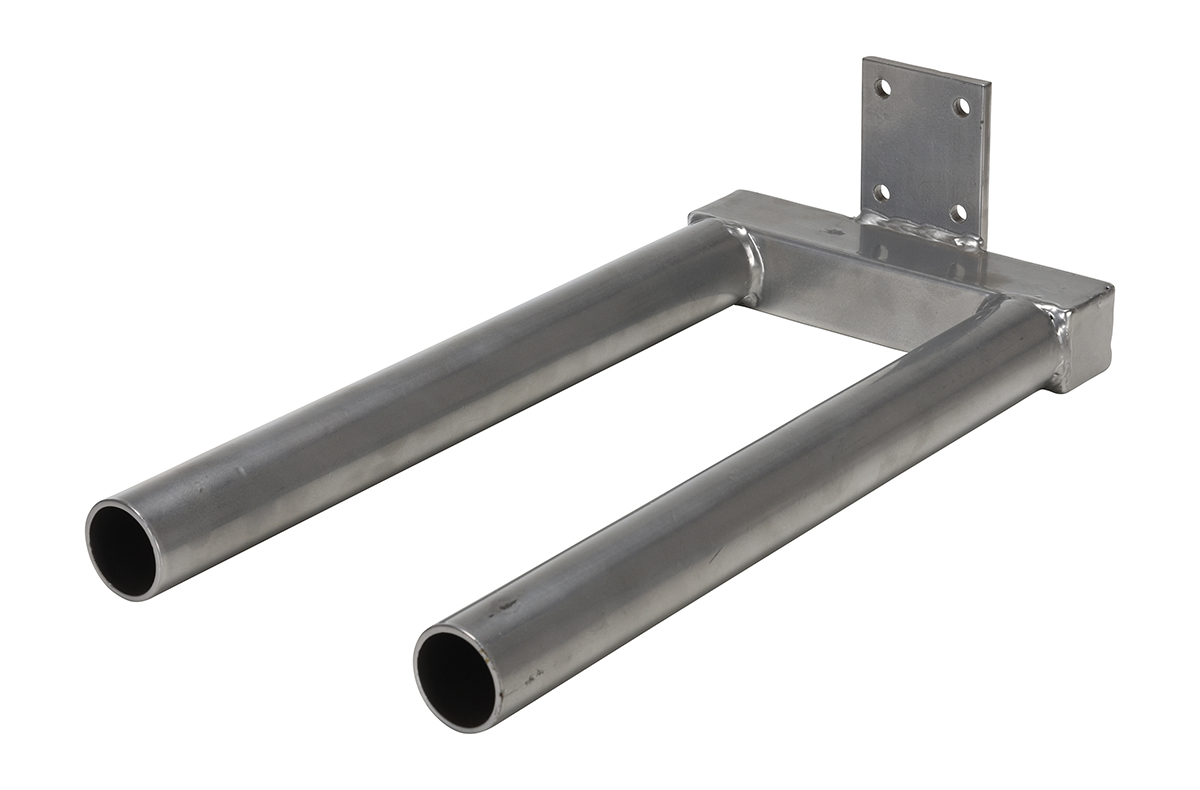

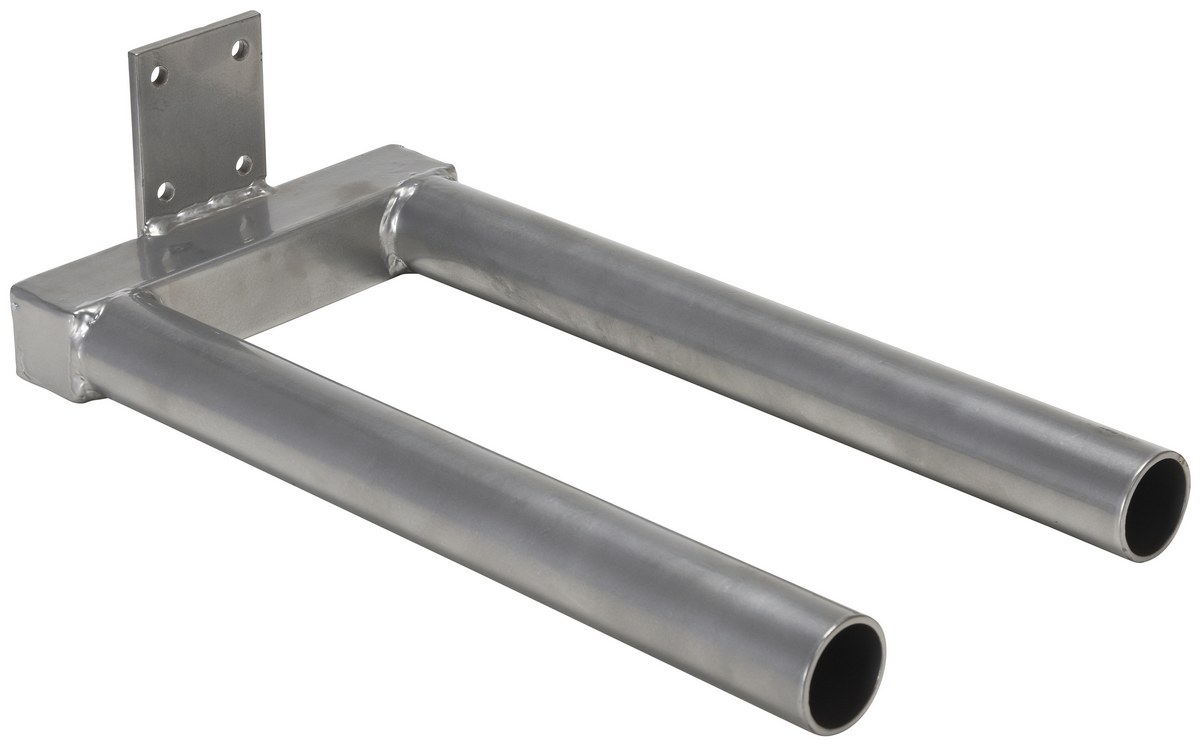

MWP-DSPIN		Steel Double Spindle Manual Work Positioner Attachment 5-1/2…	90 Days Limited Warranty	15

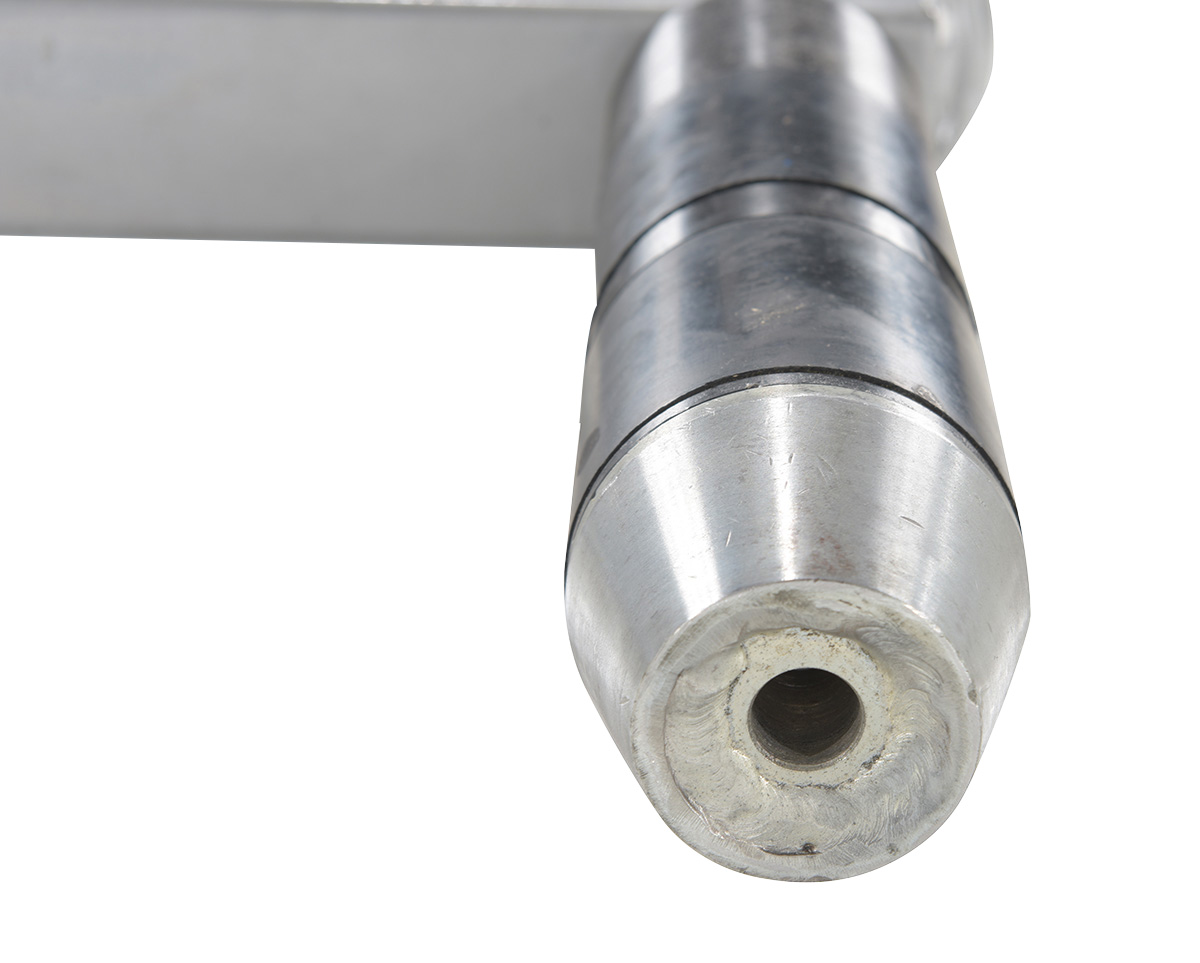

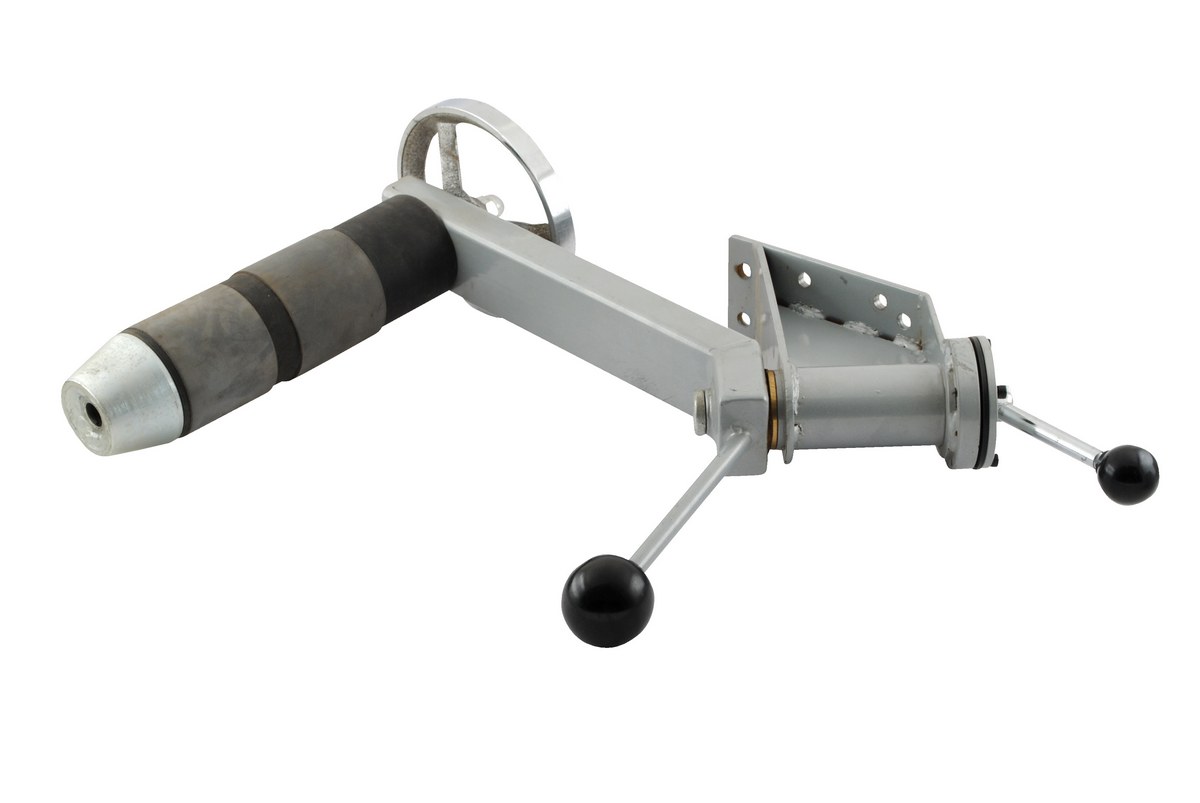

MWP-RR		Steel Reel Rotator Manual Work Positioner Attachment 16-7/16…	90 Days Limited Warranty	33

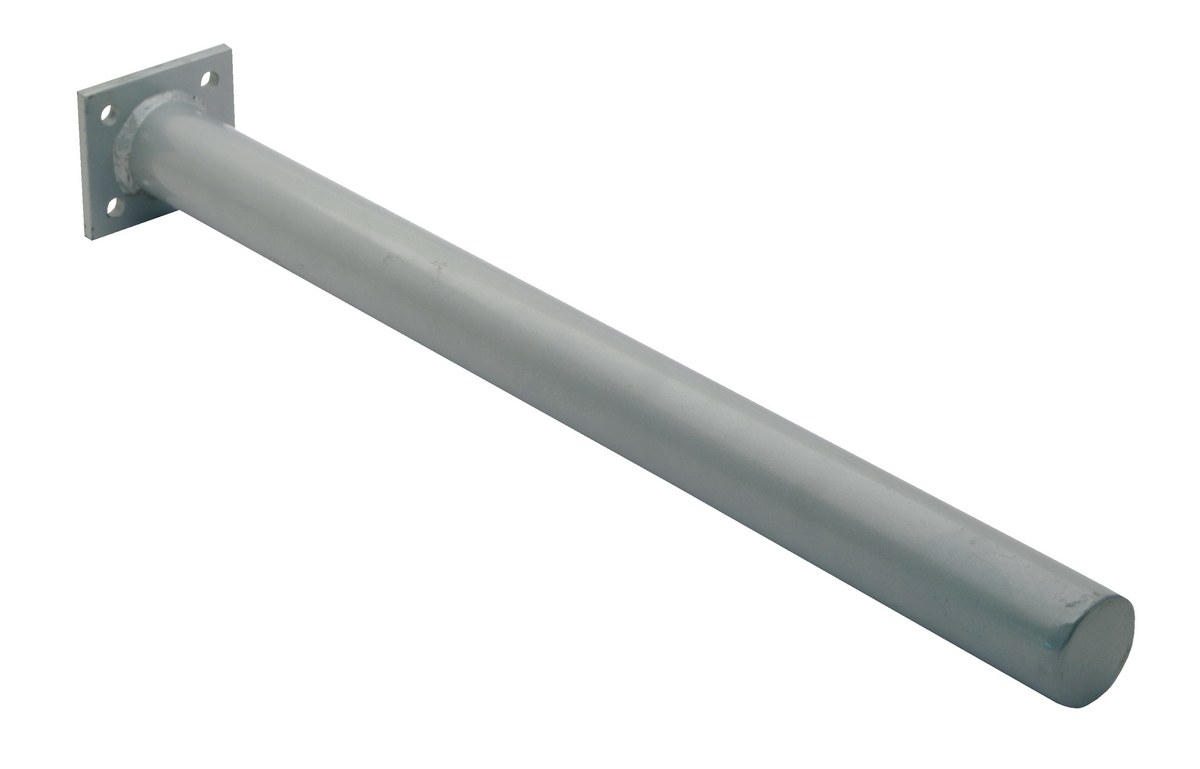

MWP-SPIN		Steel Single Spindle Manual Work Positioner Attachment 23-3/…	90 Days Limited Warranty	6

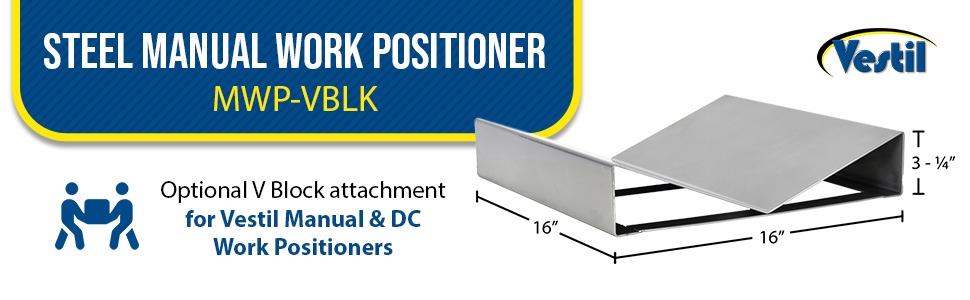

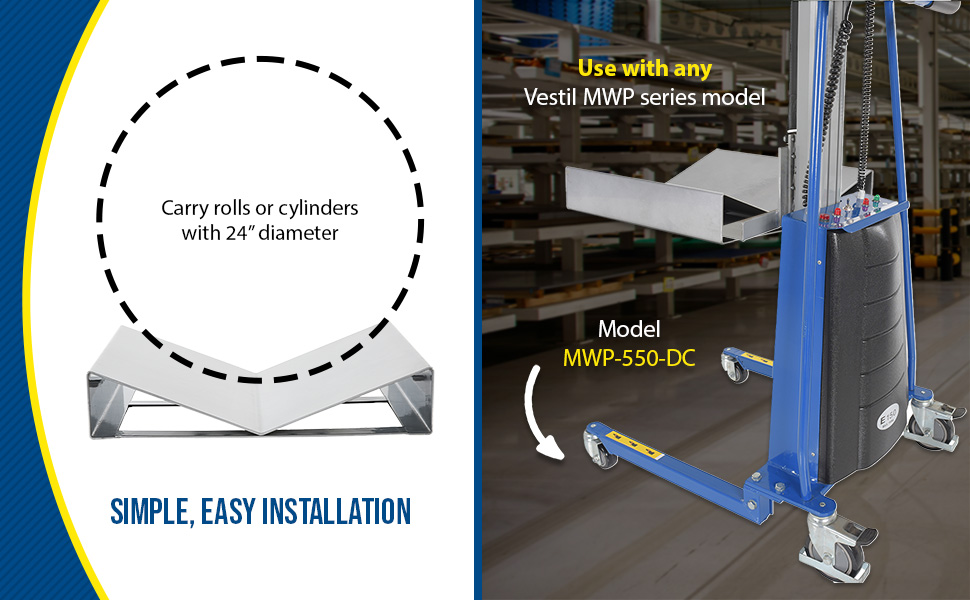

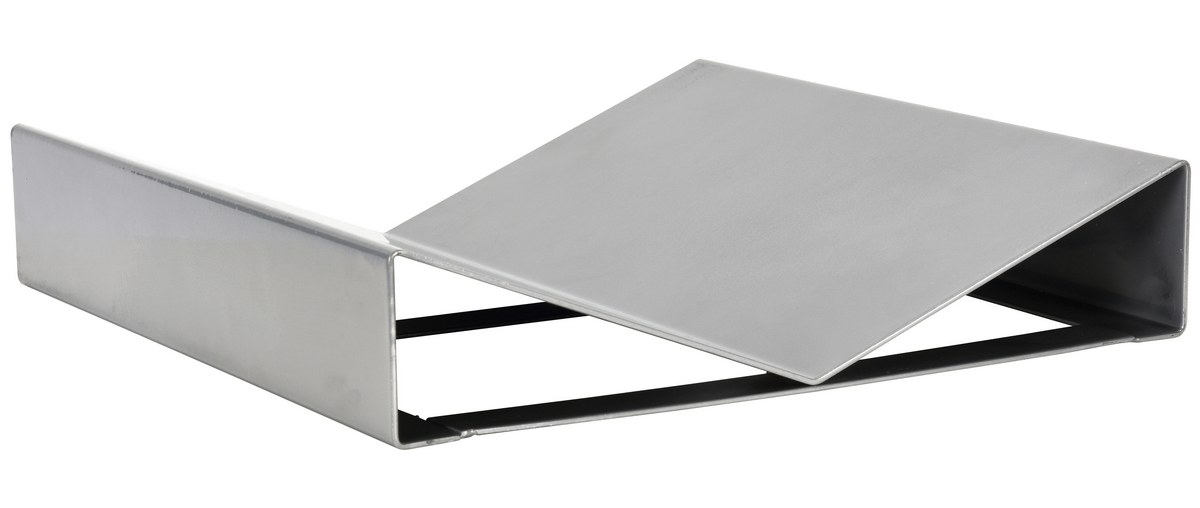

MWP-VBLK		Steel V Block Manual Work Positioner Attachment 16 In. x 16 …	90 Days Limited Warranty	15

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

MWP-550-DC

MWP

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

MWP-330-DC

MWP-330-DC-SS

MWP-440-M-SS

MWP-550-DC

MWP-RR

MWP-SPIN

Testing Certificates

MWP-220-M

MWP-330-DC

MWP-330-DC-SS

MWP-440-M

MWP-440-M-SS

MWP-550-DC

MWP-DSPIN

MWP-RR

MWP-SPIN

MWP-VBLK

SDS Sheets

Valve Regulated Lead Acid Battery
MWP-330-DC SDS

Hydraulic Oil
MWP-330-DC SDS

Hydraulic Oil
MWP-330-DC-SS SDS

Valve Regulated Lead Acid Battery
MWP-550-DC SDS

Hydraulic Oil
MWP-550-DC SDS

Other PDFs

Stainless Steel Electric Work Positioner Mailing Brochure

Enhanced Product Content

MWP-VBLK

MWP-VBLK A+ Content - 1


MWP-VBLK A+ Content - 2

Print Friendly

Related or Similar Products:

More From Portable Load Lifters

Adjustable Height Work Stand

Adjustable Height Work Stand

Adjustable Box Stacker

Adjustable Box Stacker

Portable Worksite Lift

Portable Worksite Lift

Counter Balanced Lite Load Lift

Counter Balanced Lite Load Lift

Heater Tank Lift Truck

Heater Tank Lift Truck

Hydra Carts

Manual & DC Work Positioners

The Vestil work positioner takes the strain out of any lightweight lifting job! While many competitor models are big and bulky, the Vestil positioner is specifically built to go down narrow aisles and around confined spaces. DC powered lift and hand winch models are both available, making it simple to get to that perfect height. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Quick change attachments available

The DC powered models include two (2) 12V AGM batteries with an integral battery charger. Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel.

Large open sided platform for handling an array of items
Auto brake system for controlled lowering
Manually maneuvered for precise positioning
Smooth surface to limit product abrasion

Model #		Description	Attributes	Net Wt. (lbs)

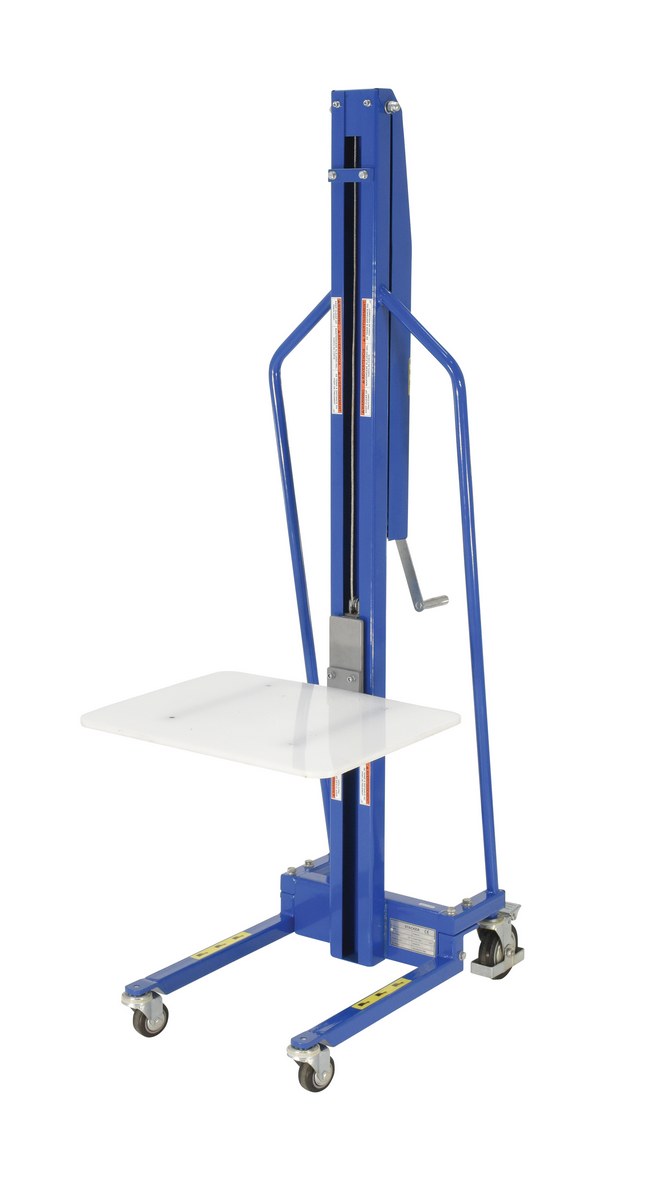

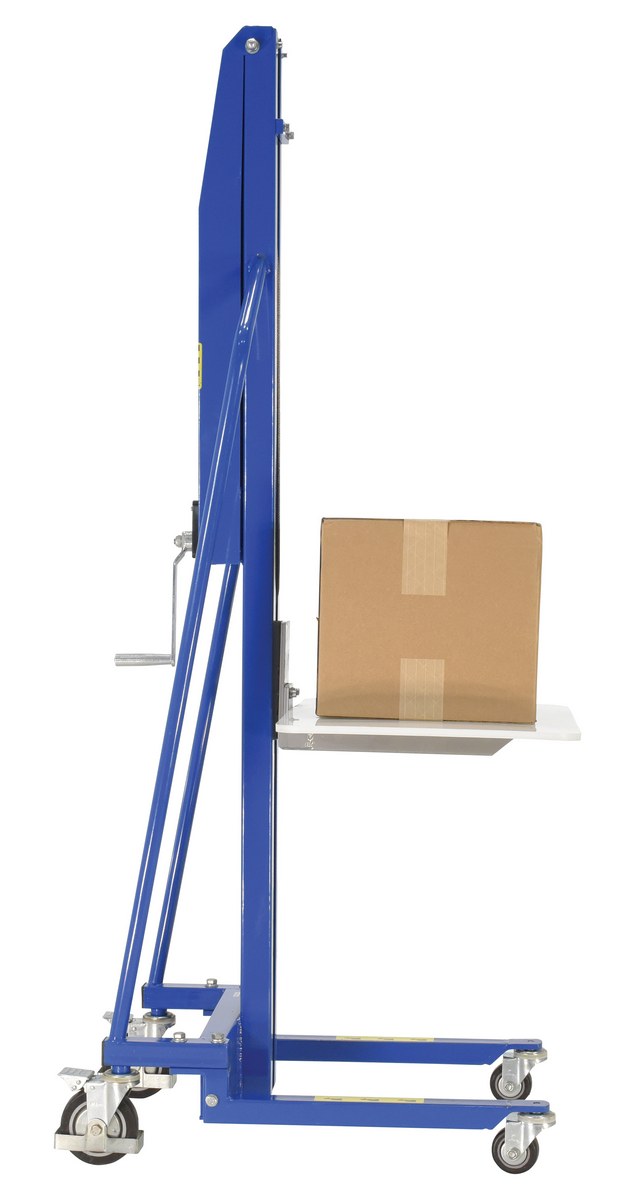

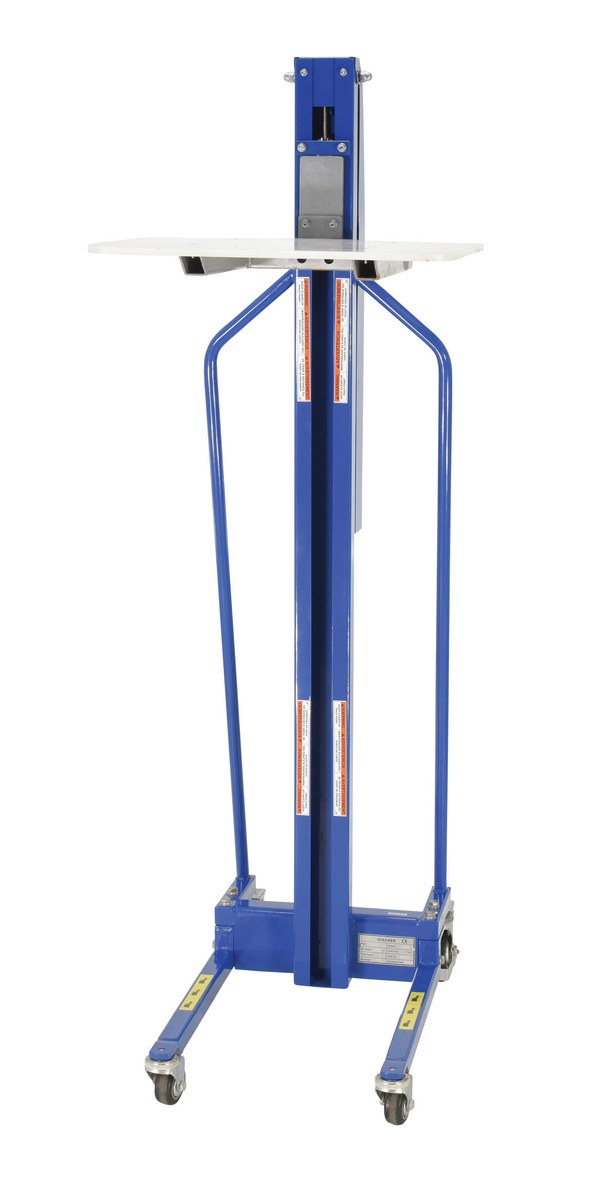

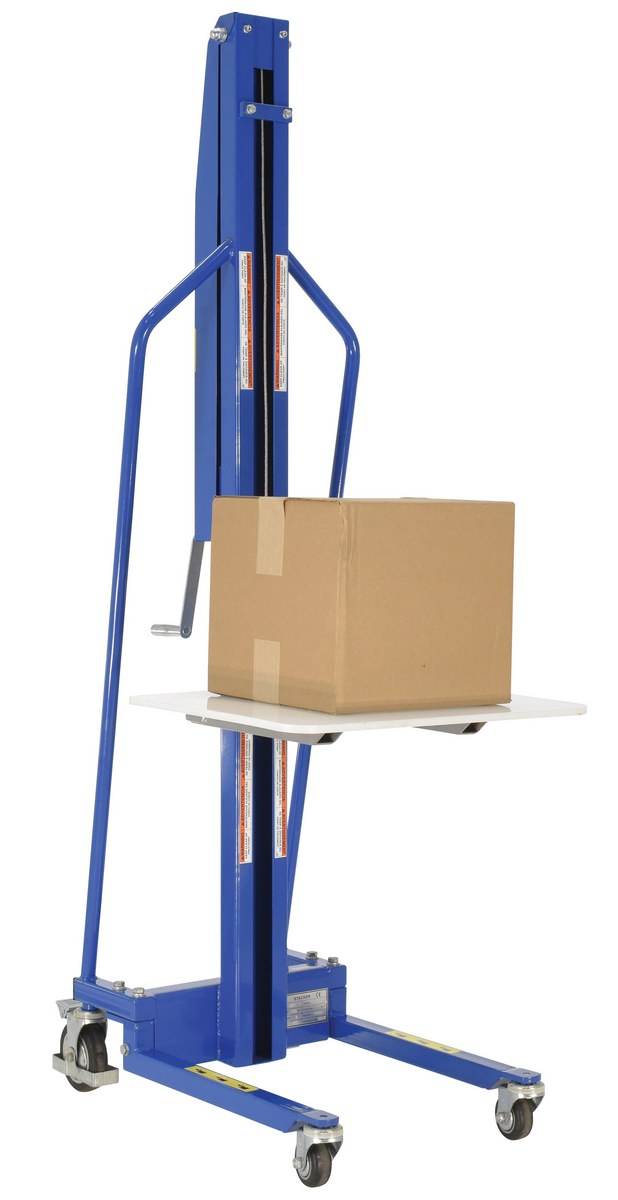

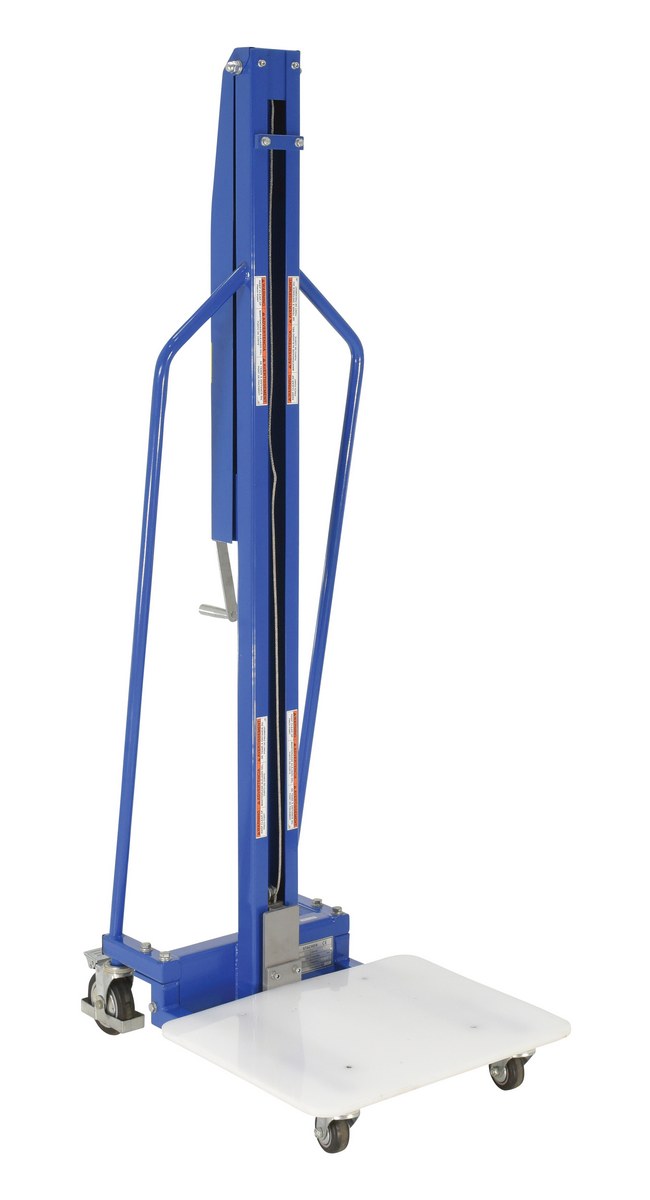

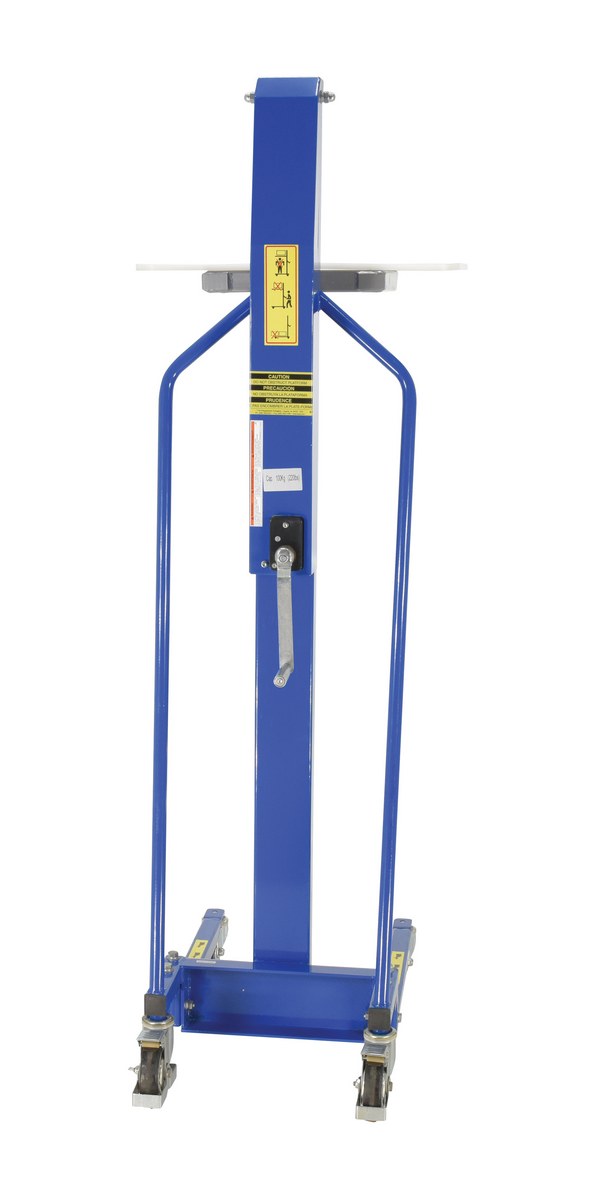

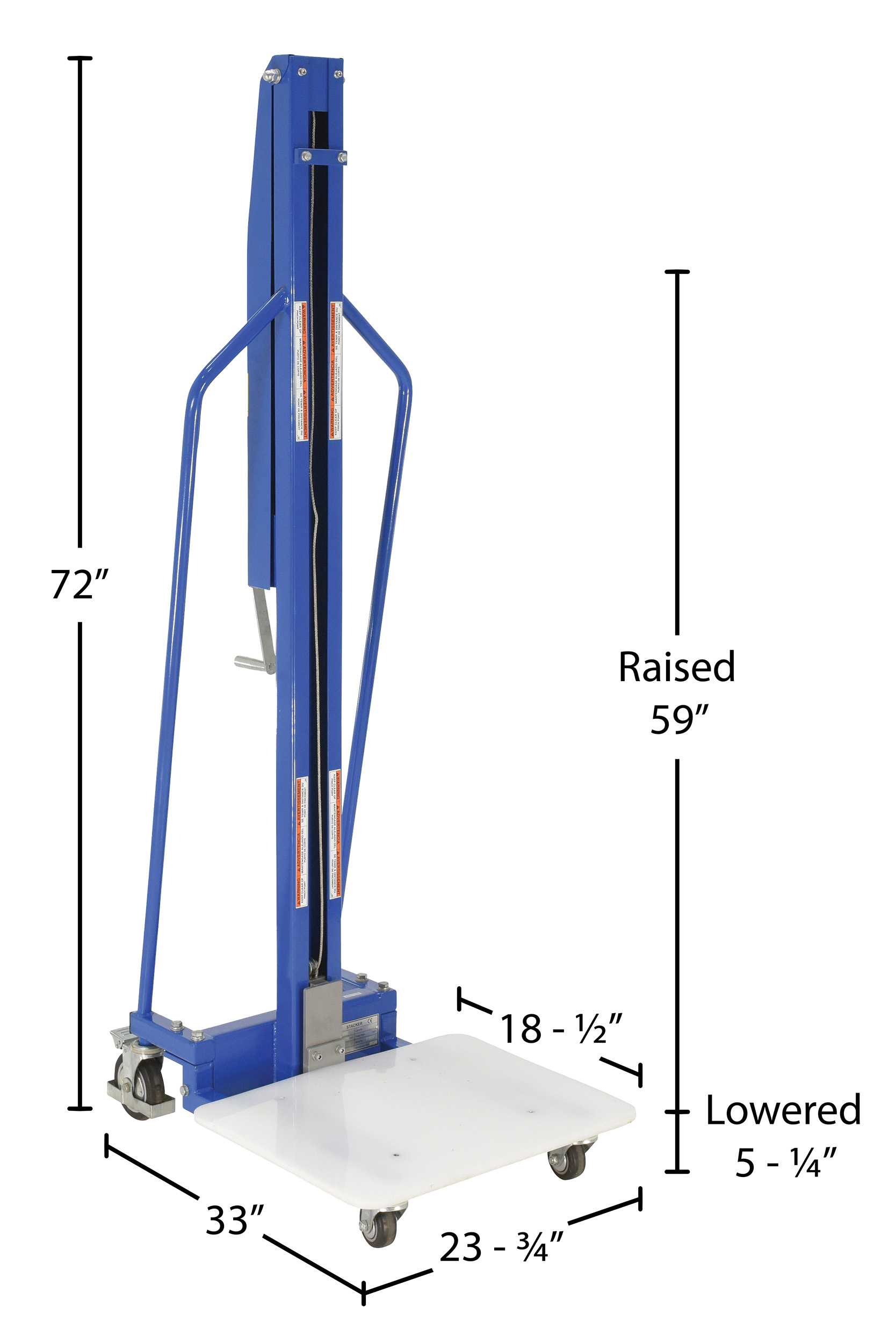

MWP-220-M		Steel Manual Work Positioner 33 In. x 23-3/4 In. x 72 In. 220 Lb. Capacity Blue	Uniform Capacity (lb.): 220 Platform Width (in.): 23-3/4	129

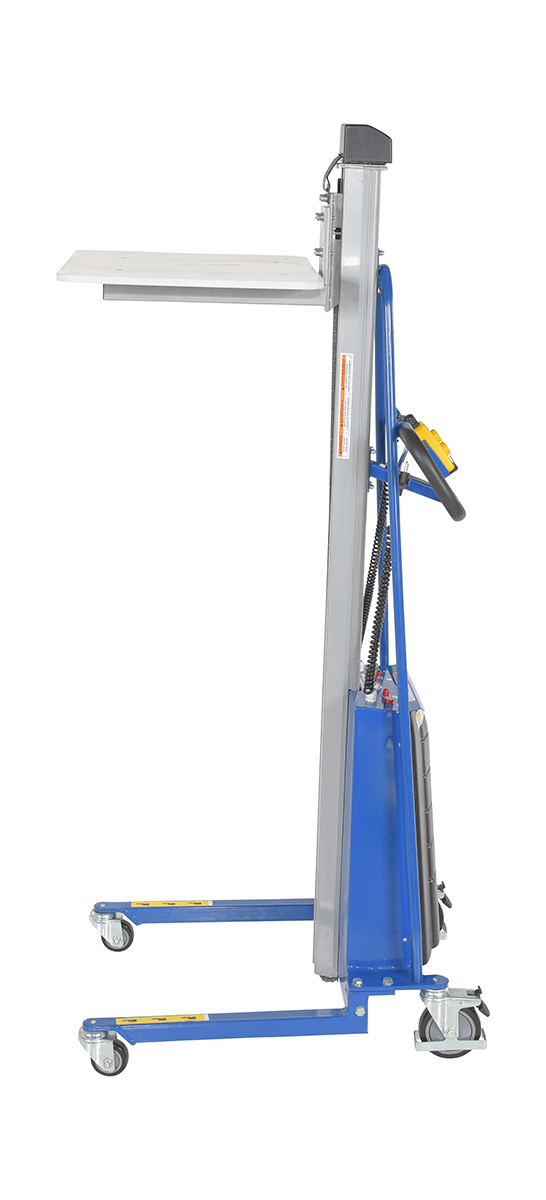

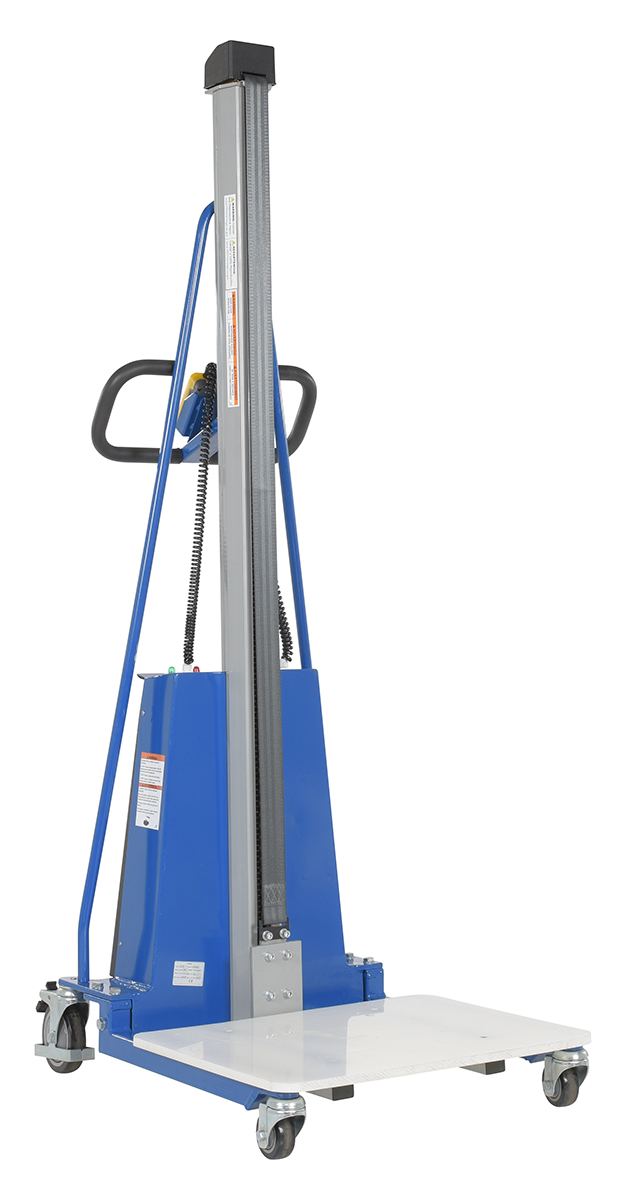

MWP-330-DC		Steel DC Powered Work Positioner 34-1/4 In. x 23-5/8 In. x 70-1/2 In. 330 Lb. Capacity Blue	Uniform Capacity (lb.): 330 Platform Width (in.): 23-5/8	186

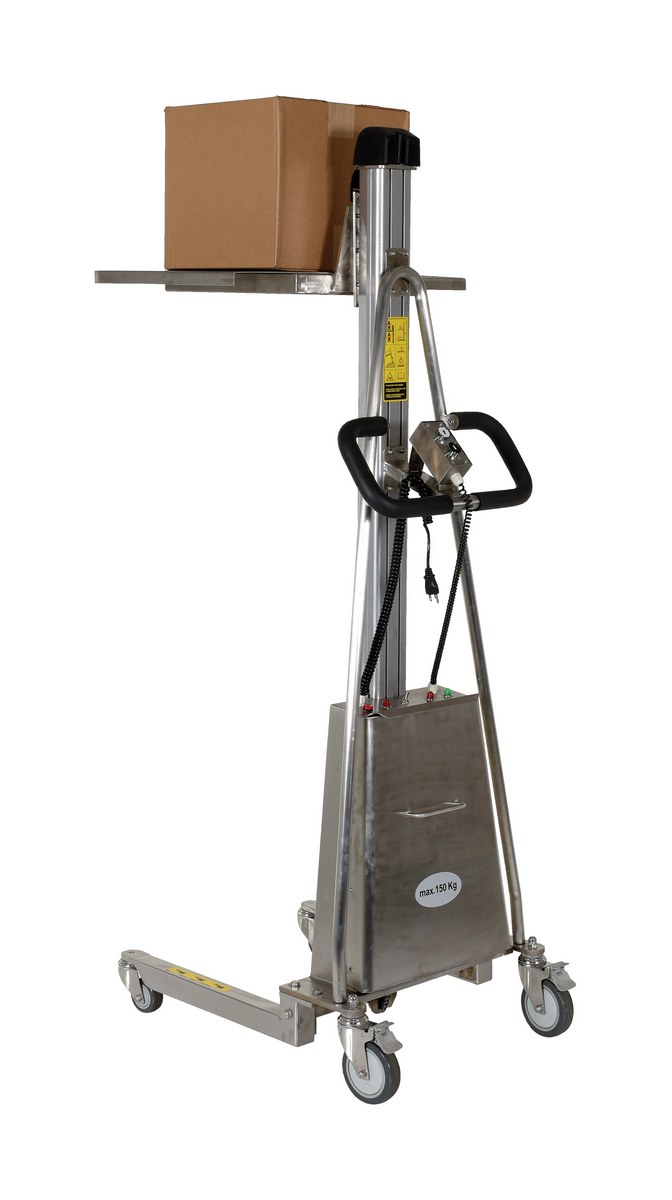

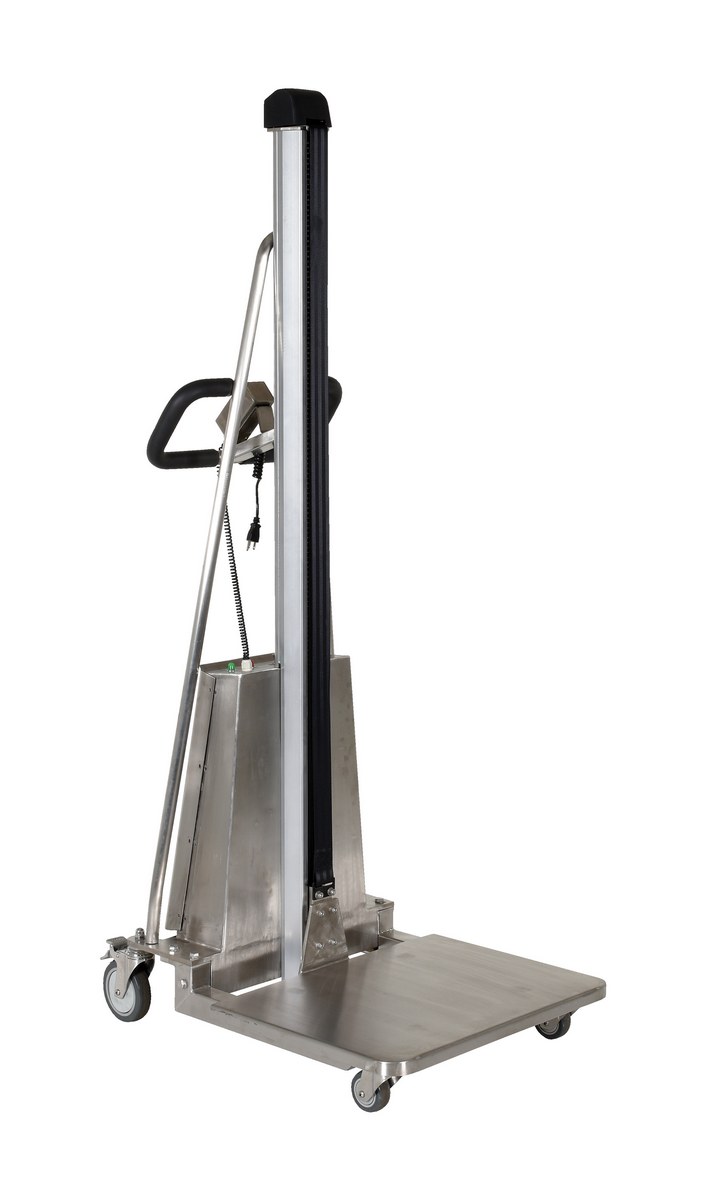

MWP-330-DC-SS		Stainless Steel DC Powered Work Positioner 34 In. x 24-1/2 In. x 71 In. 330 Lb. Capacity Silver	Uniform Capacity (lb.): 330 Platform Width (in.): 24-1/2	180

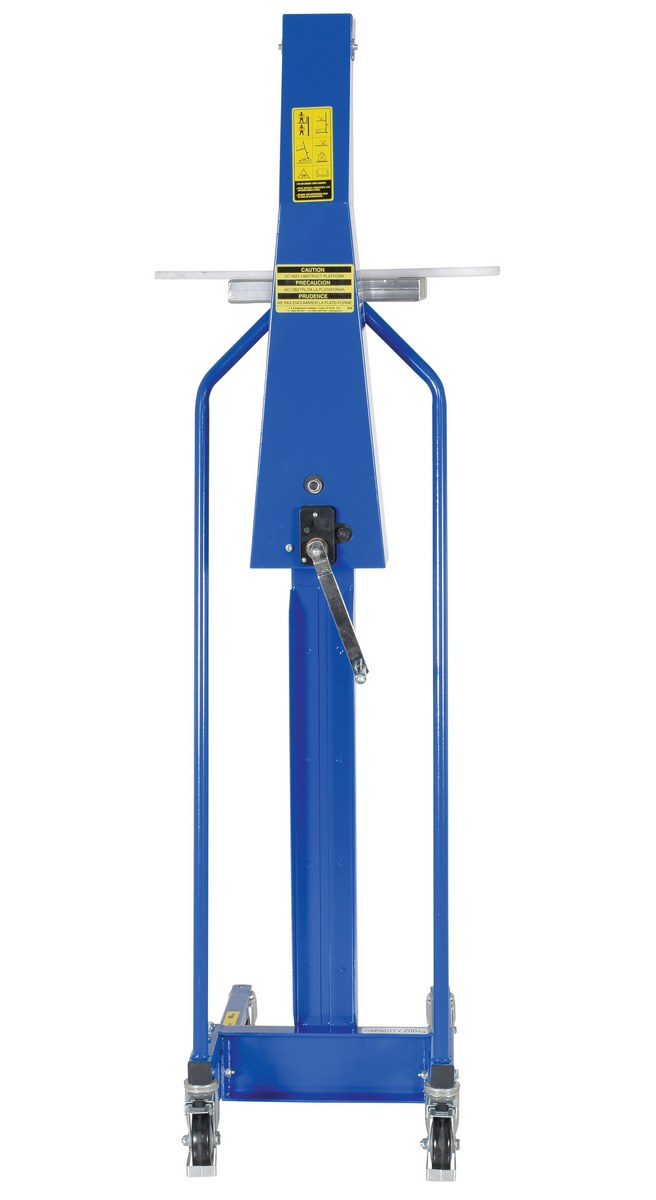

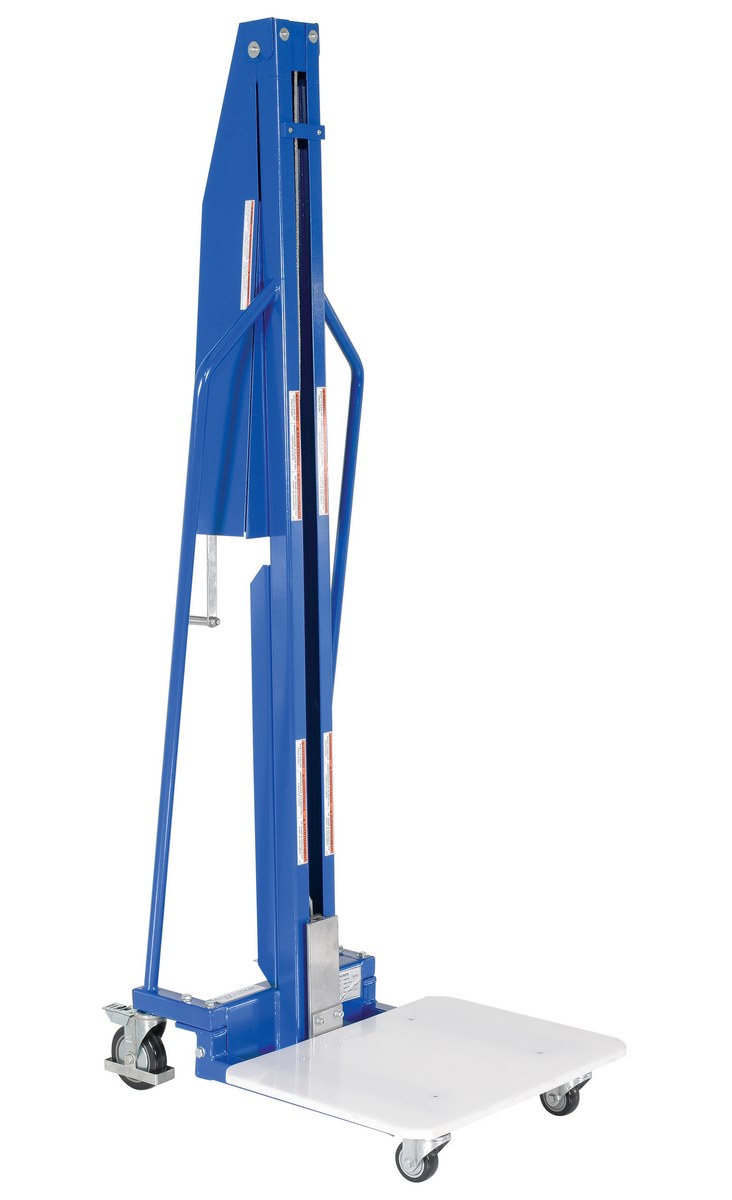

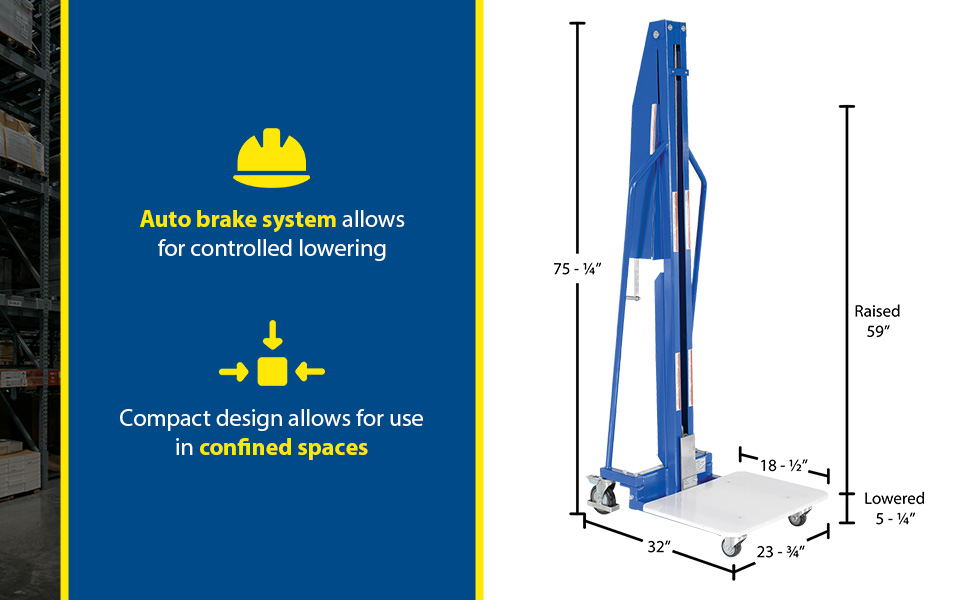

MWP-440-M		Steel Manual Work Positioner 32 In. x 23-3/4 In. x 75-1/4 In. 440 Lb. Capacity Blue	Uniform Capacity (lb.): 440 Platform Width (in.): 23-3/4	186

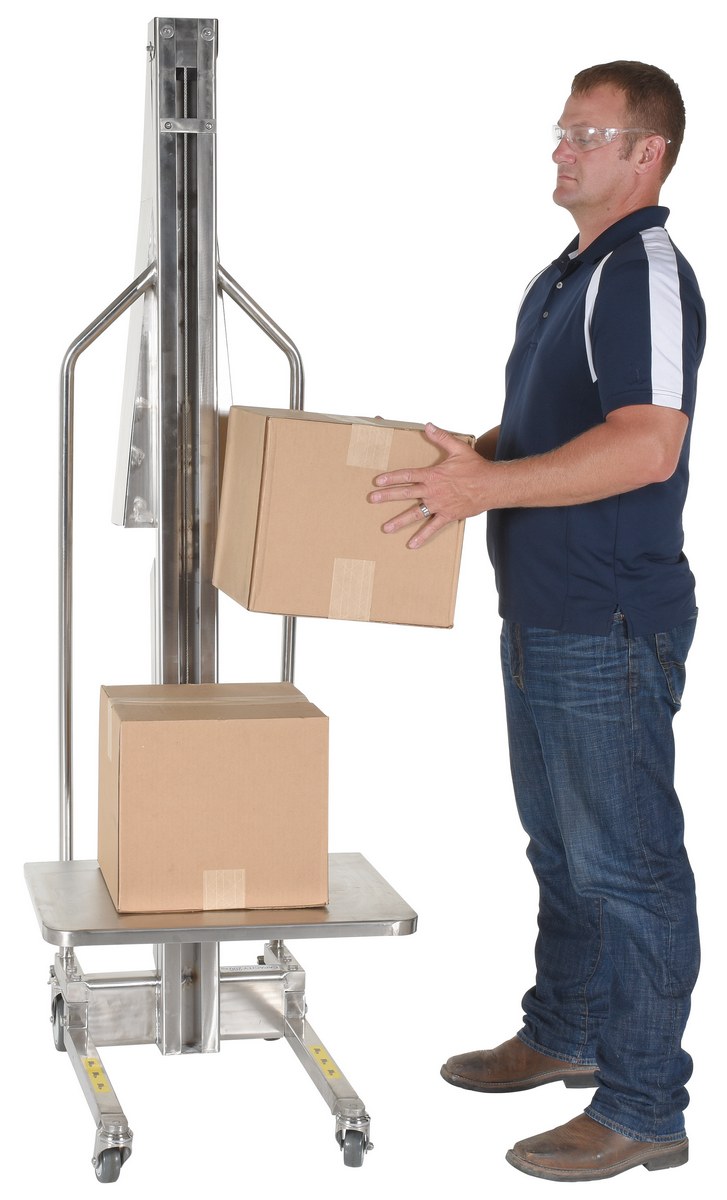

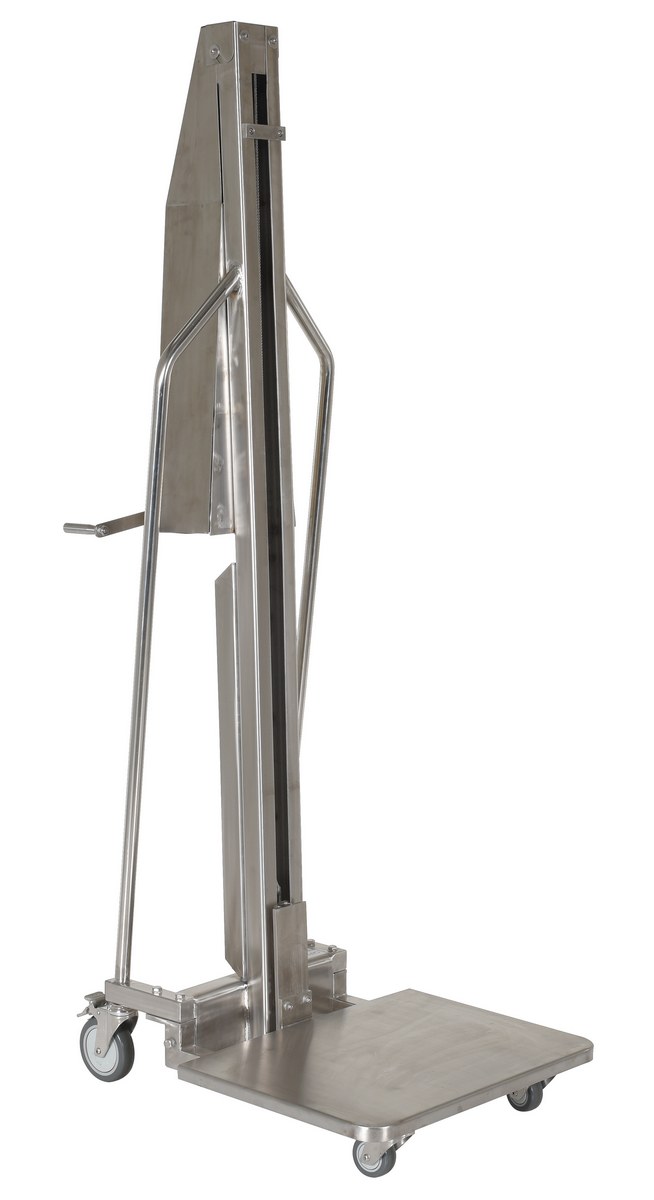

MWP-440-M-SS		Stainless Steel Manual Work Positioner 34 In. x 24-1/2 In. x 76 In. 440 Lb. Capacity Silver	Uniform Capacity (lb.): 440 Platform Width (in.): 24-1/2	165

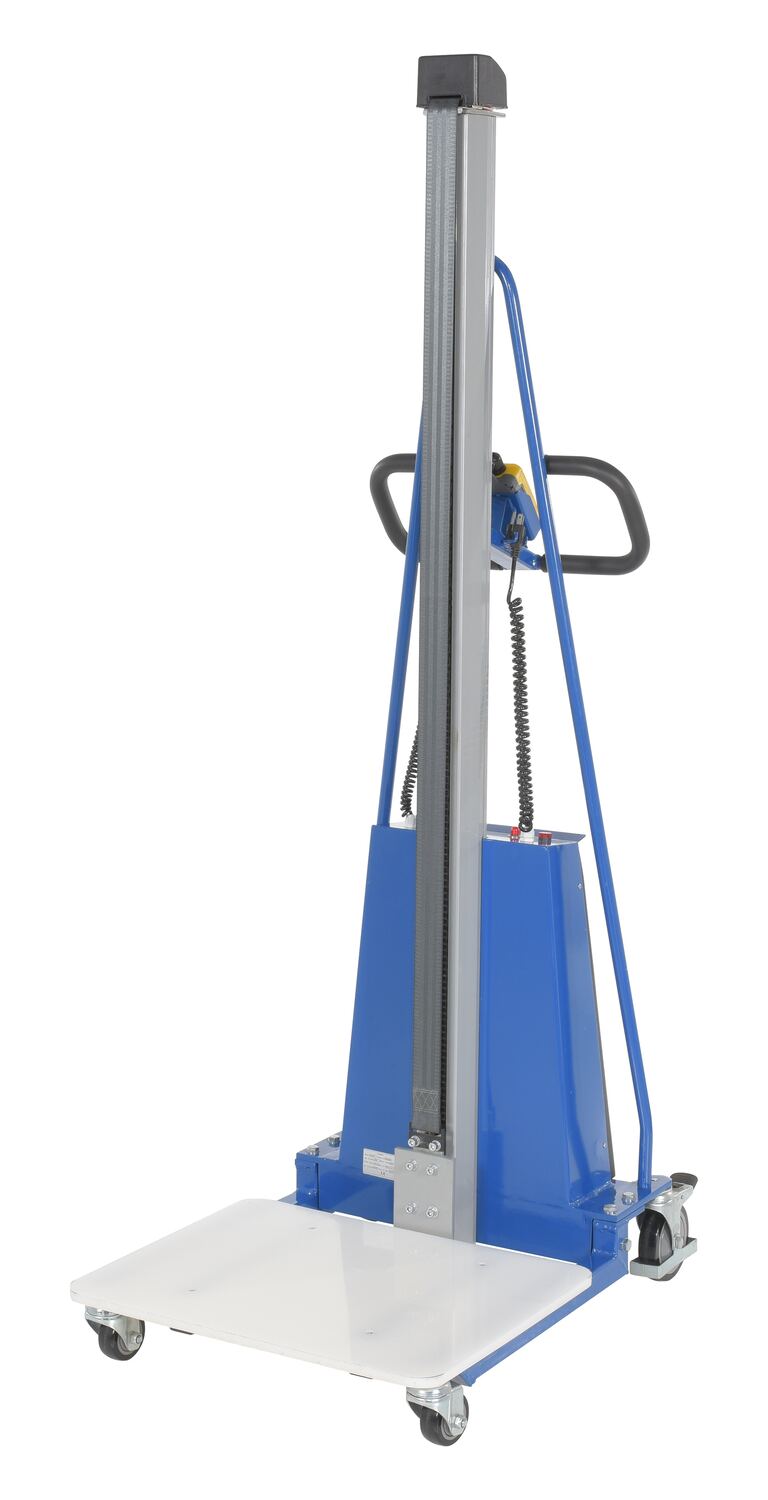

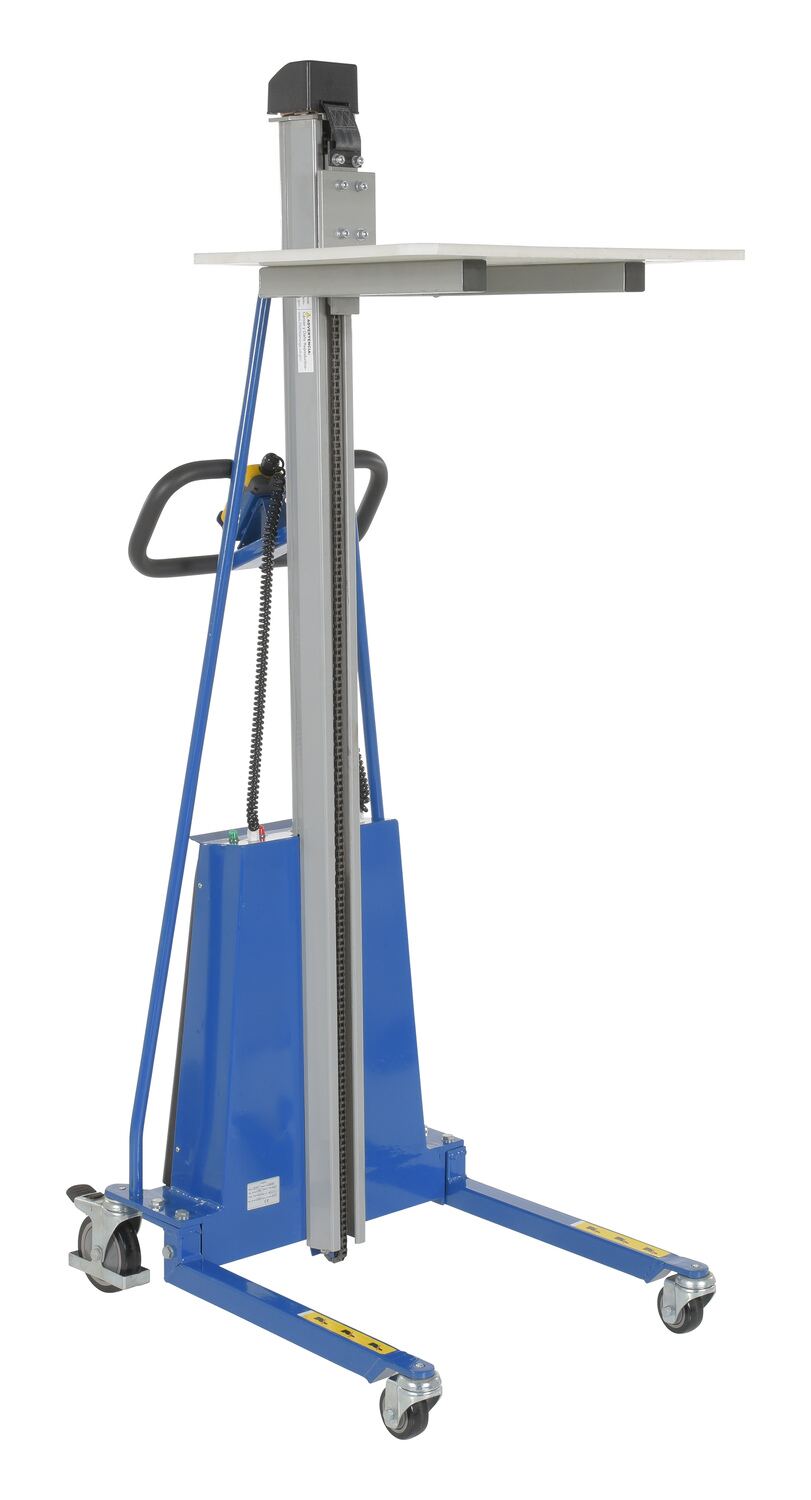

MWP-550-DC		Steel DC Powered Work Positioner 35-1/2 In. x 23-5/8 In. x 79-1/2 In. 550 Lb. Capacity Blue	Uniform Capacity (lb.): 550 Platform Width (in.): 23-5/8	254
