Product Family Overview


Storage Buildings
SERIES: STOR

Modular storage building are ideal for keeping valuable items secure. Constructed of maintenance free galvanized corrugated paneling. The door measures 45"W x 74"H usable and features a right-side hinged lock (padlock not included). Modular design is easy to assemble. Once assembled unit can be moved with a fork lift. Each unit features a wooden floor 5-3/4" high to help keep products dry. Built-in rain gutters for water drainage is standard.

Modular storage building are ideal for keeping valuable items secure. Constructed of maintenance free galvanized corrugated paneling. The door measures 45"W x 74"H usable and features a right-side hinged lock (padlock not included). Modular design is easy to assemble. Once assembled unit can be moved with a fork lift. Each unit features a wooden floor 5-3/4" high to help keep products dry. Built-in rain gutters for water drainage is standard.

Additional Models In This Family

STOR-912-G-W-1RH

model STOR-912-G-W-1RH

STOR-44-G-W-1RH

model STOR-44-G-W-1RH

STOR-66-G-W-1RH-WD

model STOR-66-G-W-1RH-WD

STOR-612-G-W-1RH-WD

model STOR-612-G-W-1RH-WD

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

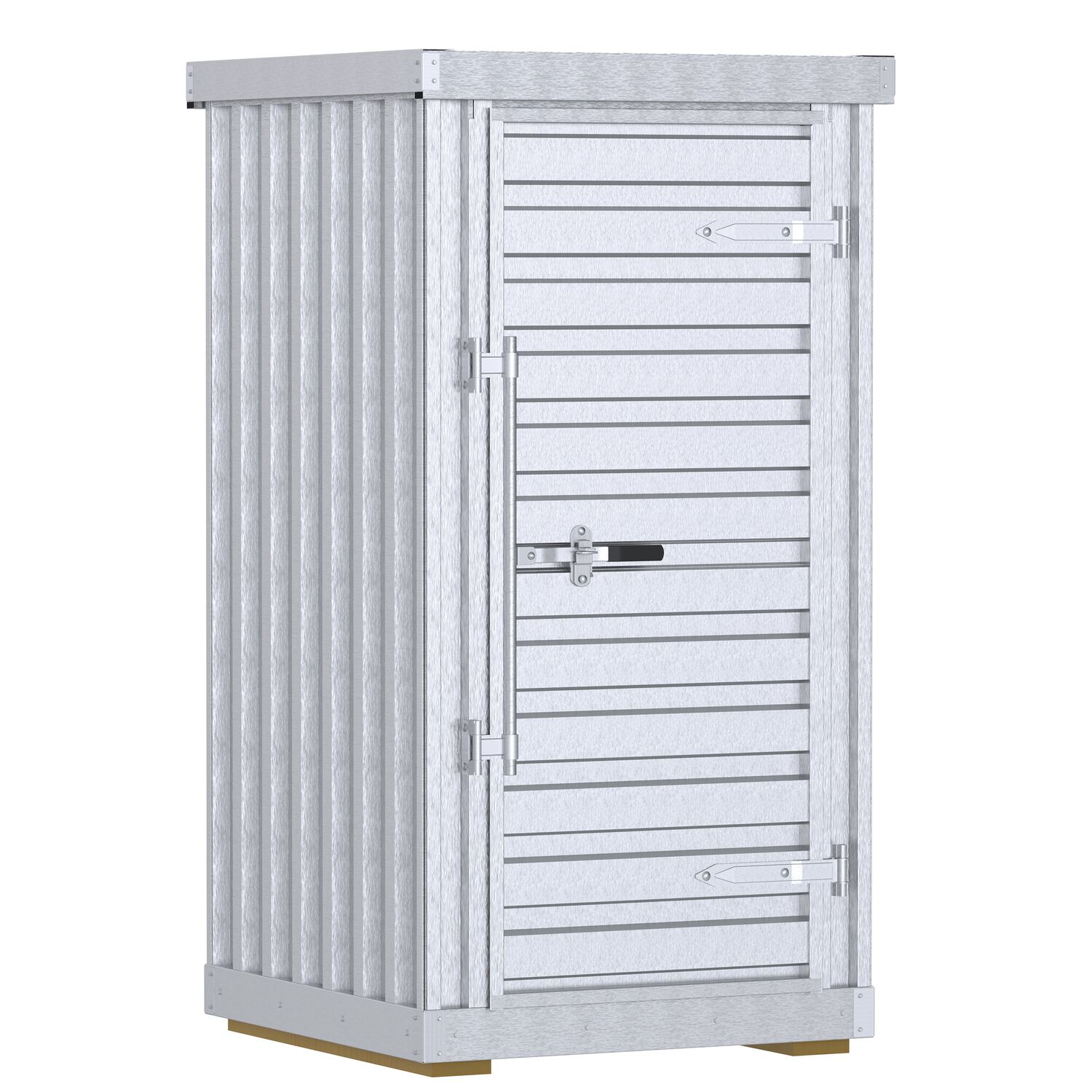

STOR-44-G-W-1RH STOR-44-G-W-1RH90 Days Limited WarrantyGalvanized Steel Storage Building 4 Ft. x 4 Ft. Wide Door 1,200 Lb. Capacity GrayUniform Capacity (lb.): 1200
Hardware Included: Yes
445

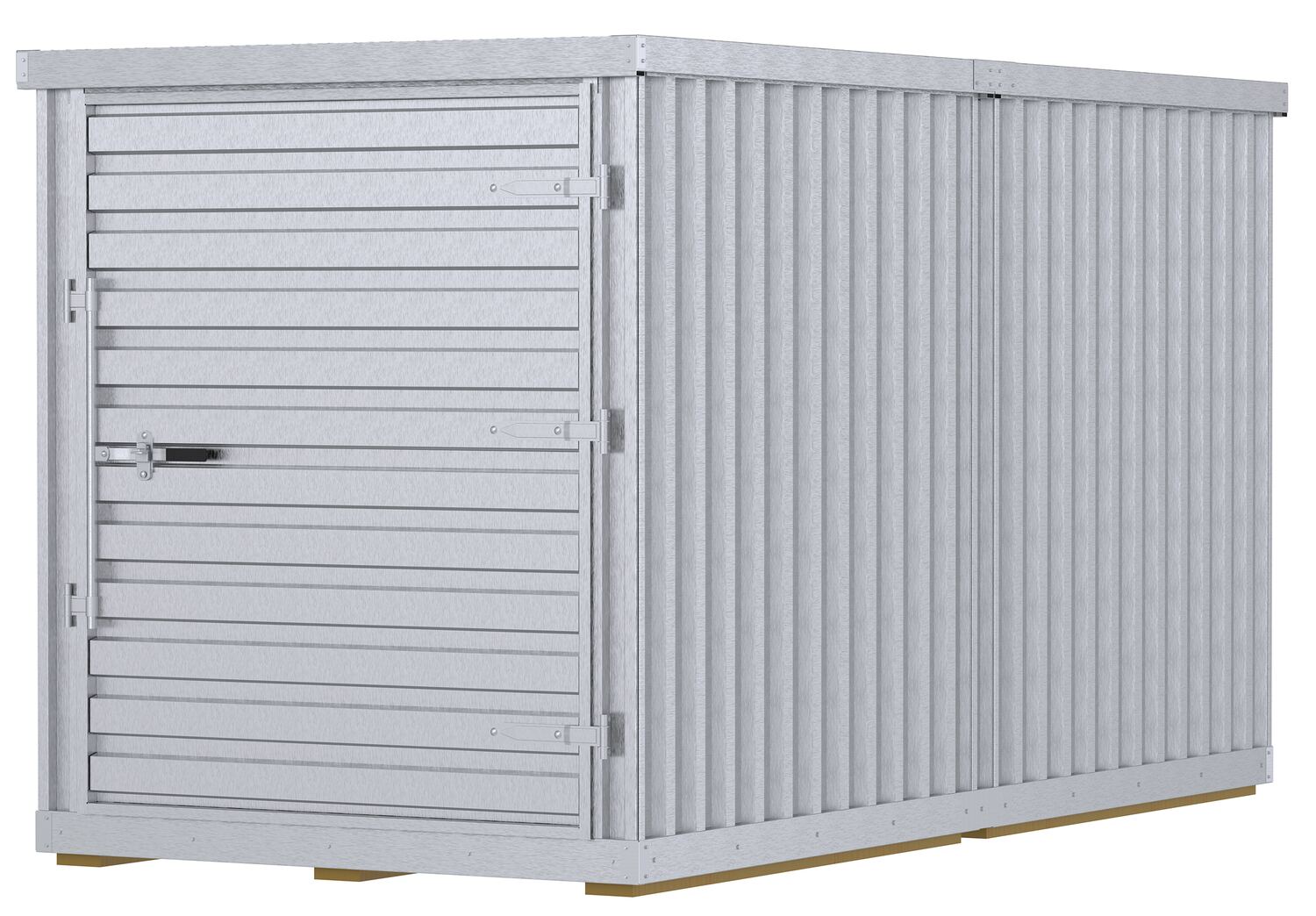

STOR-612-G-W-1RH-WD STOR-612-G-W-1RH-WD90 Days Limited WarrantyGalvanized Steel Storage Building 6 Ft. x 12 Ft. SilverUniform Capacity (lb.): 3600
Hardware Included: Yes
680

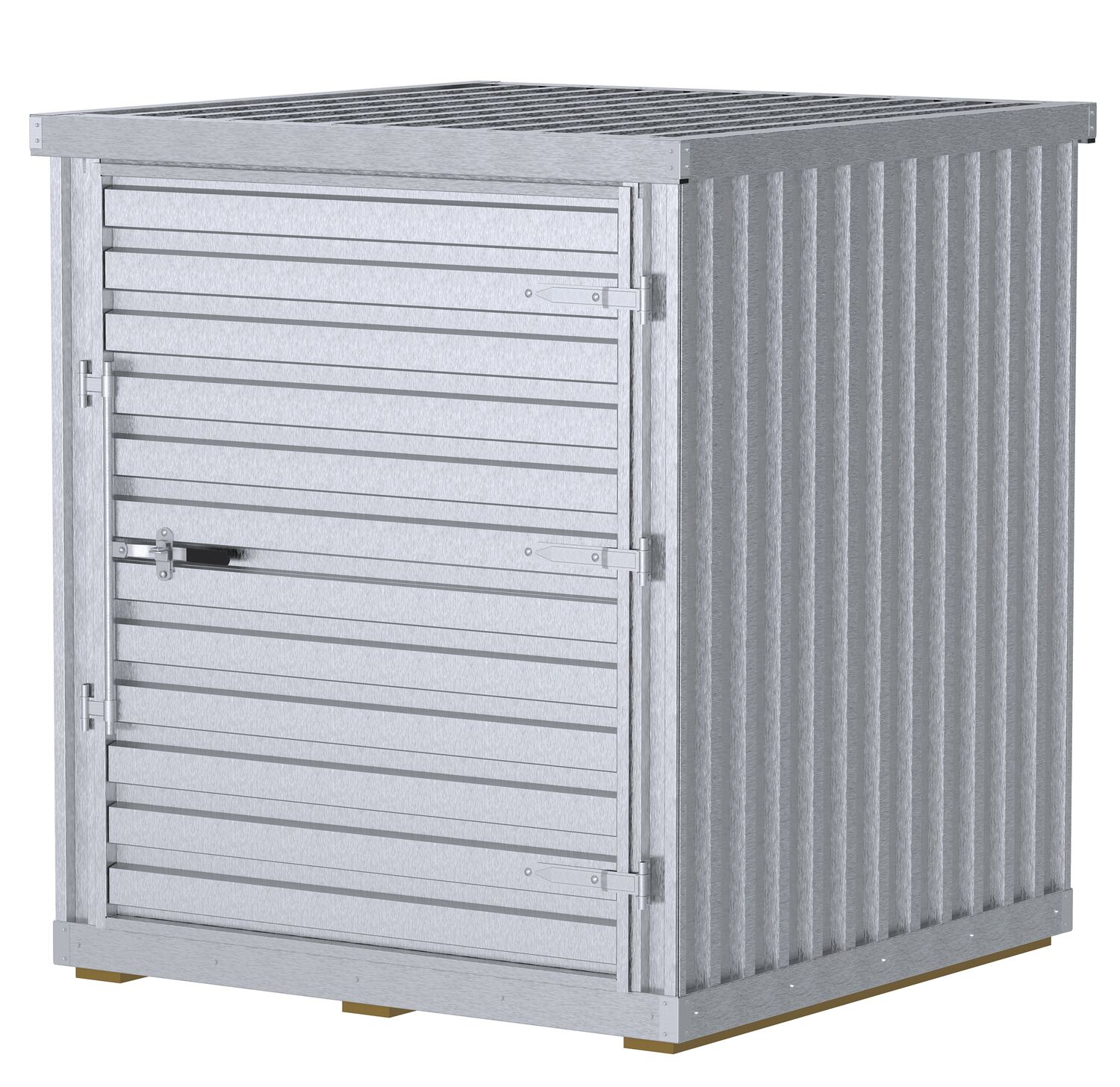

STOR-66-G-W-1RH-WD STOR-66-G-W-1RH-WD90 Days Limited WarrantyGalvanized Steel Storage Building 6 Ft. x 6 Ft. SilverUniform Capacity (lb.): 1800
Hardware Included: Yes
798

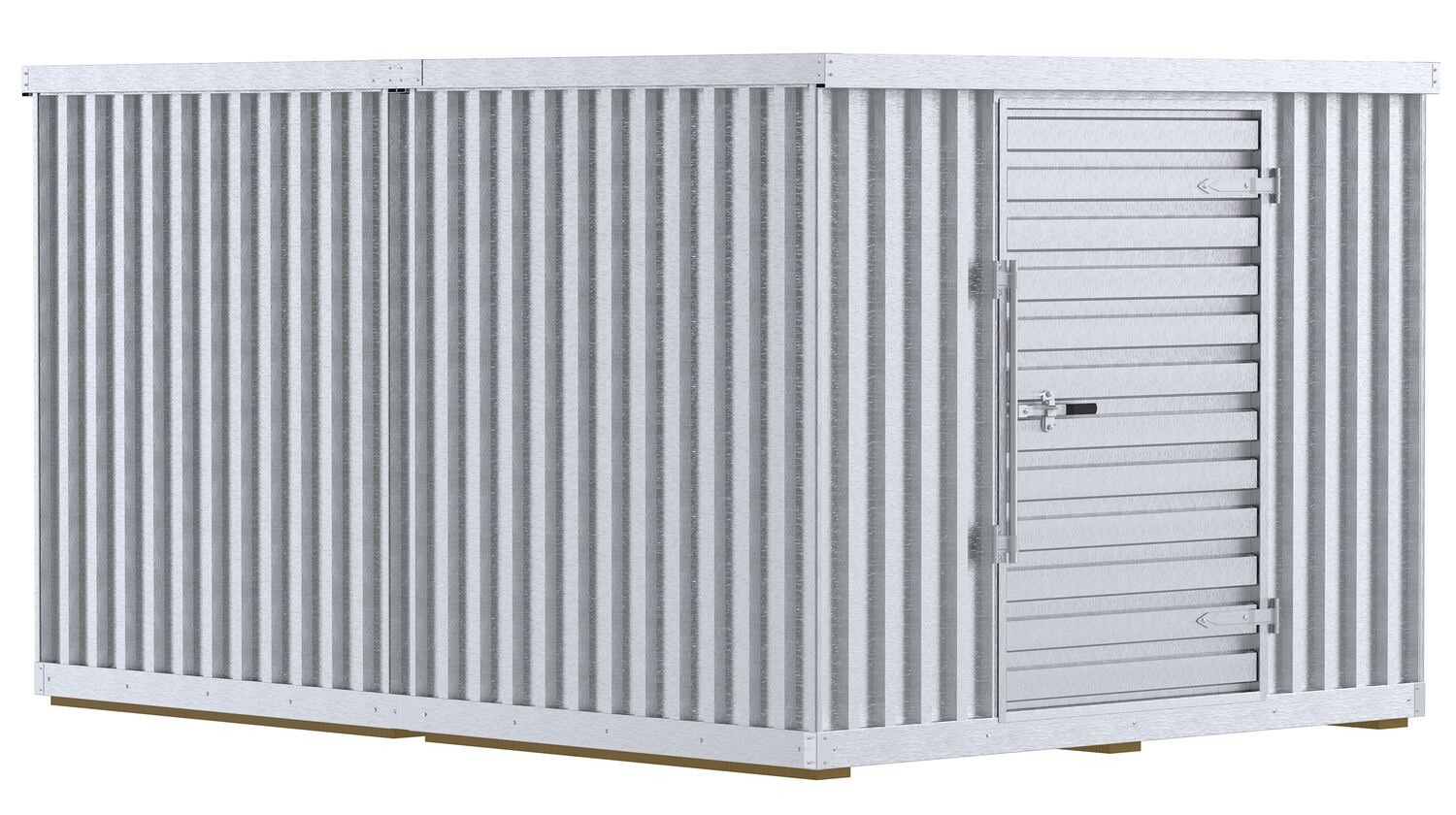

STOR-912-G-W-1RH STOR-912-G-W-1RH90 Days Limited WarrantyGalvanized Steel Double Storage Building 5,500 Lb. Floor Capacity GrayUniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45
1000

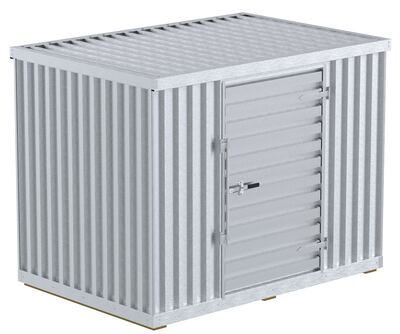

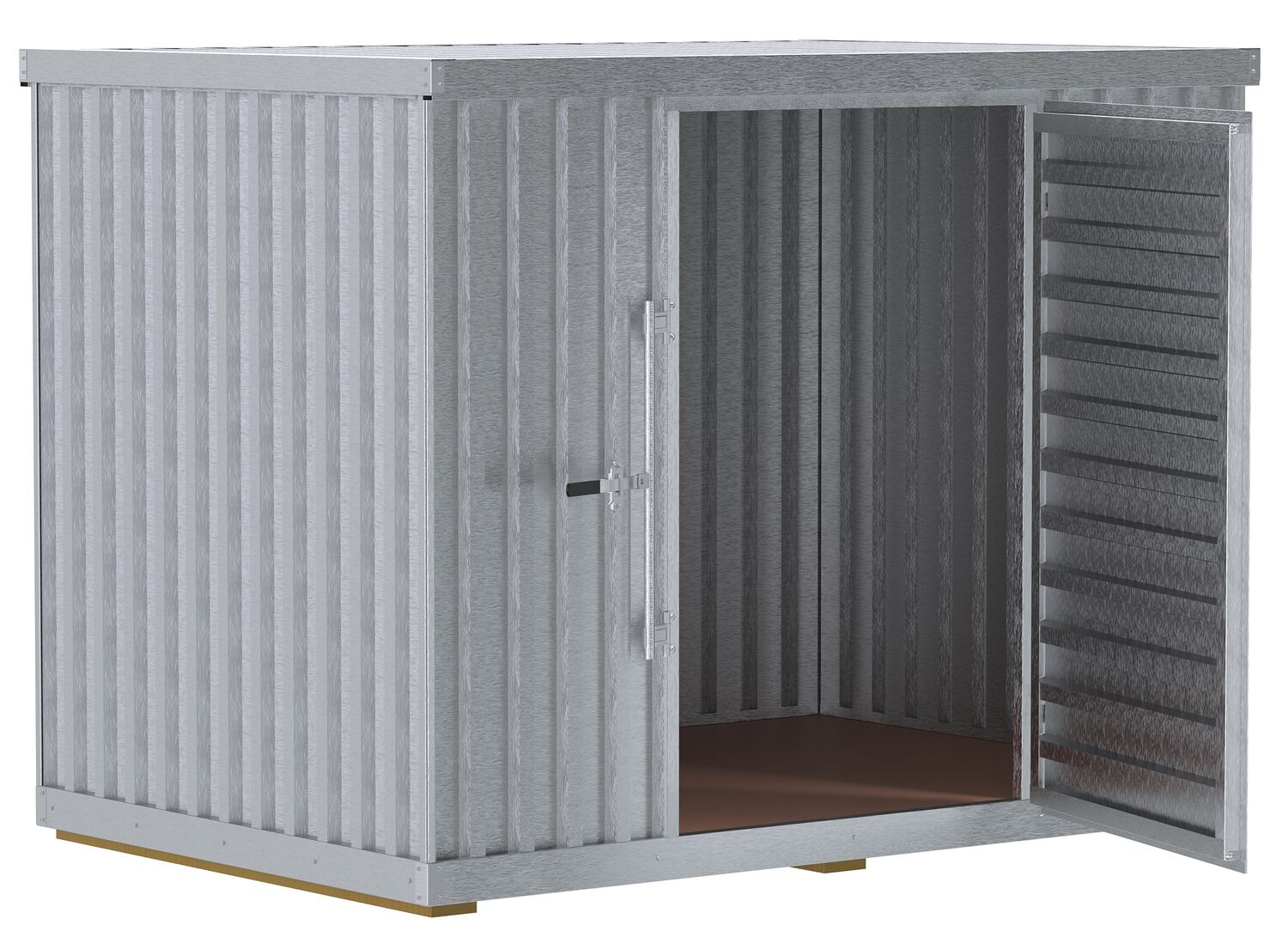

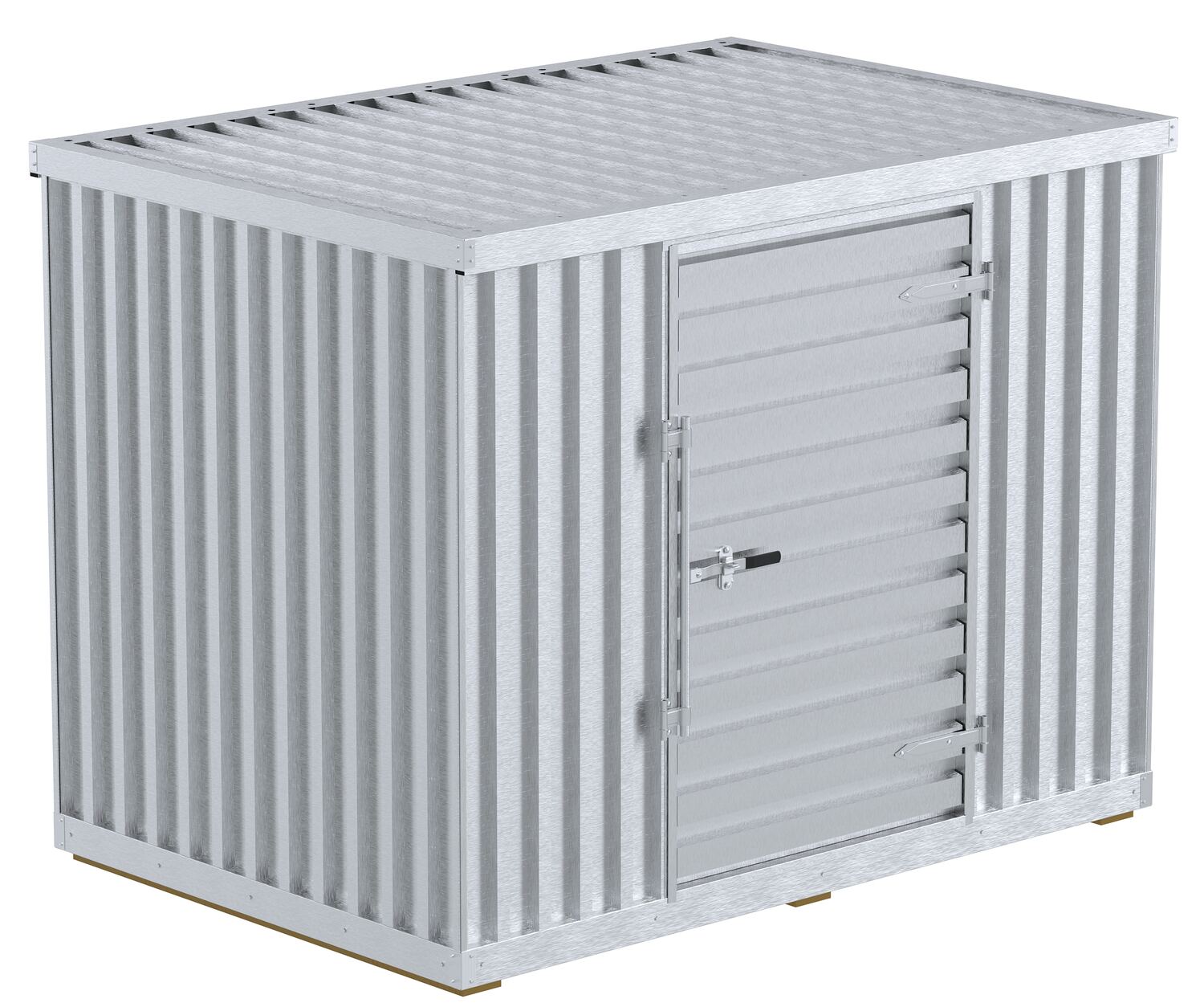

STOR-96-G-W-1RH STOR-96-G-W-1RH90 Days Limited WarrantyGalvanized Steel Single Storage Building 2,750 Lb. Floor Capacity GrayUniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45
946

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

STOR-44-G-W-1RH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Hardware Included: Yes
Uniform Capacity (lb.): 1200
Hardware Included: Yes

STOR-612-G-W-1RH-WD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Hardware Included: Yes
Uniform Capacity (lb.): 3600
Hardware Included: Yes

STOR-66-G-W-1RH-WD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Hardware Included: Yes
Uniform Capacity (lb.): 1800
Hardware Included: Yes

STOR-912-G-W-1RH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45
Uniform Capacity of Floor (lb.): 5500
Holds Snow Per Square Foot (lb.): 45

STOR-96-G-W-1RH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45
Uniform Capacity of Floor (lb.): 2750
Holds Snow Per Square Foot (lb.): 45

Storage Buildings PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


STOR-44-G-W-1RH

STOR-66-G-W-1RH-WD

STOR-96-G-W-1RH

STOR-612-G-W-1RH-WD

STOR-912-G-W-1RH

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What gauge steel is the storage building?

A: The STOR-96-G-1RH and STOR-912-G-W-1RH are constructed of 22 gauge corrugated steel siding.


Q: How long does it take to assemble the storage unit?

A: Estimated assembly time for the Storage Building is 2.5 hours per unit with two people using simple hand tools.


Q: How many square feet is the storage building?

A: The STOR-96-G-W-1RH shed is 6' x 9' = 54 square feet.
