Product Family Overview


Integral Scale for Scissor Tables
SERIES: SCALE-MU

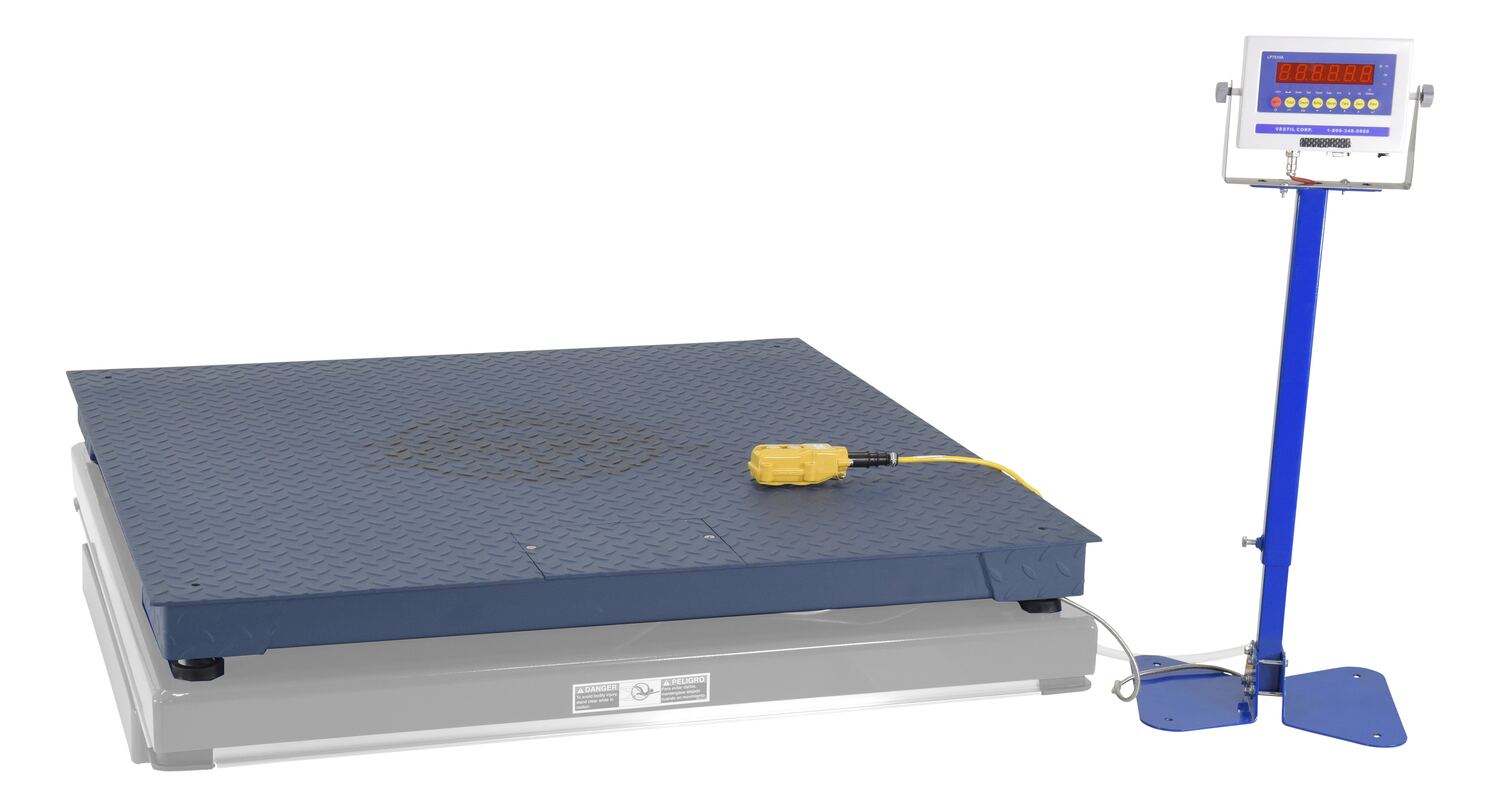

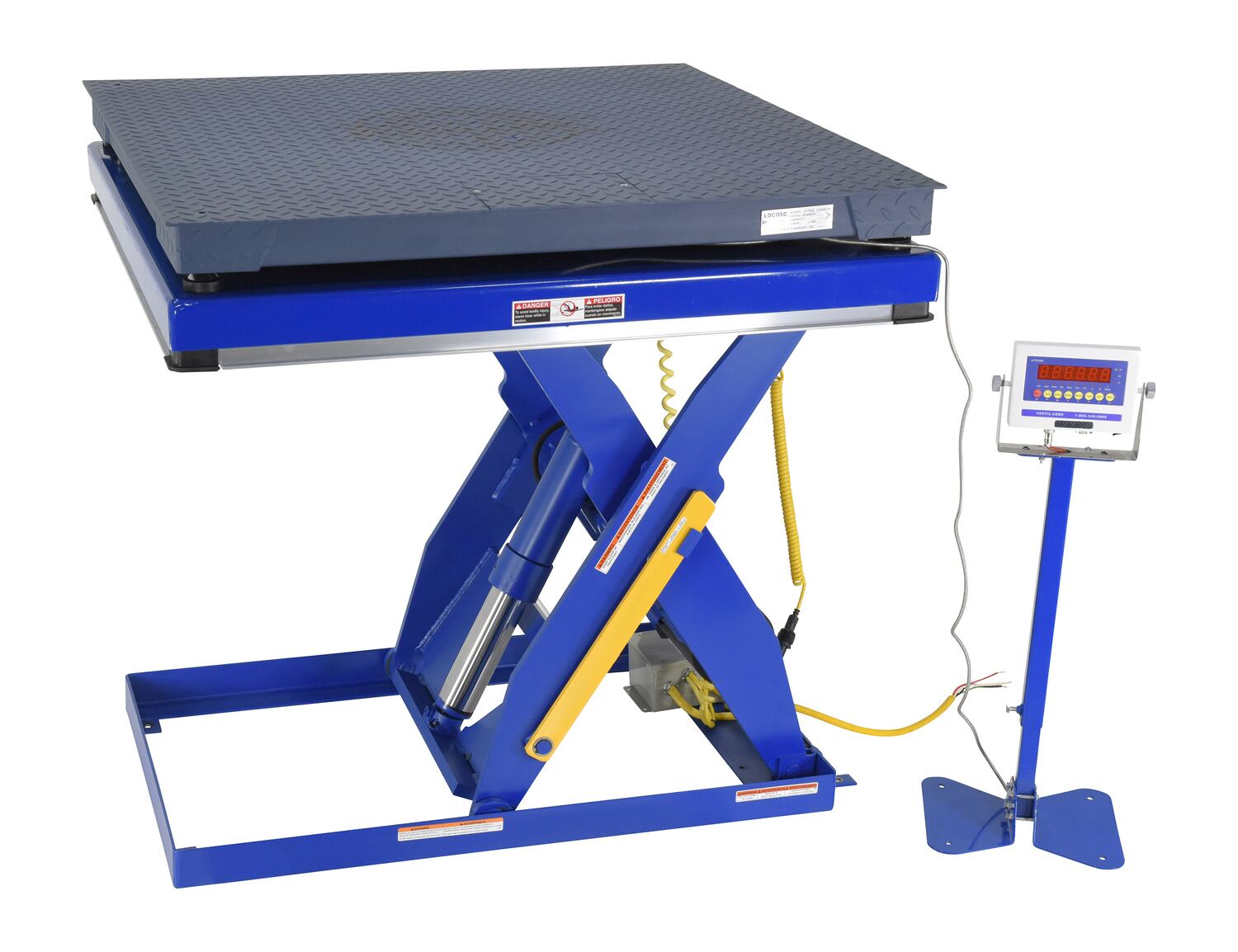

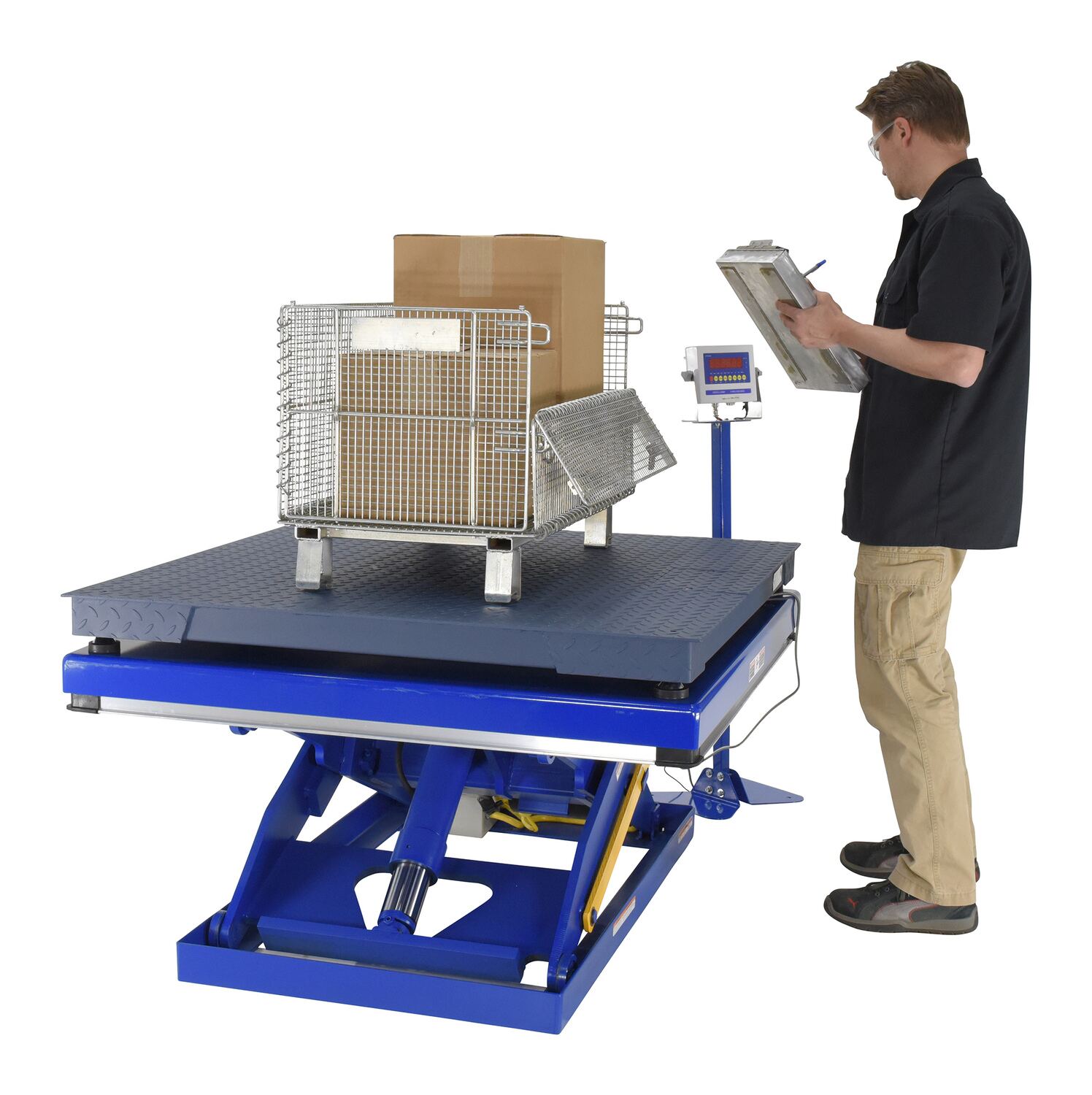

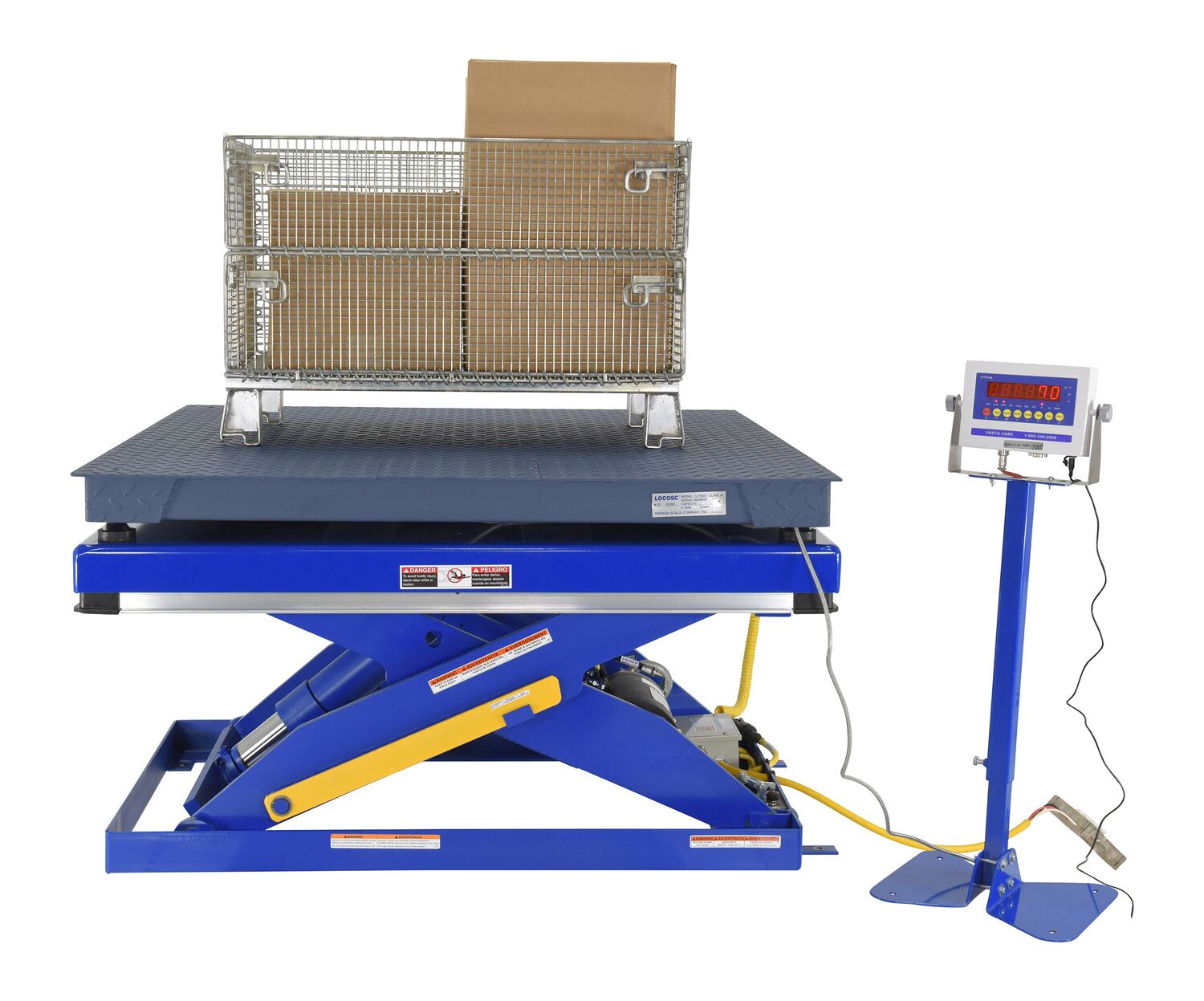

Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place.

Custom sizes available through special order. Contact Sales for details.

  • Validate number of pieces or parts
  • Know exactly how much weight is on your table
  • Bolt-on corner retainers
  • No holes or bolting required
  • Installs and removes in seconds
  • Expedite your shipping & palletizing process
  • Available in 36" x 36", 48" x 48", and 48" x 60" platform tops (rests on top of table)
  • Adds approximately 4-1/4" to overall height
  • Scale functions: zero weight and tare weight
  • Weighing units: pounds or kilograms

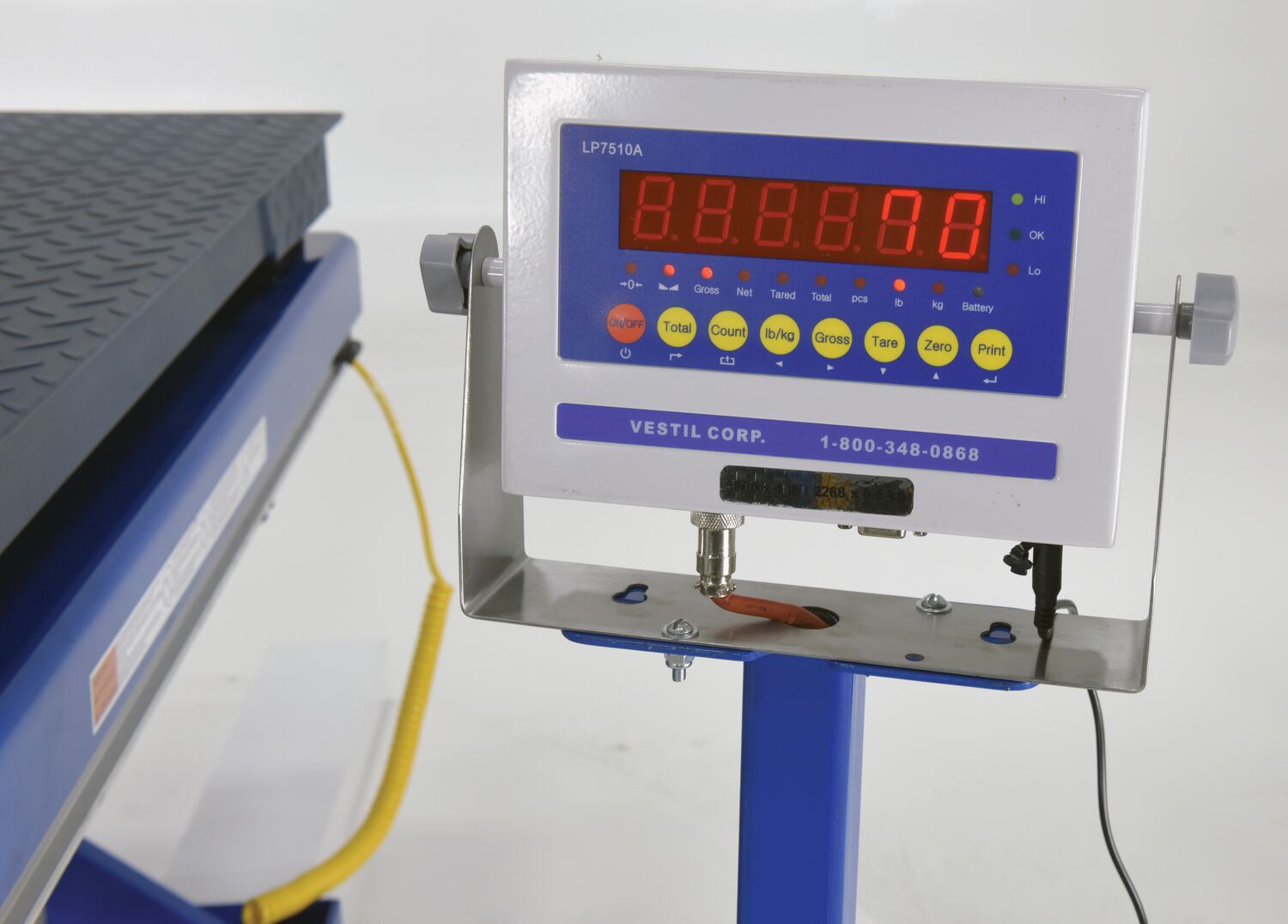

  • Indicator mounted on pedestal, 110VAC
  • Scale capacity, maximum 5,000 lb.
  • Scissor table not included, select next higher capacity scissor table

Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place.

Custom sizes available through special order. Contact Sales for details.

  • Validate number of pieces or parts
  • Know exactly how much weight is on your table
  • Bolt-on corner retainers
  • No holes or bolting required
  • Installs and removes in seconds
  • Expedite your shipping & palletizing process
  • Available in 36" x 36", 48" x 48", and 48" x 60" platform tops (rests on top of table)
  • Adds approximately 4-1/4" to overall height
  • Scale functions: zero weight and tare weight
  • Weighing units: pounds or kilograms
  • Indicator mounted on pedestal, 110VAC
  • Scale capacity, maximum 5,000 lb.
  • Scissor table not included, select next higher capacity scissor table

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SCALE-MU-3636-5-BL SCALE-MU-3636-5-BL90 Days Limited WarrantySteel Integral Scissor Lift Table Scale Option 36 x 36 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Size (in.):: 36 x 36
228
SCALE-MU-4848-5-BL SCALE-MU-4848-5-BL90 Days Limited WarrantySteel Integral Scissor Lift Table Scale Option 48 x 48 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Size (in.):: 48 x 48
341
SCALE-MU-4860-5-BL SCALE-MU-4860-5-BL90 Days Limited WarrantySteel Integral Scissor Lift Table Scale Option 48 x 60 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Size (in.):: 48 x 60
399

* The 3 SCALE-MU models replace EHLT-SCALE, EHLTD-SCALE, EHLTS-SCALE, EHLTSD-SCALE, & PST-SCALE

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SCALE-MU-3636-5-BL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Platform Size (in.):: 36 x 36
Uniform Capacity (lb.): 5,000
Platform Size (in.):: 36 x 36

SCALE-MU-4848-5-BL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Platform Size (in.):: 48 x 48
Uniform Capacity (lb.): 5,000
Platform Size (in.):: 48 x 48

SCALE-MU-4860-5-BL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Platform Size (in.):: 48 x 60
Uniform Capacity (lb.): 5,000
Platform Size (in.):: 48 x 60

Integral Scale for Scissor Tables PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What are the increments of the scale reading?

A: Scale reads in 1.0 units. Minimum increments are tenths or 0.1 units. Base reading is 1 lb. and increases by 0.1 from there. Does not extend past 0.1 units.


Q: What is the total capacity/weight when it stops reading?

A: Each scale has it's designated capacity and display read out is usable to the end of the screen. The scale will no longer operate properly if more than 100 lbs. over the capacity.


Q: I’m looking for a scale to sit on a lift platform that can transfer the weight over to a PC (so the operator does not have to enter the weight).

A: All our scales are equipped with RS232 port to transfer the data.
