Product Family Overview


High-Tech Non-Marking Polyurethane
SERIES: CST-F40-DT

Made of 100% pure polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% bond and "zero" trapped air. Green tread color. 90 +/-5 Shore A. Wheel center is constructed of polyolefin. Made in Taiwan.


  • Tread To Core100% Bond to Core
  • Kingpinless
  • Resists Most Solvents, Oil, Grease & Water
  • Non-Marking
  • Smooth Roll
  • Roller Bearing (available with precision ball bearings) - contact factory

Made of 100% pure polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% bond and "zero" trapped air. Green tread color. 90 +/-5 Shore A. Wheel center is constructed of polyolefin. Made in Taiwan.


  • Tread To Core100% Bond to Core
  • Kingpinless
  • Resists Most Solvents, Oil, Grease & Water
  • Non-Marking
  • Smooth Roll
  • Roller Bearing (available with precision ball bearings) - contact factory

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

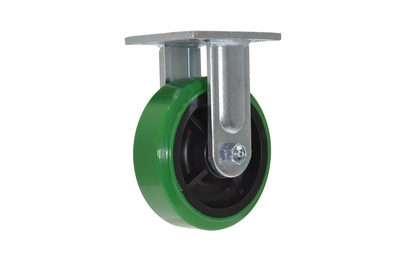

CST-F40-6X2DT-R CST-F40-6X2DT-R3 YEARS Limited Warranty6 x 2RIGID9007-1/2 4 x 4-1/25
CST-F40-8X2DT-R CST-F40-8X2DT-R3 YEARS Limited Warranty8 x 2RIGID10009-1/2 4 x 4-1/26.25
CST-F40-6X2DT-S CST-F40-6X2DT-S3 YEARS Limited Warranty6 x 2SWIVEL9007-1/2 4 x 4-1/25.75

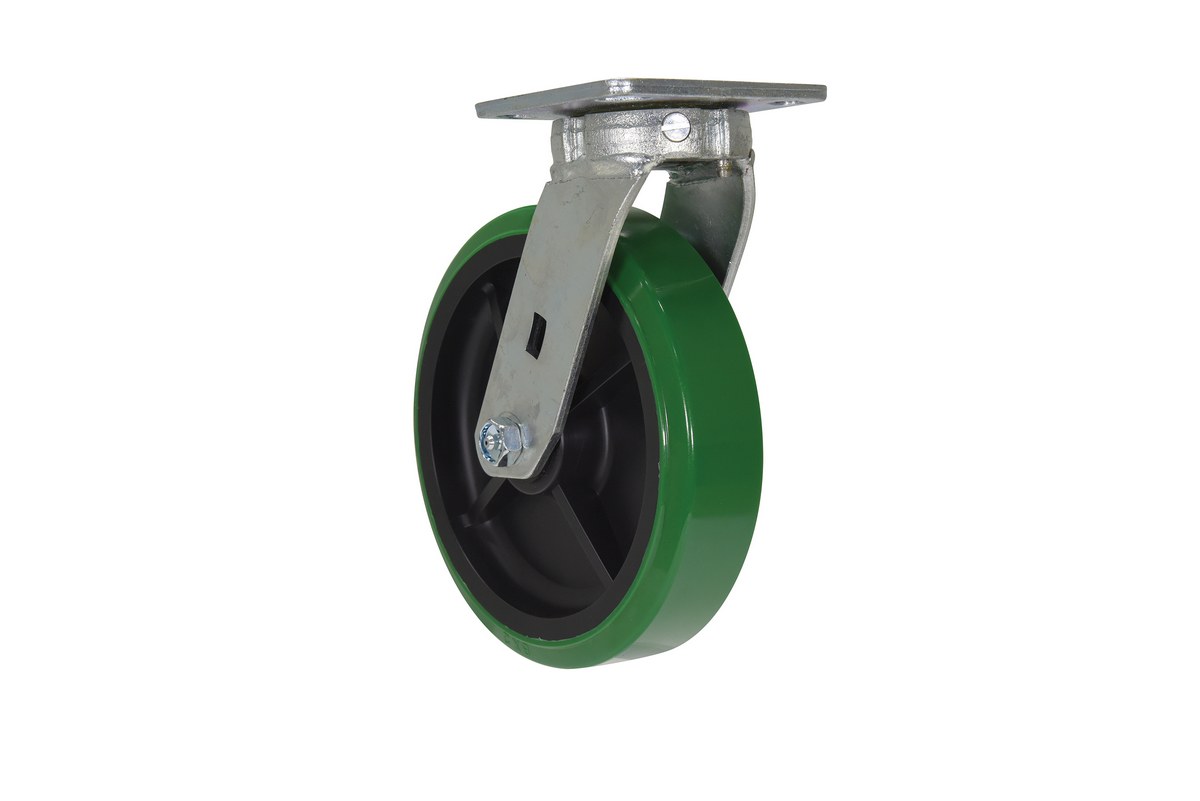

CST-F40-8X2DT-S CST-F40-8X2DT-S3 YEARS Limited Warranty8 x 2SWIVEL10009-1/2 4 x 4-1/26.75

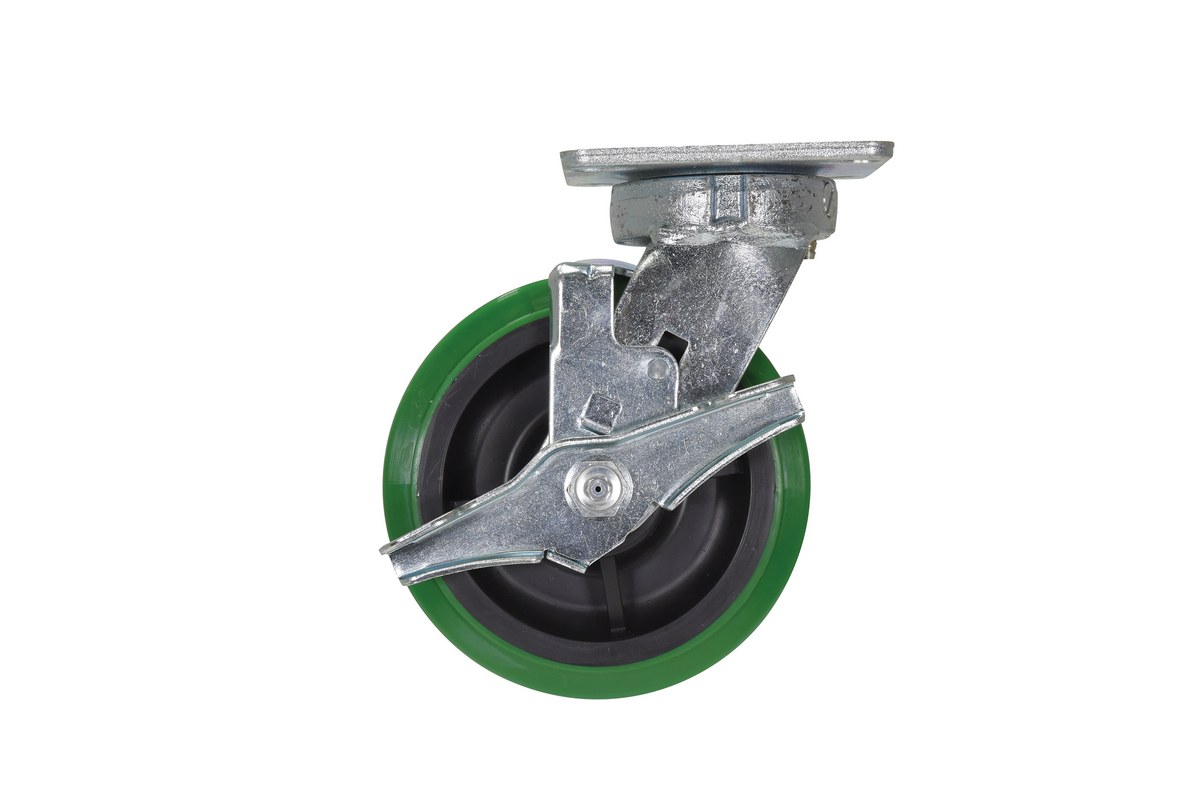

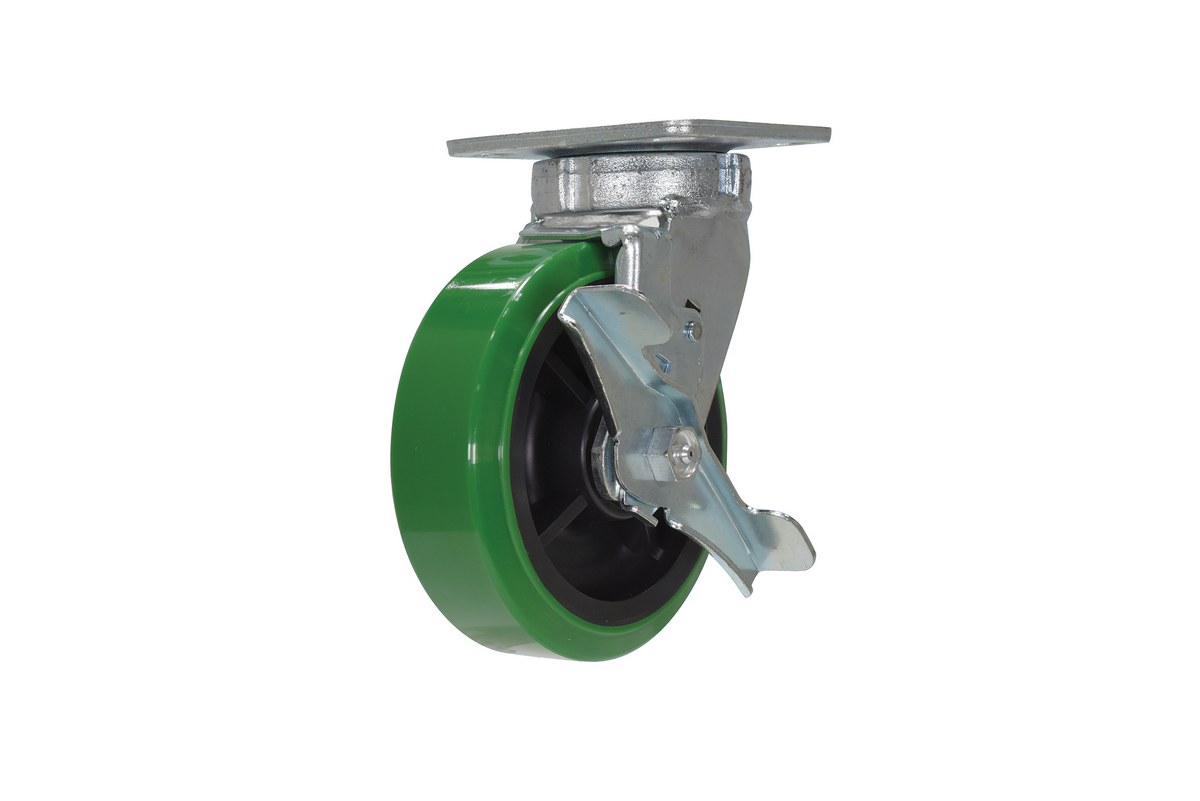

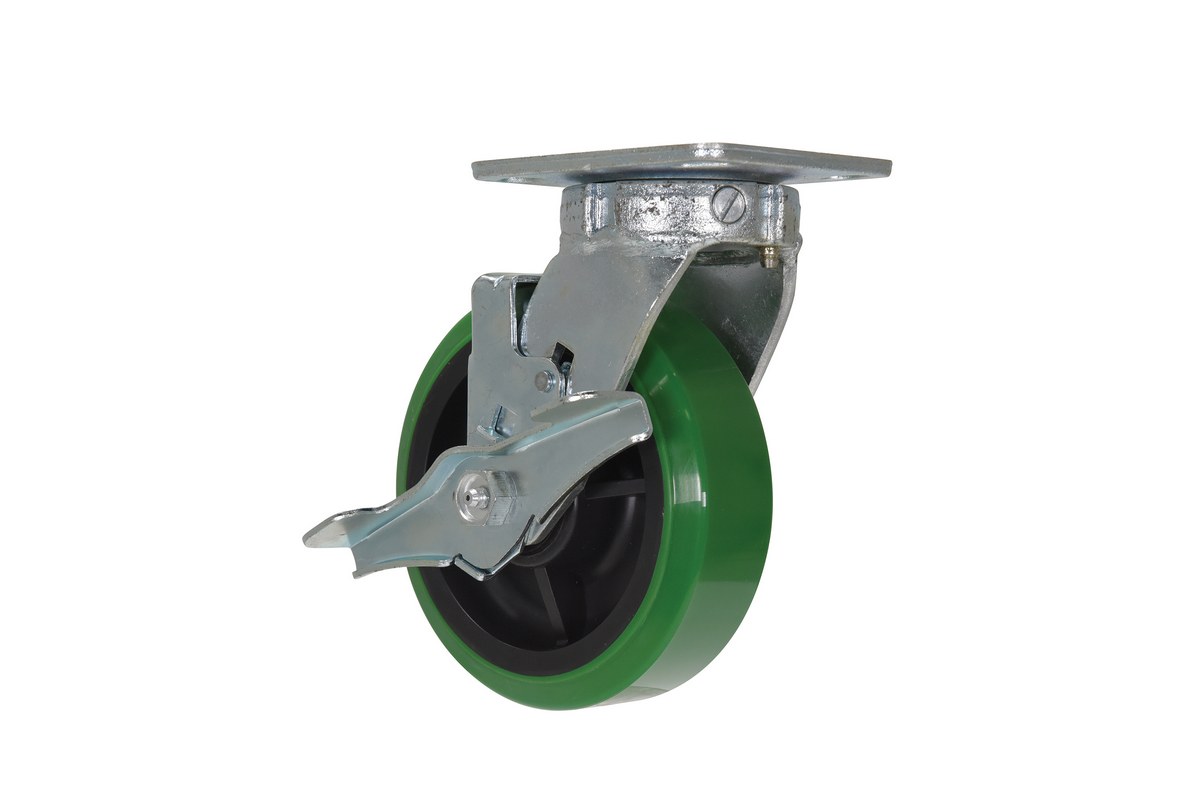

CST-F40-6X2DT-SWB CST-F40-6X2DT-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE9007-1/2 4 x 4-1/26.07
CST-F40-8X2DT-SWB CST-F40-8X2DT-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE10009-1/2 4 x 4-1/27.25

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


High-Tech Non-Marking Polyurethane PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-F40-6X2DT-R

CST-F40-6X2DT-S

CST-F40-6X2DT-SWB

CST-F40-8X2DT-R

CST-F40-8X2DT-S

CST-F40-8X2DT-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
