Product Family Overview

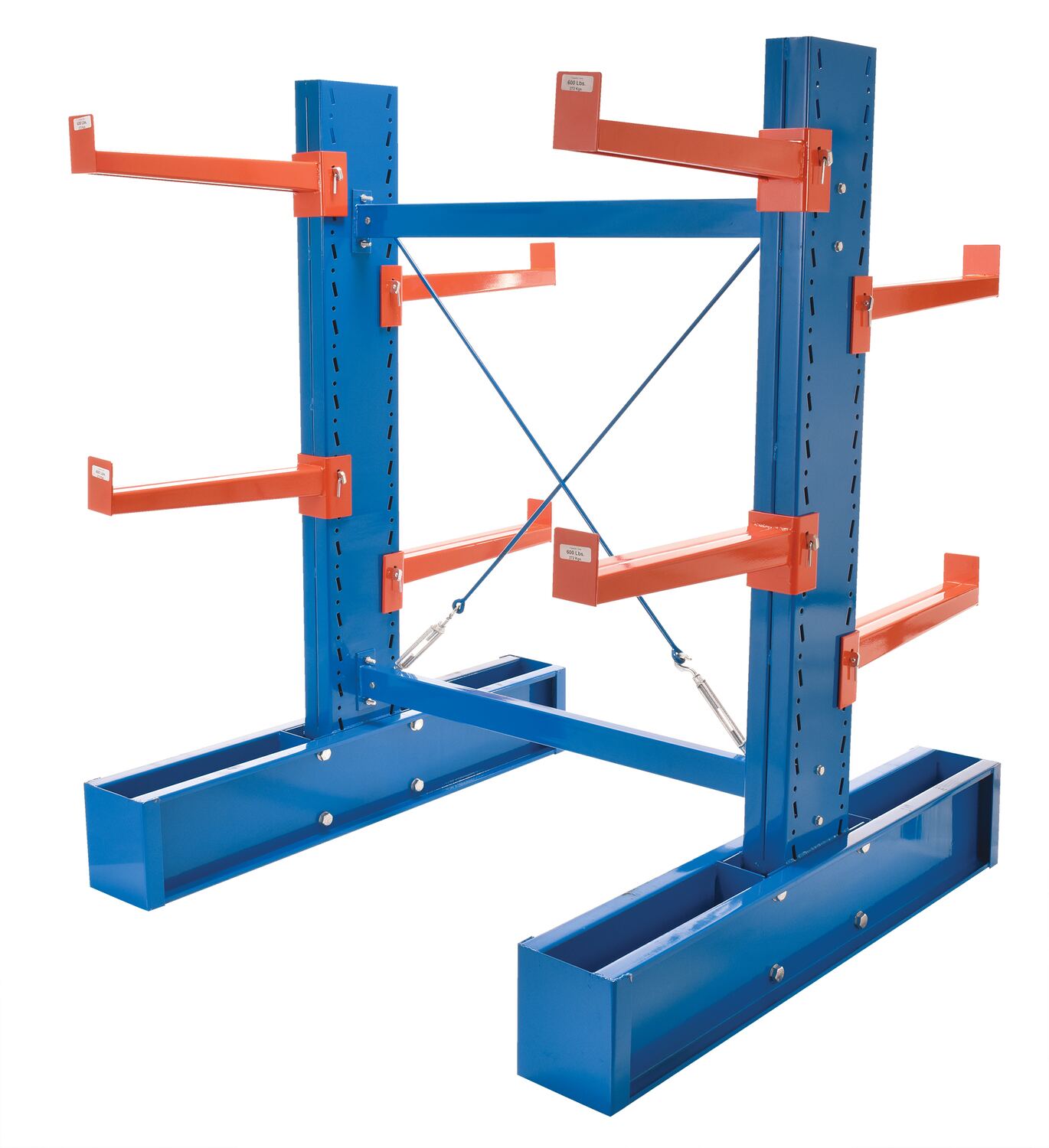

Medium-Duty Cantilever Racking
SERIES: MU,MDU

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

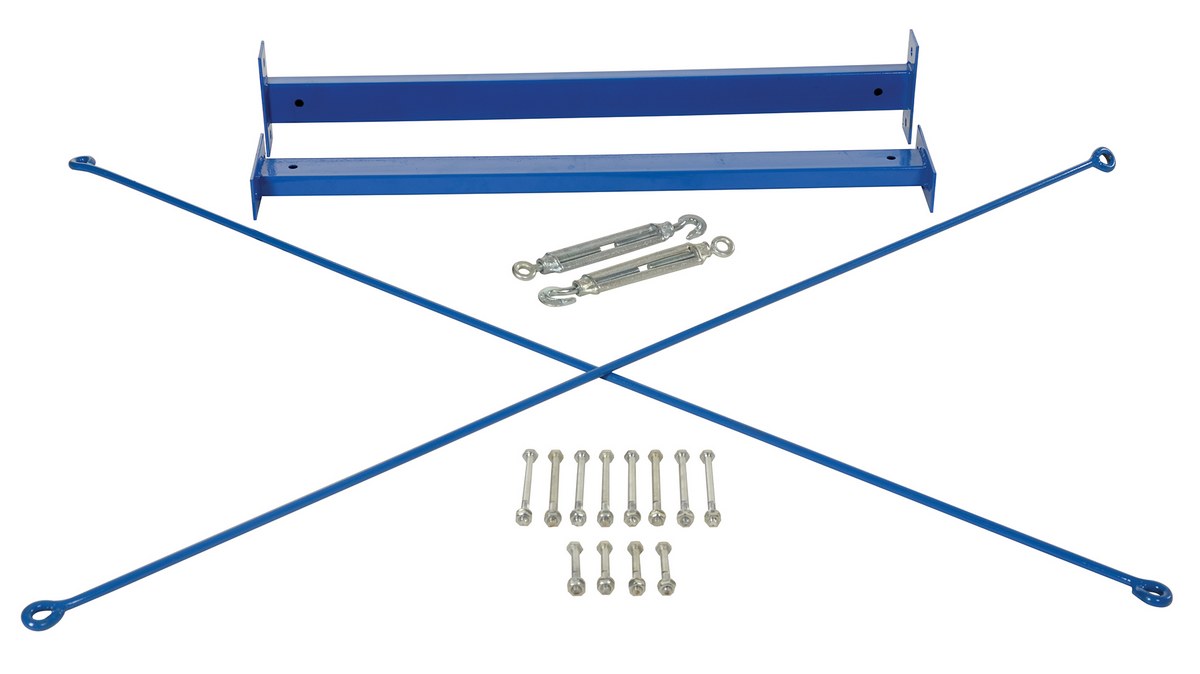

MB-C-10-36 MB-C-10-361 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
30
MB-C-10-48 MB-C-10-481 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 48 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
44
MB-C-10-60 MB-C-10-601 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 69 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
50
MB-C-10-72 MB-C-10-721 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
54
MB-C-10-96 MB-C-10-961 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
90
MB-C-6-36 MB-C-6-361 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 35 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
26
MB-C-6-48 MB-C-6-481 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 47 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
38
MB-C-6-60 MB-C-6-601 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 59 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
44
MB-C-6-72 MB-C-6-721 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
50
MB-C-6-96 MB-C-6-961 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
64
MB-C-8-36 MB-C-8-361 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
28
MB-C-8-48 MB-C-8-481 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 48 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
42
MB-C-8-60 MB-C-8-601 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 60 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
48
MB-C-8-72 MB-C-8-721 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
52
MB-C-8-96 MB-C-8-961 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
66

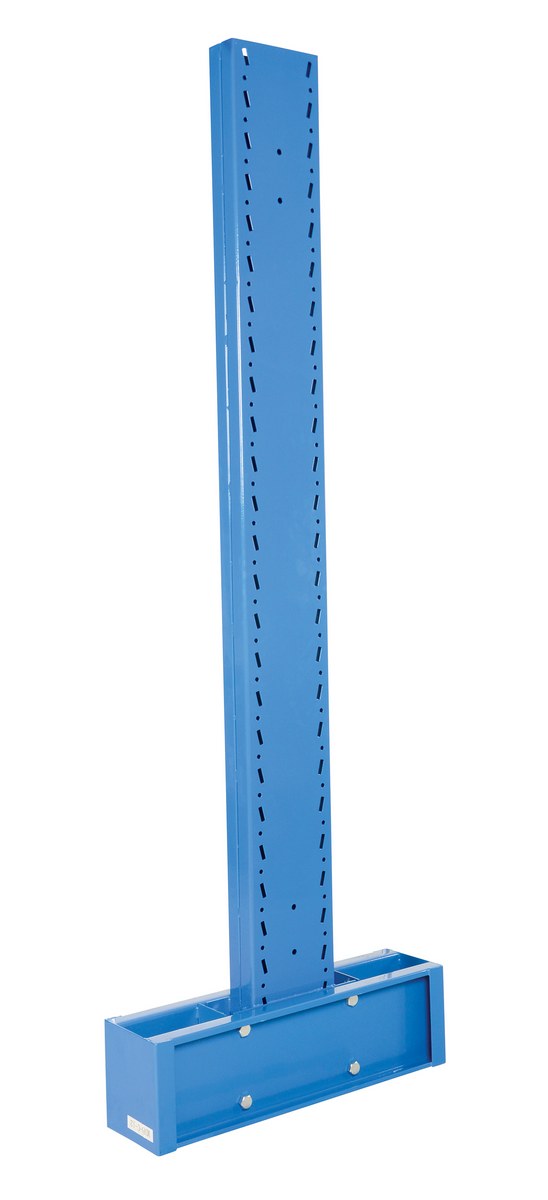

MDU-C-10-12 MDU-C-10-121 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 14,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 14,200
Base Length (in.): 34
225
MDU-C-10-18 MDU-C-10-181 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 11,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,800
Base Length (in.): 46
236
MDU-C-10-24 MDU-C-10-241 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,000
Base Length (in.): 58
249
MDU-C-10-36 MDU-C-10-361 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 8,800 or 7,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,800 or 7,600
Base Length (in.): 82
270
MDU-C-6-12 MDU-C-6-121 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 12 in. Arms 16,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16,200
Base Length (in.): 34
172
MDU-C-6-18 MDU-C-6-181 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 13,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,200
Base Length (in.): 46
183
MDU-C-6-24 MDU-C-6-241 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 11,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,000
Base Length (in.): 58
195
MDU-C-6-36 MDU-C-6-361 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,400 or 8,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,400 or 8,200
Base Length (in.): 82
215
MDU-C-8-12 MDU-C-8-121 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 15,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 15,200
Base Length (in.): 34
197
MDU-C-8-18 MDU-C-8-181 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 12,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12,600
Base Length (in.): 46
208
MDU-C-8-24 MDU-C-8-241 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,500
Base Length (in.): 58
219
MDU-C-8-36 MDU-C-8-361 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,000 or 8,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,000 or 8,000
Base Length (in.): 82
242

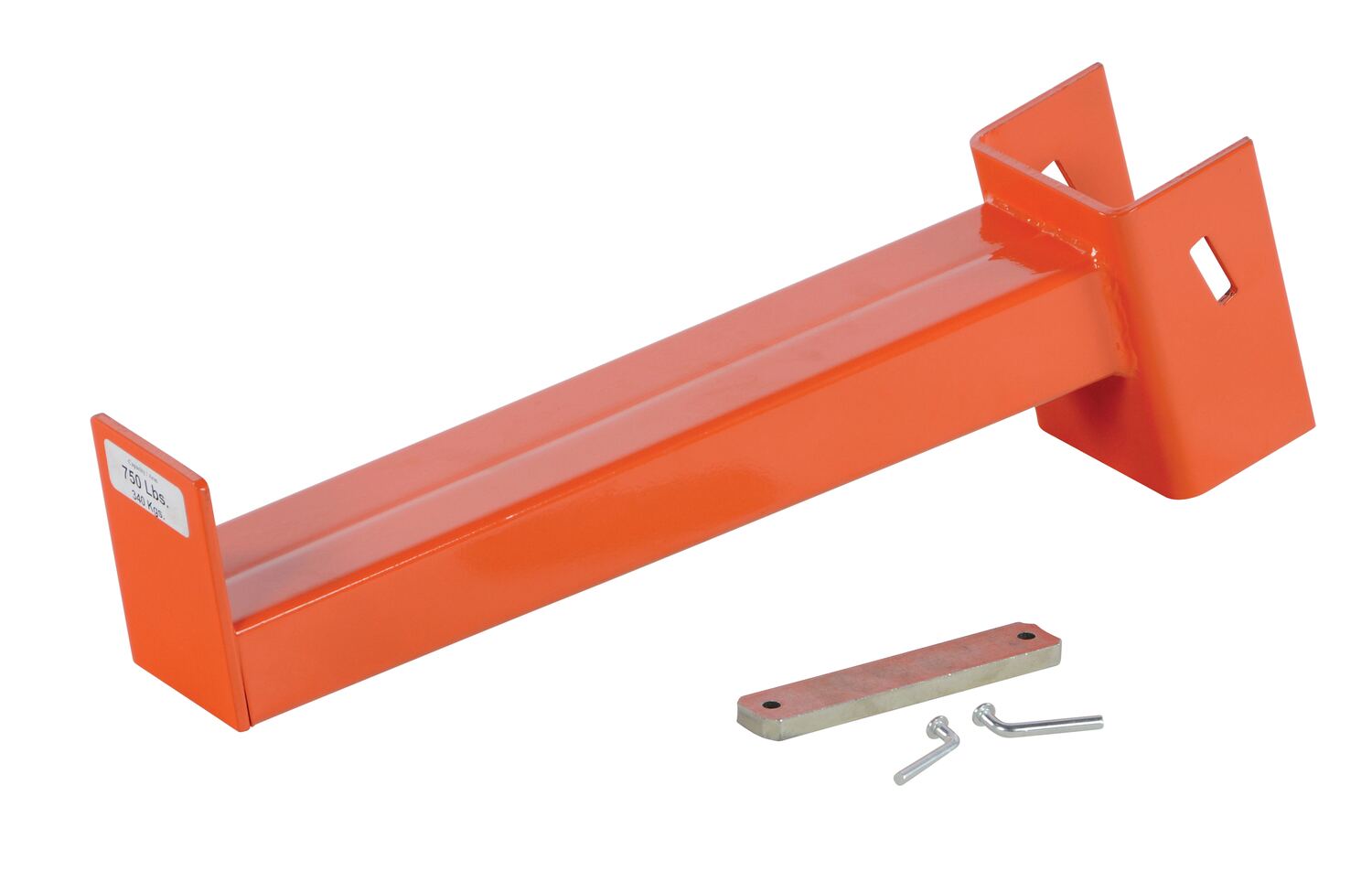

MIA-C-12 MIA-C-121 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 12 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
11
MIA-C-18 MIA-C-181 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 18 In. 750 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Incline Arm
13

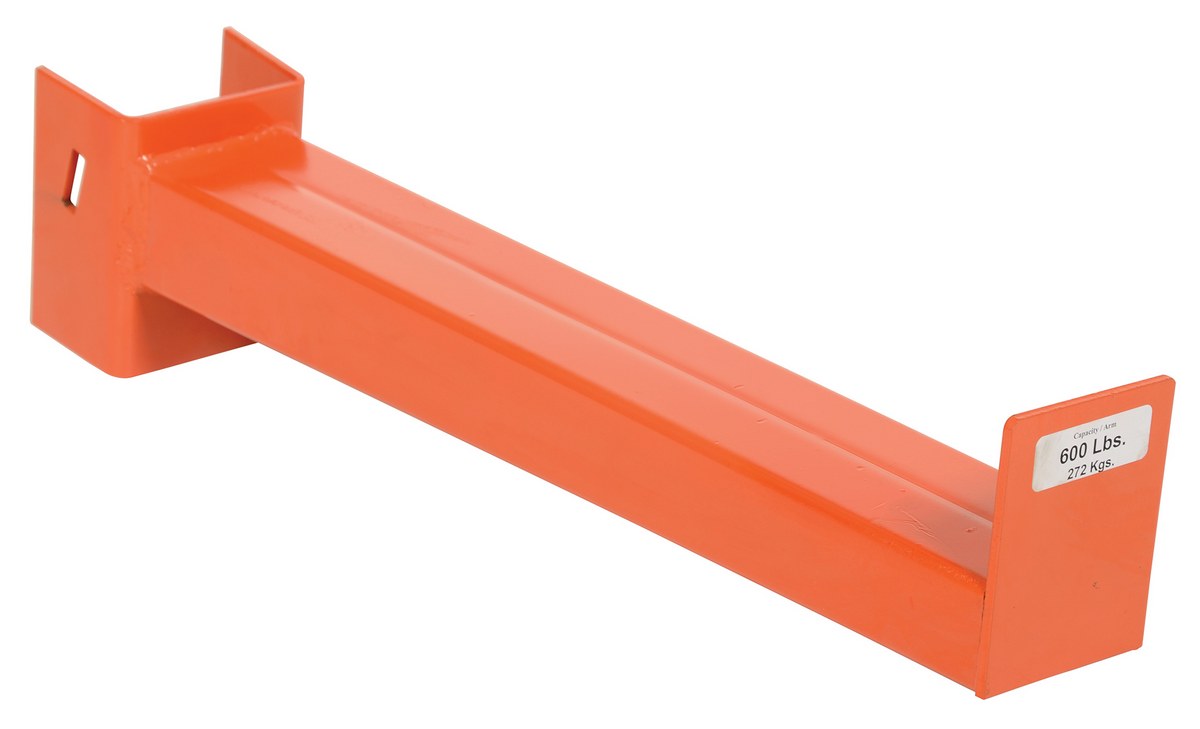

MIA-C-24 MIA-C-241 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 24 In. 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Incline Arm
15
MIA-C-30 MIA-C-301 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 30 In. 500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Incline Arm
17
MIA-C-36 MIA-C-361 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 36 In. 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Incline Arm
21
MSA-C-12 MSA-C-121 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 15 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
10
MSA-C-18 MSA-C-181 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 21 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Straight Arm
12
MSA-C-24 MSA-C-241 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 27 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Straight Arm
15
MSA-C-30 MSA-C-301 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 33 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Straight Arm
17
MSA-C-36 MSA-C-361 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 39 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Straight Arm
21

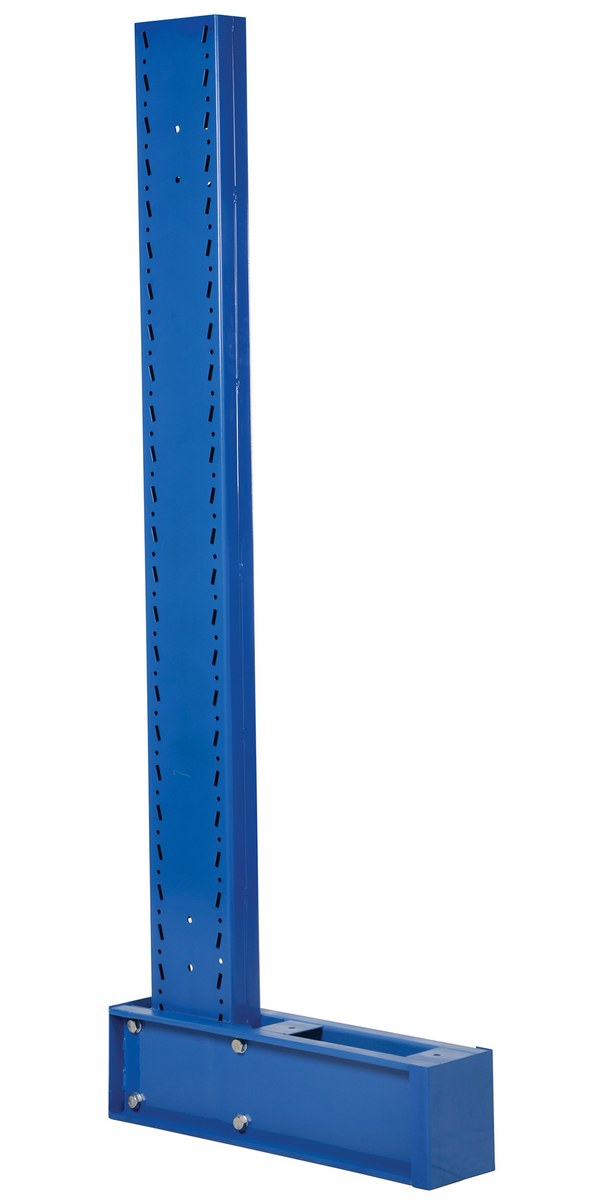

MU-C-10-12 MU-C-10-121 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 10 Ft. 7,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,100
Base Length (in.): 25-3/8
214
MU-C-10-18 MU-C-10-181 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 10 Ft. 5,900 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,900
Base Length (in.): 31
219
MU-C-10-24 MU-C-10-241 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 10 Ft. 5,000 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,000
Base Length (in.): 37
225
MU-C-10-36 MU-C-10-361 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 30 or 36 In. Arms 10 Ft. 4,400 or 3,800 Lb. Capacity BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,400 or 3,800
Base Length (in.): 49-3/8
237
MU-C-6-12 MU-C-6-121 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 6 Ft. 8,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 8,100
Base Length (in.): 25-3/8
161
MU-C-6-18 MU-C-6-181 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 6 Ft. 6,600 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 6,600
Base Length (in.): 31
164
MU-C-6-24 MU-C-6-241 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 6 Ft. 5,500 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,500
Base Length (in.): 37
170
MU-C-6-36 MU-C-6-361 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 30 or 36 In. Arms 6 Ft. 4,700 or 4,100 Lb. Capacity BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,700 or 4,100
Base Length (in.): 49-3/8
183
MU-C-8-12 MU-C-8-121 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 8 Ft. 7,600 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,600
Base Length (in.): 25-3/8
186
MU-C-8-18 MU-C-8-181 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 8 Ft. 6,300 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 6,300
Base Length (in.): 31
191
MU-C-8-24 MU-C-8-241 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 8 Ft. 5,300 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,300
Base Length (in.): 37
197
MU-C-8-36 MU-C-8-361 Year Limited WarrantySteel Medium-Duty Single Sided 24 In. Arm Set 4,500 or 4,000 Lb. Capacity Silver BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,500 or 4,000
Base Length (in.): 49-3/8
208

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

MB-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty

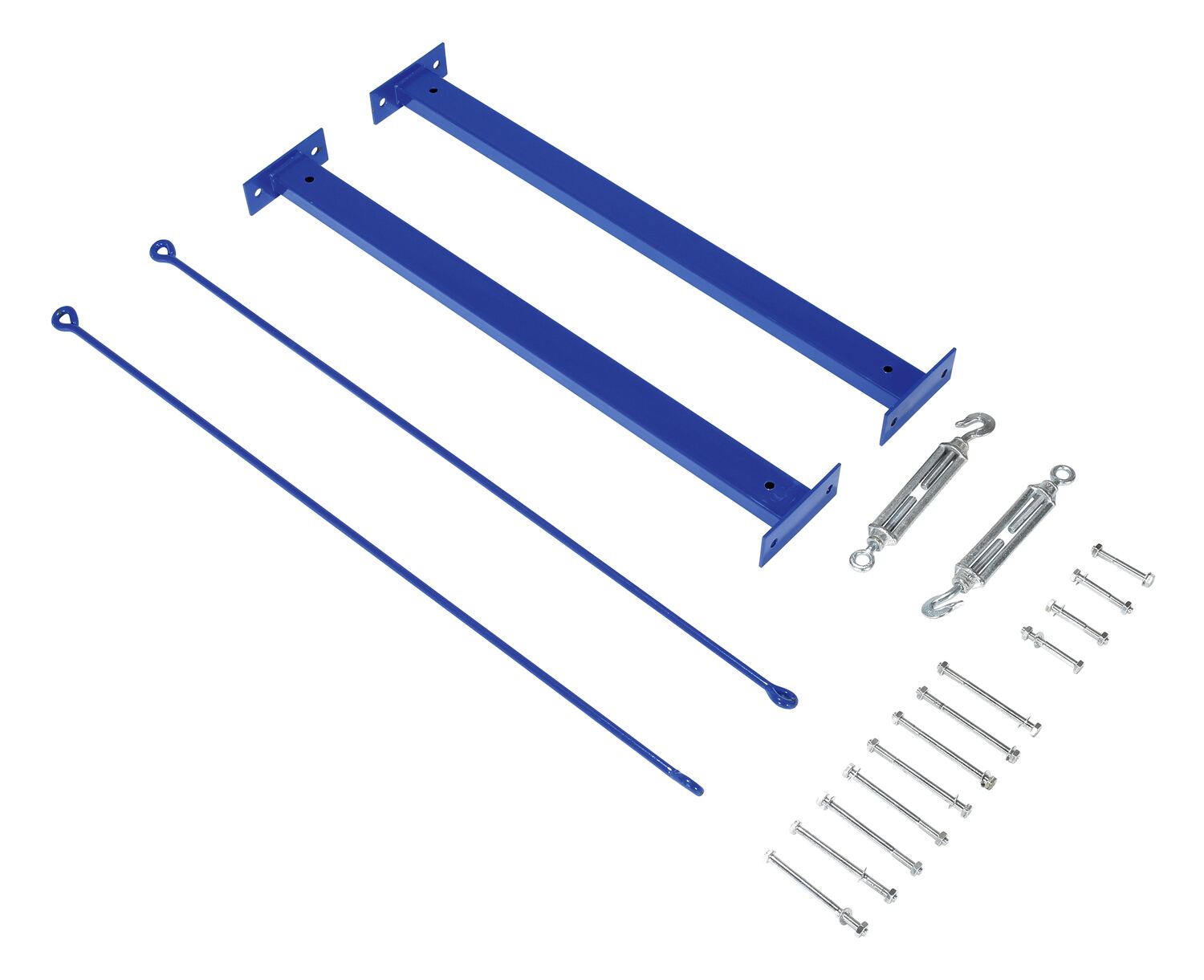

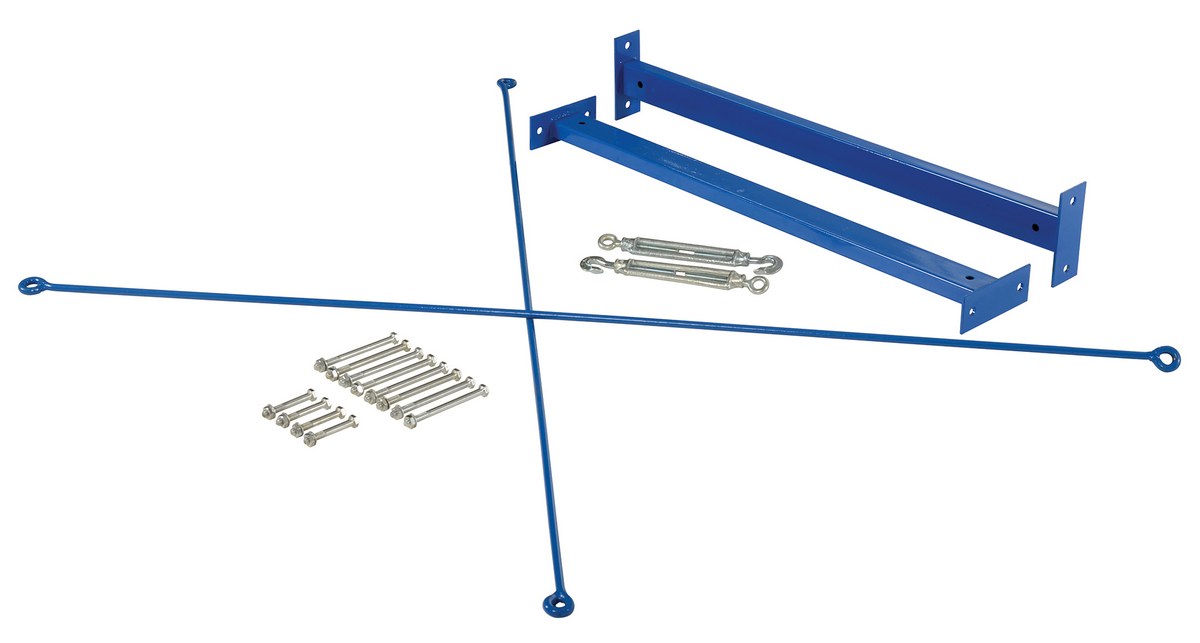

Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10

MB-C-10-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10

MB-C-10-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10

MB-C-10-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10

MB-C-10-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10

MB-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6

MB-C-6-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6

MB-C-6-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6

MB-C-6-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6

MB-C-6-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6

MB-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8

MB-C-8-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8

MB-C-8-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8

MB-C-8-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8

MB-C-8-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8

MDU-C-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 14,200
Base Length (in.): 34
Uniform Capacity per Upright (lb.): 14,200
Base Length (in.): 34

MDU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,800
Base Length (in.): 46
Uniform Capacity per Upright (lb.): 11,800
Base Length (in.): 46

MDU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 10,000
Base Length (in.): 58
Uniform Capacity per Upright (lb.): 10,000
Base Length (in.): 58

MDU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,800 or 7,600
Base Length (in.): 82
Uniform Capacity per Upright (lb.): 8,800 or 7,600
Base Length (in.): 82

MDU-C-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16,200
Base Length (in.): 34
Uniform Capacity per Upright (lb.): 16,200
Base Length (in.): 34

MDU-C-6-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,200
Base Length (in.): 46
Uniform Capacity per Upright (lb.): 13,200
Base Length (in.): 46

MDU-C-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,000
Base Length (in.): 58
Uniform Capacity per Upright (lb.): 11,000
Base Length (in.): 58

MDU-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,400 or 8,200
Base Length (in.): 82
Uniform Capacity per Upright (lb.): 9,400 or 8,200
Base Length (in.): 82

MDU-C-8-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 15,200
Base Length (in.): 34
Uniform Capacity per Upright (lb.): 15,200
Base Length (in.): 34

MDU-C-8-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 12,600
Base Length (in.): 46
Uniform Capacity per Upright (lb.): 12,600
Base Length (in.): 46

MDU-C-8-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 10,500
Base Length (in.): 58
Uniform Capacity per Upright (lb.): 10,500
Base Length (in.): 58

MDU-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,000 or 8,000
Base Length (in.): 82
Uniform Capacity per Upright (lb.): 9,000 or 8,000
Base Length (in.): 82

MIA-C-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1000
Component: Incline Arm

MIA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 750
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 750
Component: Incline Arm

MIA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 600
Component: Incline Arm

MIA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 500
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 500
Component: Incline Arm

MIA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 400
Component: Incline Arm

MSA-C-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm

MSA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 750
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 750
Component: Straight Arm

MSA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 600
Component: Straight Arm

MSA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 500
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 500
Component: Straight Arm

MSA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm

MU-C-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 7,100
Base Length (in.): 25-3/8
Uniform Capacity Per Upright (lb.): 7,100
Base Length (in.): 25-3/8

MU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,900
Base Length (in.): 31
Uniform Capacity Per Upright (lb.): 5,900
Base Length (in.): 31

MU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,000
Base Length (in.): 37
Uniform Capacity Per Upright (lb.): 5,000
Base Length (in.): 37

MU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright 30" / 36" Arm (lb.): 4,400 or 3,800
Base Length (in.): 49-3/8
Uniform Capacity Per Upright 30" / 36" Arm (lb.): 4,400 or 3,800
Base Length (in.): 49-3/8

MU-C-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 8,100
Base Length (in.): 25-3/8
Uniform Capacity Per Upright (lb.): 8,100
Base Length (in.): 25-3/8

MU-C-6-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 6,600
Base Length (in.): 31
Uniform Capacity Per Upright (lb.): 6,600
Base Length (in.): 31

MU-C-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,500
Base Length (in.): 37
Uniform Capacity Per Upright (lb.): 5,500
Base Length (in.): 37

MU-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright 30" / 36" Arm (lb.): 4,700 or 4,100
Base Length (in.): 49-3/8
Uniform Capacity Per Upright 30" / 36" Arm (lb.): 4,700 or 4,100
Base Length (in.): 49-3/8

MU-C-8-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 7,600
Base Length (in.): 25-3/8
Uniform Capacity Per Upright (lb.): 7,600
Base Length (in.): 25-3/8

MU-C-8-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 6,300
Base Length (in.): 31
Uniform Capacity Per Upright (lb.): 6,300
Base Length (in.): 31

MU-C-8-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,300
Base Length (in.): 37
Uniform Capacity Per Upright (lb.): 5,300
Base Length (in.): 37

MU-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright 30" / 36" Arm (lb.): 4,500 or 4,000
Base Length (in.): 49-3/8
Uniform Capacity Per Upright 30" / 36" Arm (lb.): 4,500 or 4,000
Base Length (in.): 49-3/8

Medium-Duty Cantilever Racking PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


MB-C-6-36

MB-C-6-48

MB-C-6-60

MB-C-6-72

MB-C-6-96

MB-C-8-36

MB-C-8-48

MB-C-8-60

MB-C-8-72

MB-C-8-96

MB-C-10-36

MB-C-10-48

MB-C-10-60

MB-C-10-72

MB-C-10-96

MDU-C-6-12

MDU-C-6-18

MDU-C-6-24

MDU-C-6-36

MDU-C-8-12

MDU-C-8-18

MDU-C-8-24

MDU-C-8-36

MDU-C-10-12

MDU-C-10-18

MDU-C-10-24

MDU-C-10-36

MIA-C-12

MIA-C-18

MIA-C-24

MIA-C-30

MIA-C-36

MSA-C-12

MSA-C-18

MSA-C-24

MSA-C-30

MSA-C-36

MU-C-6-12

MU-C-6-18

MU-C-6-24

MU-C-6-36

MU-C-8-12

MU-C-8-18

MU-C-8-24

MU-C-8-36

MU-C-10-12

MU-C-10-18

MU-C-10-24

MU-C-10-36

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What type of paint is used on the racking? We'd like to use it outdoors

A: The powder used for the cantilever racking is not suitable for outdoor use.


Q: Is the hardware for the cantilever racking metric?

A: Yes, the hardware for the cantilever racking is metric.


Q: What is the height of the lip?

A: Lip height is 3-1/8" usable height.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Medium-Duty Cantilever Racking




Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.



Model # Description Attributes Net Wt.
(lbs)
MB-C-10-36 MB-C-10-36Steel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
30
MB-C-10-48 MB-C-10-48Steel Medium Duty Cantilever Brace Set 48 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
44
MB-C-10-60 MB-C-10-60Steel Medium Duty Cantilever Brace Set 69 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
50
MB-C-10-72 MB-C-10-72Steel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
54
MB-C-10-96 MB-C-10-96Steel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
90
MB-C-6-36 MB-C-6-36Steel Medium Duty Cantilever Brace Set 35 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
26
MB-C-6-48 MB-C-6-48Steel Medium Duty Cantilever Brace Set 47 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
38
MB-C-6-60 MB-C-6-60Steel Medium Duty Cantilever Brace Set 59 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
44
MB-C-6-72 MB-C-6-72Steel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
50
MB-C-6-96 MB-C-6-96Steel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
64
MB-C-8-36 MB-C-8-36Steel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
28
MB-C-8-48 MB-C-8-48Steel Medium Duty Cantilever Brace Set 48 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
42
MB-C-8-60 MB-C-8-60Steel Medium Duty Cantilever Brace Set 60 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
48
MB-C-8-72 MB-C-8-72Steel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
52
MB-C-8-96 MB-C-8-96Steel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
66
MDU-C-10-12 MDU-C-10-12Steel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 14,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 14,200
Base Length (in.): 34
225
MDU-C-10-18 MDU-C-10-18Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 11,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,800
Base Length (in.): 46
236
MDU-C-10-24 MDU-C-10-24Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,000
Base Length (in.): 58
249
MDU-C-10-36 MDU-C-10-36Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 8,800 or 7,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,800 or 7,600
Base Length (in.): 82
270
MDU-C-6-12 MDU-C-6-12Steel Medium Duty Double Sided Cantilever Upright for 12 in. Arms 16,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16,200
Base Length (in.): 34
172
MDU-C-6-18 MDU-C-6-18Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 13,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,200
Base Length (in.): 46
183
MDU-C-6-24 MDU-C-6-24Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 11,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,000
Base Length (in.): 58
195
MDU-C-6-36 MDU-C-6-36Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,400 or 8,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,400 or 8,200
Base Length (in.): 82
215
MDU-C-8-12 MDU-C-8-12Steel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 15,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 15,200
Base Length (in.): 34
197
MDU-C-8-18 MDU-C-8-18Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 12,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12,600
Base Length (in.): 46
208
MDU-C-8-24 MDU-C-8-24Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,500
Base Length (in.): 58
219
MDU-C-8-36 MDU-C-8-36Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,000 or 8,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,000 or 8,000
Base Length (in.): 82
242
MIA-C-12 MIA-C-12Steel Medium Duty Cantilever 10 Degree Incline Arm 12 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
11
MIA-C-18 MIA-C-18Steel Medium Duty Cantilever 10 Degree Incline Arm 18 In. 750 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Incline Arm
13
MIA-C-24 MIA-C-24Steel Medium Duty Cantilever 10 Degree Incline Arm 24 In. 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Incline Arm
15
MIA-C-30 MIA-C-30Steel Medium Duty Cantilever 10 Degree Incline Arm 30 In. 500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Incline Arm
17
MIA-C-36 MIA-C-36Steel Medium Duty Cantilever 10 Degree Incline Arm 36 In. 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Incline Arm
21
MSA-C-12 MSA-C-12Steel Medium Duty Cantilever Racking Straight Arm 15 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
10
MSA-C-18 MSA-C-18Steel Medium Duty Cantilever Racking Straight Arm 21 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Straight Arm
12
MSA-C-24 MSA-C-24Steel Medium Duty Cantilever Racking Straight Arm 27 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Straight Arm
15
MSA-C-30 MSA-C-30Steel Medium Duty Cantilever Racking Straight Arm 33 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Straight Arm
17
MSA-C-36 MSA-C-36Steel Medium Duty Cantilever Racking Straight Arm 39 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Straight Arm
21
MU-C-10-12 MU-C-10-12Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 10 Ft. 7,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,100
Base Length (in.): 25-3/8
214
MU-C-10-18 MU-C-10-18Steel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 10 Ft. 5,900 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,900
Base Length (in.): 31
219
MU-C-10-24 MU-C-10-24Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 10 Ft. 5,000 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,000
Base Length (in.): 37
225
MU-C-10-36 MU-C-10-36Steel Medium-Duty Single Sided Cantilever Uprights for 30 or 36 In. Arms 10 Ft. 4,400 or 3,800 Lb. Capacity BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,400 or 3,800
Base Length (in.): 49-3/8
237
MU-C-6-12 MU-C-6-12Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 6 Ft. 8,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 8,100
Base Length (in.): 25-3/8
161
MU-C-6-18 MU-C-6-18Steel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 6 Ft. 6,600 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 6,600
Base Length (in.): 31
164
MU-C-6-24 MU-C-6-24Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 6 Ft. 5,500 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,500
Base Length (in.): 37
170
MU-C-6-36 MU-C-6-36Steel Medium-Duty Single Sided Cantilever Uprights for 30 or 36 In. Arms 6 Ft. 4,700 or 4,100 Lb. Capacity BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,700 or 4,100
Base Length (in.): 49-3/8
183
MU-C-8-12 MU-C-8-12Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 8 Ft. 7,600 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,600
Base Length (in.): 25-3/8
186
MU-C-8-18 MU-C-8-18Steel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 8 Ft. 6,300 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 6,300
Base Length (in.): 31
191
MU-C-8-24 MU-C-8-24Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 8 Ft. 5,300 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,300
Base Length (in.): 37
197
MU-C-8-36 MU-C-8-36Steel Medium-Duty Single Sided 24 In. Arm Set 4,500 or 4,000 Lb. Capacity Silver BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,500 or 4,000
Base Length (in.): 49-3/8
208


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
