Open Deck Machinery Dollies

- - - -

Description
Model Chart
PDF's
Image Gallery
ODMD-2436-10_A.jpg ODMD-2436-10_B.jpg ODMD-2436-10_C.jpg ODMD-2436-10_D.jpg

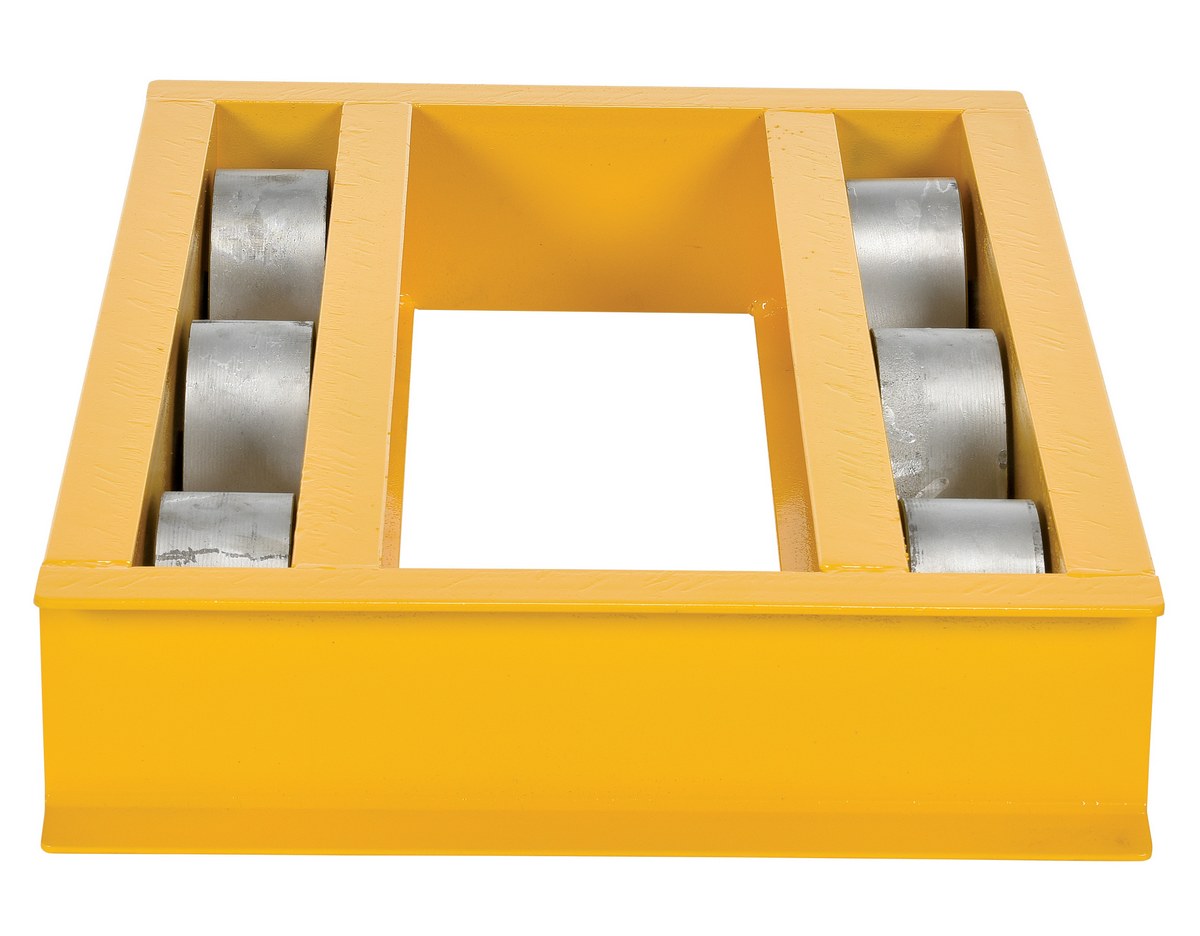

Open Deck Machinery Dollies

model: ODMD-2436-10



Featured Industrial Carts & Dollies


Economical Pallet & Container Transporters
Hi-Duty & Hi-Frame Stockpicker Trucks
Electrician Cart
Panel Cart
A-Frame Carts
Off-Road Hand Truck
Pneumatic Tire Steel Platform Trucks
Luggage Carts
Double & Triple Decker Hardwood Platform Carts
model chart

Product Family Overview

Print Friendly
Open Deck Machinery Dollies
SERIES: ODMD

Dollies have six abrasion-resistant, high-capacity cast iron steel wheels on fixed axles to move heavy machinery, containers, and other equipment. The center wheels project lower than end wheels for easier pivoting. Welded steel construction. Model 6,000 lb. models have a 3" channel steel frame; 5" x 2" cast iron wheels have roller bearings. 10,000 lb. models have a 6" channel steel frame; 8" x 3" cast iron wheels have roller bearings. Durable baked-in powder coat finish for added toughness.

Dollies have six abrasion-resistant, high-capacity cast iron steel wheels on fixed axles to move heavy machinery, containers, and other equipment. The center wheels project lower than end wheels for easier pivoting. Welded steel construction. Model 6,000 lb. models have a 3" channel steel frame; 5" x 2" cast iron wheels have roller bearings. 10,000 lb. models have a 6" channel steel frame; 8" x 3" cast iron wheels have roller bearings. Durable baked-in powder coat finish for added toughness.

Other Machine Rollers & Lifts

 Machinery Lifts Open Deck Machinery Dollies Cast Aluminum Dollies Machinery Skates

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ODMD-2436-10 ODMD-2436-1090 Days Limited WarrantySteel Open Deck Machinery Dolly 36 In. x 24 In. x 8-1/2 In. 10,000 Lb. Capacity YellowUniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 9-3/16		249
ODMD-2436-6 ODMD-2436-690 Days Limited WarrantySteel Open Deck Machinery Dolly 36 In. x 24 In. x 6-1/4 In. 6,000 Lb. Capacity YellowUniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2		149
ODMD-3048-10 ODMD-3048-1090 Days Limited WarrantySteel Open Deck Machinery Dolly 48 In. x 30 In. x 8-1/2 In. 10,000 Lb. Capacity YellowUniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 15-3/16		295
ODMD-3048-6 ODMD-3048-690 Days Limited WarrantySteel Open Deck Machinery Dolly 48 In. x 30 In. x 6-1/4 In. 6,000 Lb. Capacity YellowUniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 18-1/2		290
ODMD-3660-10 ODMD-3660-1090 Days Limited WarrantySteel Open Deck Machinery Dolly 60 In. x 36 In. x 8-1/2 In. 10,000 Lb. Capacity YellowUniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16		328
ODMD-3660-6 ODMD-3660-690 Days Limited WarrantySteel Open Deck Machinery Dolly 60 In. x 36 In. x 6-1/4 In. 6,000 Lb. Capacity YellowUniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 24-1/2		348

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ODMD-2436-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 9-3/16
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 9-3/16

ODMD-2436-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2

ODMD-3048-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 15-3/16
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 15-3/16

ODMD-3048-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 18-1/2
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 18-1/2

ODMD-3660-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16

ODMD-3660-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 24-1/2
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 24-1/2
Open Deck Machinery Dollies PDF's will open in a new window when clicked.

Manuals


ODMD
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ODMD-2436-10

ODMD-2436-6

ODMD-3048-10

ODMD-3048-6

ODMD-3660-10

ODMD-3660-6

Testing Certificates


ODMD-2436-10

ODMD-2436-6

ODMD-3048-10

ODMD-3048-6

ODMD-3660-10

ODMD-3660-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
