Product Family Overview

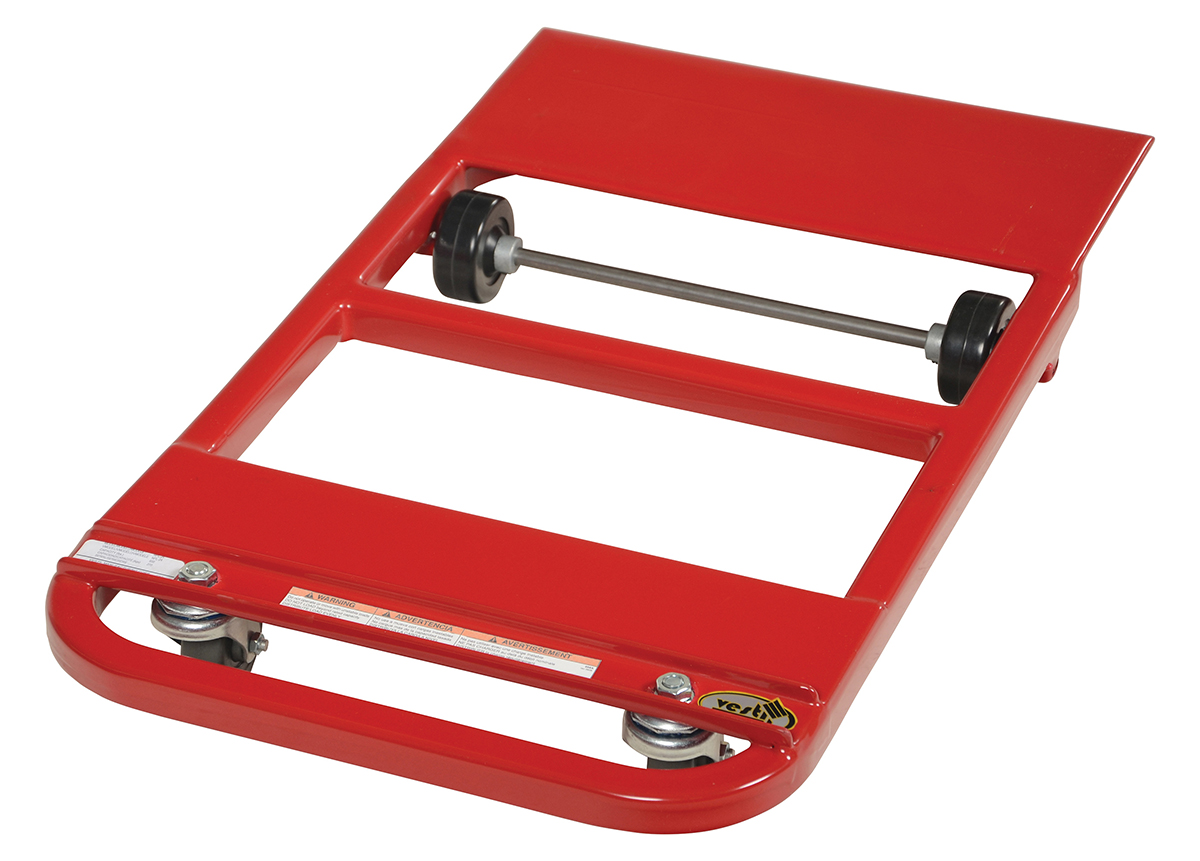

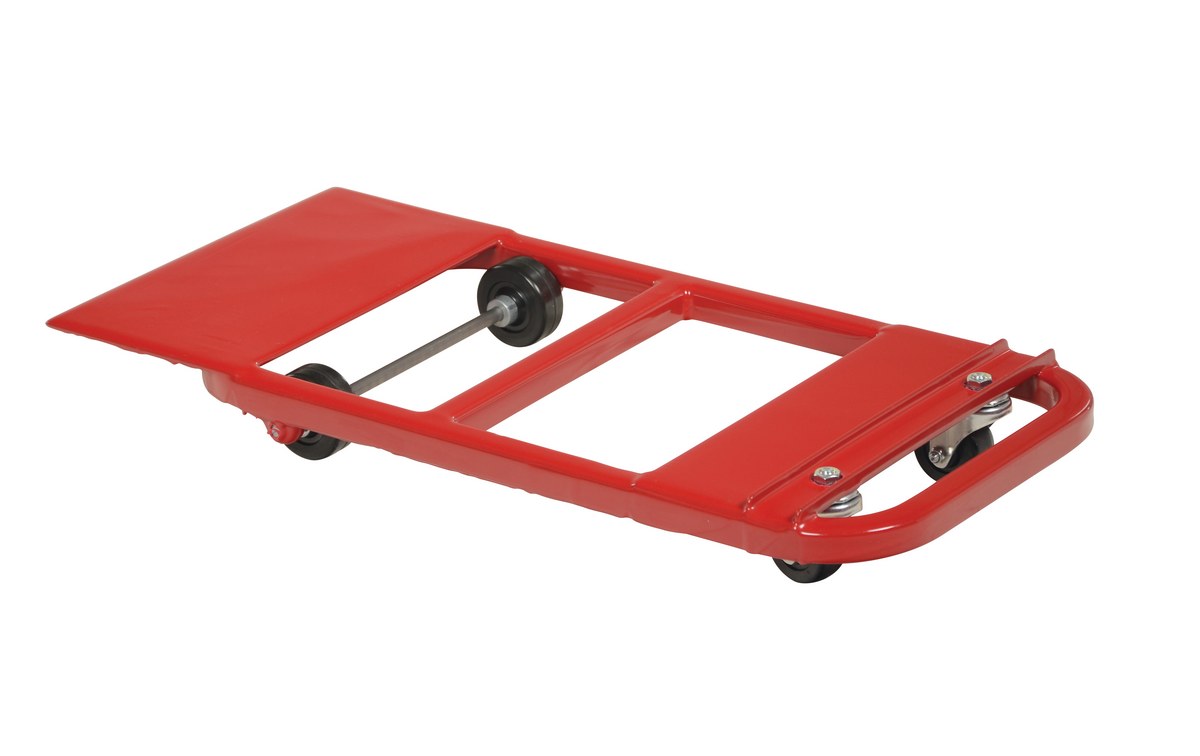

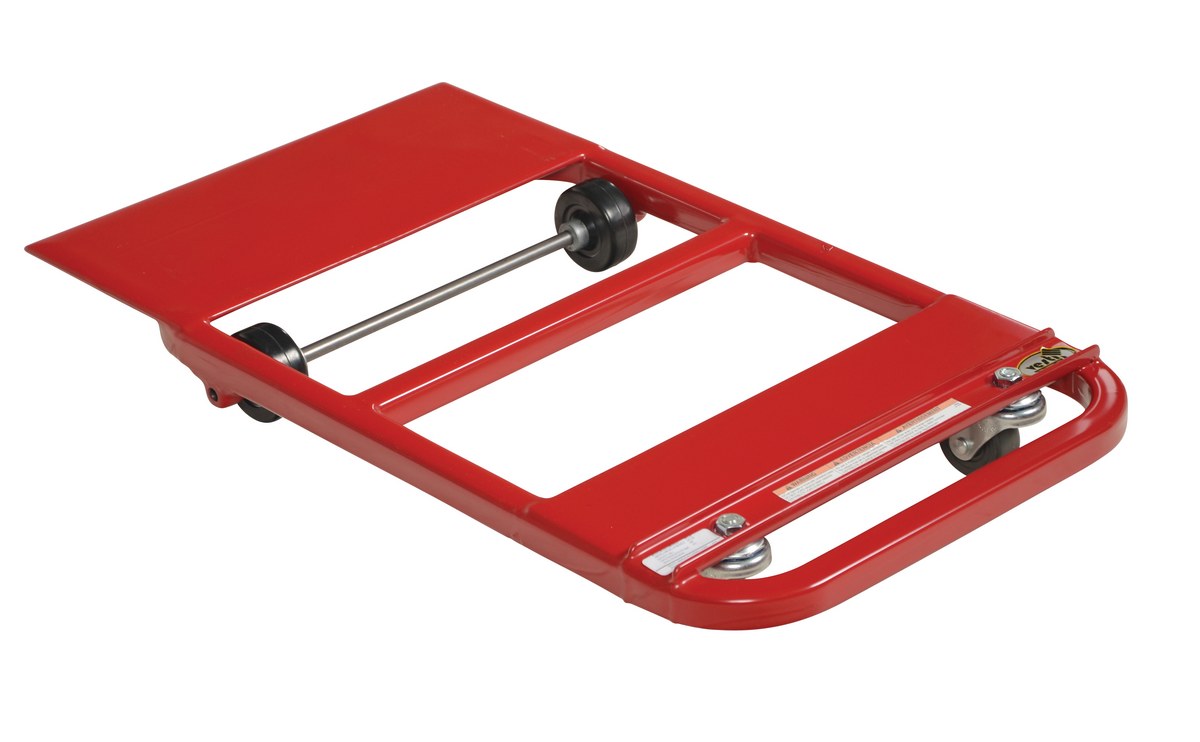

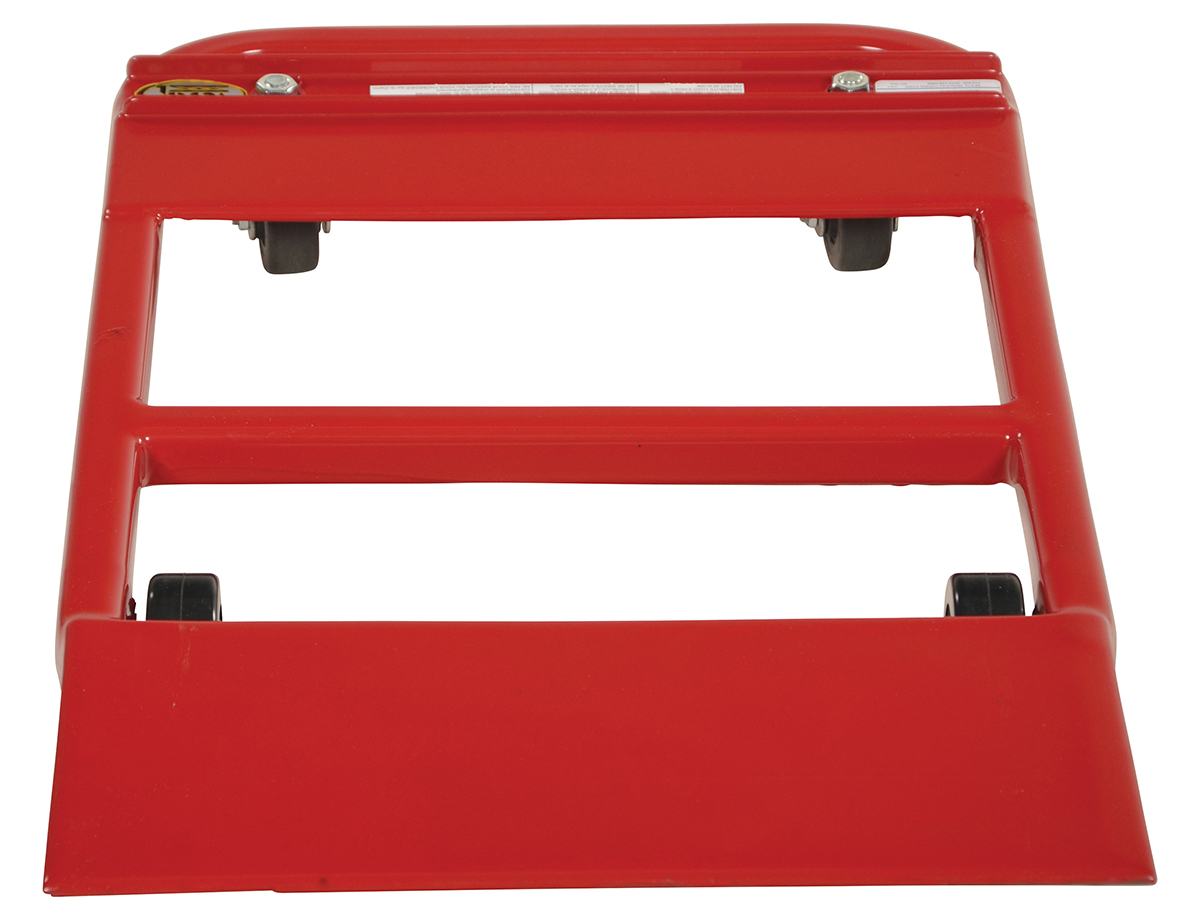

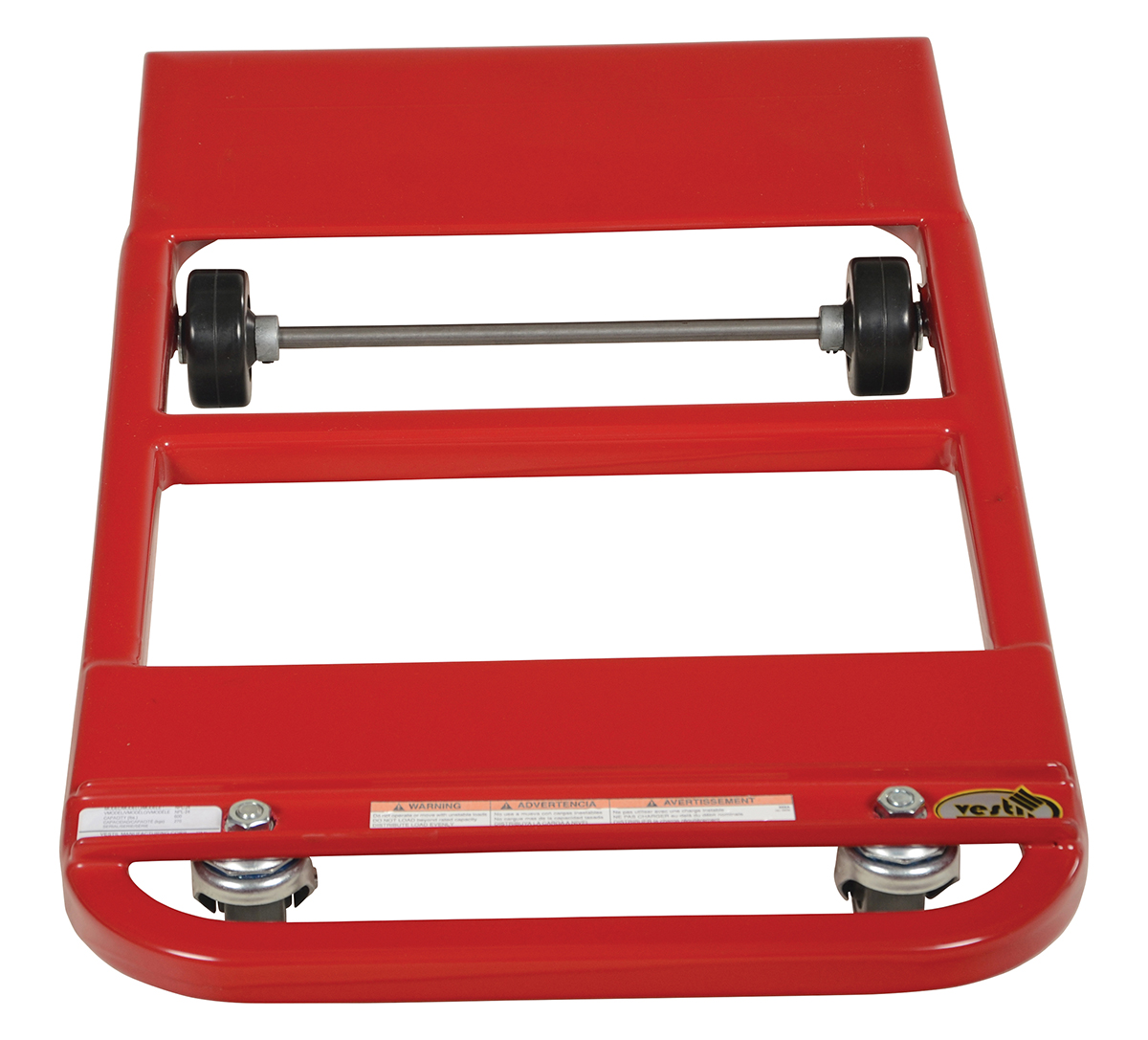

Nose Plate Dollies
SERIES: NPL

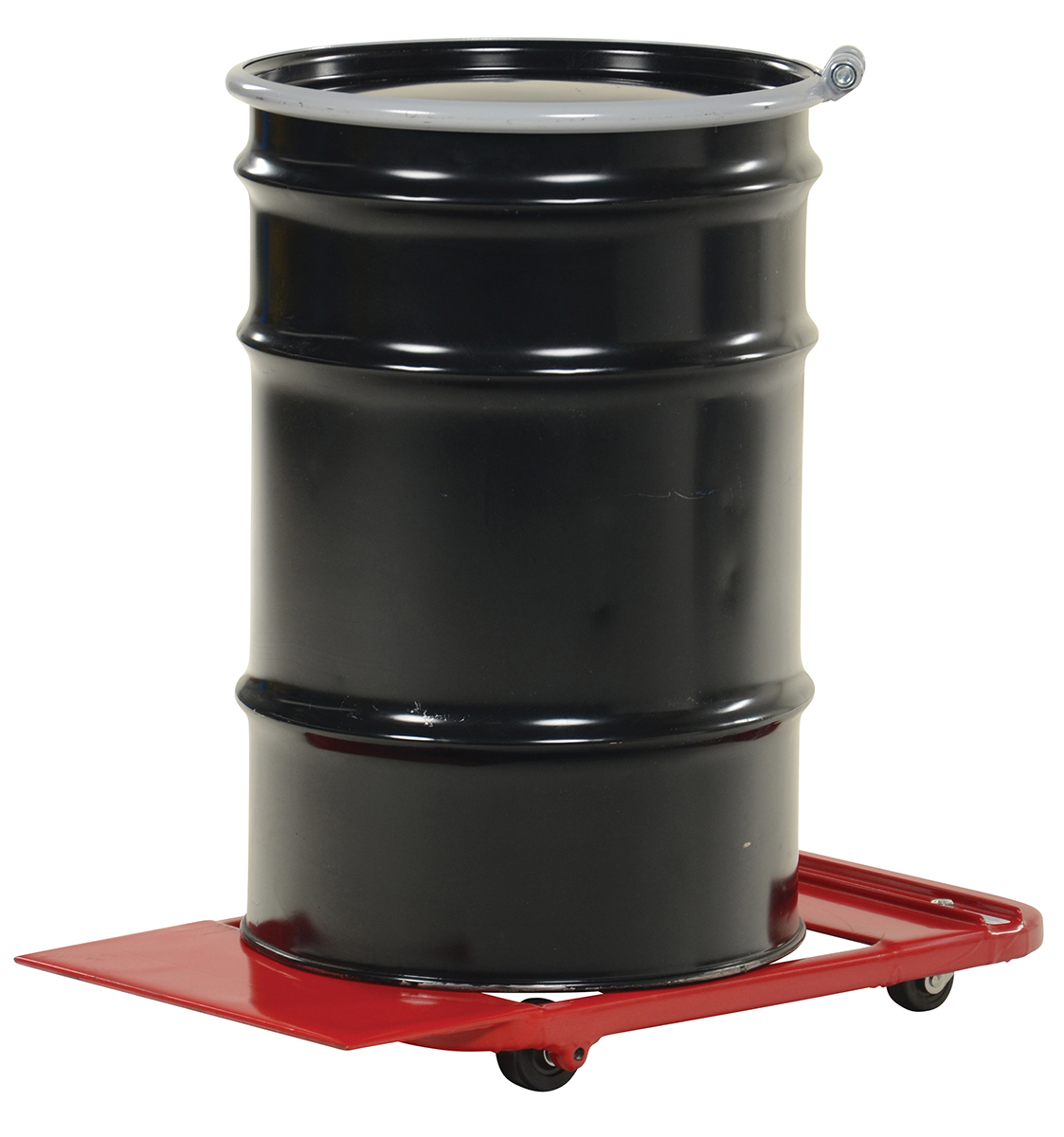

This Nose Plate Dolly has lever action and is excellent for moving file cabinets, appliances, drums, crates and cartons. Heavy-duty steel dolly is designed to be counterbalanced so you do not need to lift the entire weight of the load. Simply tilt the load and slide dolly under. Complete product is vinyl covered to help eliminate scrapes and scratches. Equipped with hard rubber wheels (2) 3" x 1-1/2" axle mounted and (2) 2-1/2" x 1-1/4" swivel casters.

  • Lever action design is excellent for moving file cabinets, appliances, drums, crates and cartons
  • Vinyl covering helps eliminate scrapes and scratches
  • Counterbalance design supports part of the load
  • Wheels and casters roll smoothly with heavy loads

NPL-21

This Nose Plate Dolly has lever action and is excellent for moving file cabinets, appliances, drums, crates and cartons. Heavy-duty steel dolly is designed to be counterbalanced so you do not need to lift the entire weight of the load. Simply tilt the load and slide dolly under. Complete product is vinyl covered to help eliminate scrapes and scratches. Equipped with hard rubber wheels (2) 3" x 1-1/2" axle mounted and (2) 2-1/2" x 1-1/4" swivel casters.

  • Lever action design is excellent for moving file cabinets, appliances, drums, crates and cartons
  • Vinyl covering helps eliminate scrapes and scratches
  • Counterbalance design supports part of the load
  • Wheels and casters roll smoothly with heavy loads

NPL-21

Additional Models In This Family

NPL-21

model NPL-21

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
NPL-21 NPL-2130 Days Limited WarrantySteel Nose Plate Dolly 32 In. x 15-1/4 In. x 3-3/4 In. 600 Lb. Capacity RedUniform Static Capacity (lb.): 600
Deck Width (in.): 15
20
NPL-24 NPL-2430 Days Limited WarrantySteel Nose Plate Dolly 32 In. x 18 In. x 3-3/4 In. 600 Lb. Capacity RedUniform Static Capacity (lb.): 600
Deck Width (in.): 18
23

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

NPL-21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 600
Deck Width (in.): 15
Uniform Static Capacity (lb.): 600
Deck Width (in.): 15

NPL-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 600
Deck Width (in.): 18
Uniform Static Capacity (lb.): 600
Deck Width (in.): 18

Nose Plate Dollies PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


NPL-21

NPL-24

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Nose Plate Dollies




This Nose Plate Dolly has lever action and is excellent for moving file cabinets, appliances, drums, crates and cartons. Heavy-duty steel dolly is designed to be counterbalanced so you do not need to lift the entire weight of the load. Simply tilt the load and slide dolly under. Complete product is vinyl covered to help eliminate scrapes and scratches. Equipped with hard rubber wheels (2) 3" x 1-1/2" axle mounted and (2) 2-1/2" x 1-1/4" swivel casters.

  • Lever action design is excellent for moving file cabinets, appliances, drums, crates and cartons
  • Vinyl covering helps eliminate scrapes and scratches
  • Counterbalance design supports part of the load
  • Wheels and casters roll smoothly with heavy loads

NPL-21



Model # Description Attributes Net Wt.
(lbs)
NPL-21 NPL-21Steel Nose Plate Dolly 32 In. x 15-1/4 In. x 3-3/4 In. 600 Lb. Capacity RedUniform Static Capacity (lb.): 600
Deck Width (in.): 15
20
NPL-24 NPL-24Steel Nose Plate Dolly 32 In. x 18 In. x 3-3/4 In. 600 Lb. Capacity RedUniform Static Capacity (lb.): 600
Deck Width (in.): 18
23
